APOE03G-C

APOE03G-C

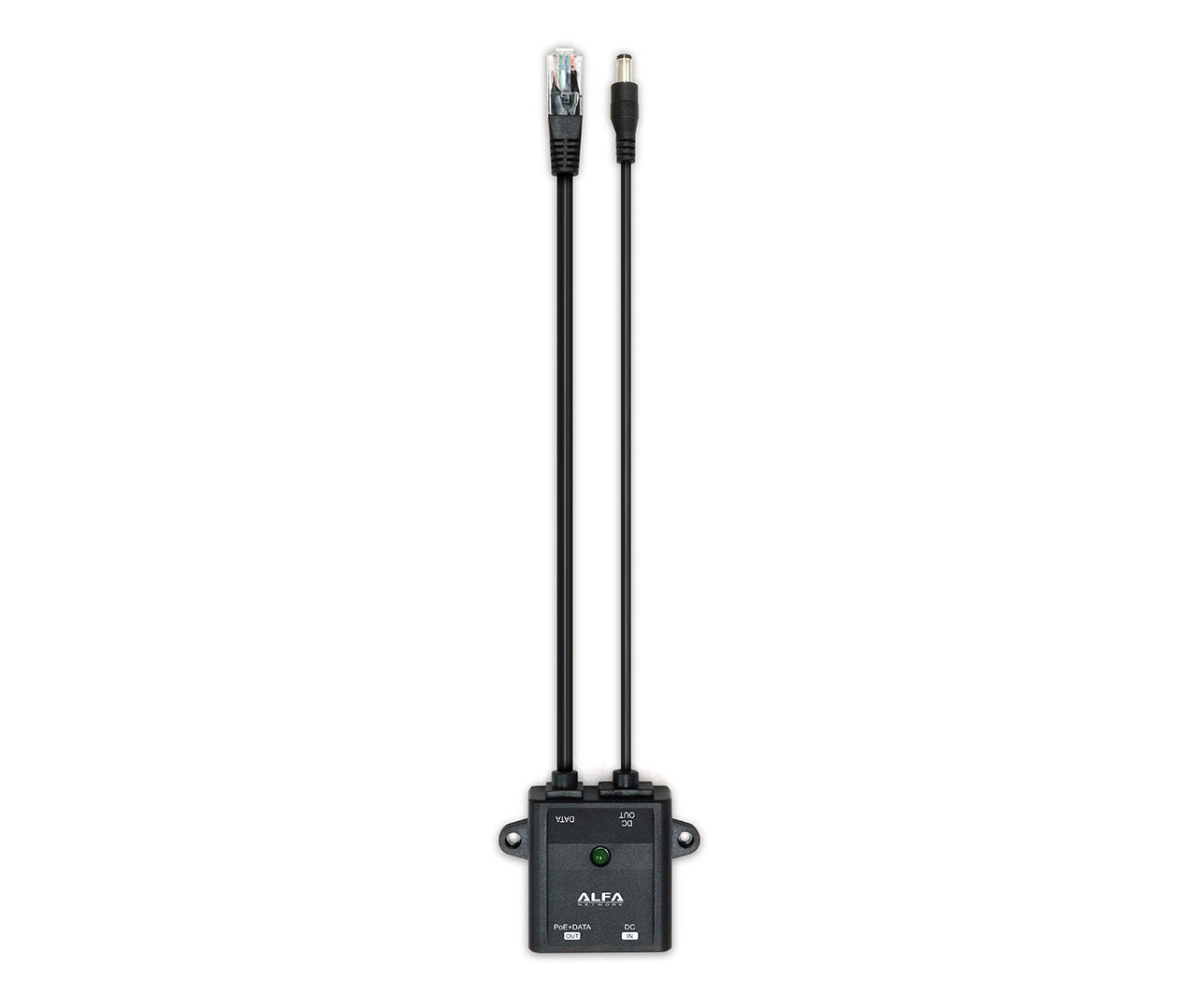

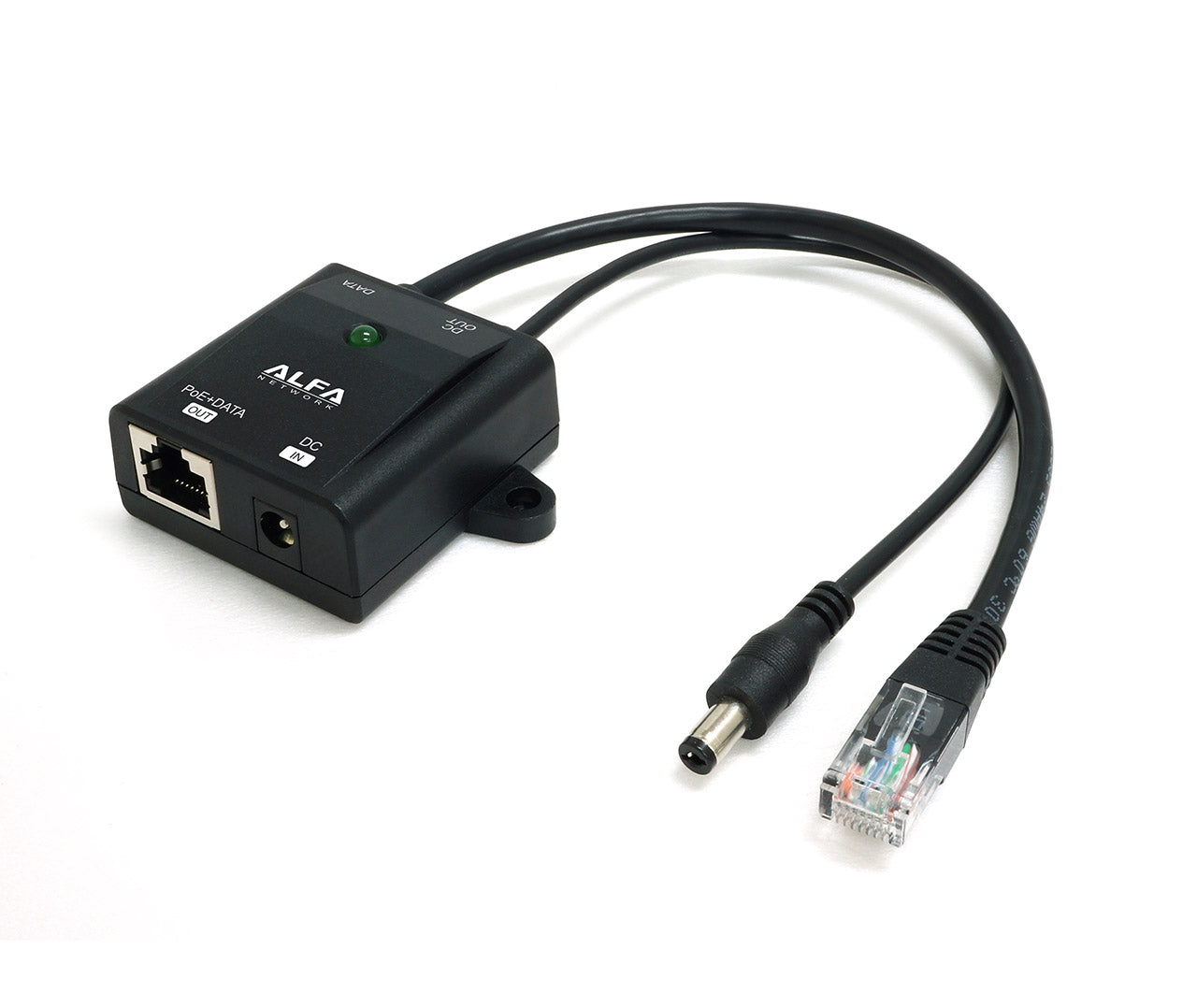

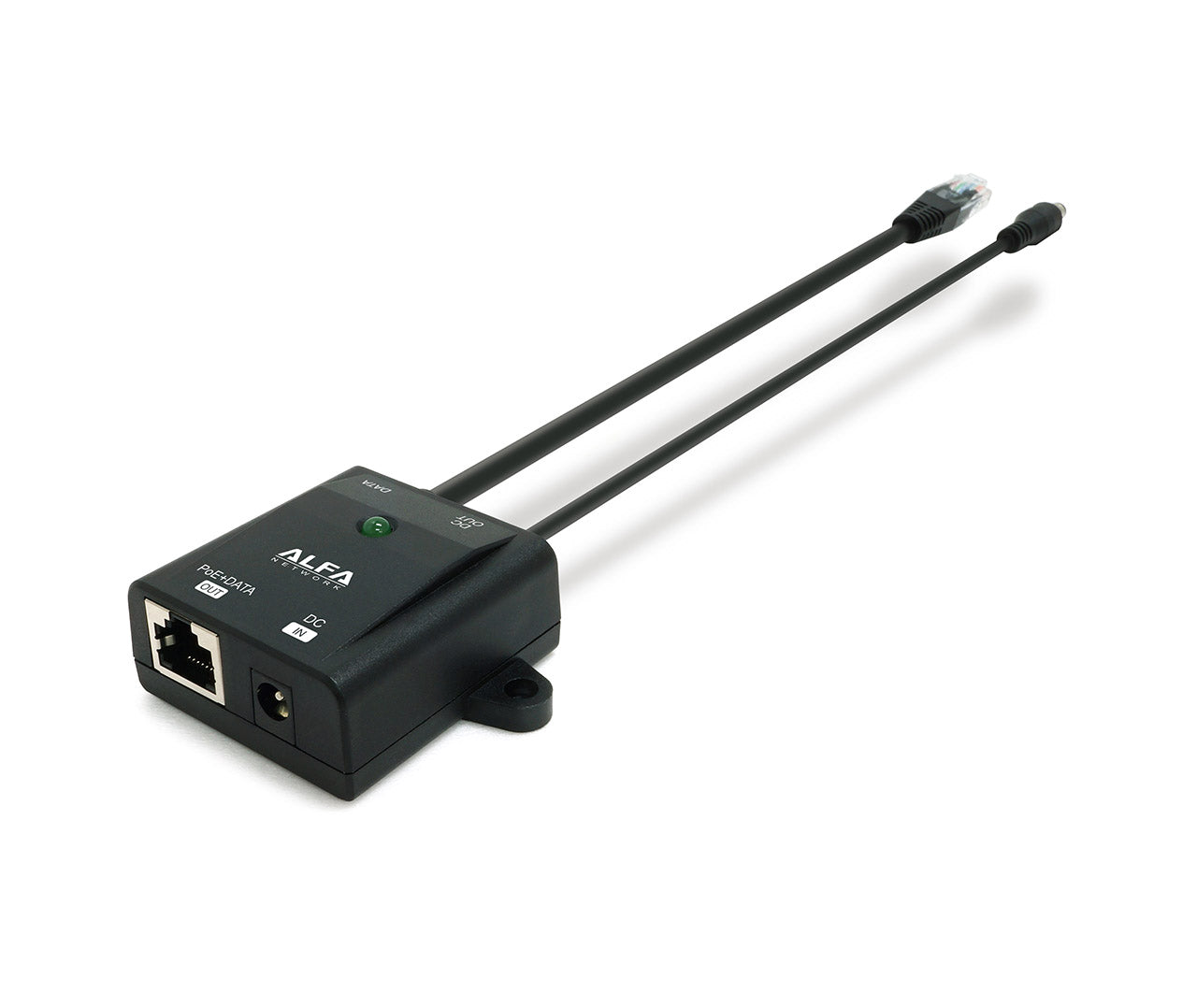

Passive PoE adapter




APOE03G-C is the passive PoE adapter to power both R36A and Tube ethernet series through the single power source. With Tube ethernet series, it give install flexible that can run 100 meters ethernet cable not like Tube USB series limit by 5-8 meters USB cable length.

LAN Port 10/100/1000 Gigabit
DC Jack Input Yes
DC Output for Indoor Device 200mm length DC plug cable
Data for Indoor Device 200mm length ethernet cat5e cable
PoE Power Output for Outdoor Device LAN Pins 4 , 5 (+) and Pins 7 , 8 (-)
PoE Data for Outdoor Device LAN 4-Pair
Maxima Amp 1 Amp
Dimensions 48 x 50 x 24 mm
Weight 43g
