APS084

APS084

8-Port 10/100 Mbps with 4-Port PoE Desktop Ethernet Switch


  1. 8 ×10/100 Mbps auto-negotiation RJ-45 ports with 4-Port 802.3af PoE
  2. Max. 15.4 W per port for 802.3af PD device
  3. Max. power budget 60 W with PoE usage LED
  4. IEEE 802.3x flow control & backpressure support
  5. Store and forward, non-blocking wire-speed reception and transmission
  6. 8 x 10/100 Mbps auto-negotiation RJ-45 ports supporting auto-MDI/MDI-X
  7. 2K MAC address auto-learning and auto-aging
  8. Innovative energy-efficient technology, IEEE 802.3az reduces power consumption any time

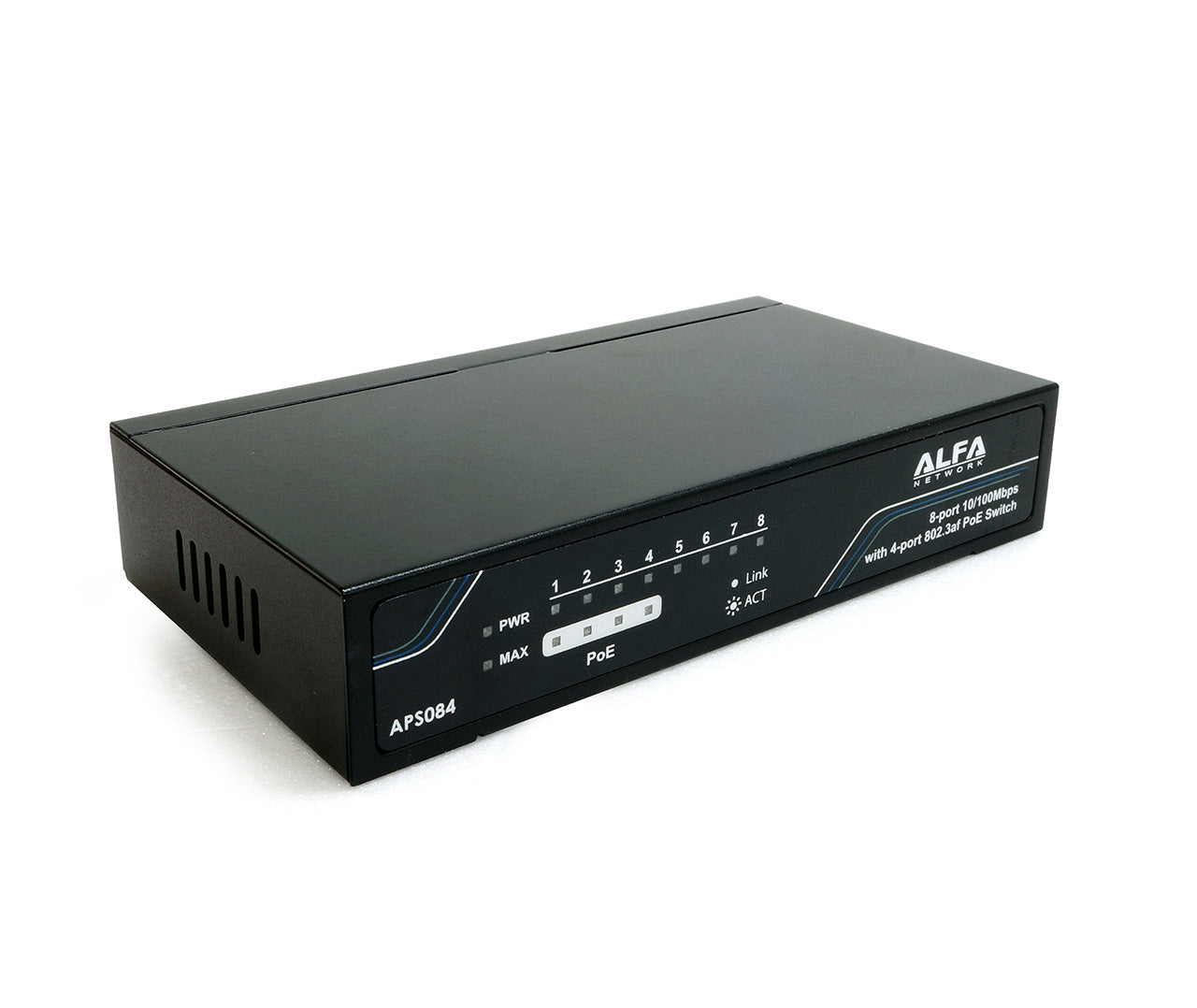

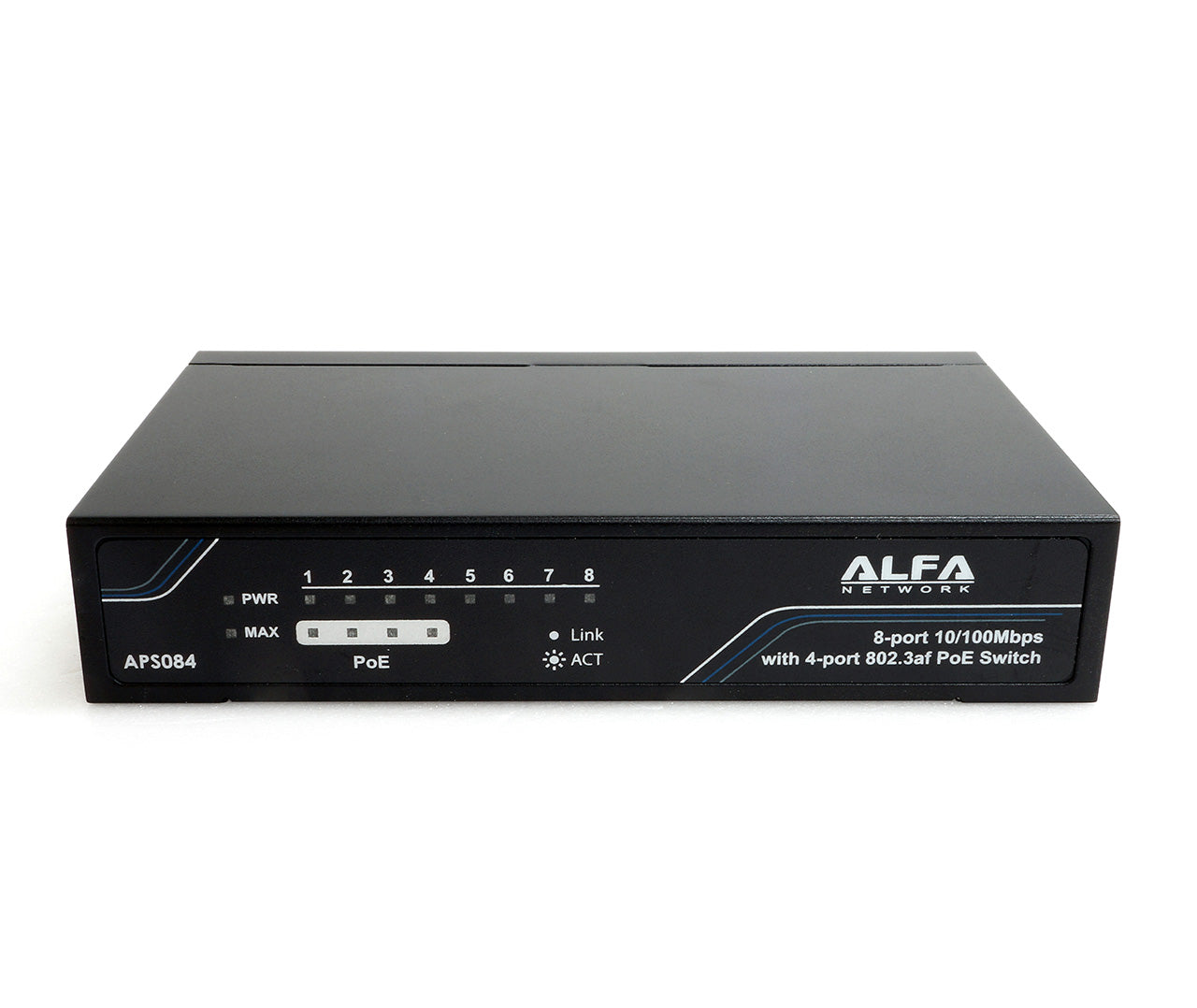

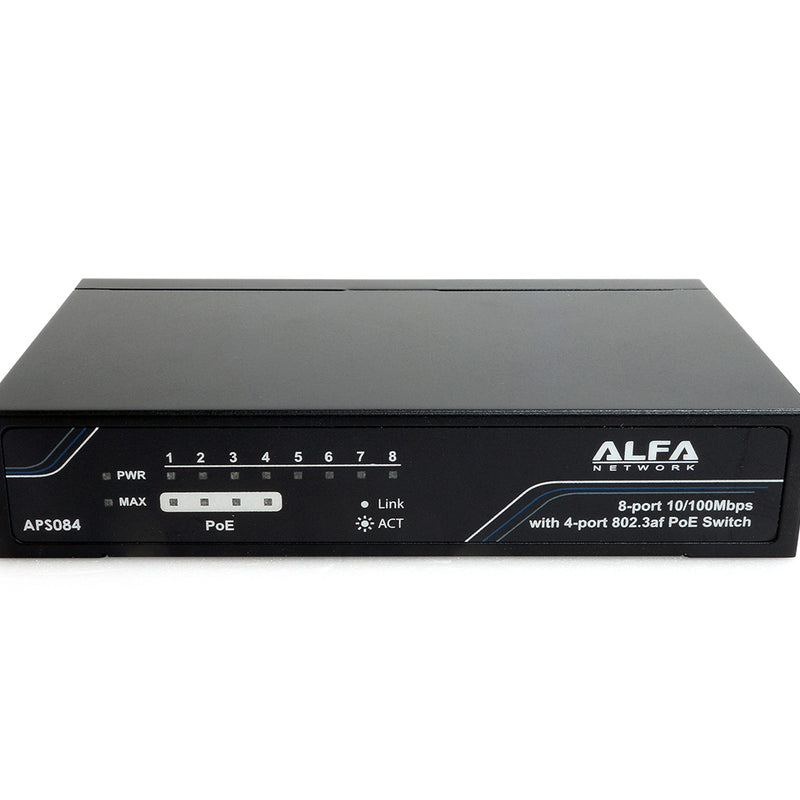

  9. LED indicators for monitoring power, link, activity, PoE, PoE status

APS084 8-port 10/100 Mbps with 4-Port PoE switch meets the demand of high power PoE network appliances seamlessly with fast Ethernet connection. Up to 60W power-output, APS084 feeds Max. 15.4W per port to PoE-enabled devices via standard Cat.5E / Cat. 6 cable. With power and data over Ethernet from one device, APS084 not only simplifies cabling tasks, but also extends remote power supply to PoE PD devices (IP camera, wireless AP, or IP phones) at Max. 100-meter distance.

APS084 is environmental-friendly, supporting latest energy-saving technology, Energy-Efficient Ethernet mode (EEE; defined in IEEE 802.3az) to reduce networking system power consumption. NO configuration needed, APS084 negotiates and determines the required power output for connected cable length/device.



Standards

Ethernet standards IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet)
IEEE 802.3x (Full-duplex flow control) IEEE 802.3az (Efficient Ethernet)
Power over Ethernet 4-Port 802.3af PoE injector (Port 1 –port4)
PoE Power PIN assignment PIN1/2 (+), PIN 3/6 (-)
PoE Power output 802.3af: per port Max. 15.4 watts
PoE Power Budget 60 W

Hardware Specifications

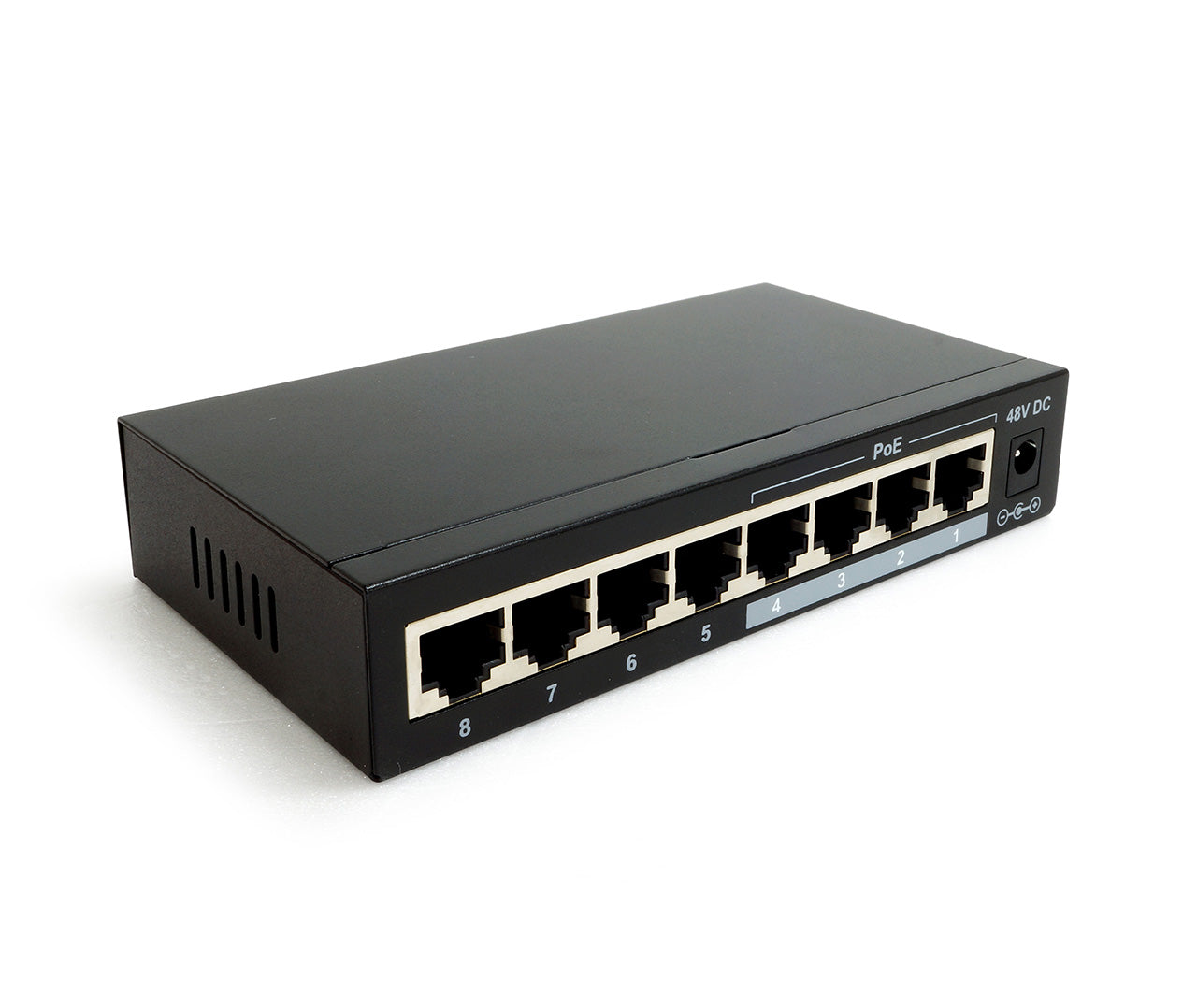

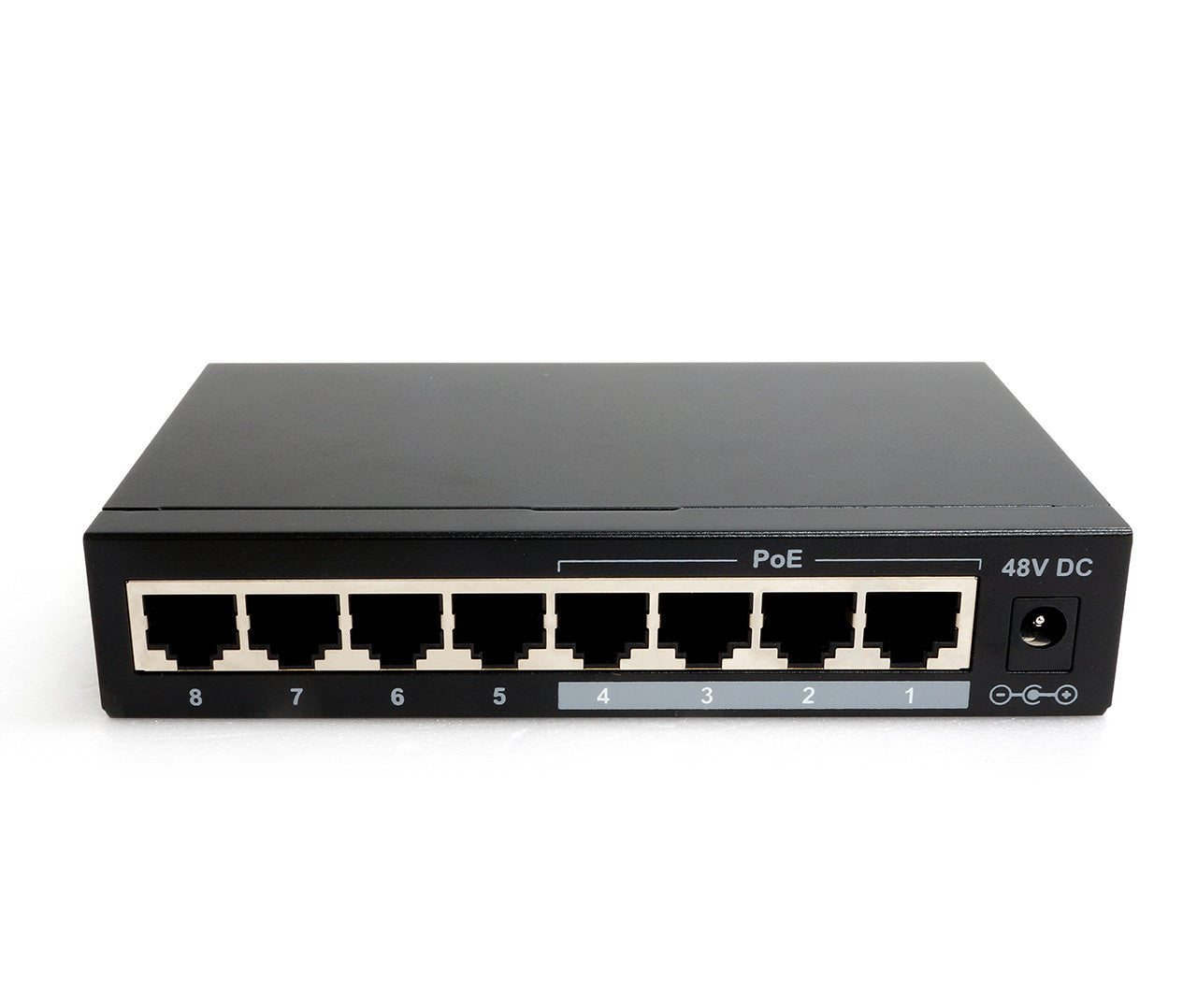

Ethernet Interface 8x 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports
Switch Processing Scheme Store-and-Forward
Throughput (packet per second) 10Mbps:14880 pps
100Mbps:148800 pps
Switch fabric 1.6 Gbps
Address Table 2K entries
Flow Control Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex

General

Construction Metallic housing
LED indicators Act/Link, Power, PoE, PoEstatus
Dimensions (L ×W ×H) 140 x 77 x 27 mm
Power Consumption 100-240 V~50-60 Hz, 0.6 A
Operational Environment Operating Temperature: 0 ℃-40 ℃
Storage Temperature: -10 ℃-70 ℃
Operating Humidity: 10 %~90 % non-condensing
Storage humidity: 5 %~90 % non-condensing
