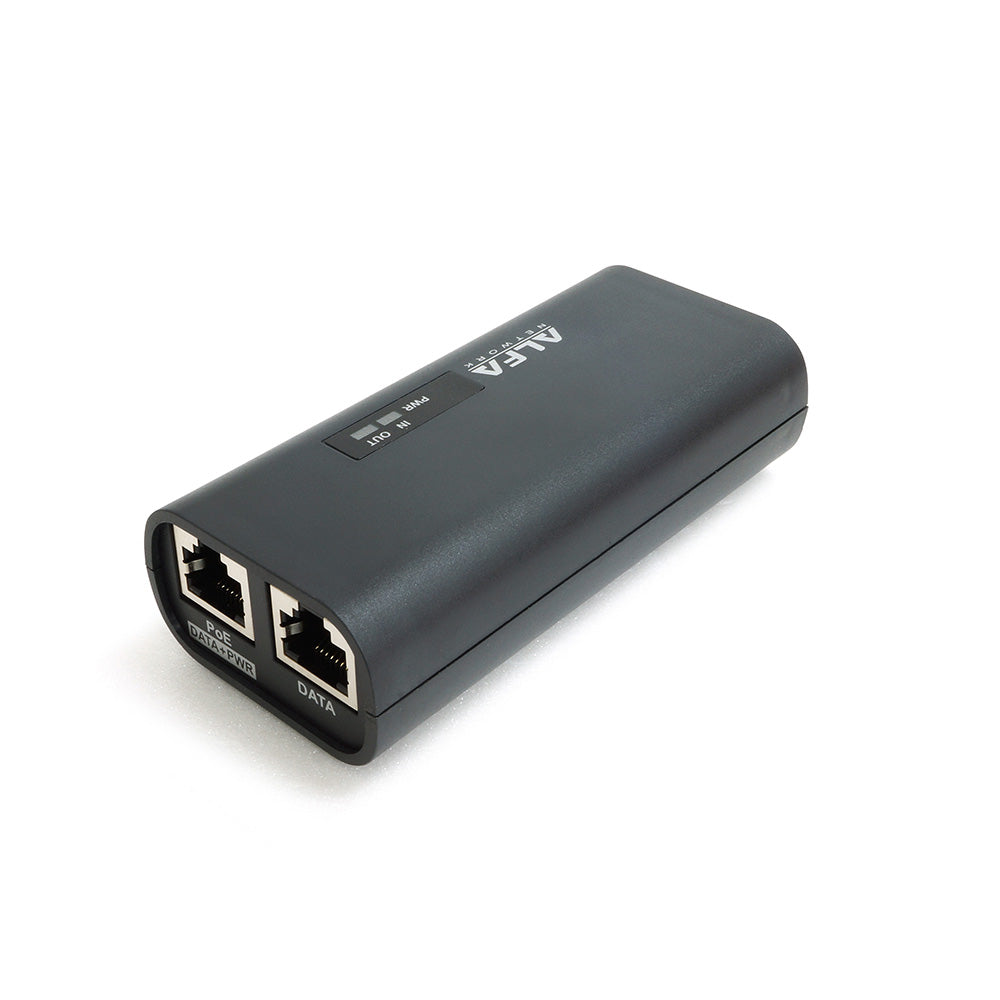

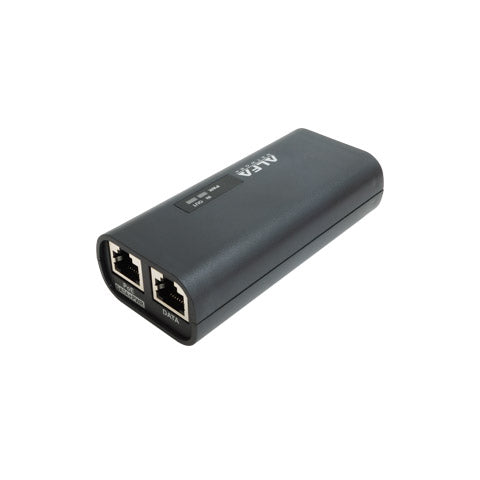

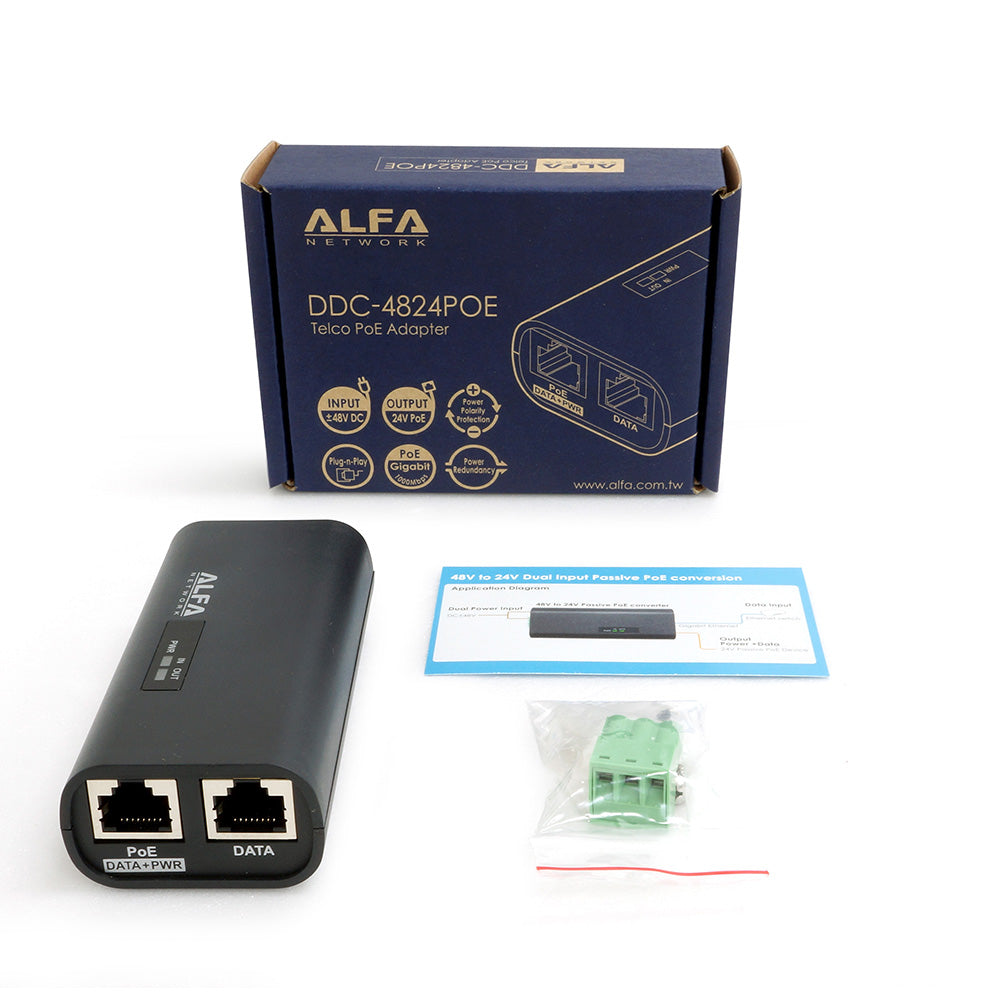

DDC-4824PoE
DDC-4824PoE
Redundant Dual-Input ± 48VDC to 24V isolation PoE Adapter
- +/- 48V DC input ; 24V Passive PoE output
- Feeding power and access to device at the same time

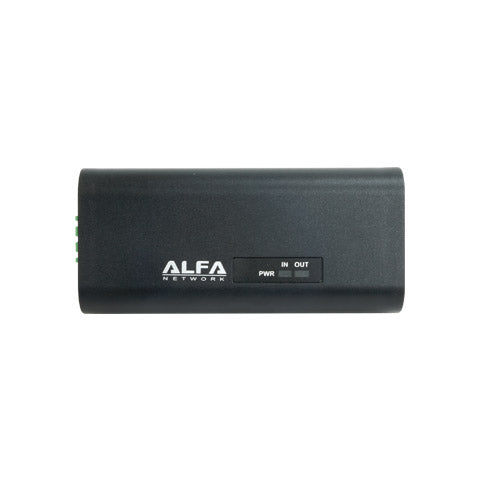

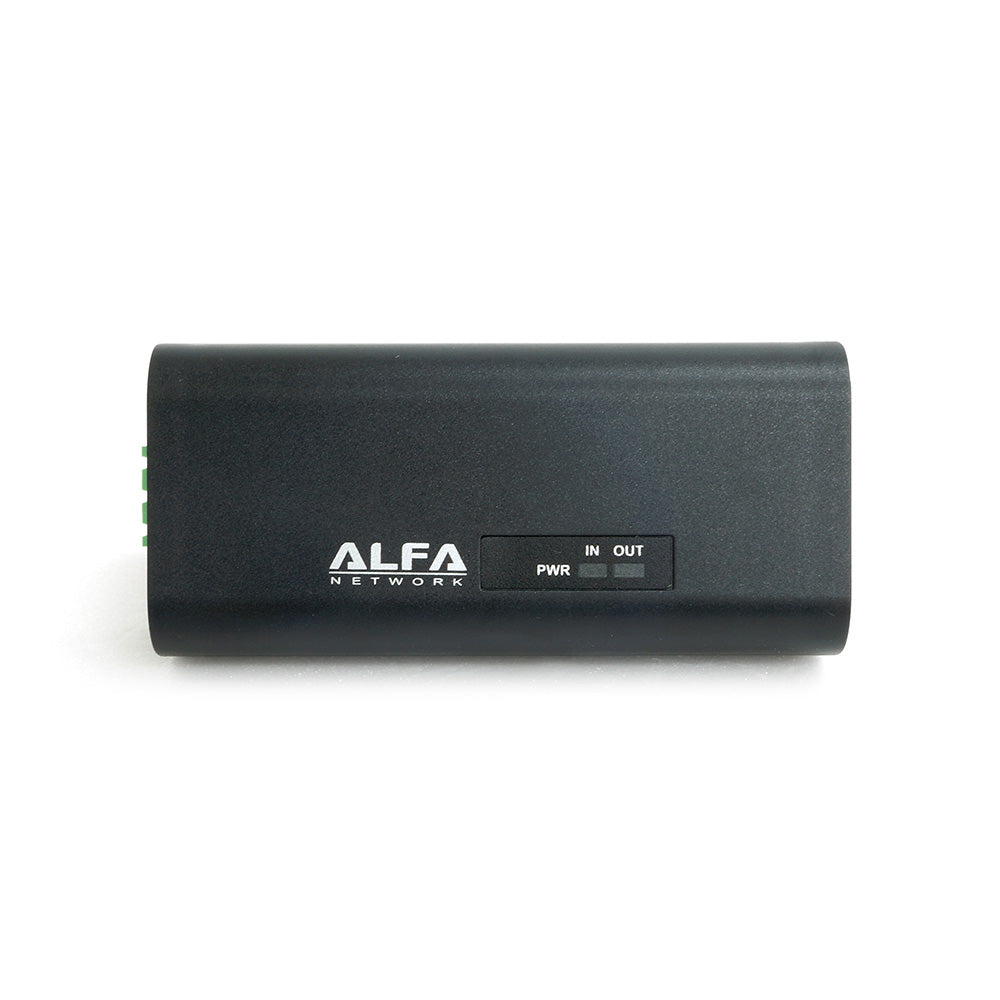

- Crystal-clear Power-in/Power-out LED display

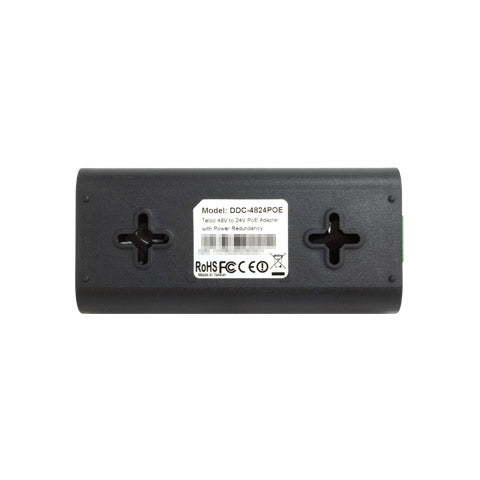

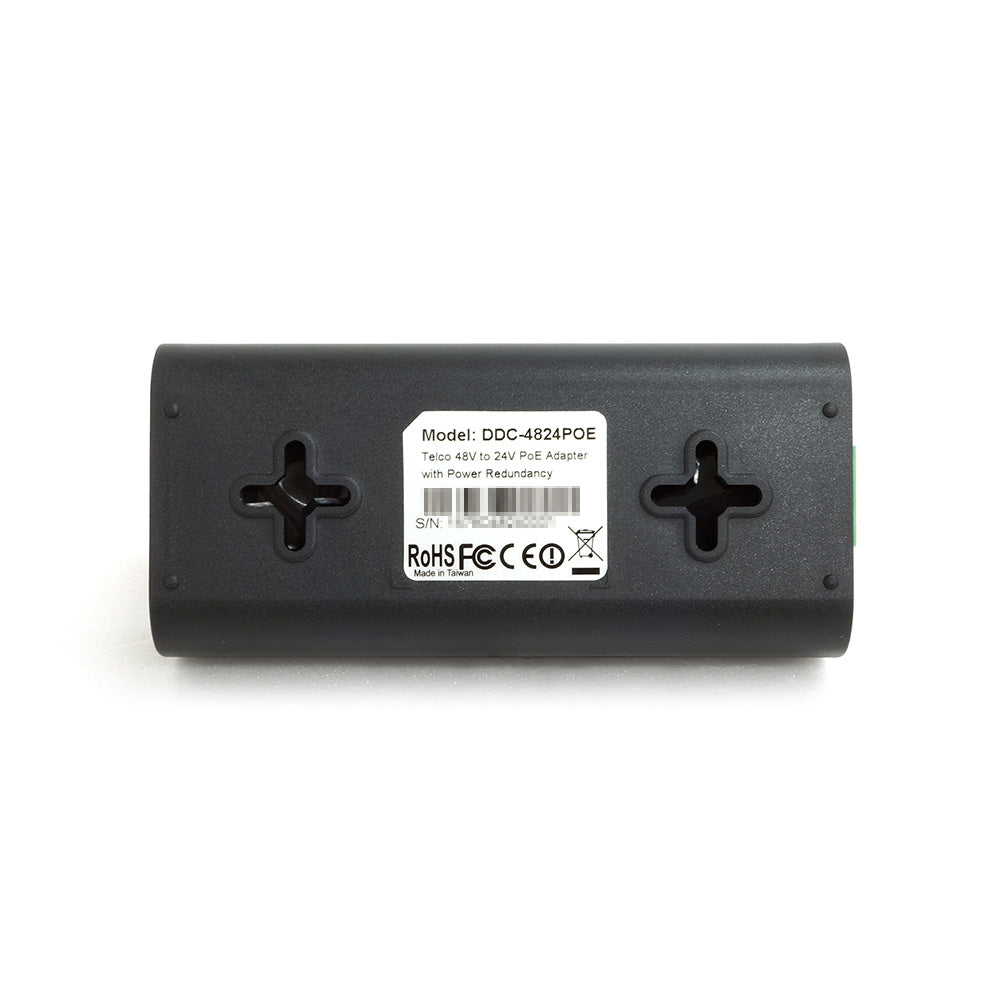

- Easy-Positioning design, simple installation for vertical or horizontal direction
- Supporting dual (DC-in / battery) input as power redundancy
DDC-4824POE is +/- 48VDC to 24VDC Dual-Input ( DC / Terminal block) PoE adapter, which design for telecom -48VDC environment to support a passive 24V PoE outdoor AP/CPE device such as Ubiquiti, Mikrotik and Alfa Network or other passive 24V PoE devices. With Redundant Dual-Input, it make your life easy and you don’t need to worry if electronic power drops.
+/- 48V DC input ; 24V Passive PoE output
Feeding power and access to device at the same time
Crystal-clear Power-in/Power-out LED display
Easy-Positioning design, simple installation for vertical or horizontal direction
Supporting dual (DC-in / battery) input as power redundancy
| Input Voltage | -/+ 48VDC |
| Input Voltage Tolerance Range | +/- 36VDC ~ +/- 58VDC |
| PoE Output | 24VDC +/-10% |
| Output Current | 0.7A (max.) |
| PoE Pin Define | 4/5 Pin (+) 7/8 Pin (-) |
| RJ45 Data Speed | 10/100/1000Mbps ( Gigabit) |
| LED | Input LED Output LED |

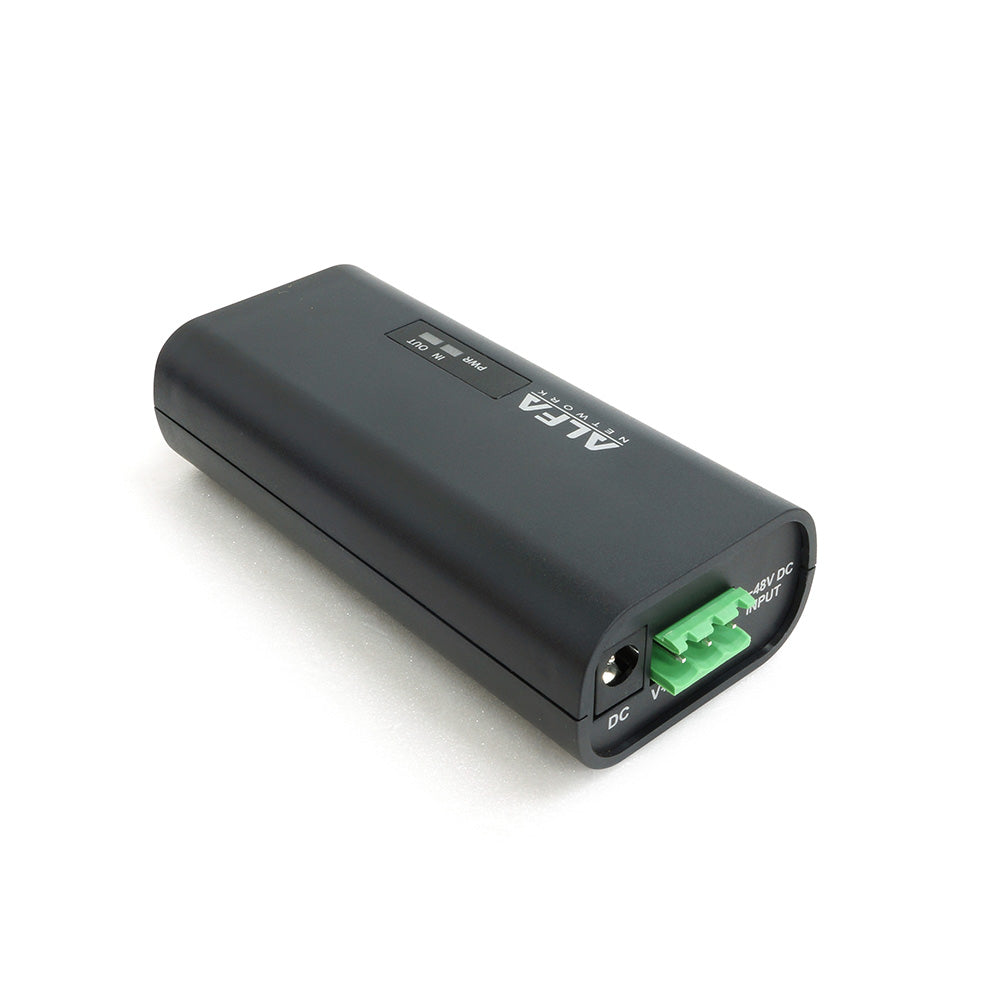

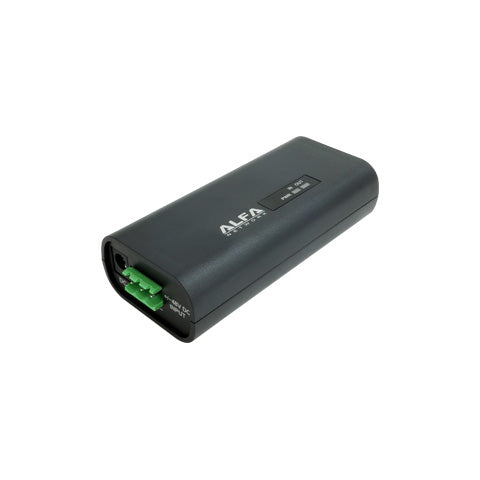

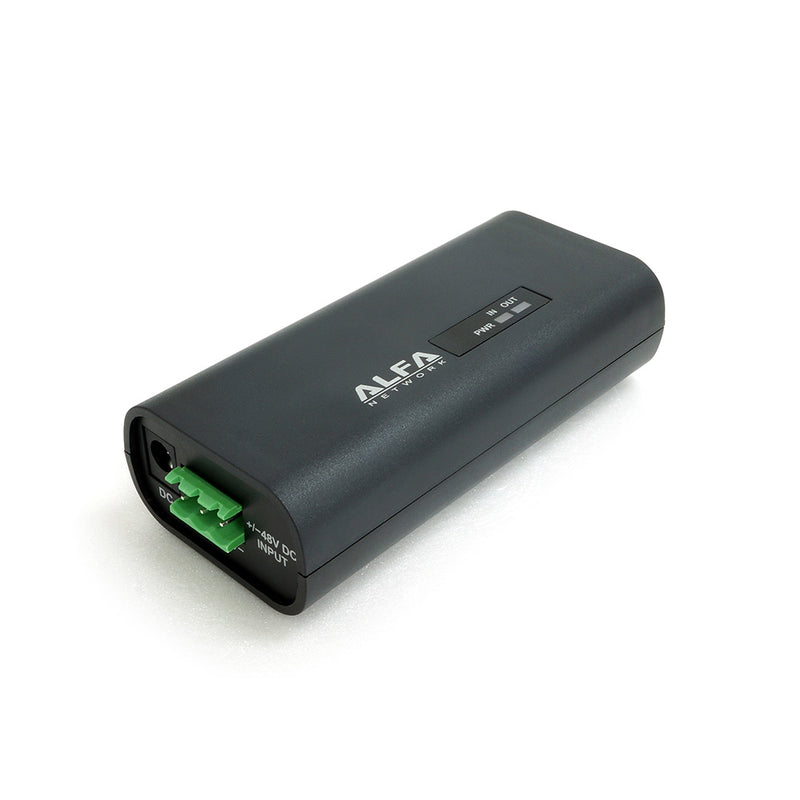

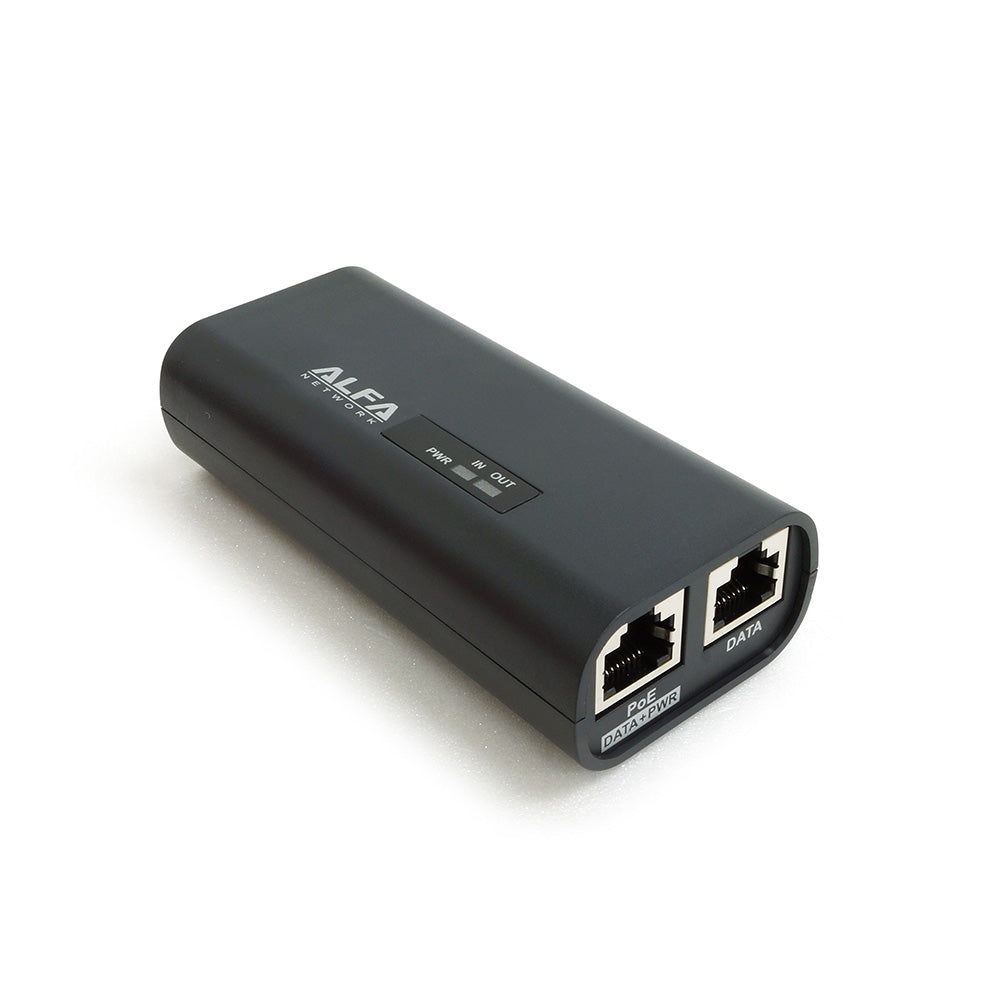

| Interface | 1x Data Input RJ45 1x Data+Power Output RJ45 1x Power Input: DC Jack ( 2.1/5.5) 1x Power Input: Terminal Block Connector |
| Operation Temperature | -25 ~ 75°C ( -13 ~ 167℉ ) |
| Storage Temperature | -35°C ~ 85°C ( -31 ~ 185℉ ) |
| Dimension | 102.5 (L) x47.5 (W) x 27 (H) mm 4.03 (L) x 1.87 (W) x 1.06 (H) inch |
