ALFA Network
Wireless IP Camera

N2-Cam

Wi-Fi 802.11n 2.4 GHzIP Camera

WiFi standard
IEEE 802.11b/g/n
Ethernet interface
1x RJ45 Ethernet interface, 10/100 M self- adjusting
Power supply
Power supply: DC12V/1A
Channel bandwidth
20/40 MHz
Product details

Overview

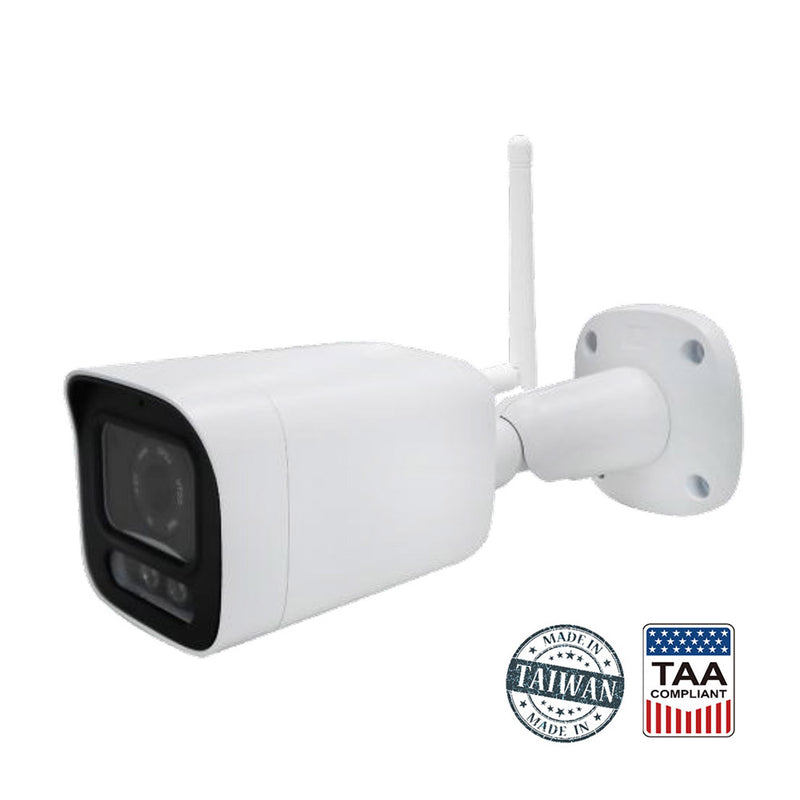

N2-Cam

N2-Cam is 2MP Wi-Fi IP Camera – Clear Vision, Reliable Security

The N2-Cam is a high-performance 2.4GHz 802.11n Wi-Fi IP camera designed for home and business surveillance. Featuring a 2-megapixel sensor and advanced H.265 video compression, it delivers crisp image quality while optimizing storage efficiency. The integrated microSD card slot supports up to 256GB, providing extended local storage without the need for a network video recorder.

Key features

  1. Wi-Fi 802.11n 2.4 GHz for stable connectivity
  2. 2M high-definition video resolution
  3. RP-SMA external antenna for enhanced signalperformance
  4. Built-in microphone for audio capture
  5. microSD card slot supports up to 256GB
  6. H.265 compression reduces file size while maintaining quality

Specifications

Dimension Drawing

N2-Cam product detail

Technical details

Specifications

N2-Cam

WiFi Specifications (IEEE 802.11n)

WiFi standard

IEEE 802.11b/g/n

Channel bandwidth

20/40 MHz

Security

WEP, WPA, WPA2, WPA3

Antenna

1x External RP-SMA antenna connector

Camera Specifications

System processor

Novatek NT98560

CMOS sensor

SONY IMX307 1/2.8" low illumination CMOS

Image illumination

Color 0.01 Lux@F1.2, black and white0.001 Lux@F1.2

Image processing

H.265, H264, MJPEG image encoding, supports dual streams; supports adjustable code stream 64 Kbps~8192 Kbps; supports adjustable frame rate 1~30 frames/second

Transmission resolution

Stream 1: 2 MP 1920*1080, 1280*720@30fps

Stream 2: 720 P(1280*720), VGA(640*480), QVGA(320*240)

Shutter

1/3 second to 1/200000 second

Lens

2.8/3.6/6 mm fixed Lens

Switch between day and night

Standard IR-CUT

Noise reduction

Support 3D noise reduction

Wide dynamic range

WDR support

Ethernet interface

1x RJ45 Ethernet interface, 10/100 M self- adjusting

Communication protocols

RTSP/DHCP/NTP

Support protocols

UDP/TCP/HTTP/SSH/RTSP Unicast, Multicast/NTP/ONVIF/Gsoap

Infrared light

2x high-efficiency IR LEDs, distance 20 meters

ONVIF

Support Profile S

Compression forma

H.265/HEVC main profile, H.264 main and high profile, Motion JPEG encoding

Account management

Support administrator, operator, viewer, etc. to access network cameras at different levels

Private zone

Off / On (4 zone)

Image quality adjustment

Sharpness, saturation, contrast, brightness, hue, horizontal flip, vertical flip

Event detection

Supports motion detection, motion detection has four area settings and adjustable sensitivity.

Date & time

Supports NTP, synchronization with computer or custom time. Also supports time settings in different time zones

White balance

Automatic, manual, cloudy, night and other scene switching.

Anti-flicker mode

NTSC(60 Hz), PAL(50 Hz), Exposure settings are adjustable

Intelligent alarm

Motion Detection

Waterproof level

Outdoor waterproof type IP 66 rating

Power supply

Power supply: DC12V/1A

Dimensions

221 x 80 x 80 (LxWxH, mm)

Operation temperature and

Temperature: -20 ℃~+55 ℃

Humidity

Humidity: 10%~90%
