N2Q

Outdoor Wi-Fi AP / Bridge
N2Q
Product details
Overview
N2Q
Features
- High Speed Data Rates
- 802.11n 300 Mbps
- Open Source Compatible
- OpenWrt supported
- Hardware watchdog
- Ensure operating properly
- PoE Pass through software control-able
- Software control PoE pass through to ensure not to damage other device by mistake
- Built mini USB port
- With mini USB port could enrich function such as to add 4G USB modem, Web Camera, WiFi USB antenna etc.
- Support Channel-Width
- Support channel-width 5/10/20/40 MHz
- Weather-Proof design
- IP rated IP55
- ESD Protection
- Enhanced ESD protection on both LAN and RF

Suitable Applications

N2Q
Built-in directional MIMO 10 dBi antenna

Variety antenna option
External Antenna connector give more choose to meet different application

PoE Out to power on another N2Q
No need extra Ethernet cable to power another N2Q or Passive PoE 24V device just use another LAN port to give 24VDC and enable pass through from the firmware Make Sure connect device does support input passive PoE 24VDC before enable the pass through from the firmware

Suggest related Product: DDC-2412
DDC-2412 works with N2Q to power on 12VDC Outdoor IP camera model, no need extra power cable

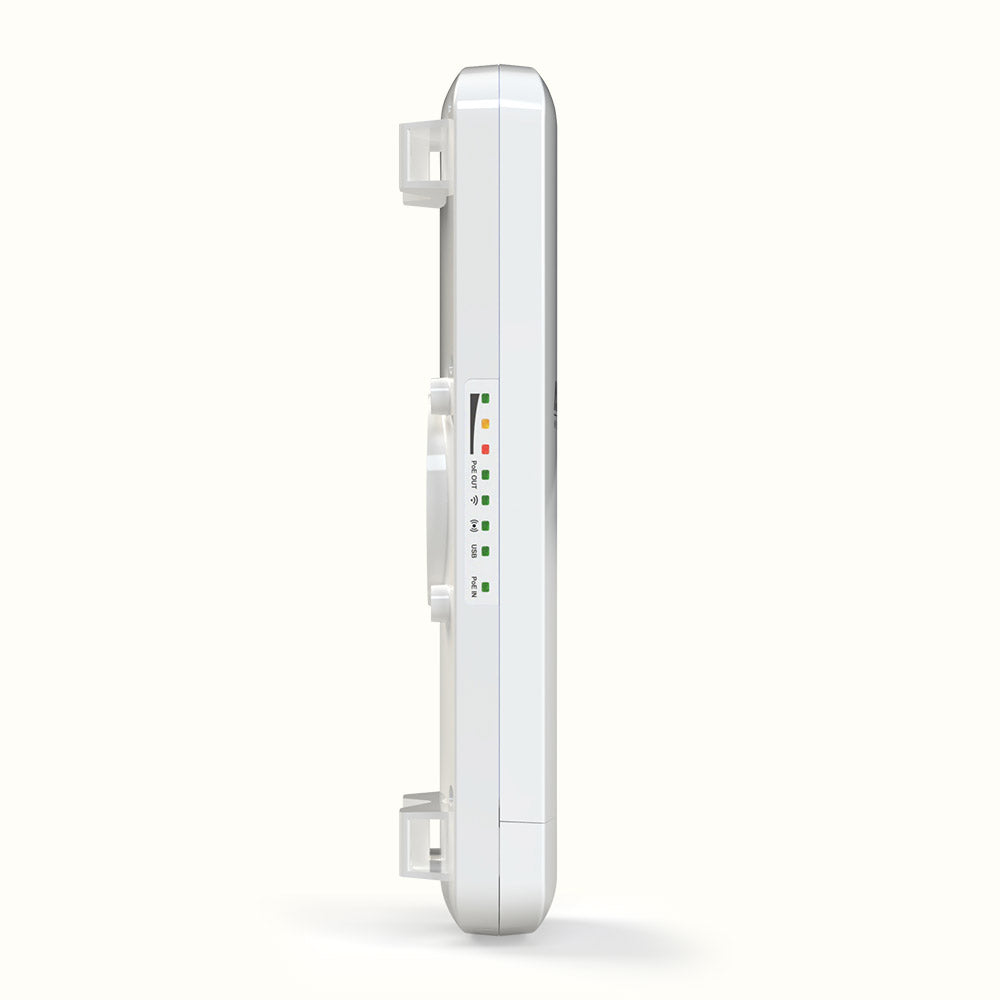

Interface and LED defined

Technical details
Specifications
N2Q
| Order Information | N2Q | N2QS | N2QF |
| Passive 24V PoE | ● | ● | ● |
| PoE Pass through | ● | ● | ● |
| Built-in MIMO Antenna | ● | ||
| N female connector x2 | ● | ||
| RP-SMA female connector x2 | ● |
