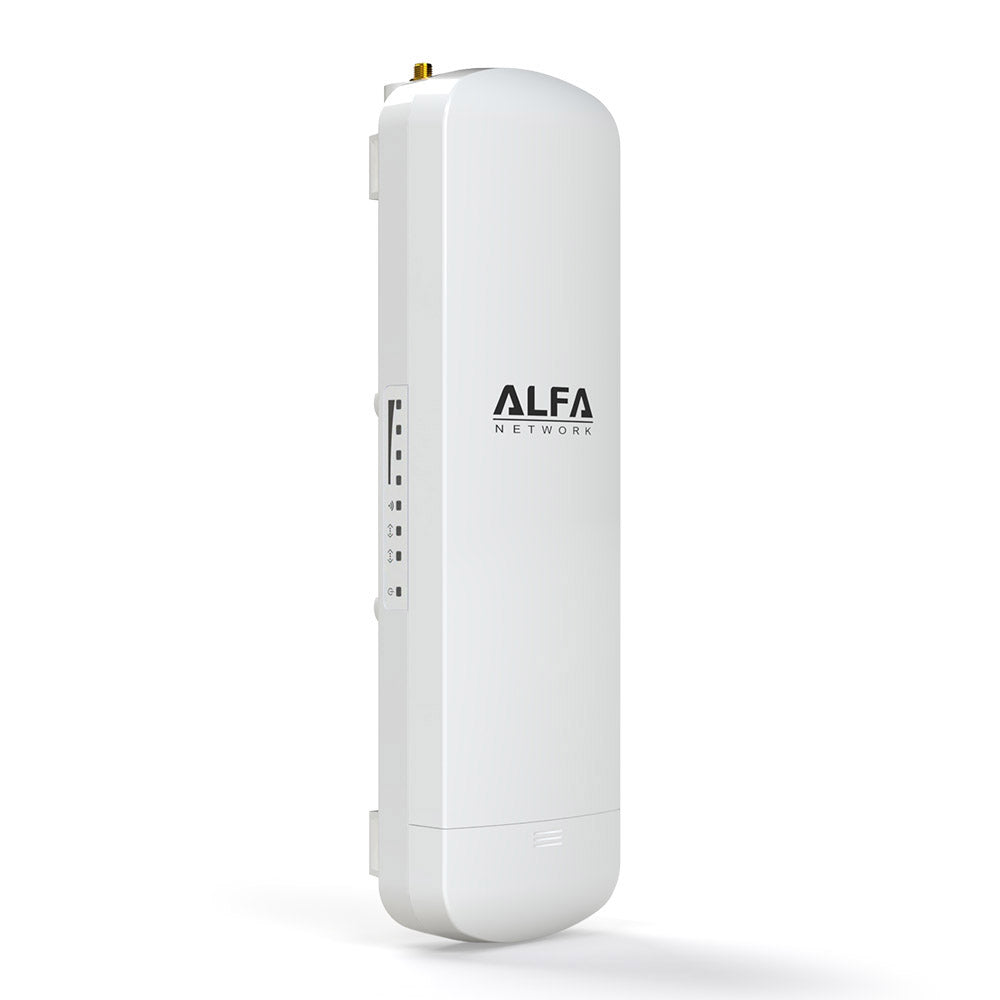

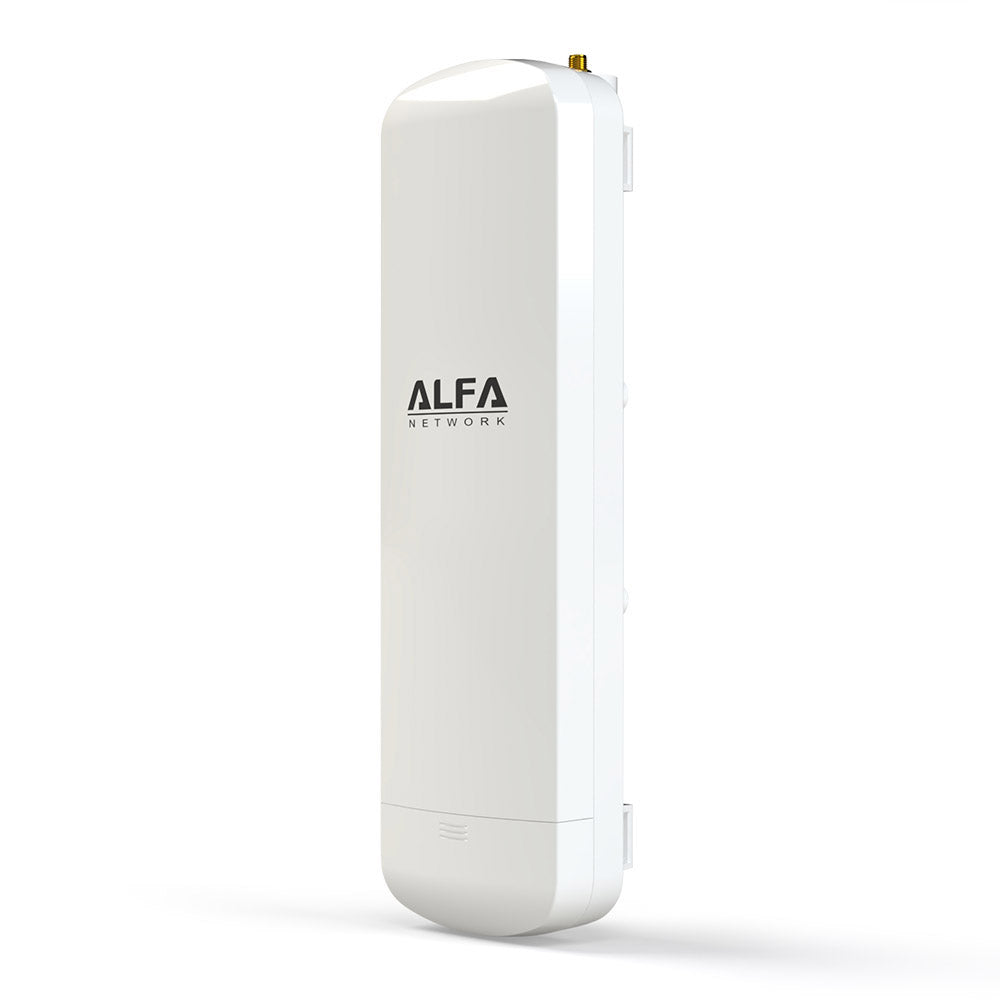

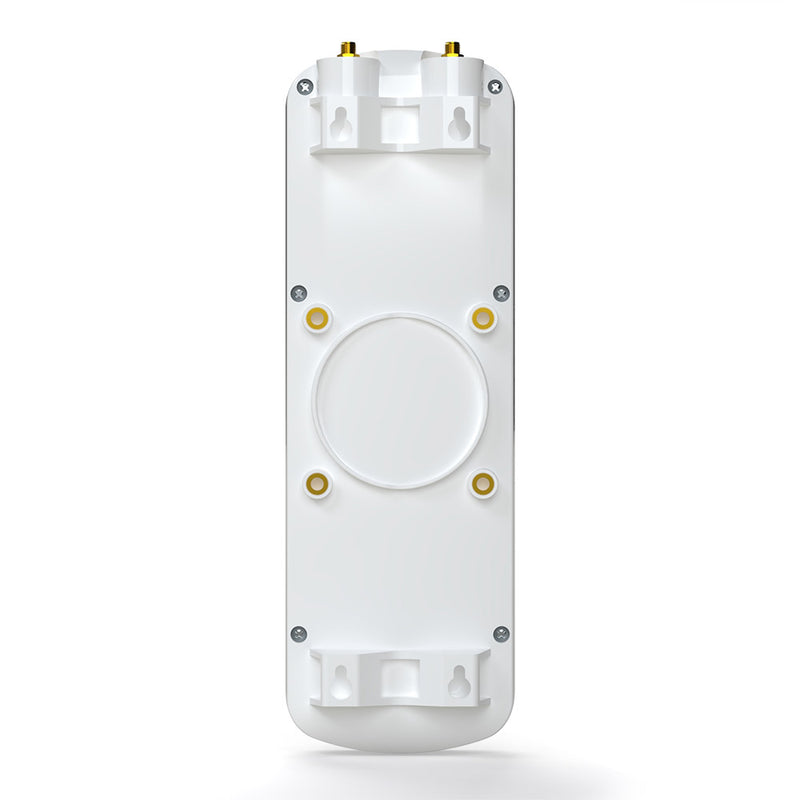

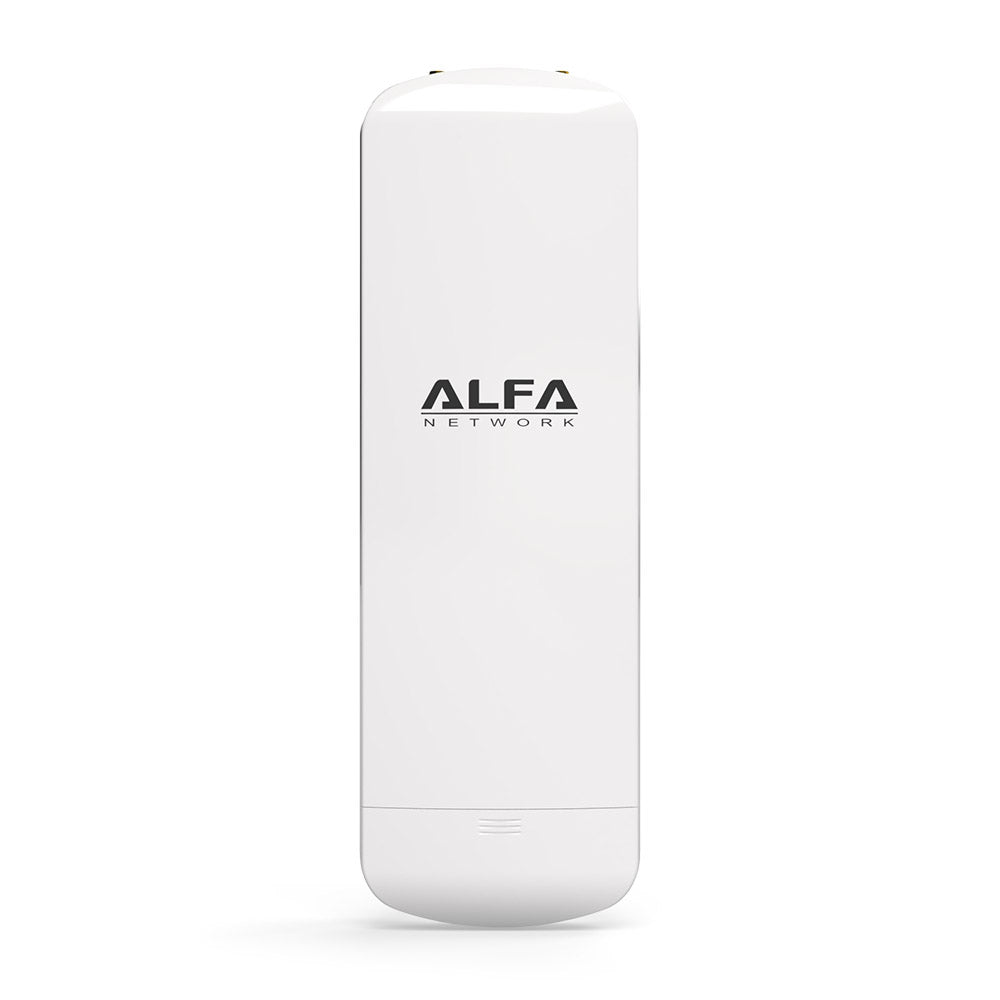

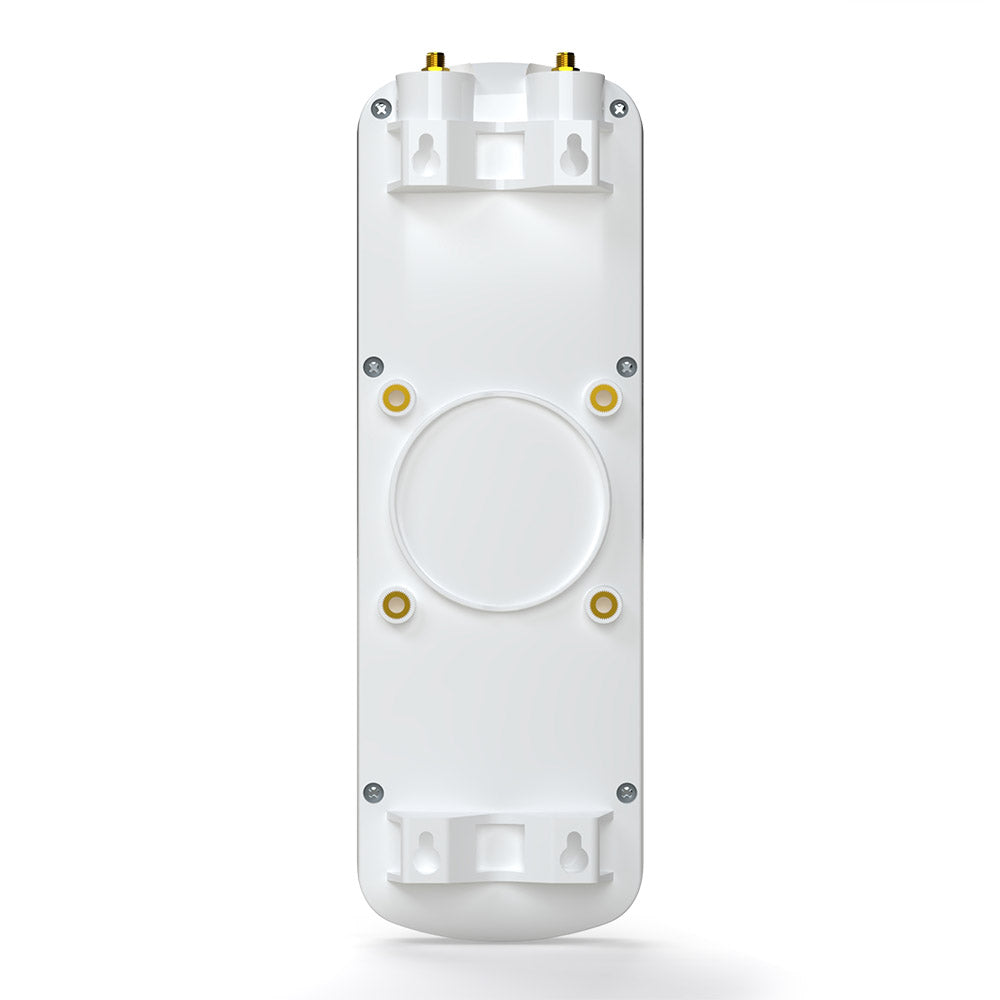

N5QS

N5QS

N5QS

802.11an 5GHz Outdoor AP/Bridge/CPE

High Speed Data Rates
Open Source Compatible
Hardware watchdog
Weather-Proof design
ESD Protection

Features

High Speed Data Rates
802.11an 300Mbps
Open Source Compatible
OpenWrt firmware
Hardware watchdog
Ensure operating properly
Weather-Proof design
IP rated IP55
ESD Protection
Enhanced ESD protection on both LAN and RF

Operation Mode

AP Bridge
Client Bridge
WDS Bridge

Order Information

Passive 24V PoE
RP-SMA female connector

Suitable Applications

N5QS External RP-SMA female antenna connector NOT Include Antenna

Chipset	AR9344
Standard	IEEE 802.11an
Frequency	5.15GHz ~ 5.825GHz
Flash/SDRAM	16/ 64 MB
Antenna	External RP-SMA female antenna connector
Channel Width	20/ 40 MHz Will support 5/10 MHz in the future
Data Rate	802.11a: up to 54Mbps 802.11an: up to 300Mbps

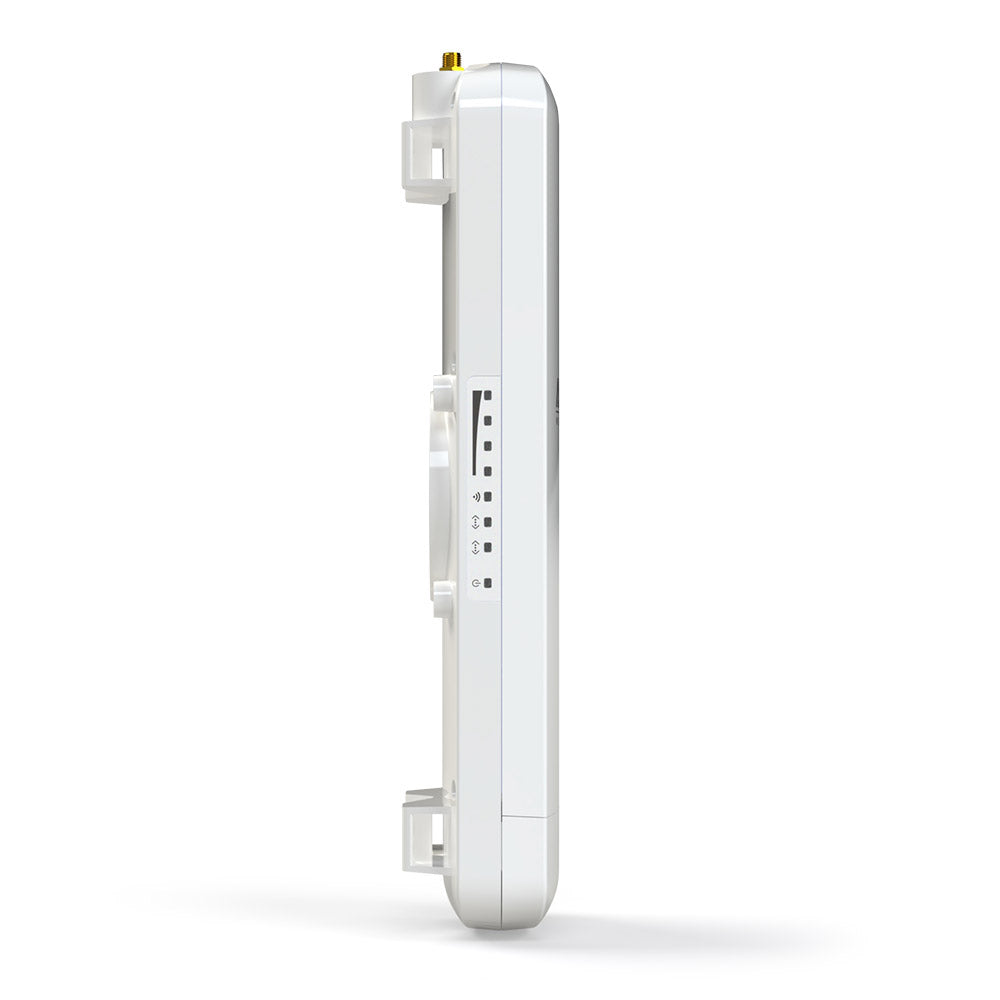

LED Indicated	Signal, WAN, LAN, WLAN
Operation Temperature	-30°C ~ 60°C
Storage Humidity	10% ~ 90% (Non-condensing)
Dimension(mm)	300 x 80 x 30 mm
Weight	0.4kg

Software features

Mode	AP Bridge Client Bridge WDS Bridge
Security	WEP WPA/WAP2-PSK WPA/WPA2-Enterprise 802.1x

RF Specifications [ Tolerance ± 2dB ]

Data Rate	Tx	Rx
11ac VHT20/40/80 MCS9	24/24/24	-63/-60/-57
11ac VHT20/40/80 MCS8	24/24/24	-64/-62/-60
11ac VHT20/40/80 MCS7	24/24/24	-70/-67/-64
11ac VHT20/40/80 MCS6	25/25/24	-71/-68/-65
11ac VHT20/40/80 MCS5	25/25/24	-72/-69/-66
11ac VHT20/40/80 MCS4	26/26/24	-76/-73/-70
11ac VHT20/40/80 MCS3	27/27/24	-80/-77/-74
11ac VHT20/40/80 MCS2	27/27/24	-83/-80/-77
11ac VHT20/40/80 MCS1	28/28/24	-85/-82/-79
11ac VHT20/40/80 MCS0	28/28/24	-88/-85/-82
11a 54M	25	-71
11a 48M	26	-72
11a 36M	27	-76
11a 24M	28	-80
11a 18M	28	-83
11a 12M	28	-85
11a 9M	28	-87
11a 6M	28	-88
