High Power 30W Gigabit PoE PD Module

  • Automatically detects PoE terminals and supplies inline power
  • Auto-sensing power drawn from 802.3af/at power source equipment device
  • Supplies power up to 30 Watts
  • Extreme Efficiency 90%
  • Safeguards network device with short circuit protection
  • Converts Non-PoE devices with PoE Support
  • Ethernet isolation with ESD Protection

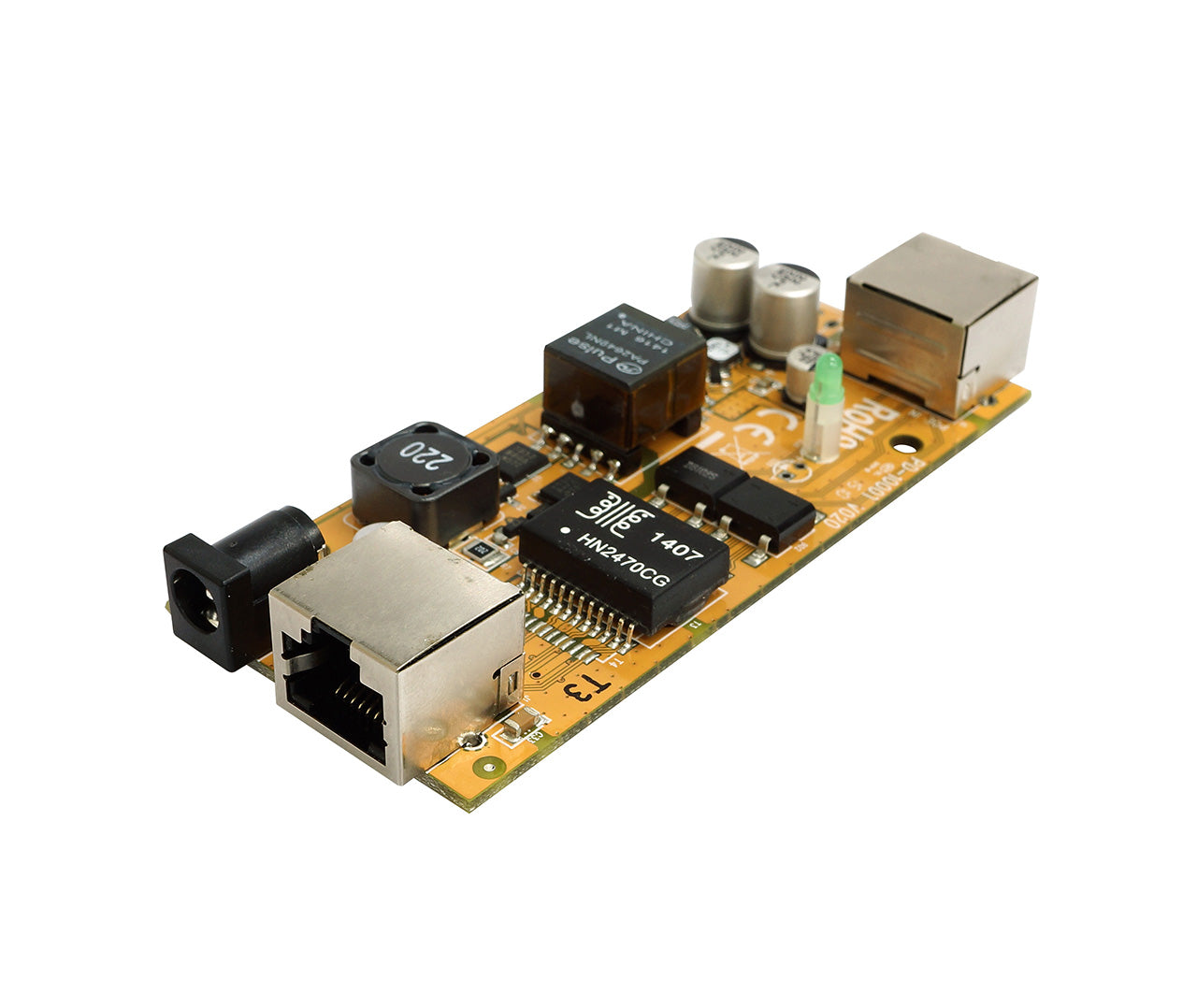

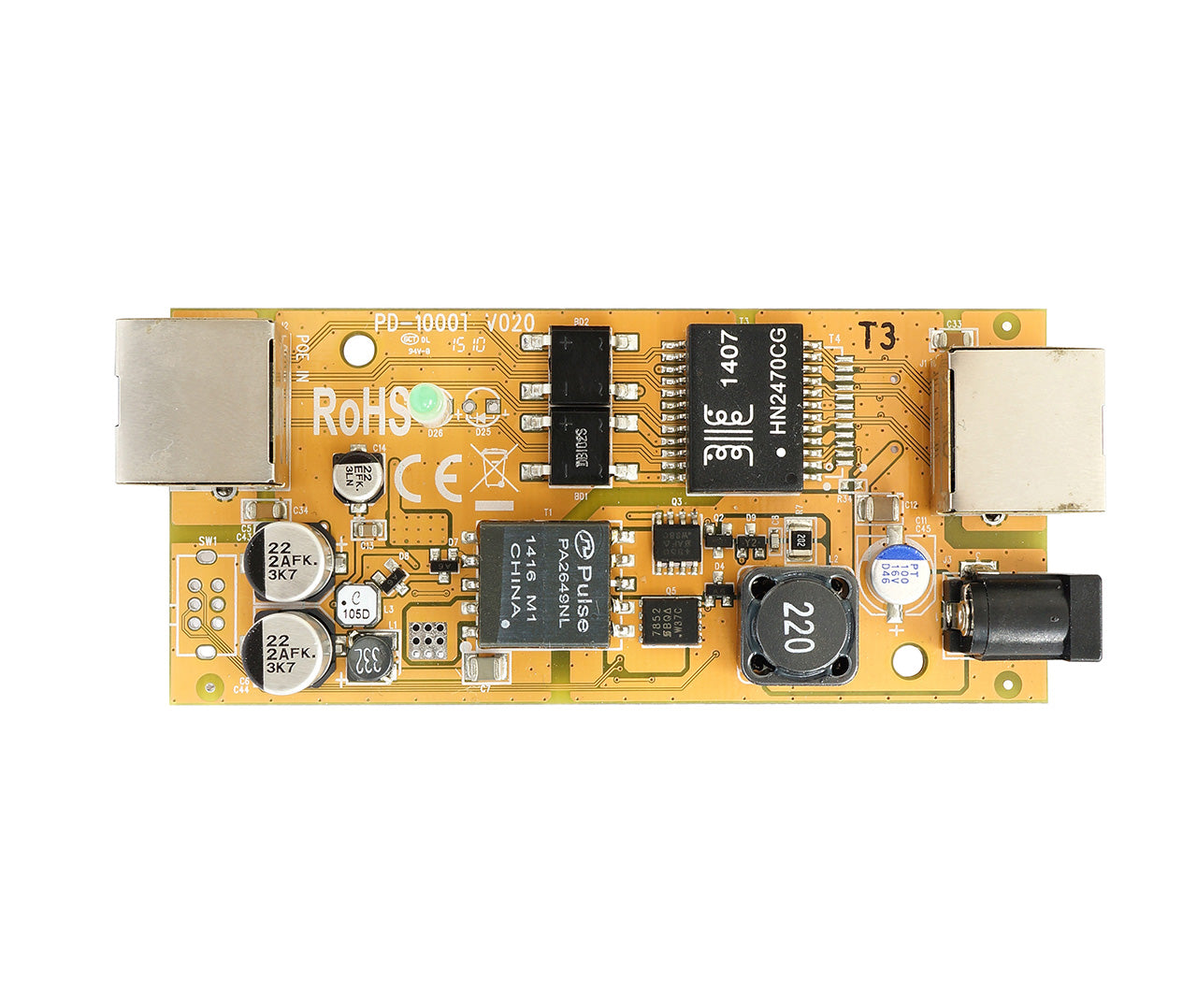

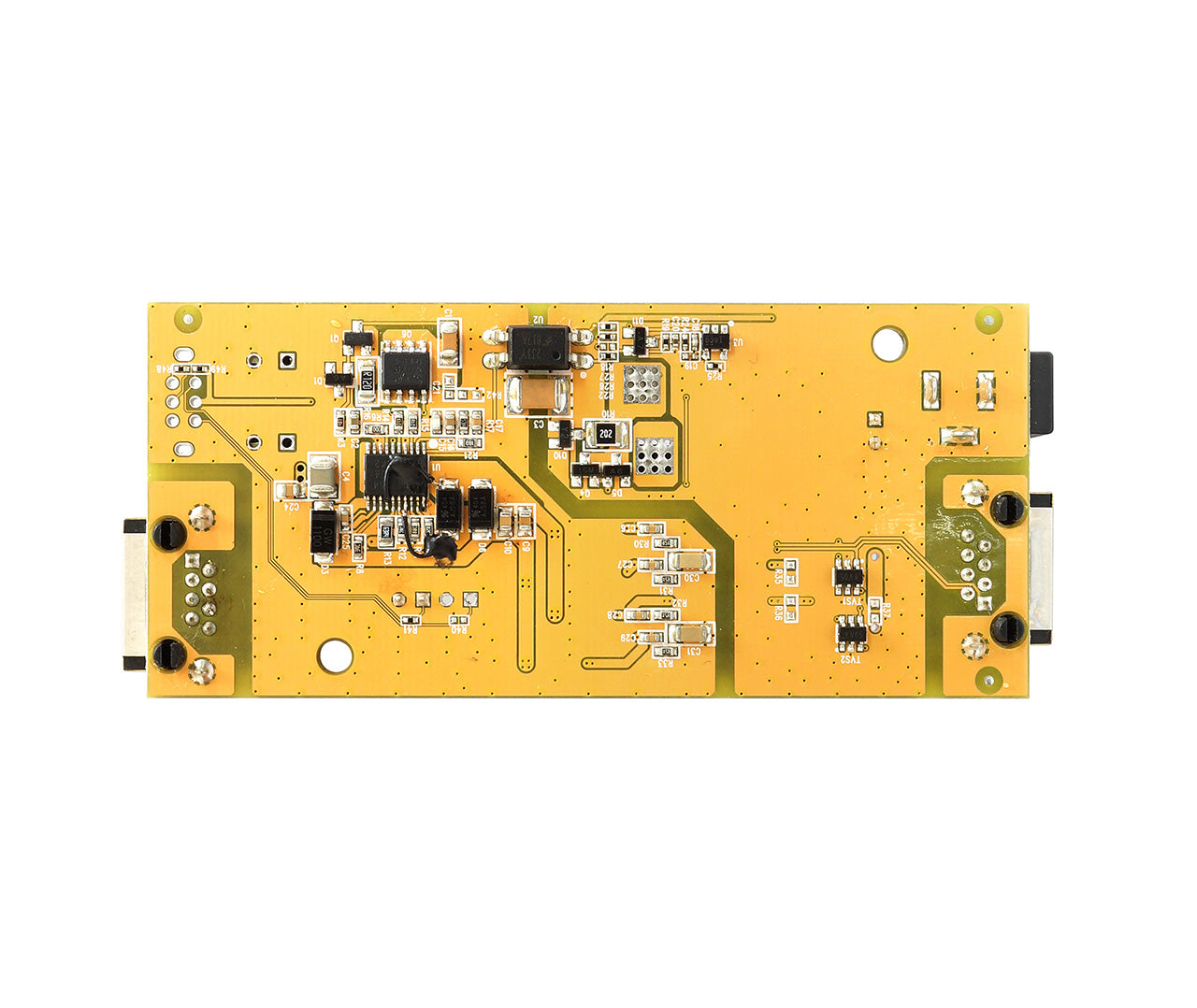

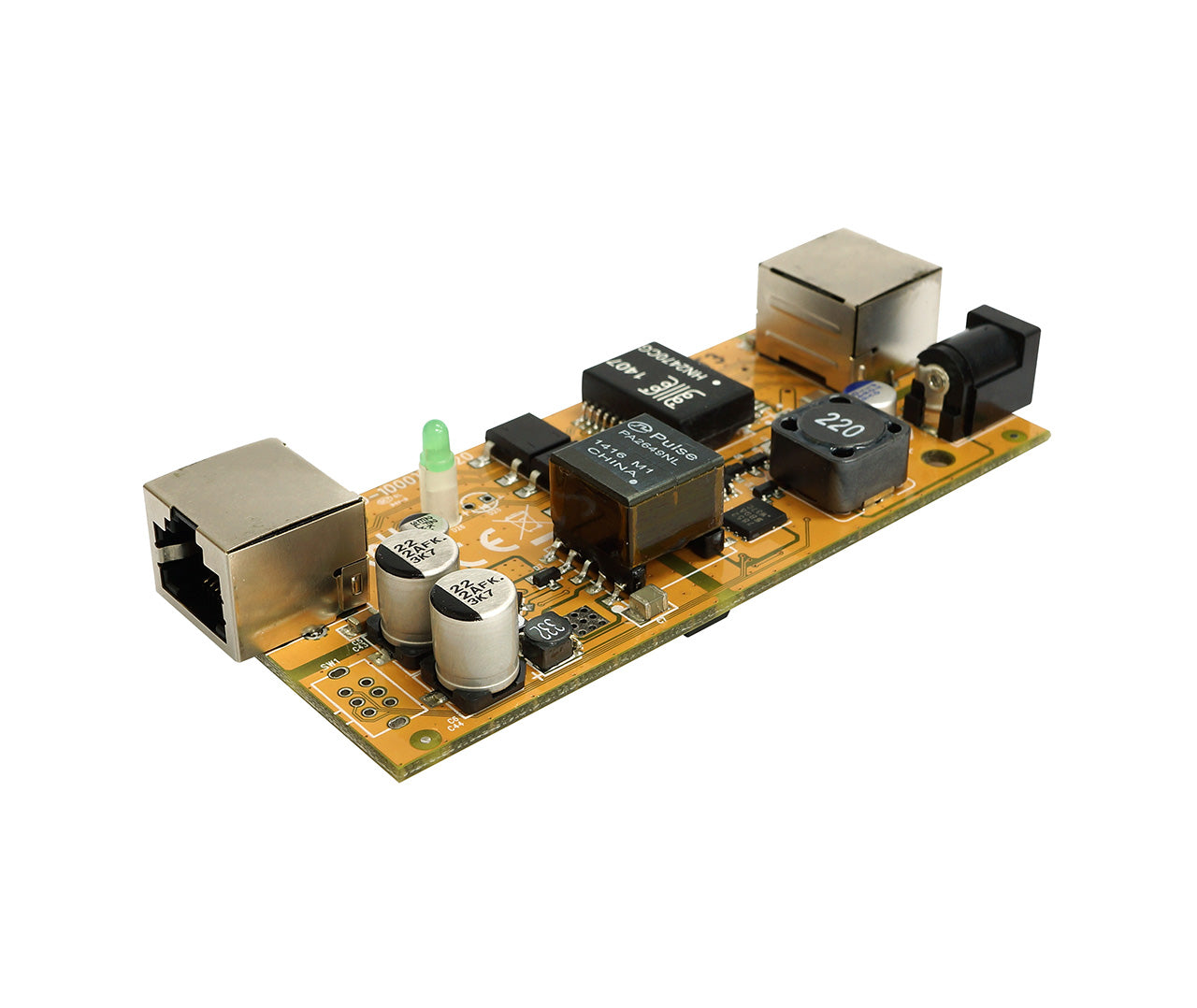

PD-1000TM is the PoE ( Power Over Ethernet ) PD Module which support DC output 12V with 30Watt. It is a revolutionary technology for powering Ethernet terminals such as POS computing system, wireless access point, and Speed-Dom IP camera. The technology incorporates electrical power onto a LAN data line enabling the delivery of operating power in addition allowing data communication to terminals over standard cabling infrastructure.

Block Diagram


Dimension (mm)


Electrical Characteristics

  1. Absolute Maximum Ratings


  1. Recommended Operating Conditions


  1. DC Electrical Characteristics


POE Protocol IEEE802.3at
Ports 10/100/1000 Mbps
Interface Input Data+Power: RJ45
Output Data: RJ45
Output Power: DC Jack
Power Input 48-56 VDC
Power Output 12 V/2.5 A
Max. Power Output 3O Watts
ESD Protection 15 KV at Air
8 KV at contact
DC Power Plug 5.5*2.1 mm
Temperature -30- 65 °C
Humidity 10- 90 % non-condensing
Dimension 100(L) x 42(W) x 20(H) mm
Weight 41 g
