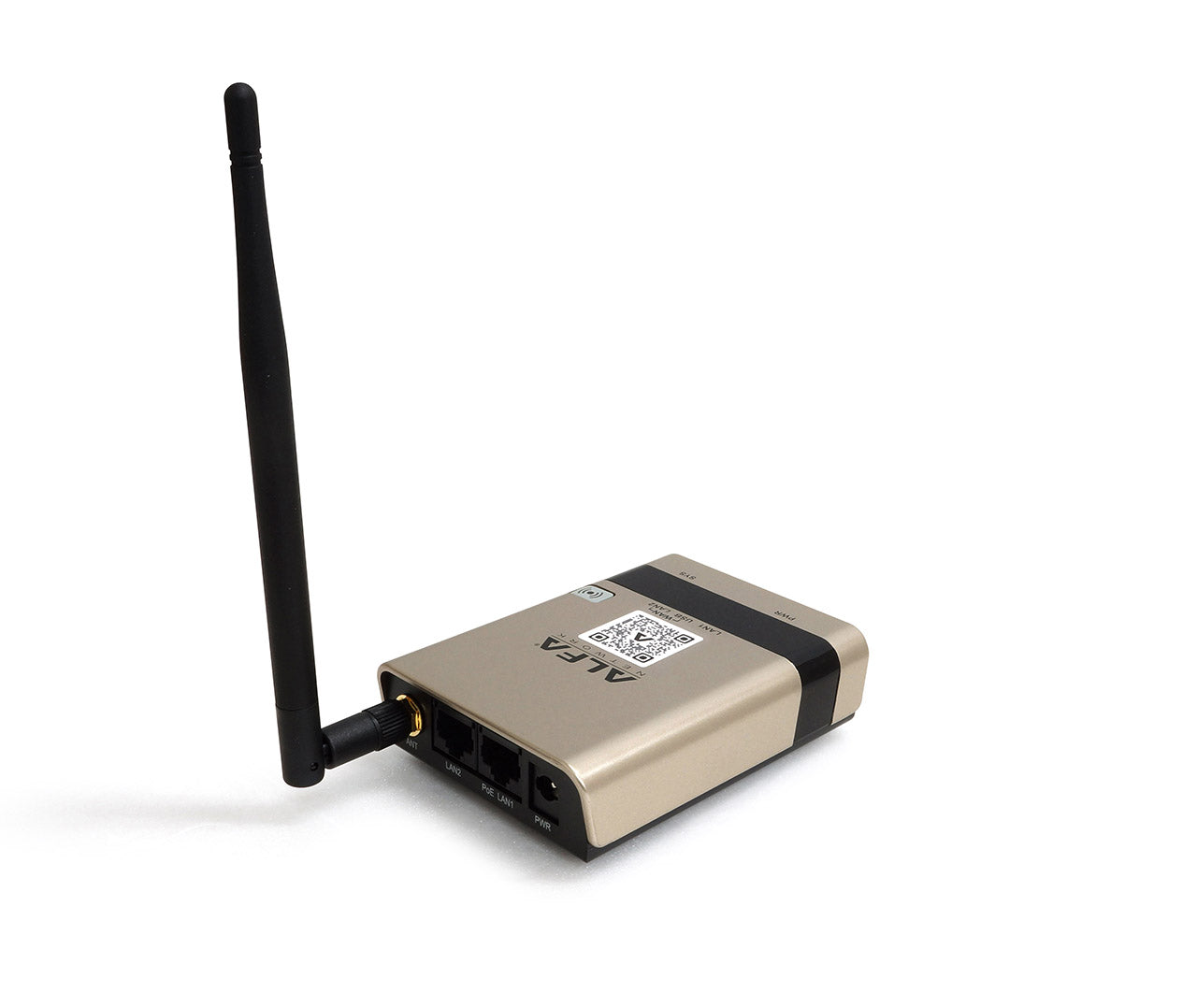

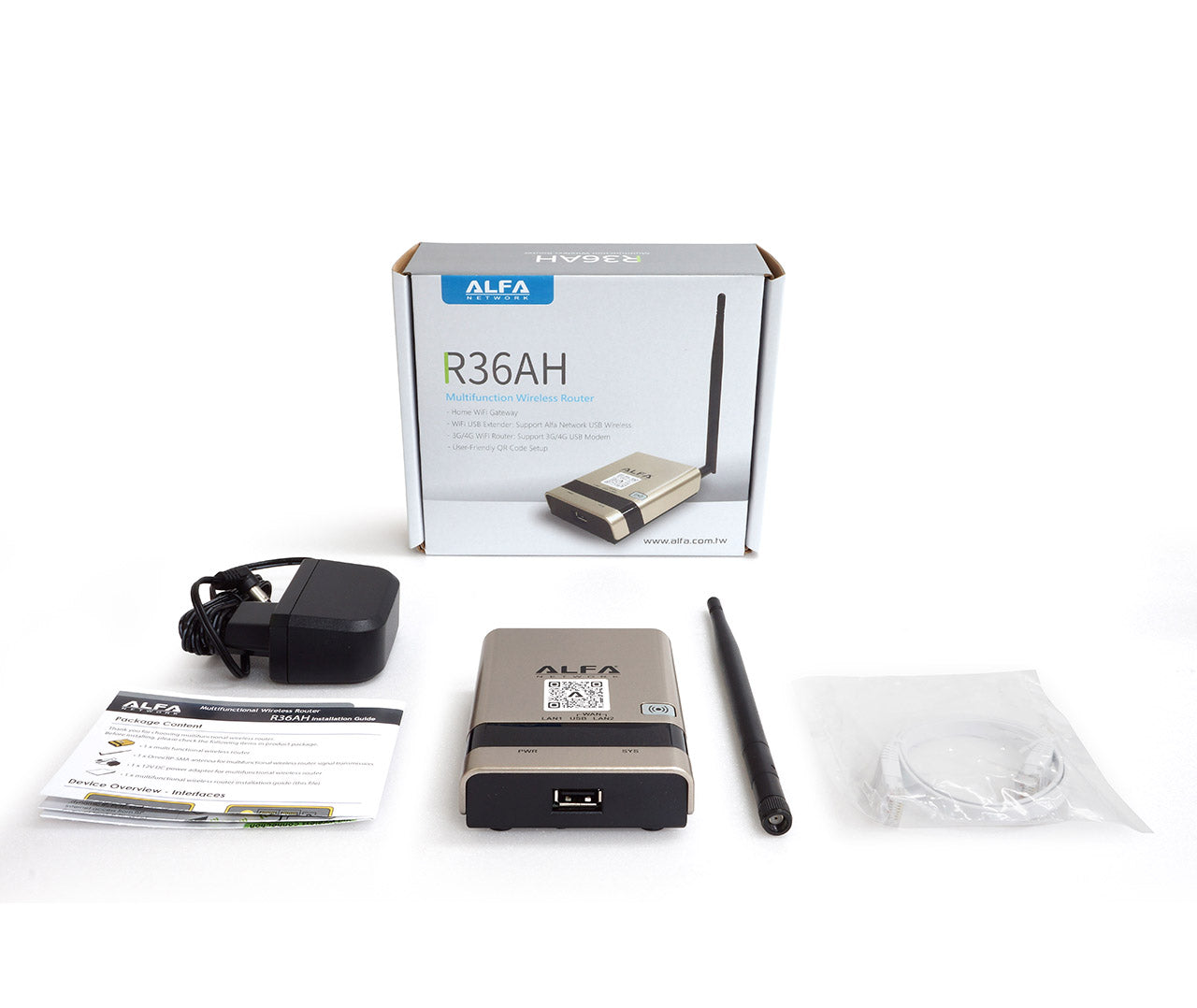

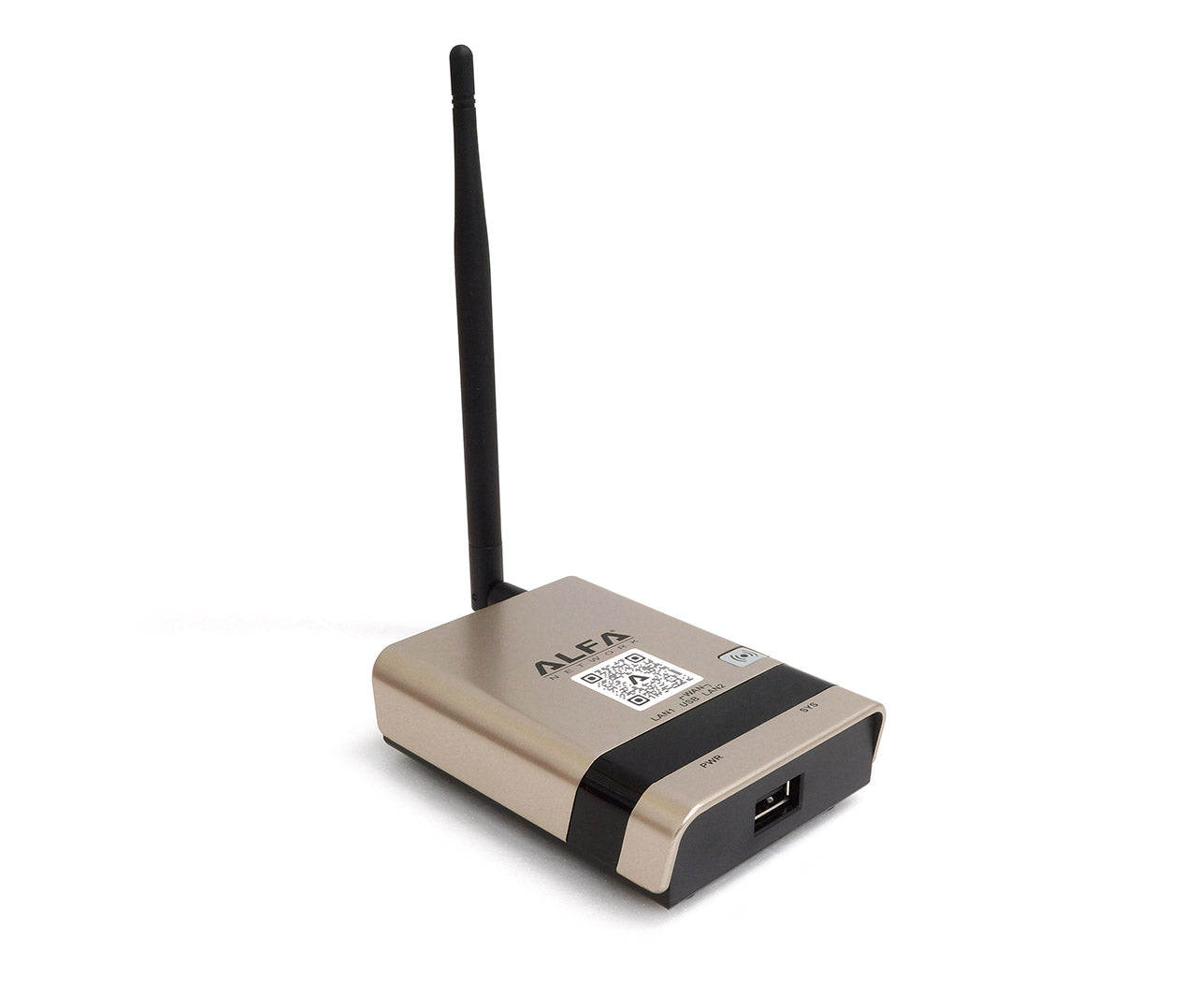

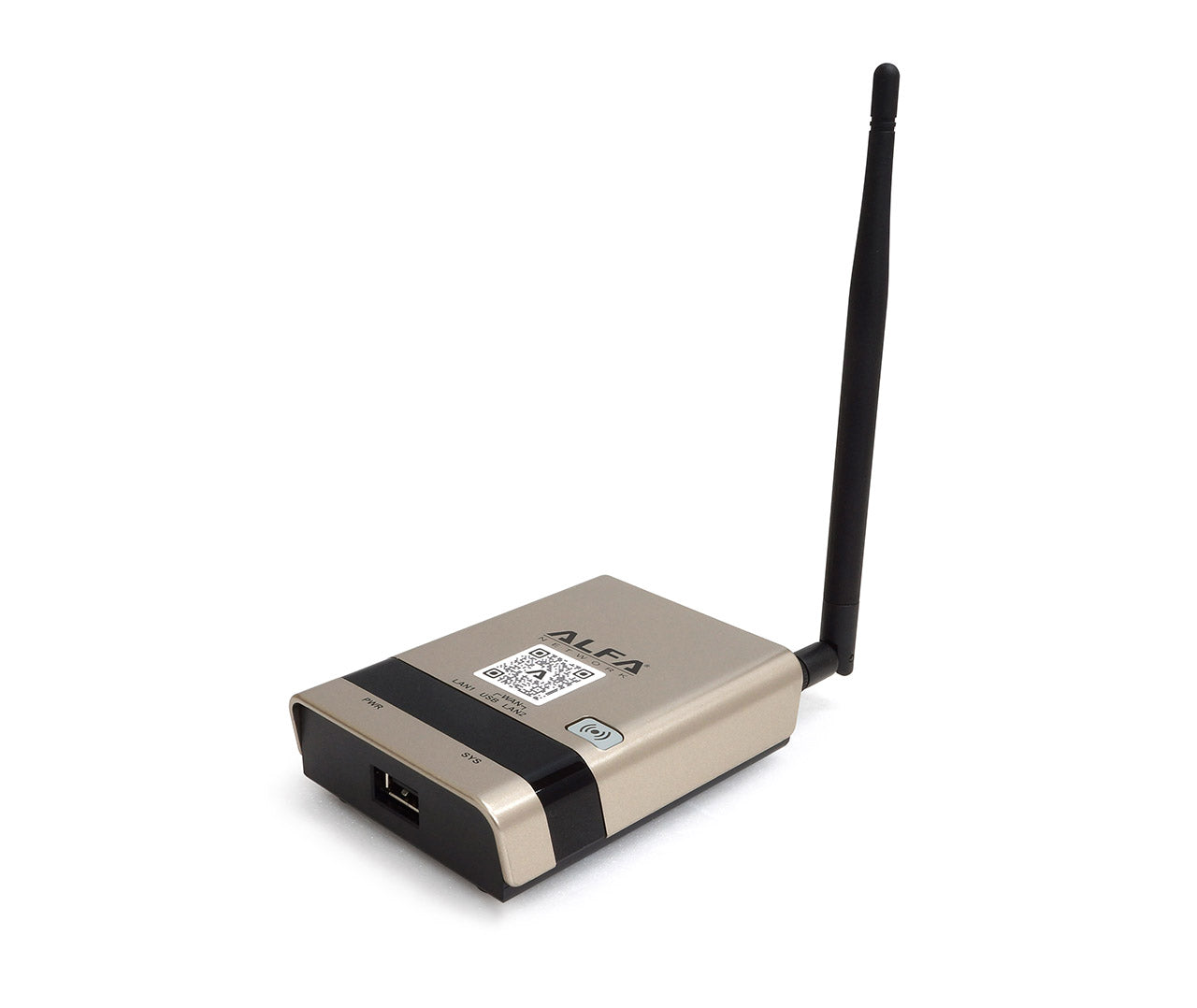

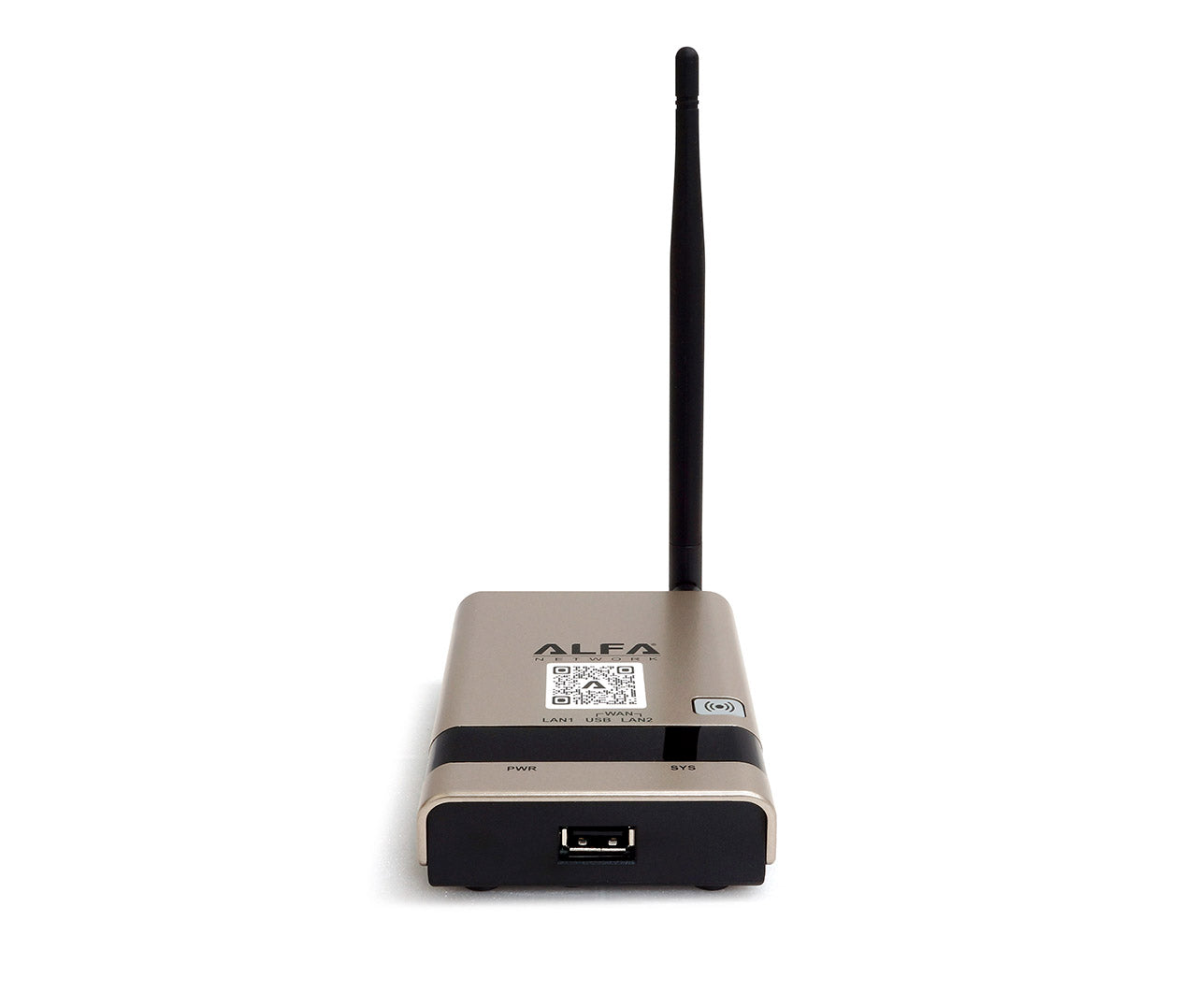

R36AH

R36AH

R36AH


  • Friendly to flash to OpenWrt
  • Support easy flash to your own OpenWrt firmware
  • High Speed Data Rates
  • Providing faster data rates up to 300Mbps (802.11n) and compatible with legacy 802.11b/g equipment
  • Flexible USB Port
  • Support specific Alfa WiFi USB adapters and 4G modem
  • RWB mobile friendly
  • Support mobile user friendly web setup
  • Automotive Cigarette lighter
  • Surge protection protect vehicle inrush current up to 36VDC
  • Enhanced ESD protection
  • Protect Ethernet port, RF and USB port damaged from ESD
  • Hardware Watchdog
  • Recover from fault to insure device working properly

Internet Sharing Applications

Mobile Coffee Car 4G modem extender mode

Tours Bus 4Gmodem extender mode

Hotspot extend WiFi USB extender mode

Chipset QCA9531
Standard IEEE 802.11n/b/g (2x2)
Frequency 2.142 – 2.484GHz
Flash/SDRAM 16 MB / 128 MB
Data Rate 802.11n: up to 300Mbps
802.11g: up to 54Mbps
802.11b: up to 11Mbps
Channel Width 20 / 40MHz
Antenna 1x detachable antenna
1x internal antenna
LED Indicated PWR, LAN, WAN, USB,WLAN
Power requirement DC Jack 12V
Passive PoE 12-24V
Security 64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
WPA Mixed
802.1x authentication
RF Performance
(2 streams / ±2dB)
Tx - 23dBm
RX -11b: -96@1M
RX - 11g: -77@54M
RX - 11n: -90@HT20
Operation
Temperature
-20°C ~ 60°C
Storage Humidity 10% ~ 90% (Non-condensing)
Dimension(mm) 93 x 70 x 26 mm
Weight 74g

Supported USB Device

WiFi USB AWUS036NHA
AWUS036NH
AWUS036NEH
AWUS036ACM
AWUS036ACHM
Tube-UNA
Tube-UN
Tube-UAC2
4G USB modem Alfa Onyx4GU
Tube-U4G
Tube-U4Gv2
