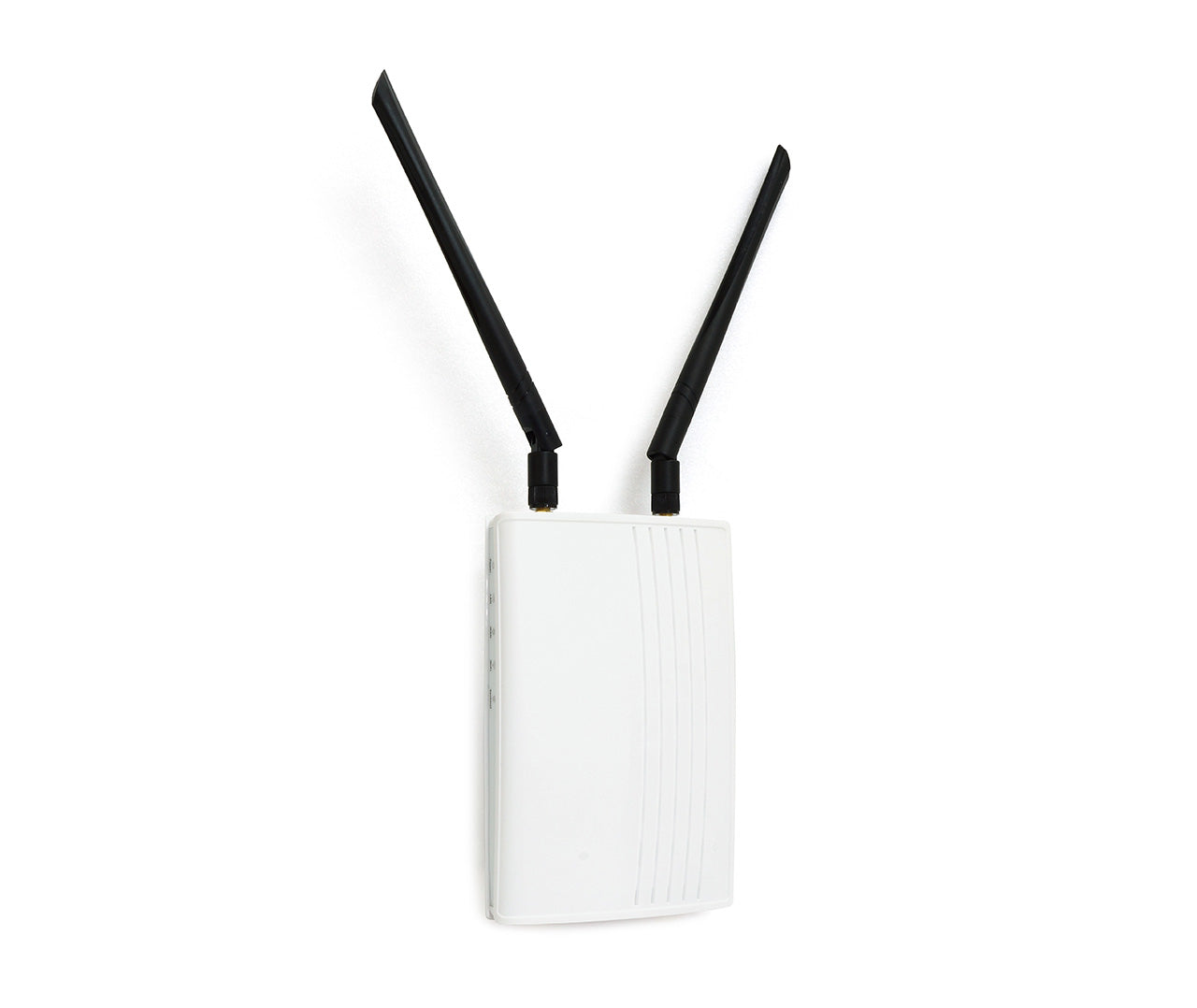

802.11ac Dual-band AP/CPE

Range-ACX is an 802.11ac 2x2 dual-band dual-radio indoor enterprise AP/CPE with 2x Gigabit Ethernet ports. Range-ACX can connect to the backbone network through the Gigabit Ethernet interface. Besides, Range-ACX functions 802.3af PoE PD, which can be powered by PoE switch remotely. Range-ACX also supports DC 12 V power source option for the environment where PoE is not available.

General specifications

Parameter Value
Network Processor Qualcomm IPQ4018
ARM Cortex-A7 quad core processor at 700 MHz
Flash/SDRAM Flash: 16 MB NOR and 128 MB NAND
RAM: 256 MB DDR3
Wireless Standard 802.11a/b/g/n/ac
Frequency 2.4 GHz/5 GHz Simultaneous
Interface 2x 10/100/1000 Mbps RJ45 ports
1x Reset Button
1x DC jack
LEDs Power / WLAN / LAN(PoE)
Antenna Integrated high gain dual-band antennas
Power Source PoE: standard 802.3af
DC: 12 V
