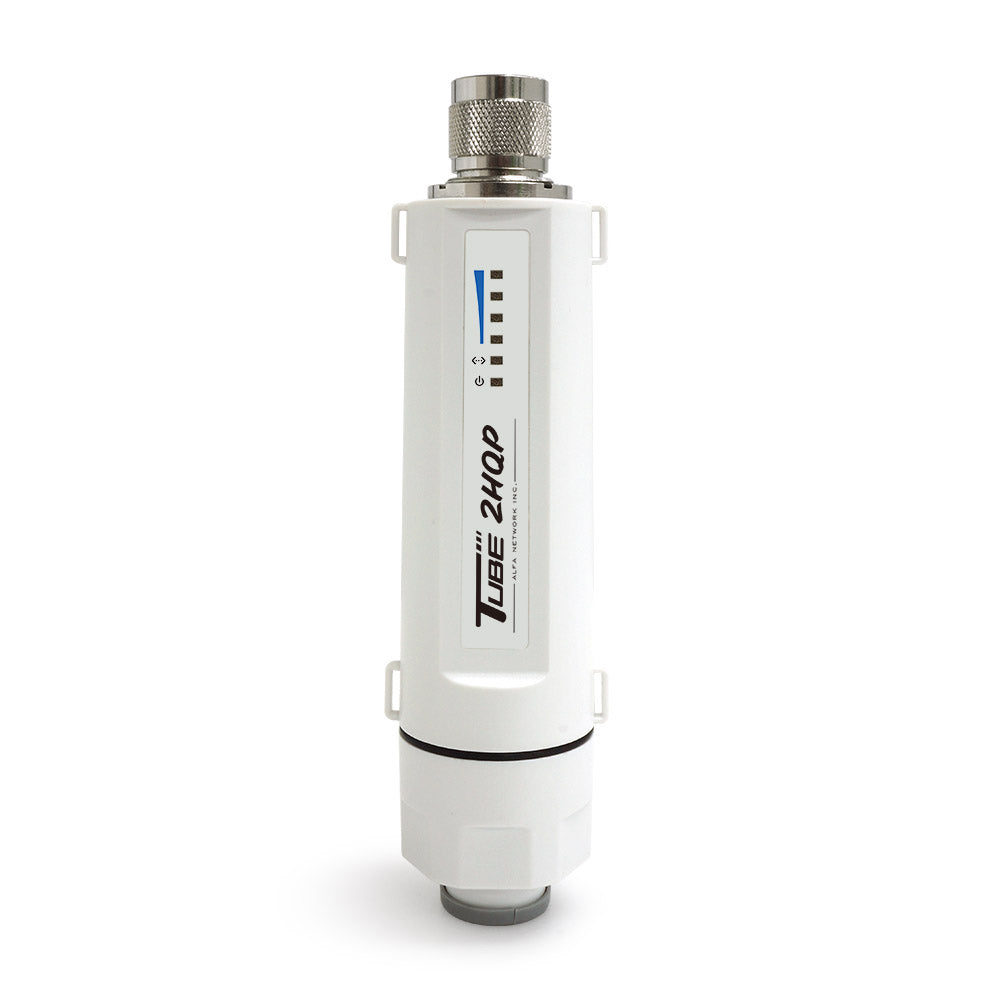

Tube-2HQP

Tube-2HQP

High-power outdoor AP/CPE board with Fast Ethernet and PoE support



Tube-2HQP is a high-power 802.11n 2.4 GHz AP/CPE board, equipped with Fast Ethernet

Tube-2HQP offers an integrated 802.11b/g/n WiFi radio (2.4 GHz, up to 27 dBm TX power and 150 Mbps throughput) with type-N (male) antenna connector and Fast Ethernet with support for passive PoE input.

With additional module, this board can be also powered with a standard IEEE 802.3at/af PoE.

Official OpenWrt support, web-based recovery and system serial console access make development extremely easy.

Applications

General specifications

Parameter Value
SOC Qualcomm™ QCA9531 with 650 MHz single-core MIPS 24Kc CPU
RAM 64 or 128 MB of DDR2
Flash 16, 32 or 64 MB of SPI NOR flash
WiFi 802.11b/g/n 1T1R 2.4 GHz
1x Type-N (male) antenna connector
Ethernet 1x Fast Ethernet with ESD protection
Pin headers 1x 4-pin system serial console (2.00 mm pitch)
Butto 1x push-button (reset)
LED 1x power/PoE input (blue)
1x LAN (blue)
4x signal level (red, orange, green, green)
Other External hardware watchdog
Software U-Boot with web-based firmware recovery support
Officially supported in OpenWrt (Linux Kernel 5.10+)
Power supply 802.3at/af standard module
Dimensions 176 x 38
Weight 125 g
Operating humidity 5 % ~ 90 % (Non-condensing)
Operating temperature -30 °C ~ 70 °C
