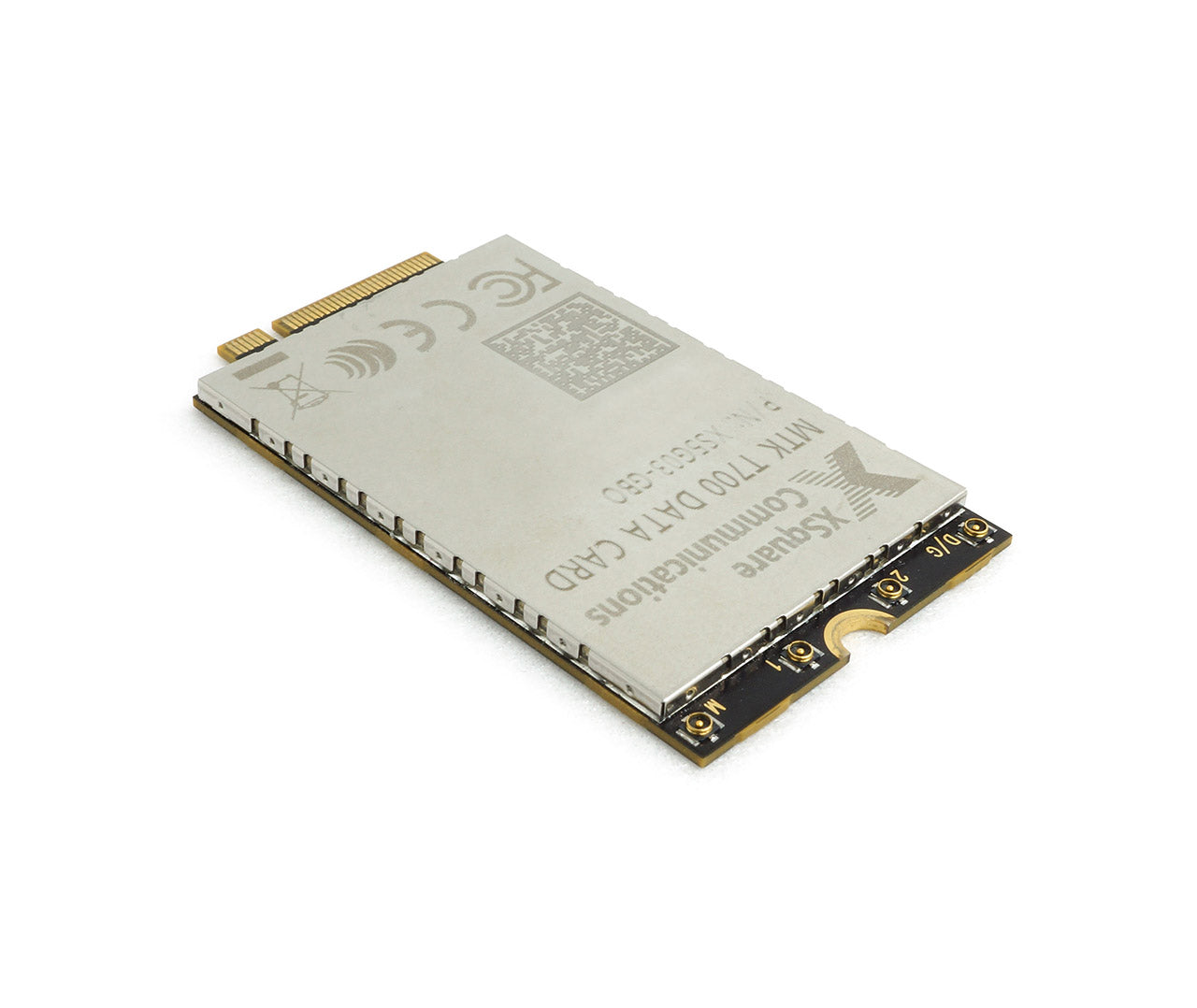

XS5G03-US

XS5G03-US

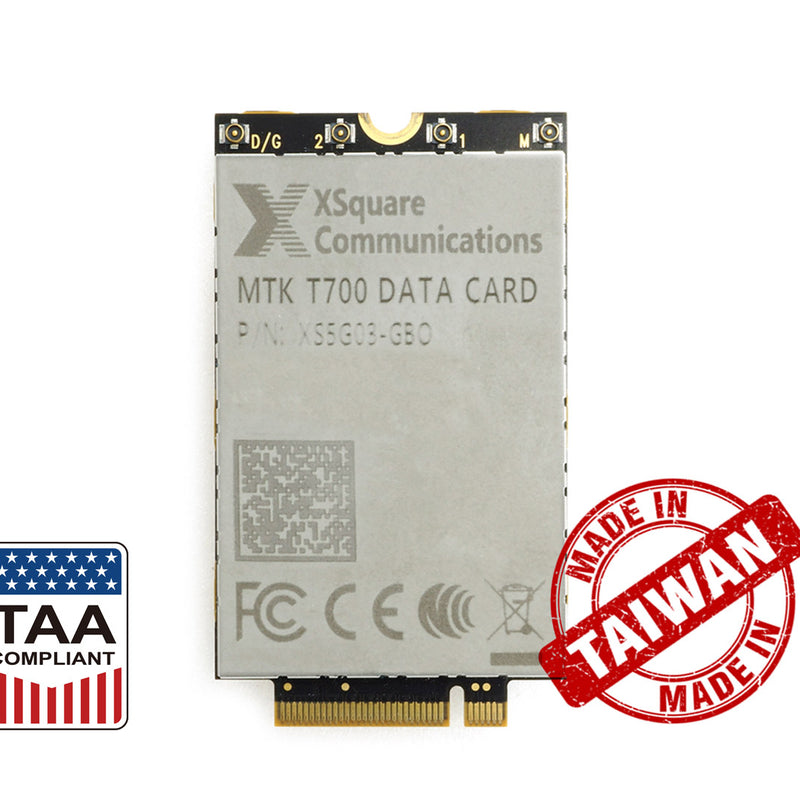

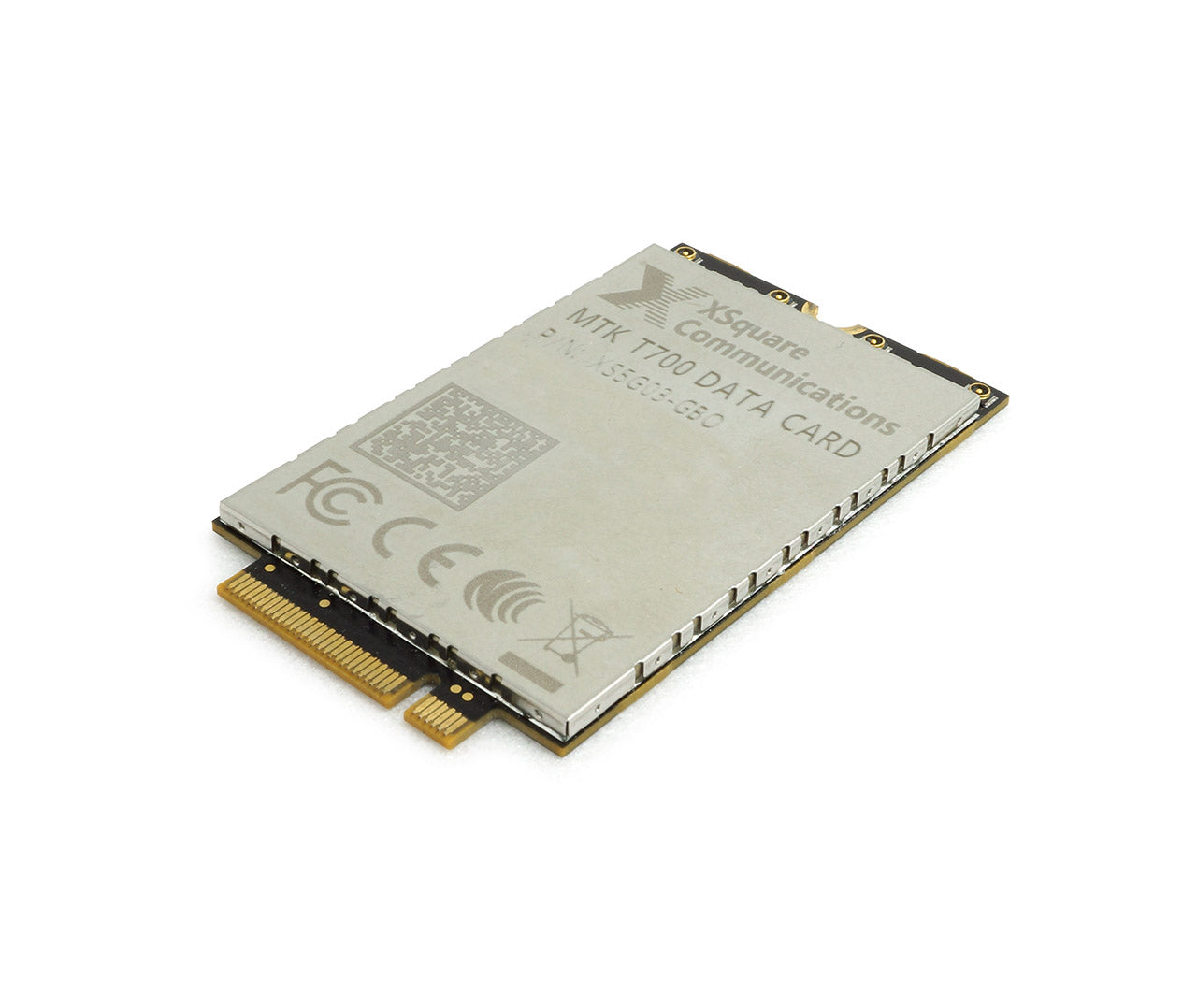

Introducing XS5G03-US, the cuttingedge 5G Data Card meticulously crafted for the USA market.
Engineered with an industrial-grade M.2 form factor, it perfectly complements high-performance, bandwidth-intensive enterprise and industrial applications.
XS5G03-US is designed to meet the diverse needs of modern enterprises, offering a versatile solution for dataintensive tasks. Whether you need high-speed data transfers, lowlatency communications, or robust reliability, XS5G03-US is your gateway to enhanced connectivity.

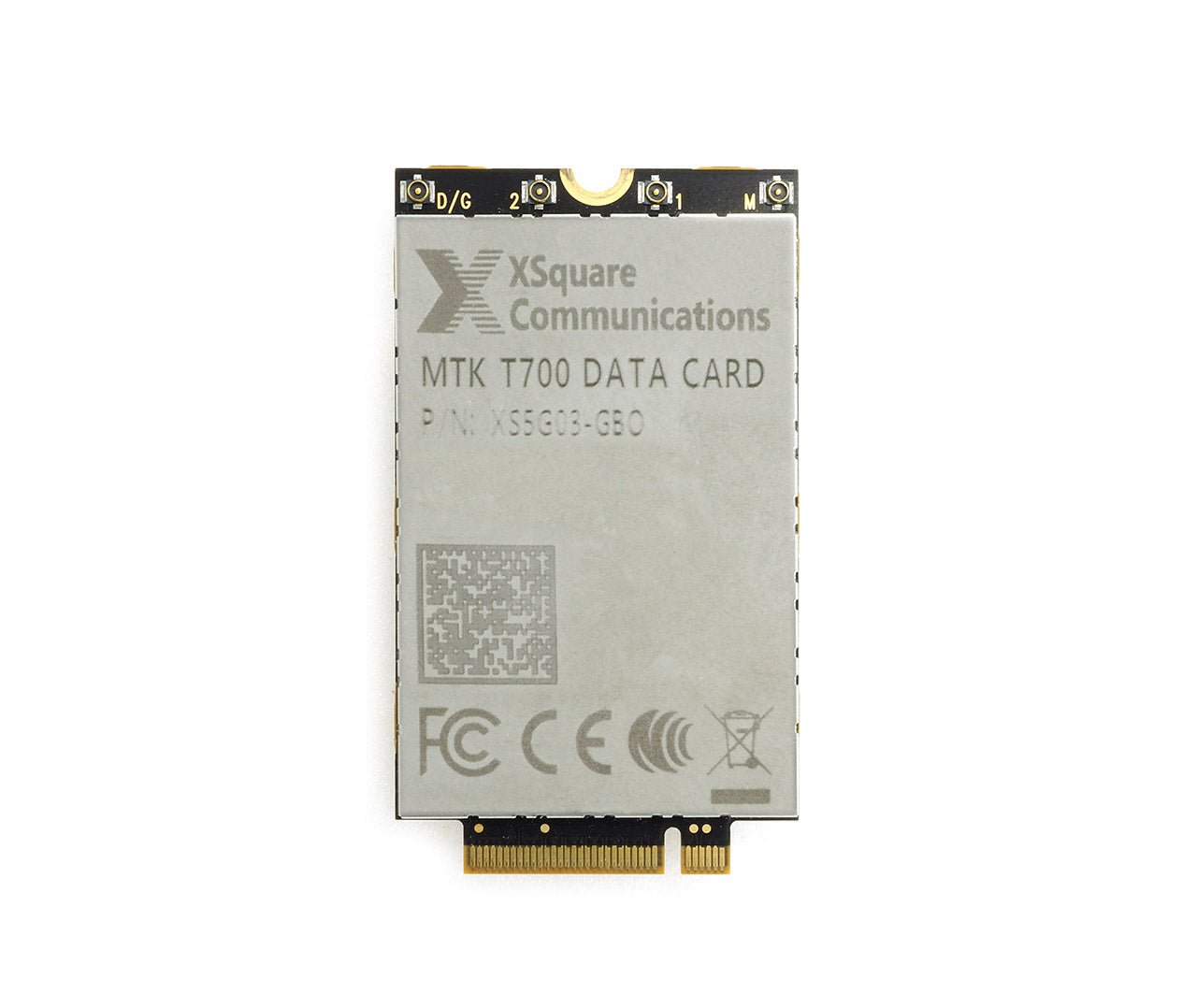

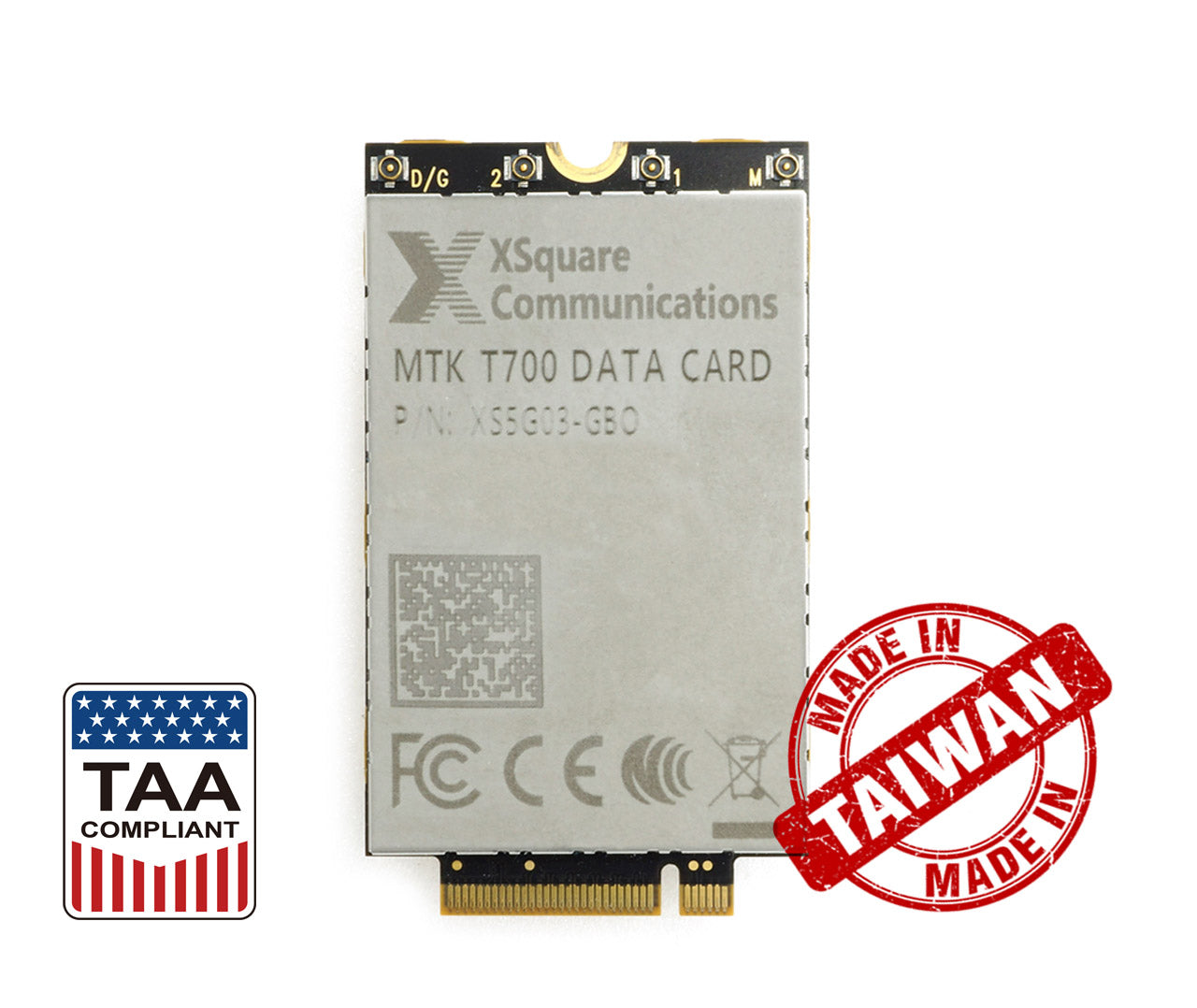

  1. Main antenna (TRx/SRS)
  2. MIMO antenna (Rx/SRS)
  3. MIMO antenna (TRx/SRS)
  4. Diversity and GNSS antenna (Rx/SRS)
  5. EMI Shielding cover
  6. M.2 B-key
  7. Dimensions: 30 x 52 mm


General Specification

Chipset

MediaTek T700-2 /  ARM Corex-A55

Flash

MCP 4Gb+4Gb

Throughput

5G NR DL: 2.77 Gbps / UL: 1.25 Gbps

4G DL: 600 Mbps / 150 Mbps

3G DL: 42.2 Mbps / UL: 11.5 Mbps

Interface

M.2 B-key

Antenna Port

3x Cellular

1x Cellular

Power Required

3.3 V to 4.2 V @ 3 A (Max)

Power Consumption

12.53 W (Max)

Dimensions

52 x 30 x 2.25 mm

Operation Temperature

-30 °C ~ 70 °C

Certifications

FCC / CE / NCC / JATE / TELEC



RF Specification

5G NR

Standard

3GPP Release 15

SA Bands

n48/77/78

Sub-6 CA

FDD+FDD / TDD+TDD/ FDD+TDD/ TDD+FDD

4G LTE

LTE Category

Cat. 12

LTE Bands

B48



Antenna Define
