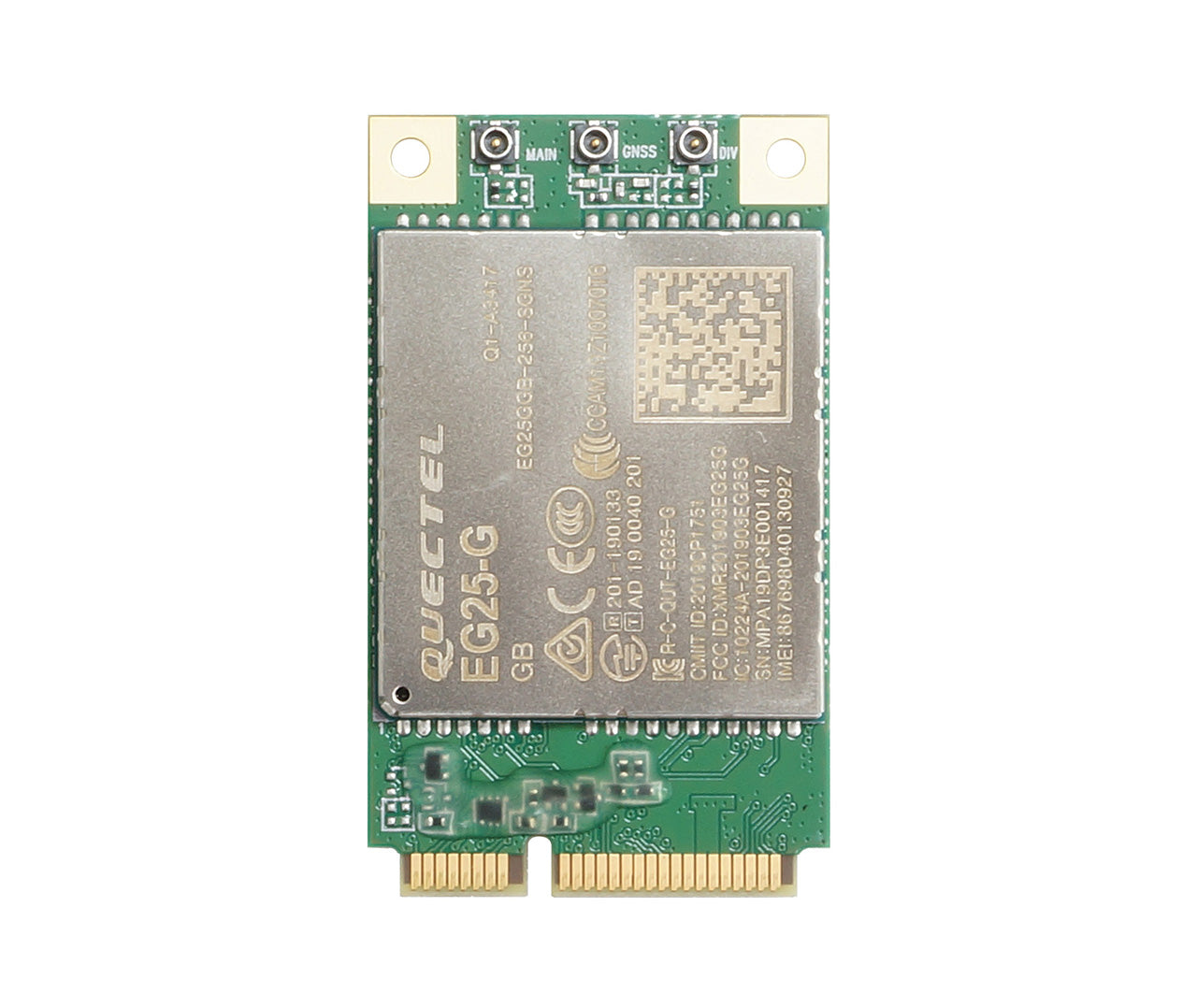

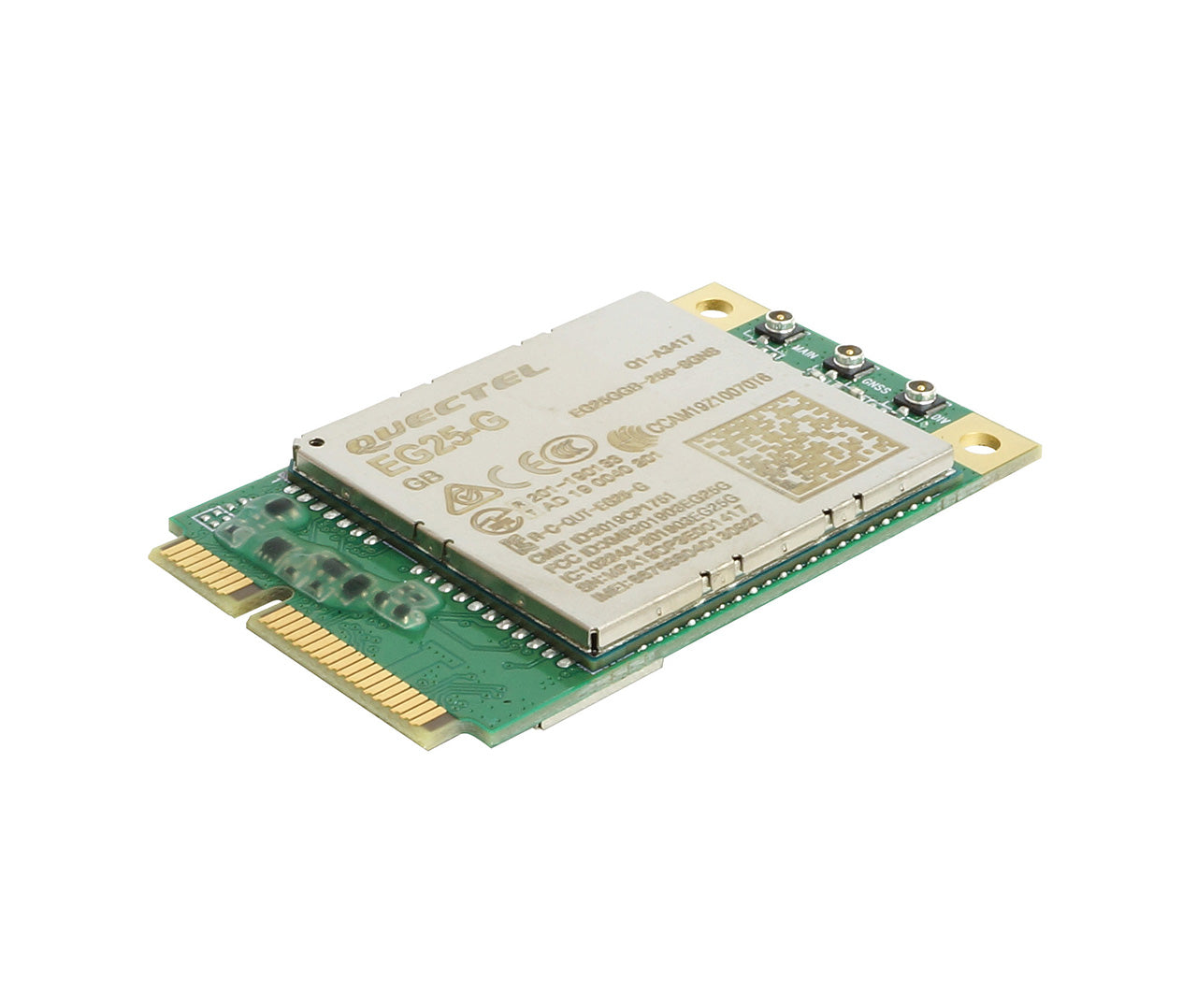

4G/LTE Cat 4 mini PCIe Globel verison

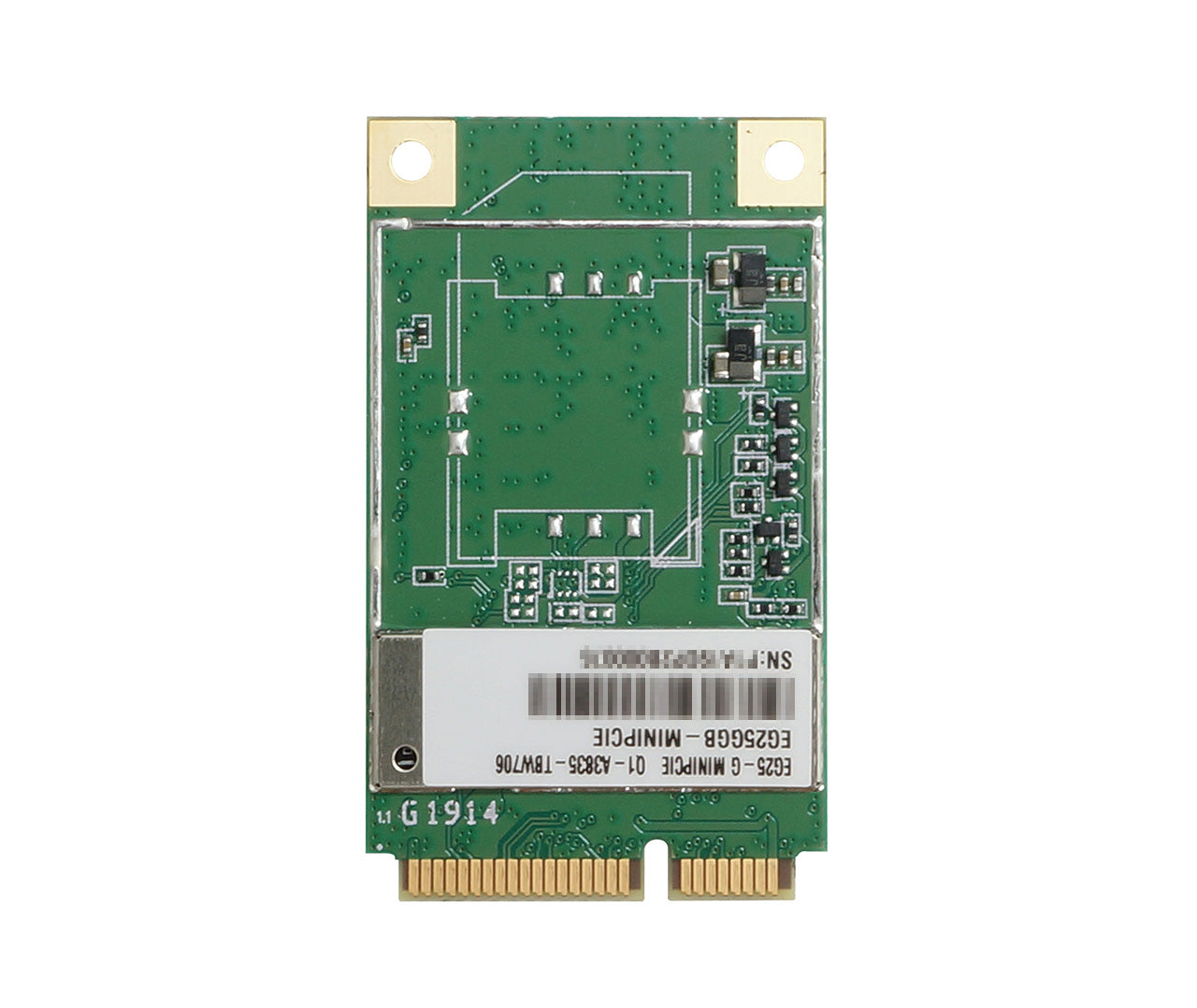

EG25-G Mini PCIe is an LTE category 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.

EG25-G Mini PCIe is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

EG25-G Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.

  • LTE category 4 module optimized for broadband
  • Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
  • Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices
  • MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
  • Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

EG25-G Mini PCIe:

LTE FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE TDD B38/B39/B40/B41
WCDMA B1/B2/B4/B5/B6/B8/B19
GSM B2/B3/B5/B8


LTE LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL)
LTE TDD: Max 130Mbps (DL)/Max 30Mbps (UL)
UMTS DC-HSDPA: Max 42Mbps (DL)
HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
GSM EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)
GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)


Speech Codec Modes HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic Echo Cancellation/Noise Suppression
Audio Digital Audio and VoLTE (Voice over LTE) (Optional)
Interfaces USB x 1: USB 2.0 with High Speed up to 480Mbps
PCM x 1: Digital Audio through PCM (Optional)
(U)SIM x 1: 1.8V/3.0V (U)SIM Interface
UART × 1: Main UART
LED_WWAN# for Network Status Indication
W_DISABLE# for Disabling RF Function
PERST# for Module Resetting
Solder pads for Main Antenna, Rx-diversity and
GNSS Antennas
Enhanced Features eCall*
(U)SIM Card Detection
(U)SIM Card Connector
Support MIMO in DL Direction
DFOTA* Delta Firmware Upgrade Over-The-Air
GNSS GPS/GLONASS/BeiDou/Galileo/QZSS (Optional)

Electrical Characteristics

Output Power Class 3 (23dBm±2dB) for LTE FDD bands
Class 3 (23dBm±2dB) for LTE TDD bands
Class 3 (24dBm+1/-3dB) for WCDMA bands
Class E2 (27dBm±3dB) for GSM850 8-PSK
Class E2 (27dBm±3dB) for EGSM900 8-PSK
Class E2 (26dBm±3dB) for DCS1800 8-PSK
Class E2 (26dBm±3dB) for PCS1900 8-PSK
Class 4 (33dBm±2dB) for GSM850
Class 4 (33dBm±2dB) for EGSM900
Class 1 (30dBm±2dB) for DCS1800
Class 1 (30dBm±2dB) for PCS1900
Consumption 3.6mA @Sleep, Typ.
35mA @Idle
Sensitivity LTE B1: -99.5(10M)
LTE B2: -99.9dBm (10M)
LTE B3: -99.7dBm (10M)
LTE B4: -99.7dBm (10M)
LTE B5: -99.9dBm (10M)
LTE B7: -99.2dBm (10M)
LTE B8: -99.8dBm (10M)
LTE B12: -99.8dBm (10M)
LTE B13: -99.5dBm (10M)
LTE B18: -100dBm (10M)
LTE B19: -99.9dBm (10M)
LTE B20: -99.8dBm (10M)
LTE B25: -100dBm(10M)
LTE B26: -99.5dBm (10M)
LTE B28: -99.6dBm (10M)
LTE B38: -99dBm (10M)
LTE B39: -99.5dBm(10M)
LTE B40: -99.2dBm (10M)
LTE B41: -99dBm (10M)
WCDMA B1: -109.2dBm
WCDMA B2: -110dBm
WCDMA B4: -109.7dBm
WCDMA B5: -110.4dBm
WCDMA B6: -110.5dBm
WCDMA B8: -110.5dBm
WCDMA B19: -110.1dBm
GSM850: -108dBm
GSM900: -108dBm
DCS: -107.5dBm
PCS: -107.5dBm

Software Features

USB Serial Driver Windows 7/8/8.1/10, Windows CE 5.0/6.0/7.0*,
Linux 2.6/3.x/4.1~4.14, Android
RIL Driver Android 4.x/5.x/6.x/7.x/8.x
NDIS Driver Windows 7/8/8.1/10
ECM Driver* Linux 2.6/3.x/4.1~4.14
Gobinet Driver Linux 2.6/3.x/4.1~4.14
QMI_WWAN Driver 3.x (3.4 or later)/4.1~4.14

General Features

  • Temperature Range: -40°C ~ +80°C
  • Dimensions: 50.0mm x 30.0mm x 4.9mm
  • Weight: Approx. 9.8g
  • Mini PCIe Package
  • Supply Voltage: 3.0V~3.6V, 3.3V Typ.
  • 3GPP E-UTRA Release 11
  • Bandwidth: 1.4/3/5/10/15/20MHz
  • 3GPP TS27.007 and Enhanced AT Commands


  • RoHS Compliant
  • GCF* (Global)
  • Verizon*/AT&T*/FCC*/PTCRB* (North America)
  • CE* (Europe)
  • RCM* (Australia)
  • IC* (Canada)
  • Anatel* (Brazil)
  • IFETEL* (Mexico)
  • CCC* (China)
  • NCC* (Taiwan)
  • KC* (South Korea)
  • JATE*/TELEC* (Japan)
  • NBTC* (Thailand)
  • ICASA* (South Africa)
  • FAC* (Russia)

* Under Development
