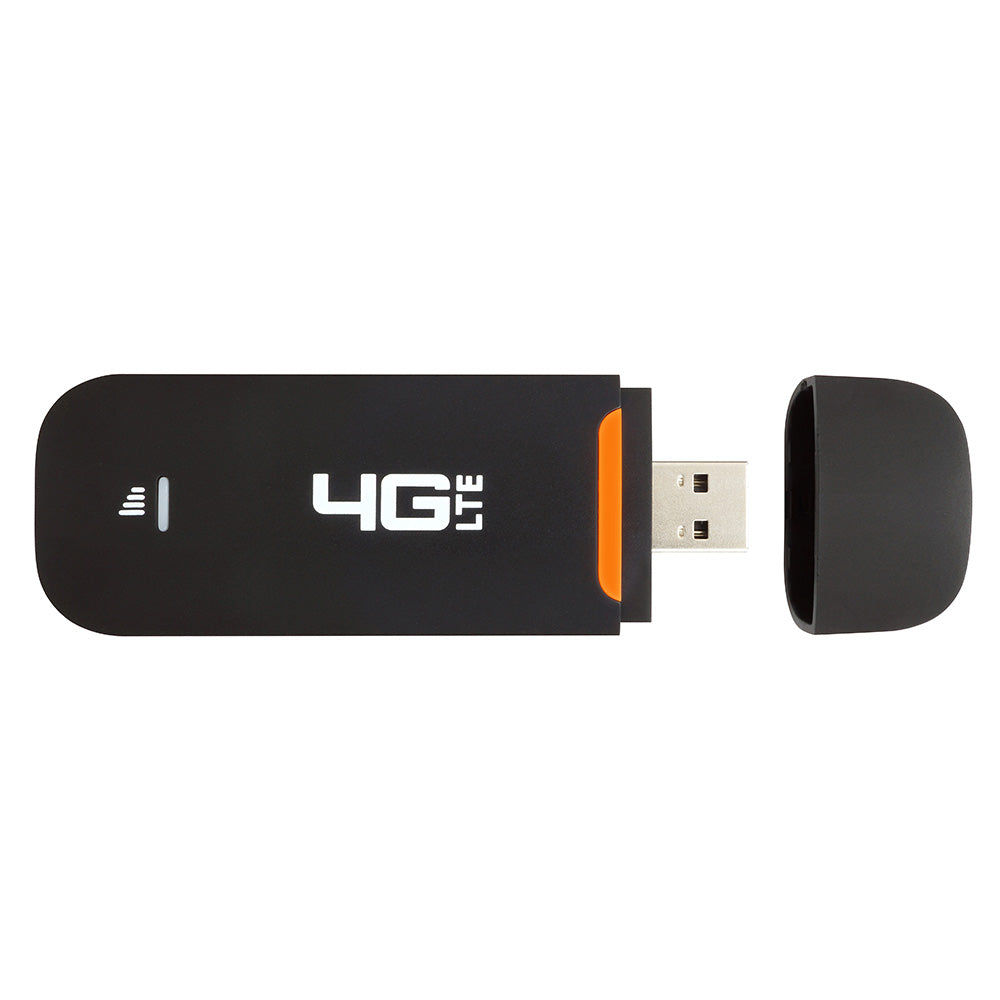

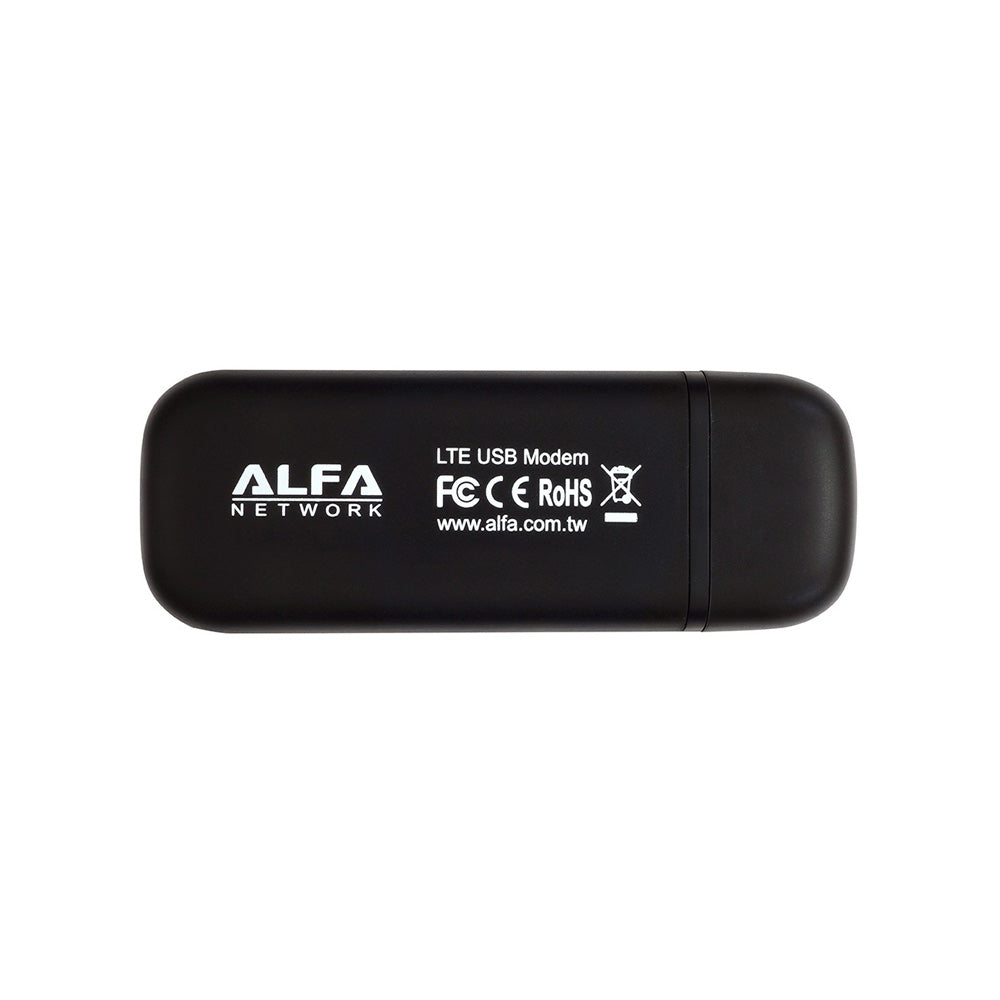

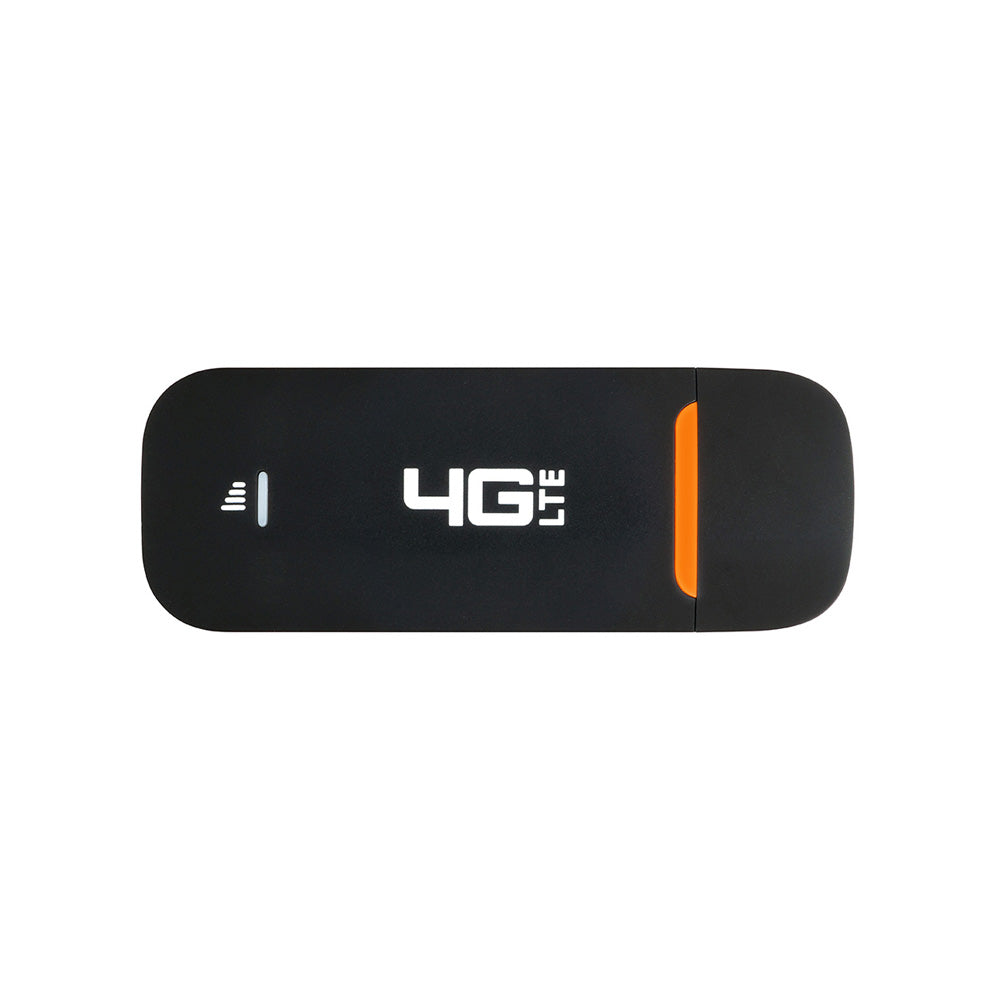

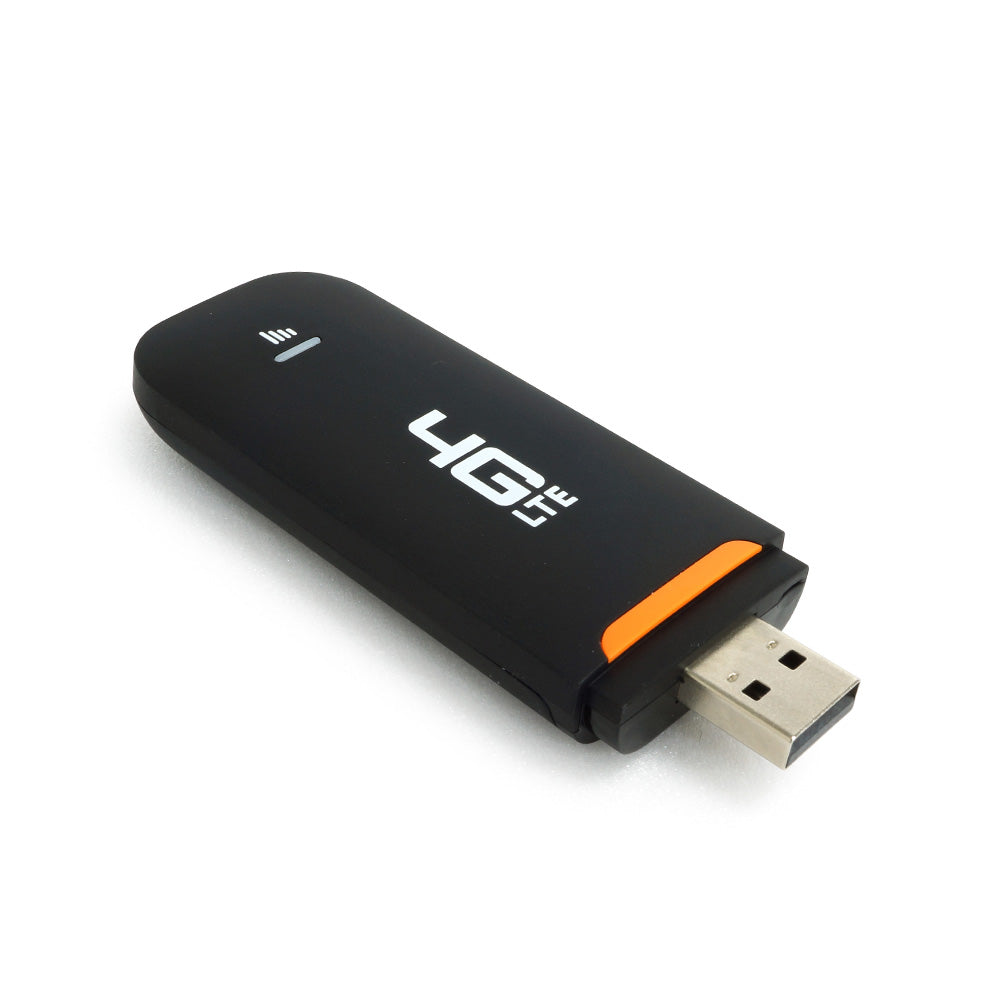

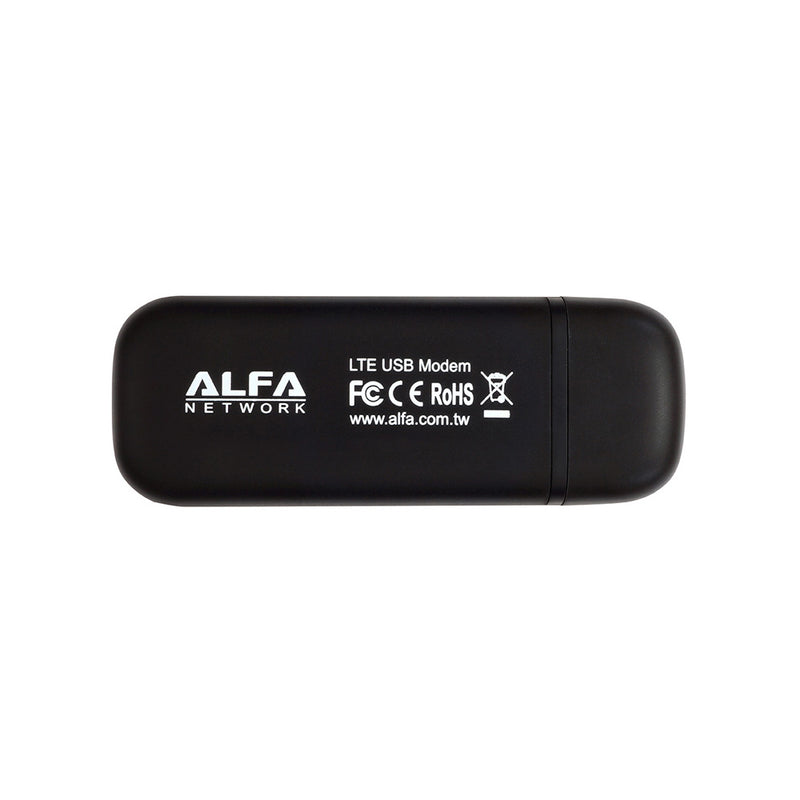

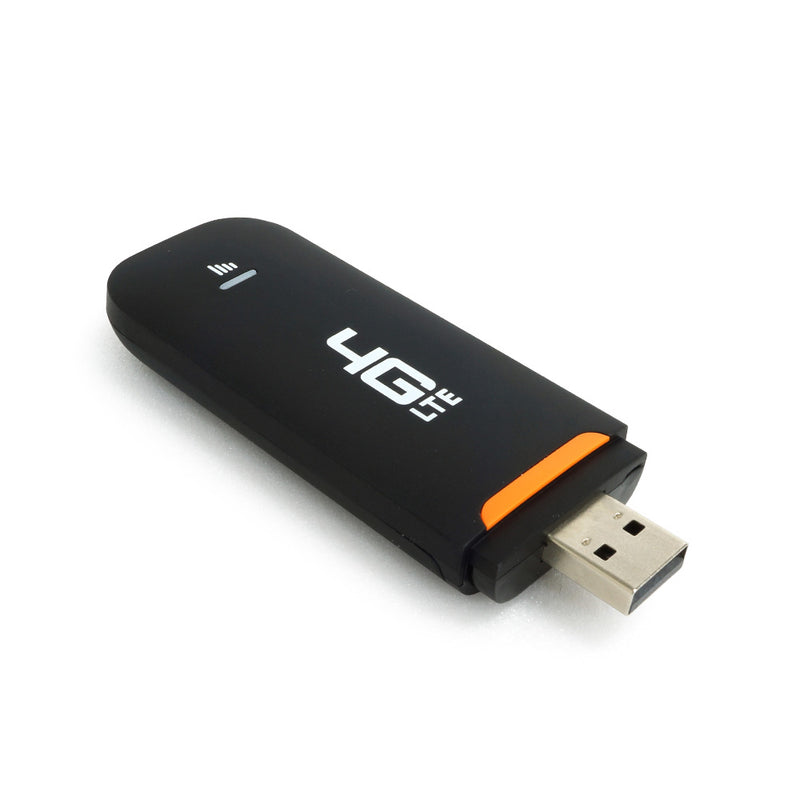

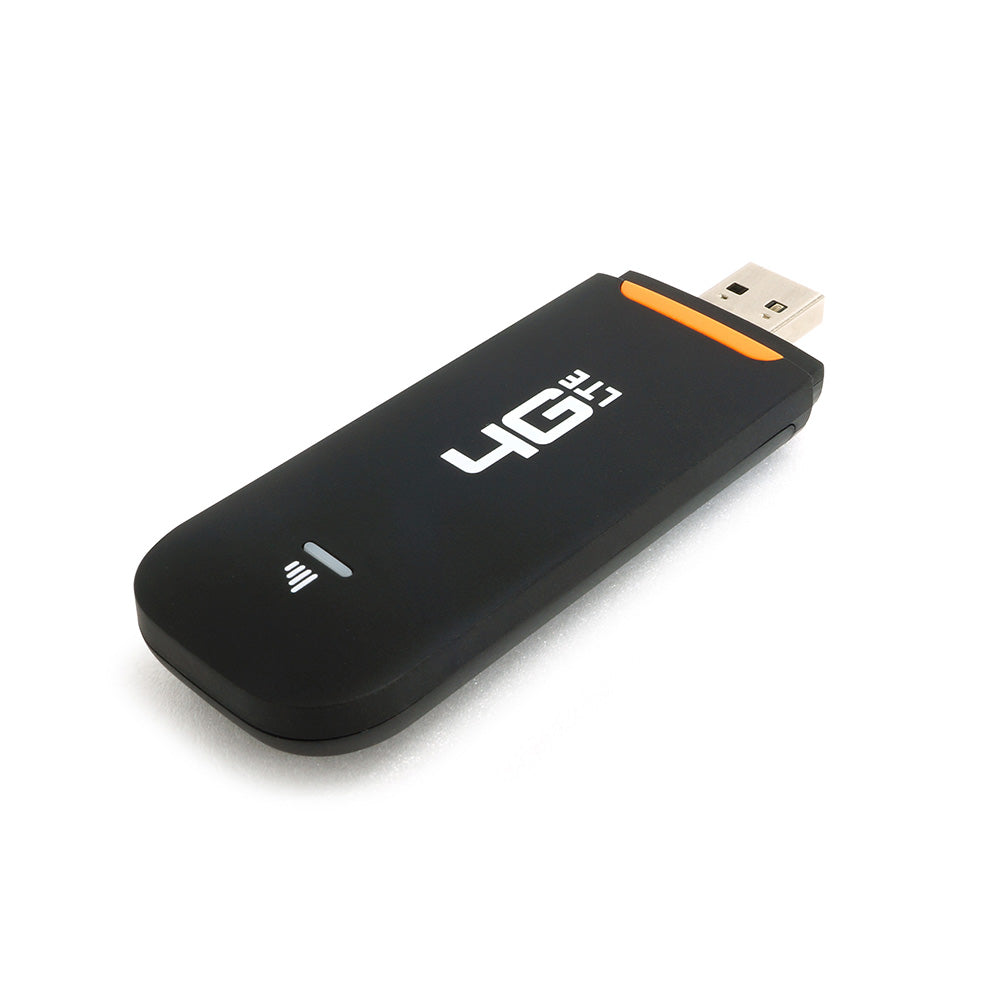

4G High-Speed Internet LTE USB Modem

  • LTE High-Speed
  • Plug-n-Play Simplicity
  • Large Capacity Storage
  • Sensitive Antenna


LTE High-Speed

Max. 100 Mbps downstream Max 50 Mbps upstream Backwards compatible with UMTS/WCDMA, EDGE/GPRS


Plug-n-Play Simplicity

Windows Driver & Utility Built-in: CD-free, auto-installation on your laptop or desktop computers


Large Capacity Storage

Built-in microSD card slot, Onyx4G-E performs as a memory stick (Max. 32 GB support.)


Sensitive Antenna

Field-Proven , High-Sensitivity Quad-Band, 3-Dimensional Antenna Design

Note: Actual mobile data performance may vary due to signal strength, coverage, operation frequencies, base station status, network congestion and the network management services over 4G LTE network.

Application Scenario

  • Plug-n-Play Driver/Utility Auto-Installation on Windows OS platform

  • 4G Mobile Internet Sharing via R36AH

(Ideal solution for multiple-user Internet  access sharing for Mac, Linux, tablet and smart phone users)

Broadband Wireless LTE/HSPA+/HSPA/WCDMA (UMTS)
Frequency FDD-LTE:
B1 (2100 MHz)/B3 (1800 MHz)/B7 (2600 MHz)
B20 (800 MHz)
B1 (2100 MHz)/ B8 (900 MHz)
Quad Band (850/900/1800/1900 MHz)
Data Rate FDD-LTE:
R8 Cat.3 100 Mbps DL / 50 Mbps UL WCDMA/UMTS:
R99 384 kbps DL / UL
R5 HSDPA 7.2 Mbps DL
R6 HSUPA 5.76 Mbps UL
R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL
R8 HSPA+ 42 Mbps DL / 5.76 Mbps UL
Interface Hi-Speed USB 2.0

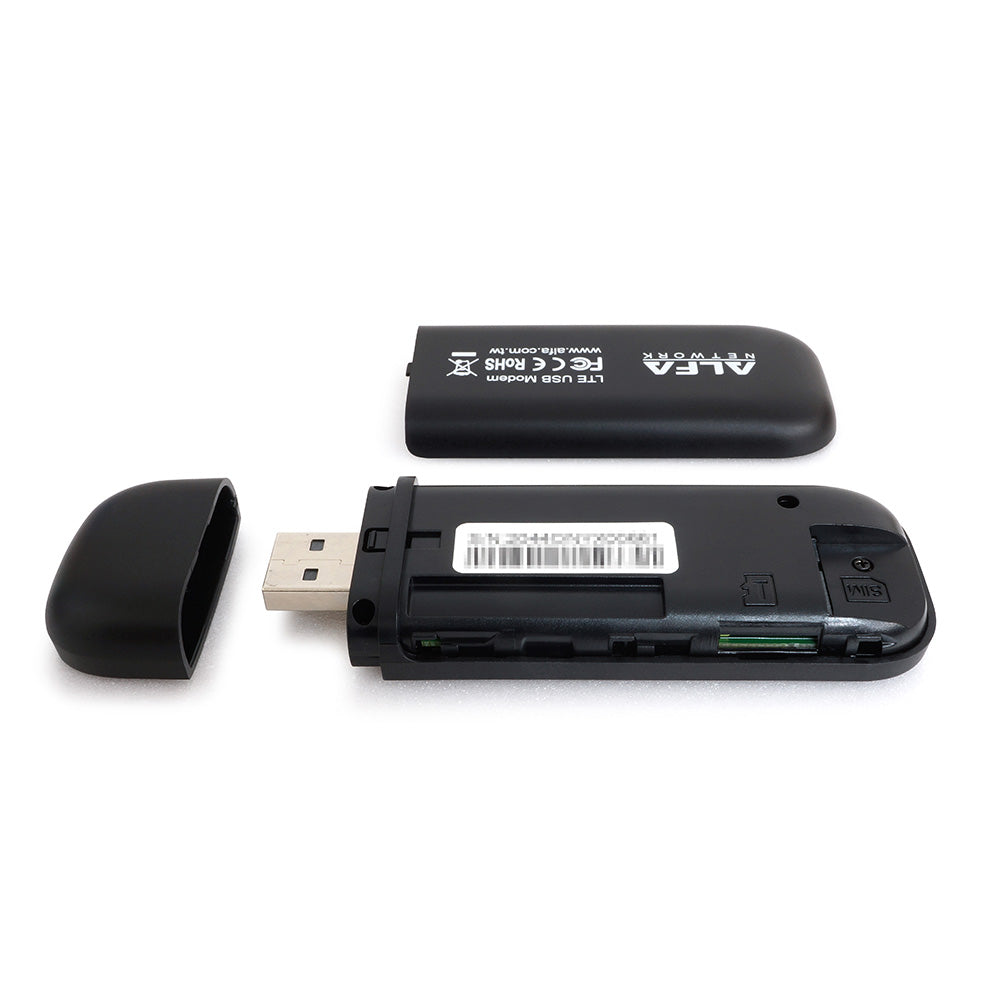

Standard 6 PIN SIM card
microSD card slot: Max. 32 GB support
Antenna Integrated antenna
System LED Tri-color LED indicator
LED Definitions Purple (solid ): LTE network registered
Purple (blinking): LTE network activity
Blue (solid): UMTS/2G network registered
Blue (blinking): UMTS network activity
Red (solid): no service, no SIM card or incompatible service
Operation System Support Windows Vista, 7, 8, 10 32/64bit support Auto-install utility driver
Mac & Linux users: please install Onyx4G-E with R36AH(sold separately), and obtain
Internet access through wireless signal from R36AH
Operating Temperature -10 °C ~ 45 °C
Storage Humidity 5 % ~ 98 % (Non-condensing)
Dimensions 95 x 32 x 9 mm
Weight 12 g
