AGS05-2.5GL

AGS05-2.5GL

2.5 GbE PCIe net2.5 Gbps unmanaged Ethernet switch with loop detection and fanless design

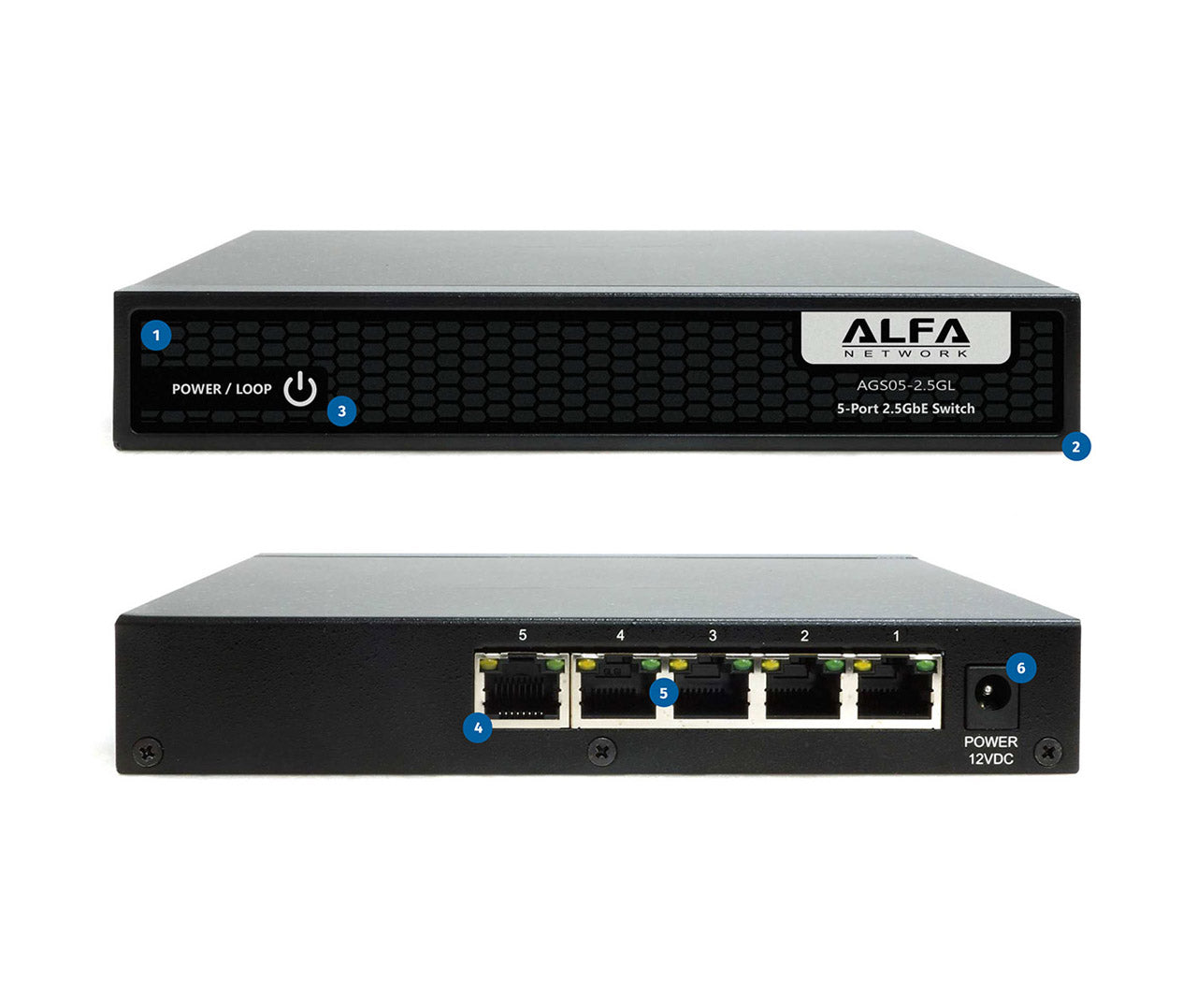

  1. (1) Realtek1 ™ RTL8371 chipset
  2. (2) Fanless metal case design
  3. (3) Power and loop detection indicator

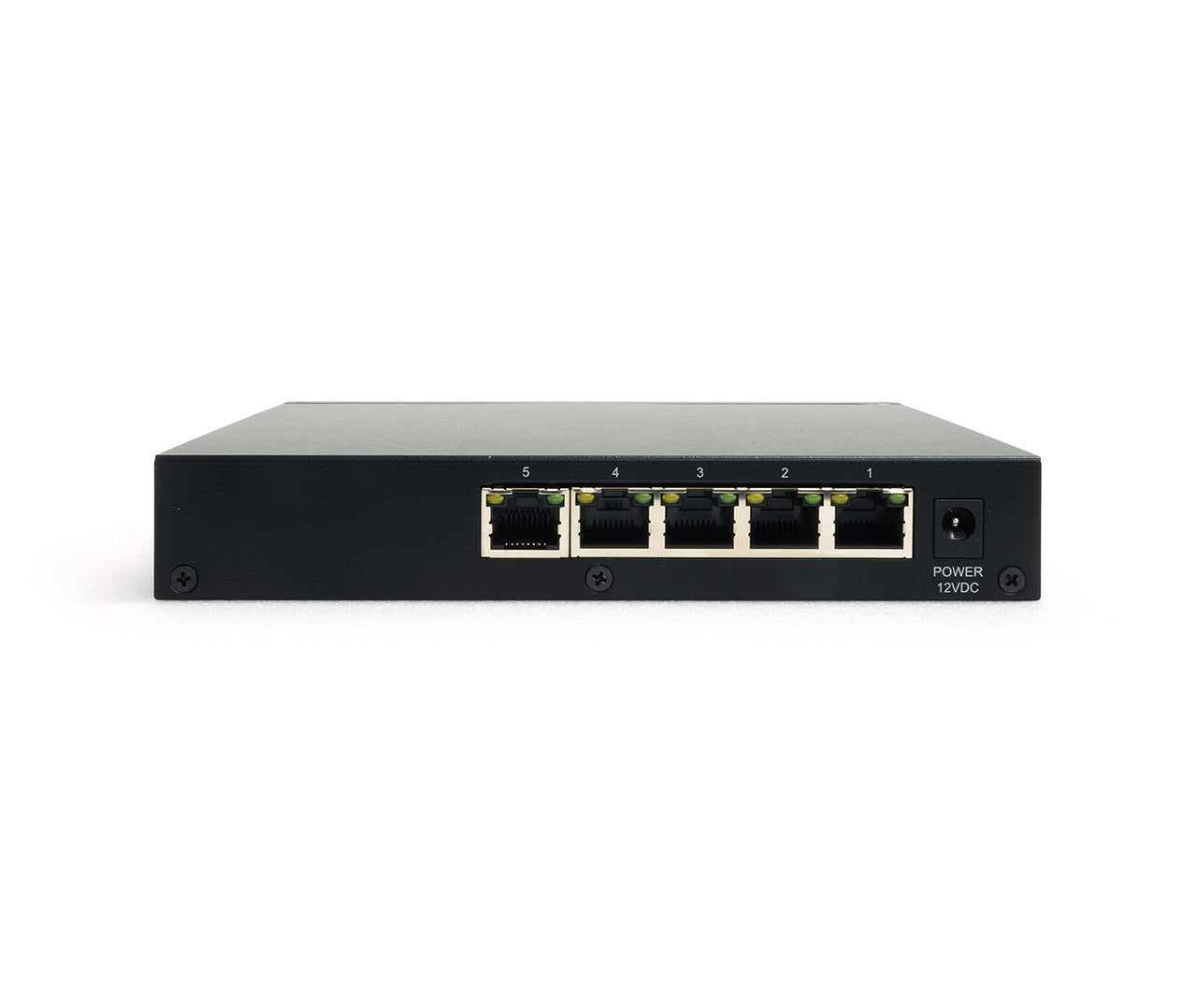

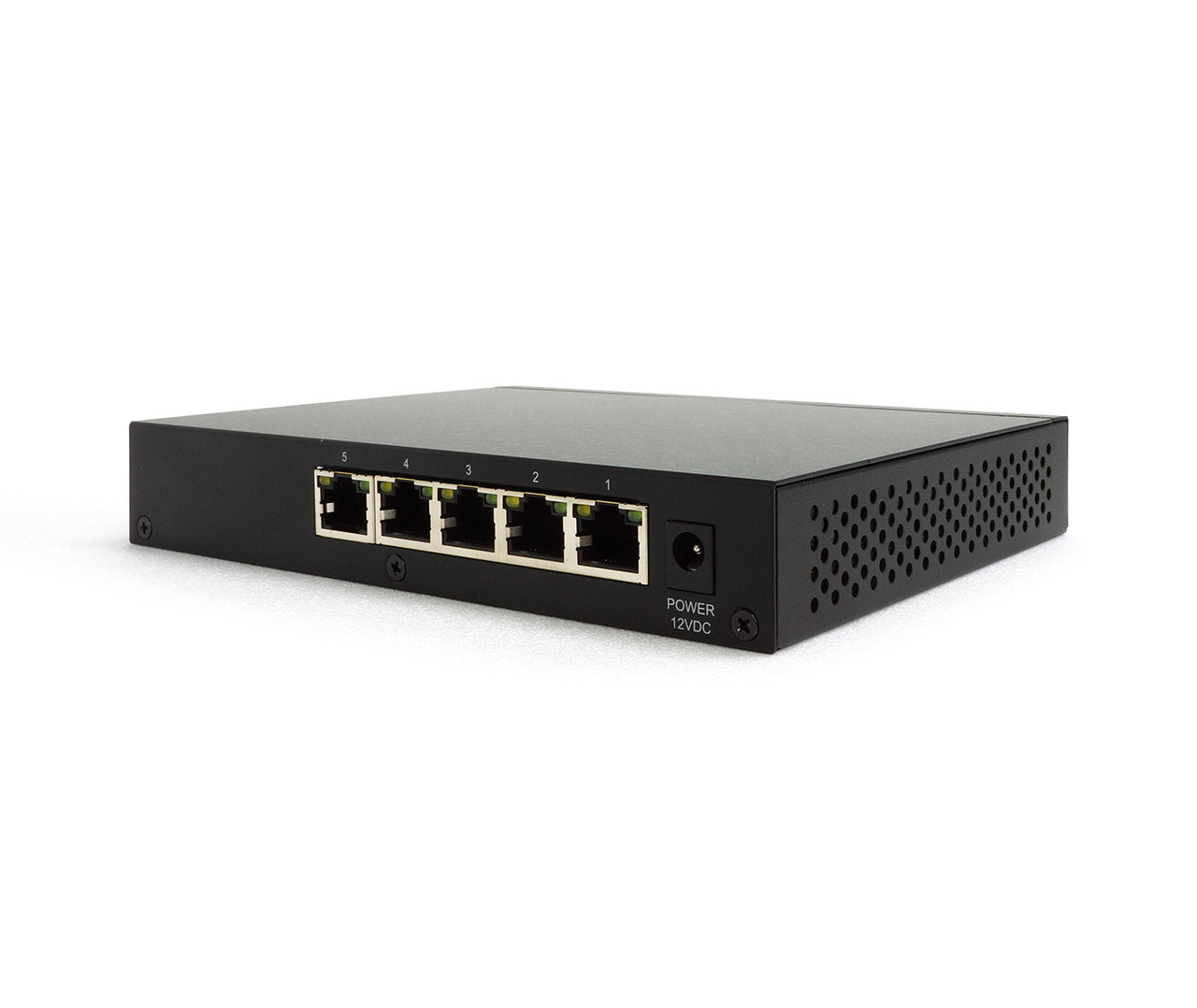

  4. (4) 5× 10/100/1000/2500 Mbps RJ45 ports
  5. (5) Link and activity LED indicators on each port
  6. (6) DC jack (5.5/2.1 mm) for 12 V DC input

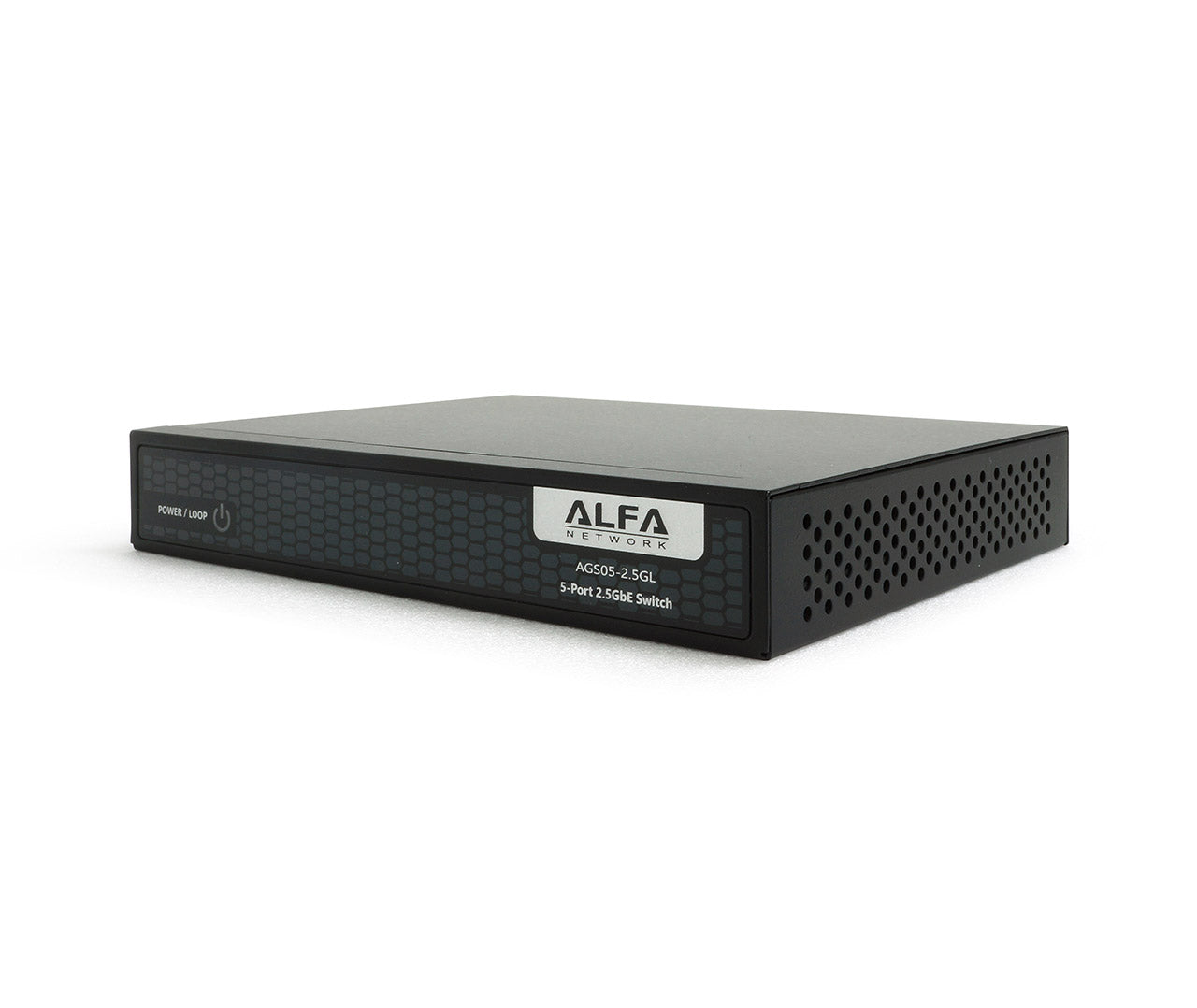

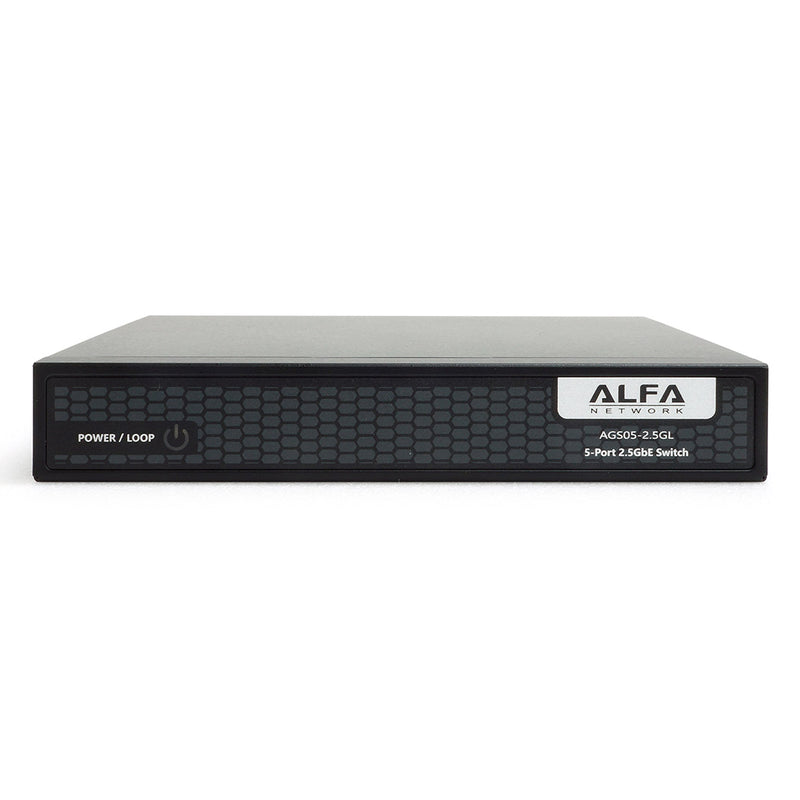

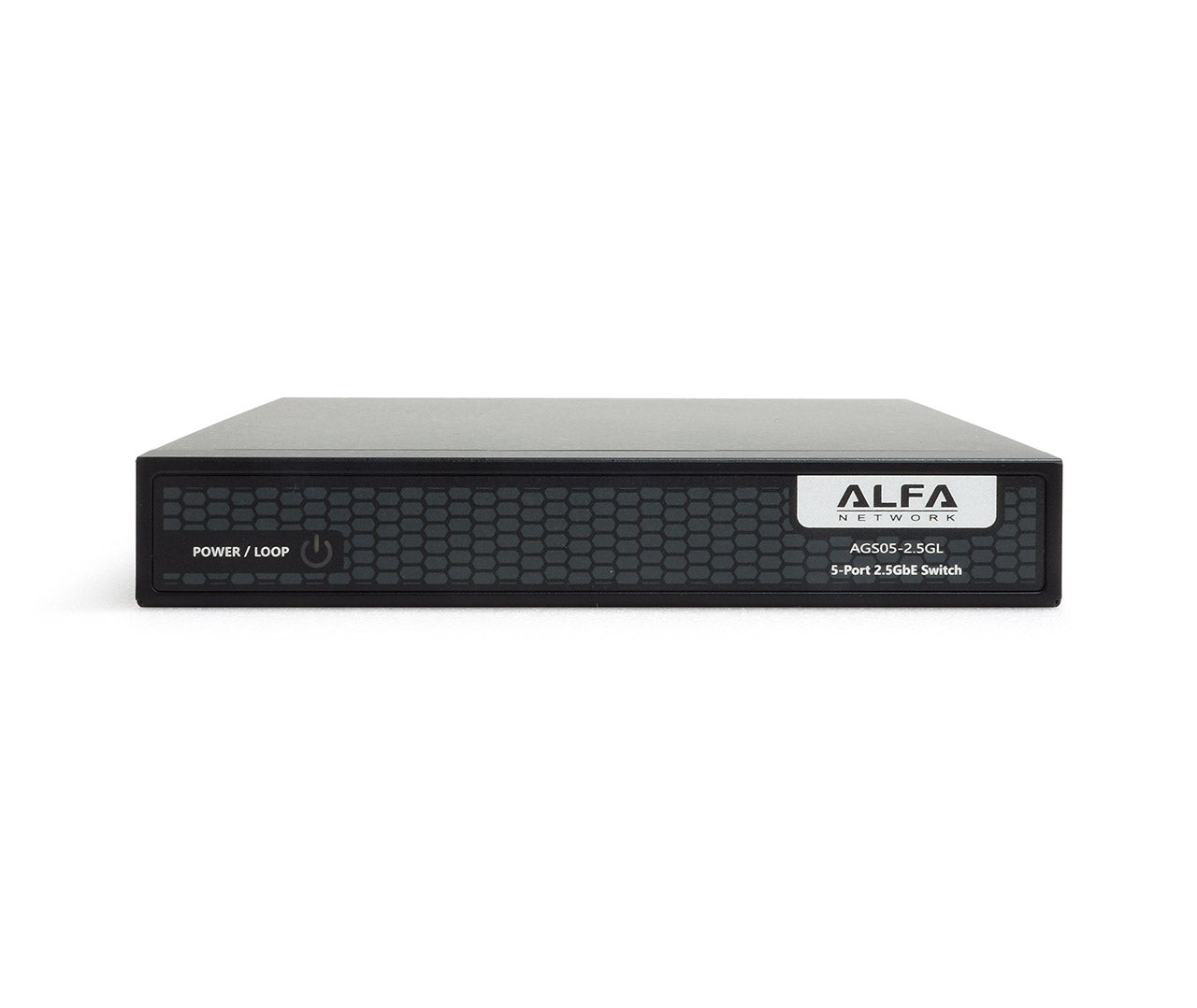

AGS05-2.5GL is a 5-port 2.5 Gbps Ethernet switch with loop detection

This multi-gigabit unmanaged Ethernet switch is a plug and play device with enterprise-level quality features. As a cost-effective solution, it allows to increase network bandwidth by more than twice (from 1 to 2.5 Gbps), using existing Cat5e (or better) cabling infrastructure. Thanks to highly reliable internal components, features like auto-negotiation, non-blocking 25 Gbps switching capacity, flow control and fanless case design, this device will be perfect choice for SMB or home users.

General specifications

Parameter Value
Chipset Realtek™ RTL8371 and 5× RTL8221B
IEEE 802.3 standards IEEE 802.3ab
IEEE 802.3az
IEEE 802.3bz (NBASE-T)
IEEE 802.3u
IEEE 802.3x (flow control)
Jumbo frames Up to 12 KB
MAC address table 16 K
Packet buffer memory 12 Mb
Switching capacity 25 Gbps
Loop detection Yes, with LED indicator
Interface 5× 2.5GBaseT RJ45
LED 1× power (white)
1× loop detection (amber)
5× 2.5 GbE link/activity (green)
5× 10/100/1000 Mbps link/activity (amber)
Power supply DC jack (5.5/2.1 mm) for 12 V DC input
Operating humidity 10 % ~ 90 % RH, non-condensing
Operating temperature 0 ° ~ 50 ° C
Dimensions 165 × 130 × 27 mm
