AUE2500CA

AUE2500CA

2.5 GbE Type-C SuperSpeed USB 5 Gbps cardwith Realtek™ RTL8156B and Type-A adapter

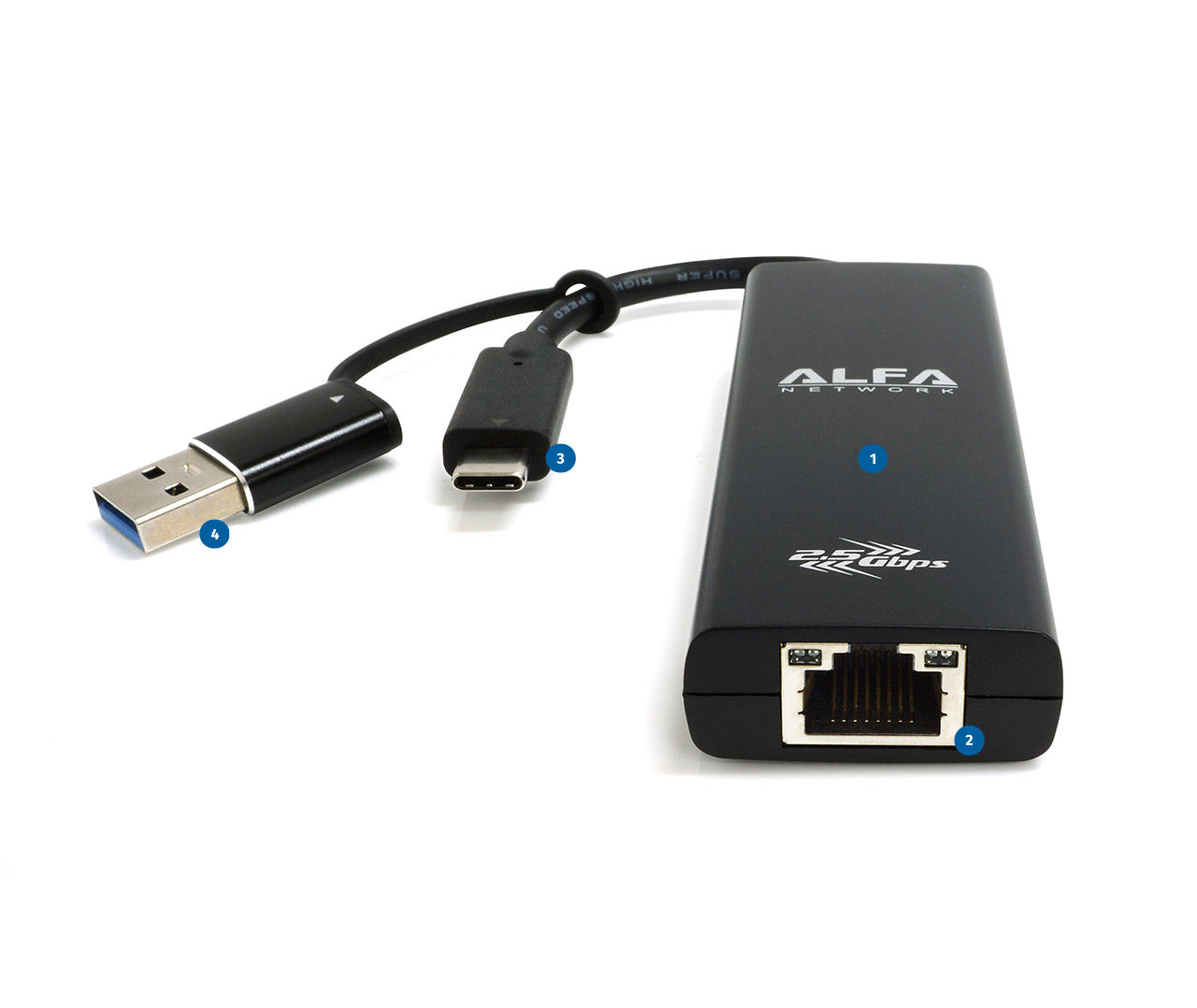

  1. (1) Realtek™ RTL8156B chipset
  2. (2) RJ45 with link and activity LED
  3. (3) 8 cm USB cable with Type-C plug
  4. (4) USB Type-C to Type-A adapter

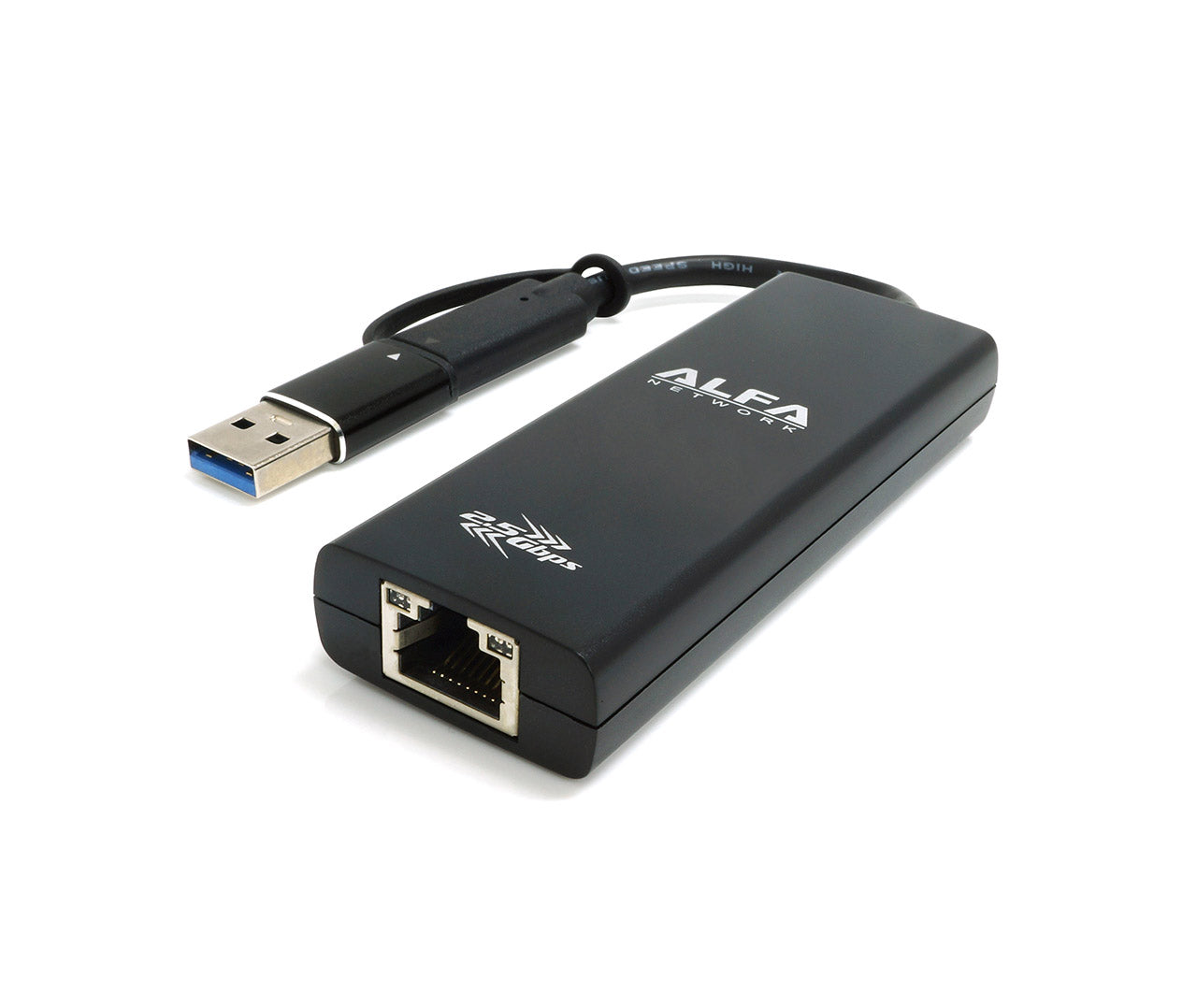

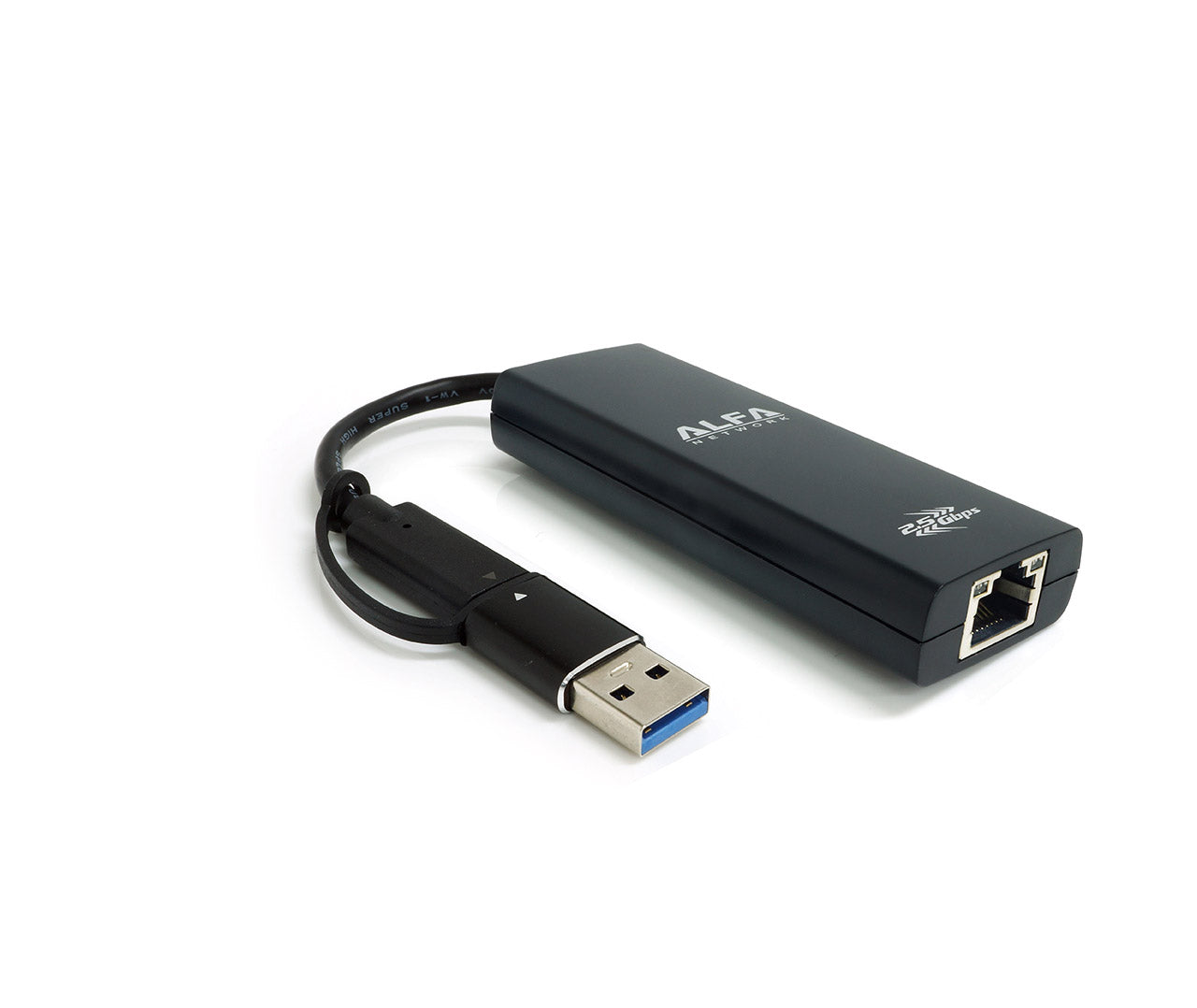

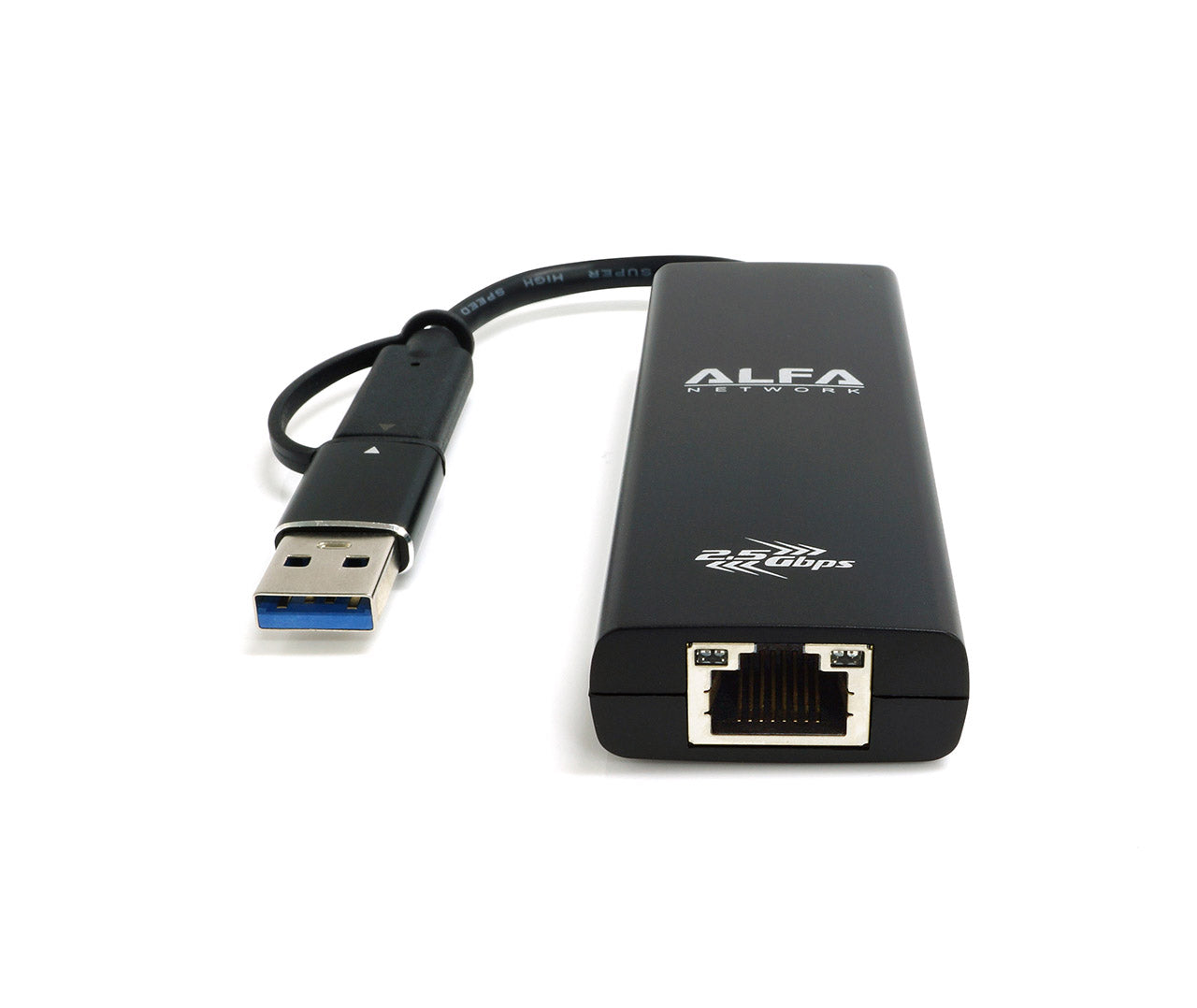

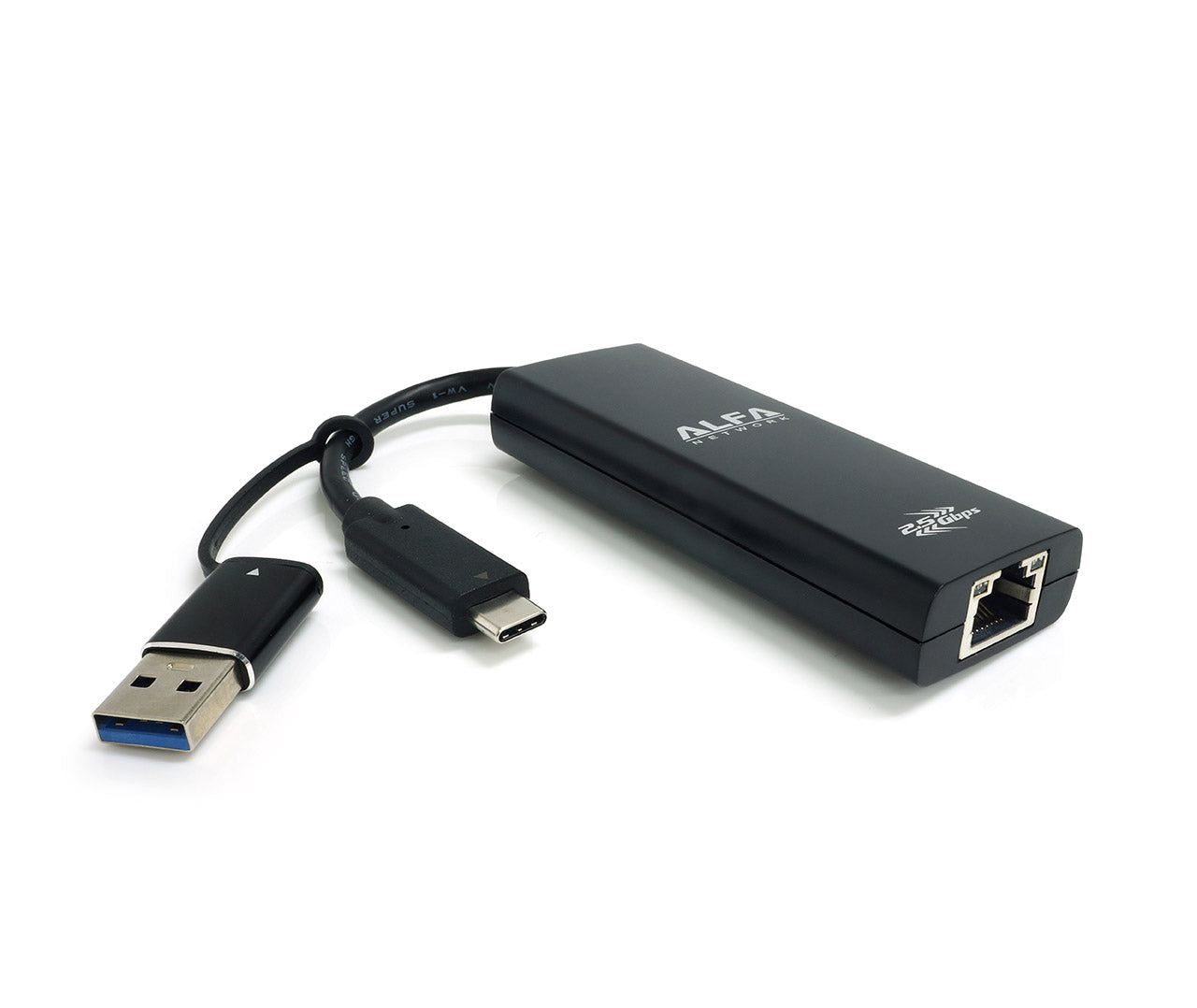

AUE2500CA is a 2.5 Gbps Ethernet adapter with USB Type-C

The multi-gigabit AUE2500CA network adapter supports auto-negotiation feature which allows optimal selection of the best possible speed (2.5 GbE or 10/100/1000 MbE) over Cat5e, Cat6 or better cabling.

Compact size combined with universal and convenient USB Type-C interface equipped with handy, small Type-A adapter, make this device a perfect choice for everyday use.


General specifications

Parameter Value
Chipset Realtek™ RTL8156B
IEEE 802.3 standards IEEE 802.3ab
IEEE 802.3az
IEEE 802.3bz (NBASE-T)
IEEE 802.3u
IEEE 802.3x (flow control)
Features ARP and NS protocol offload in D3 power save state
Advanced Configuration and Power Interface (ACPI)
IPv4, IPv6/TCP and IPv6/UDP checksum offload
Microsoft Wake Packet Detection (WPDI)
Advanced Power Management (APM)
Wake-on-LAN (WoL) and RealWoW
Supports CDC-NCM and CDC-ECM
Energy Efficient Ethernet (EEE)
Auto-negotiation
16K jumbo frame
Interface Type-C SuperSpeed USB 5 Gbps (Type-A with adapter)
1× RJ45
LED 1x GbE and 10/100 MbE link/activity (amber)
1x 2.5 GbE link/activity (green)
Operating systems Microsoft Windows 7, 8.1 and 10
Mac OS
Linux
Operating humidity 10 % ~ 90 % RH, non-condensing
Operating temperature 0 ° ~ 45 ° C
USB cable length 8 cm (without Type-C connector)
Dimensions 87.0 × 33.5 × 14.6 mm
