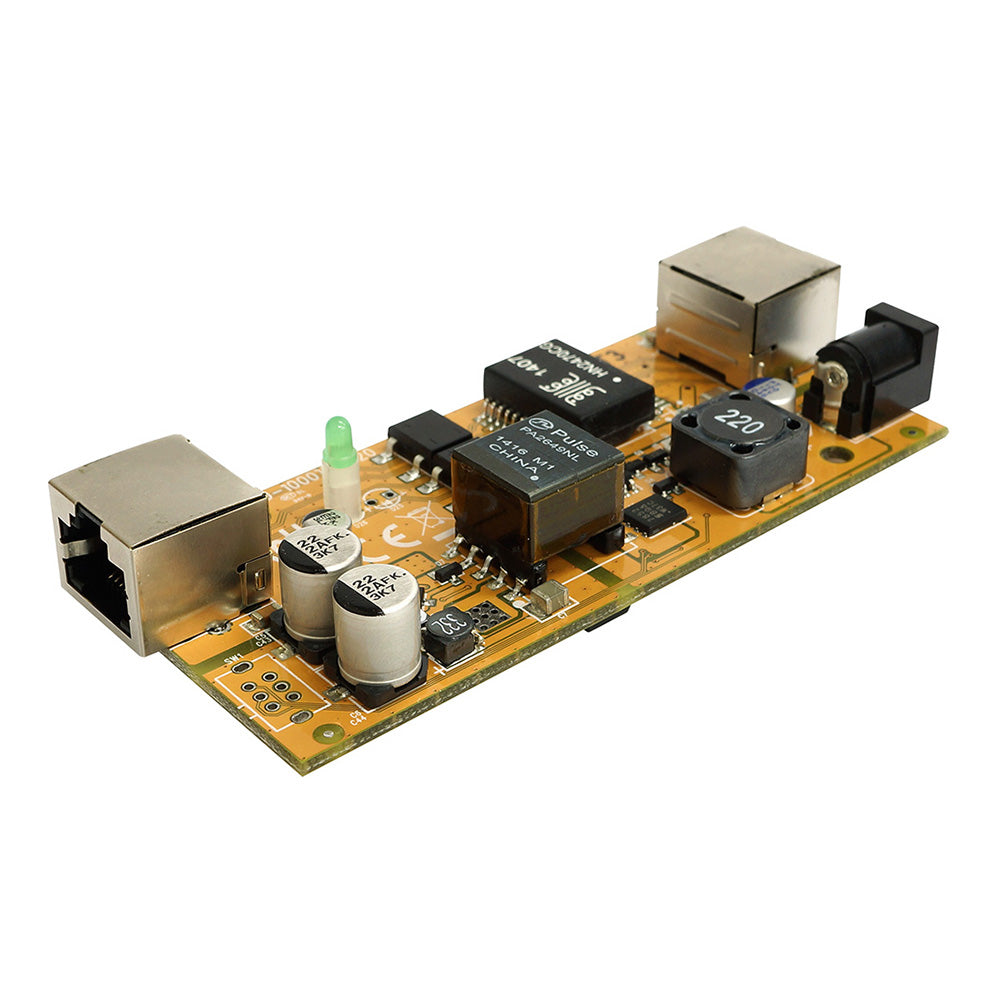

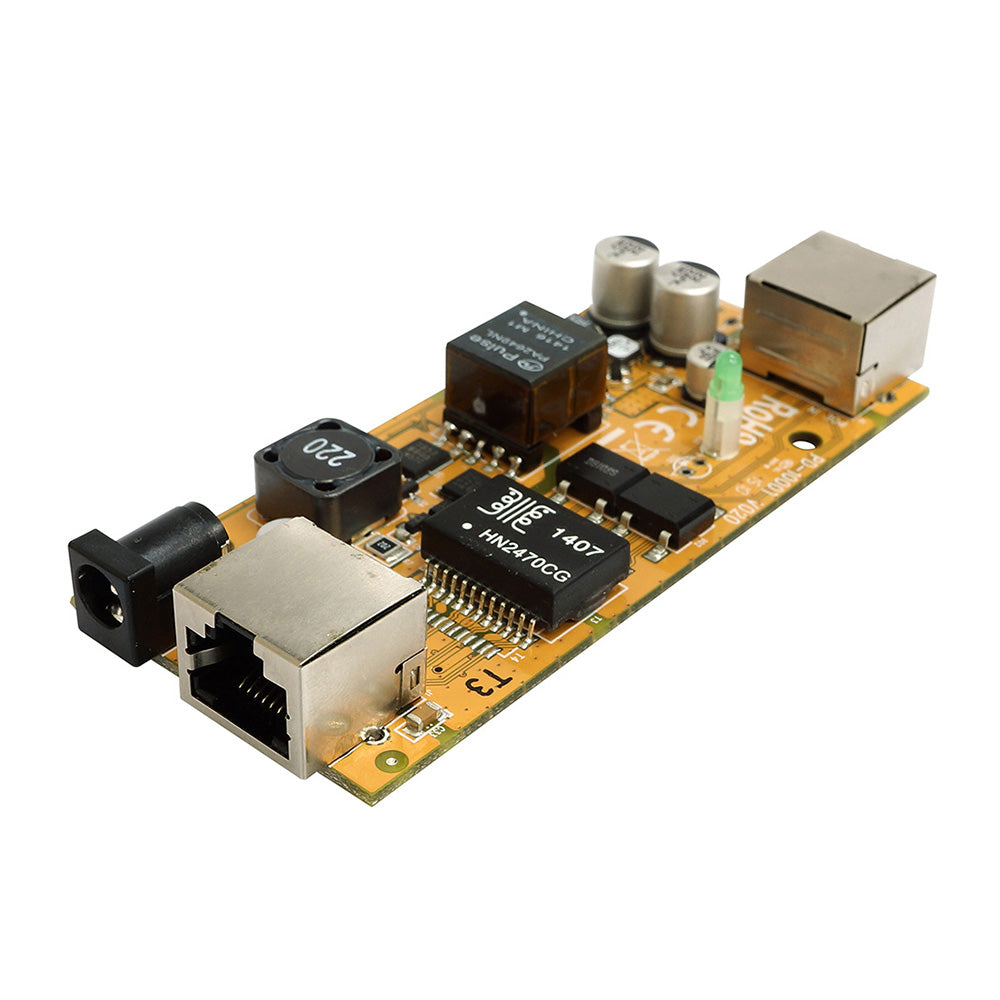

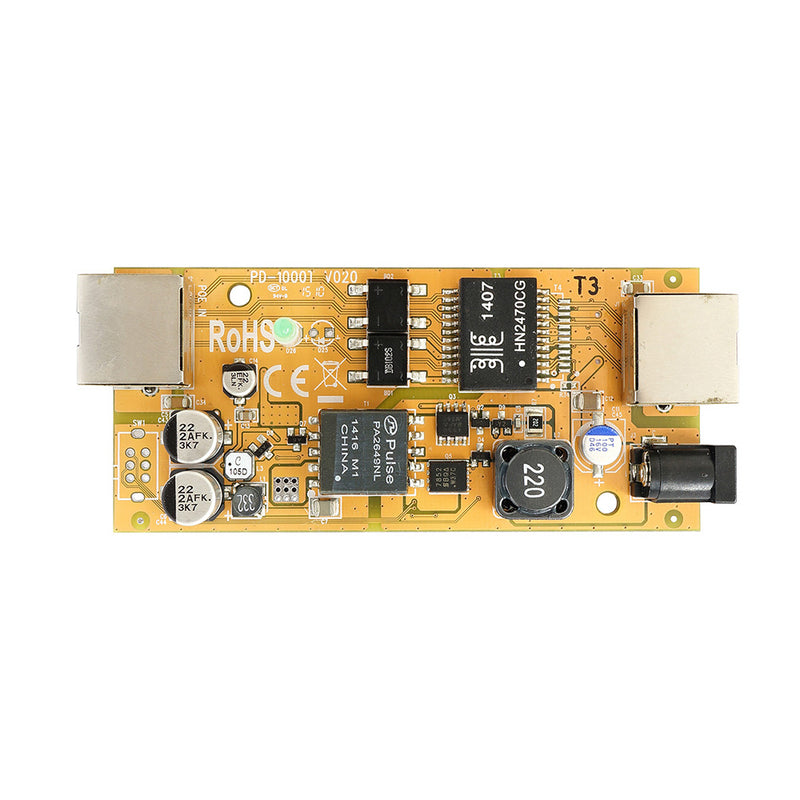

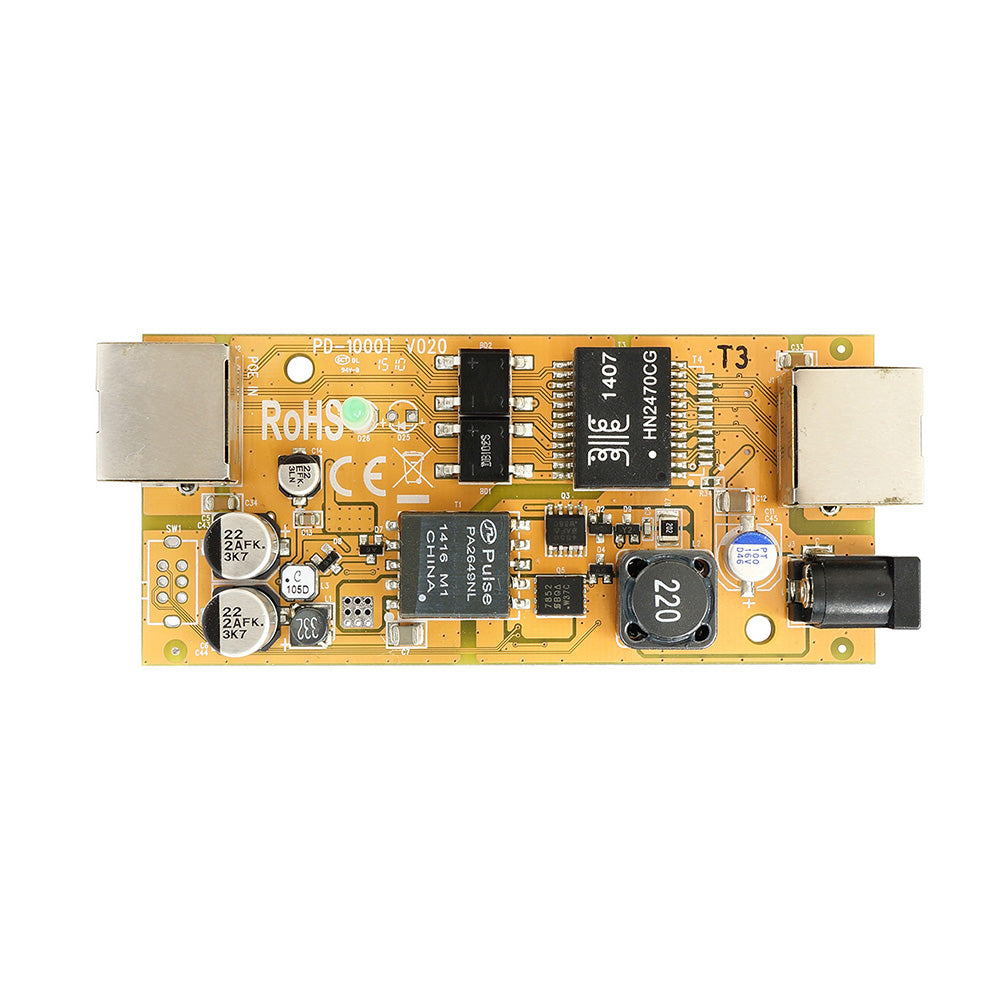

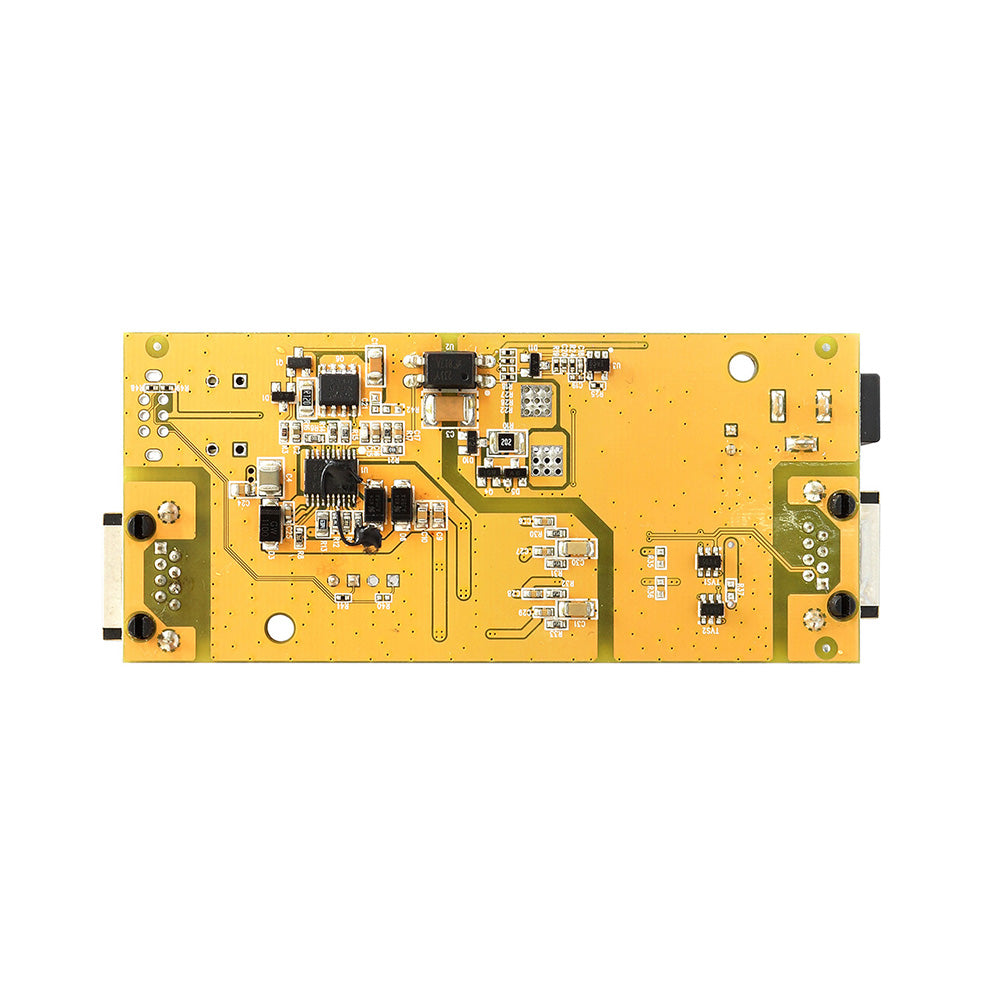

PD-1000TM
PD-1000TM
High Power 30W Gigabit PoE PD Module
- Automatically detects PoE terminals and supplies inline power
- Auto-sensing power drawn from 802.3af/at power source equipment device
- Supplies power up to 30 Watts
- Extreme Efficiency 90%
- Safeguards network device with short circuit protection
- Converts Non-PoE devices with PoE Support
- Ethernet isolation with ESD Protection
PD-1000TM is the PoE ( Power Over Ethernet ) PD Module which support DC output 12V with 30Watt. It is a revolutionary technology for powering Ethernet terminals such as POS computing system, wireless access point, and Speed-Dom IP camera. The technology incorporates electrical power onto a LAN data line enabling the delivery of operating power in addition allowing data communication to terminals over standard cabling infrastructure.
Block Diagram
Dimension (mm)
Electrical Characteristics
- Absolute Maximum Ratings
- Recommended Operating Conditions
- DC Electrical Characteristics
| POE Protocol | IEEE802.3at IEEE802.3af |
| Ports | 10/100/1000 Mbps |
| Interface | Input Data+Power: RJ45 Output Data: RJ45 Output Power: DC Jack |
| Power Input | 48-56 VDC |
| Power Output | 12 V/2.5 A |
| Max. Power Output | 3O Watts |
| ESD Protection | 15 KV at Air 8 KV at contact |
| DC Power Plug | 5.5*2.1 mm |
| Temperature | -30- 65 °C |
| Humidity | 10- 90 % non-condensing |
| Dimension | 100(L) x 42(W) x 20(H) mm |
| Weight | 41 g |
