PD-1000T
PD-1000T

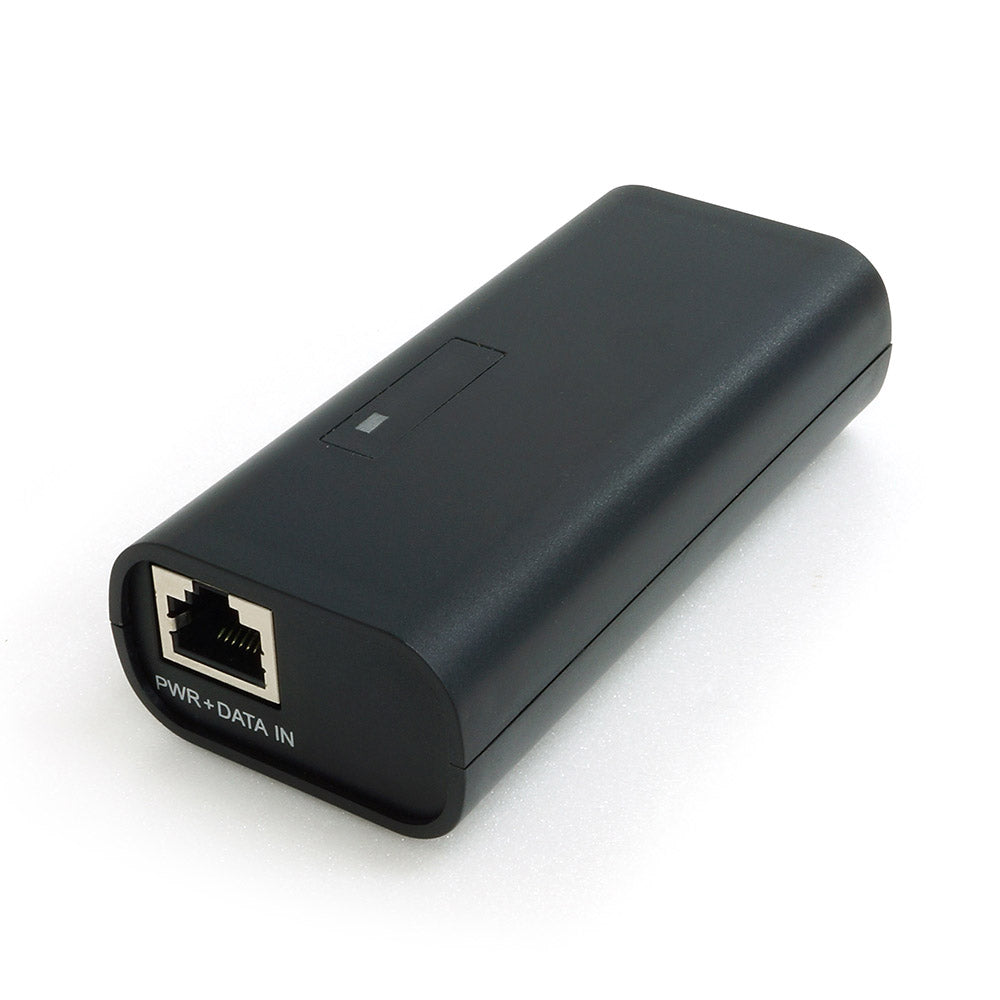

PD-1000T 802.3at Gigabit 30W PoE PD
- Automatically detects PoE terminals and supplies inline power
- Auto-sensing power drawn from 802.3at/af power source equipment device
- Support up to 30 watts
- Safeguards network device with short circuit protection
- Converts Non-PoE devices to PoE support
- Ethernet isolation with ESD protection
PD-1000T is the PoE (Power Over Ethernet) PD device which support DC output 12V with 30 watt. It is a revolutionary technology for powering ethernet terminals such as POS computing sytem, wireless access point and IP camera. The technology incorporates electrical power onto a LAN data line enabling the delivery of operating power in addition allowing data communication to terminals over standard cabling infrastructure.
Block Diagram
| Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3at IEEE 802.3af |
| Input | Data+Power:RJ45 |
| Output | Data+Power: RJ45 |
| Input Voltage | 48 VDC |
| Output Voltage | 12 VDC |
| Max. Power Output | 30W |
| DC Jack Diameter | 5.5 x 2.1 mm |
| LED | Power on/off |
| ESD/Surge Protection | +/- 15 KV |
| Dimension | 100 x 47 x 27 mm |
| Weight | 50g |
