AWUS036AXM

AWUS036AXM

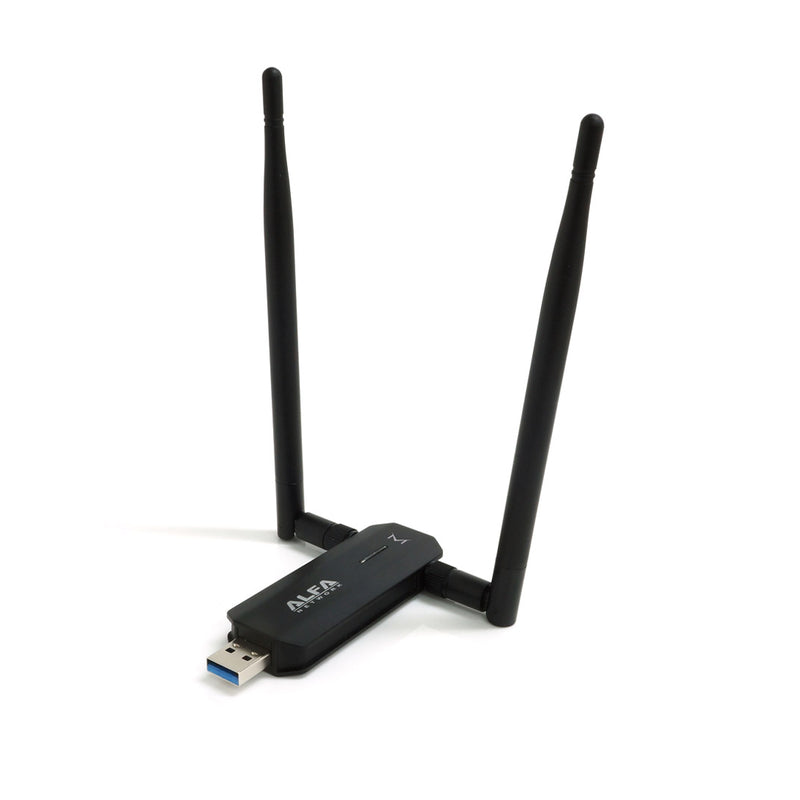

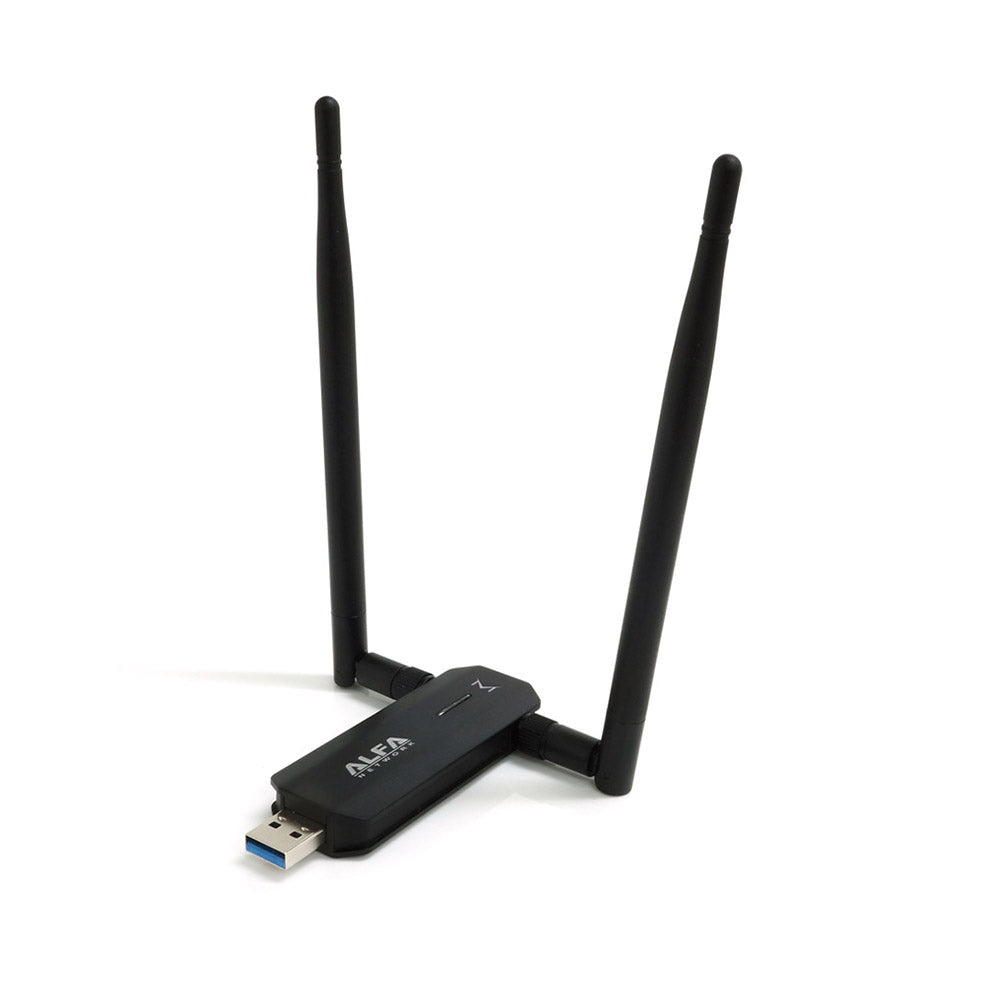

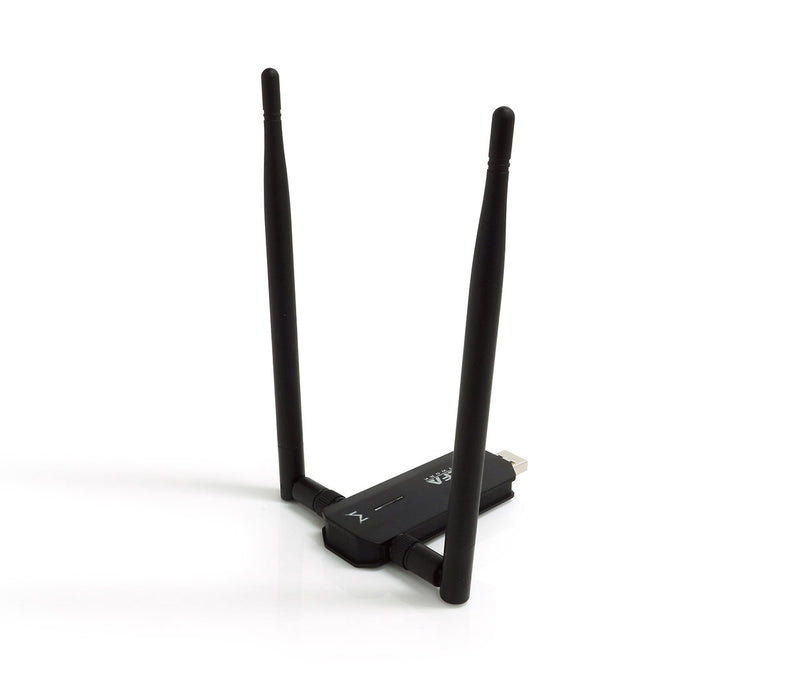

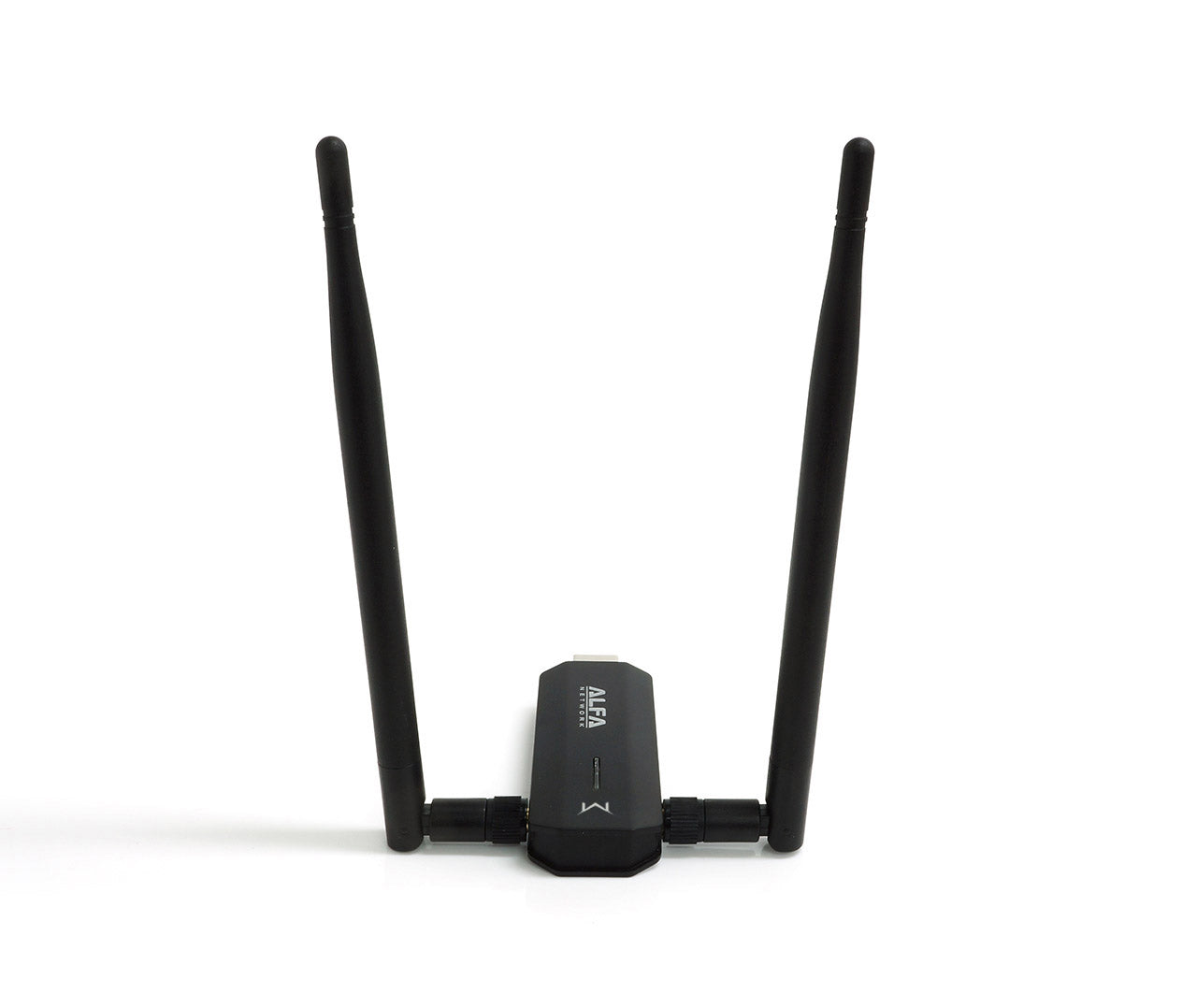

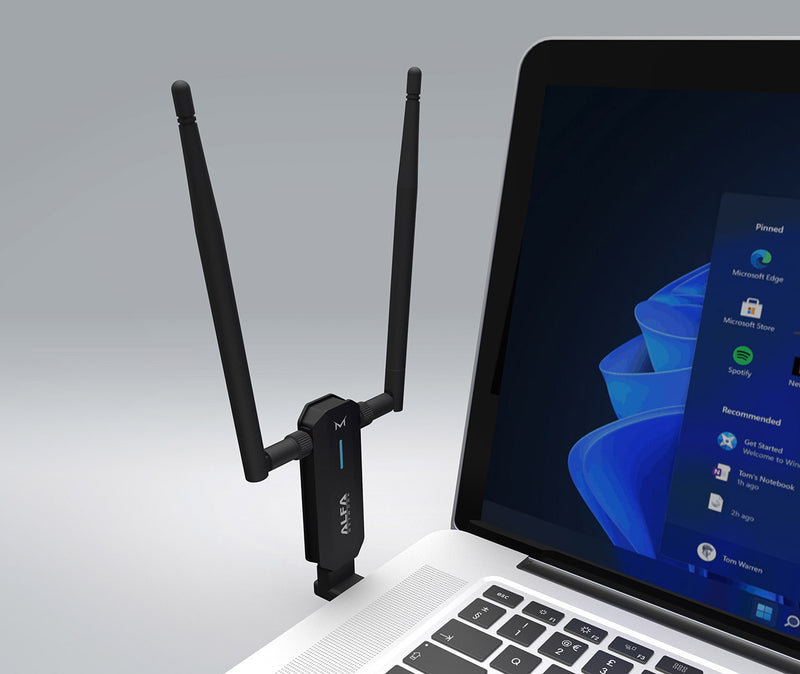

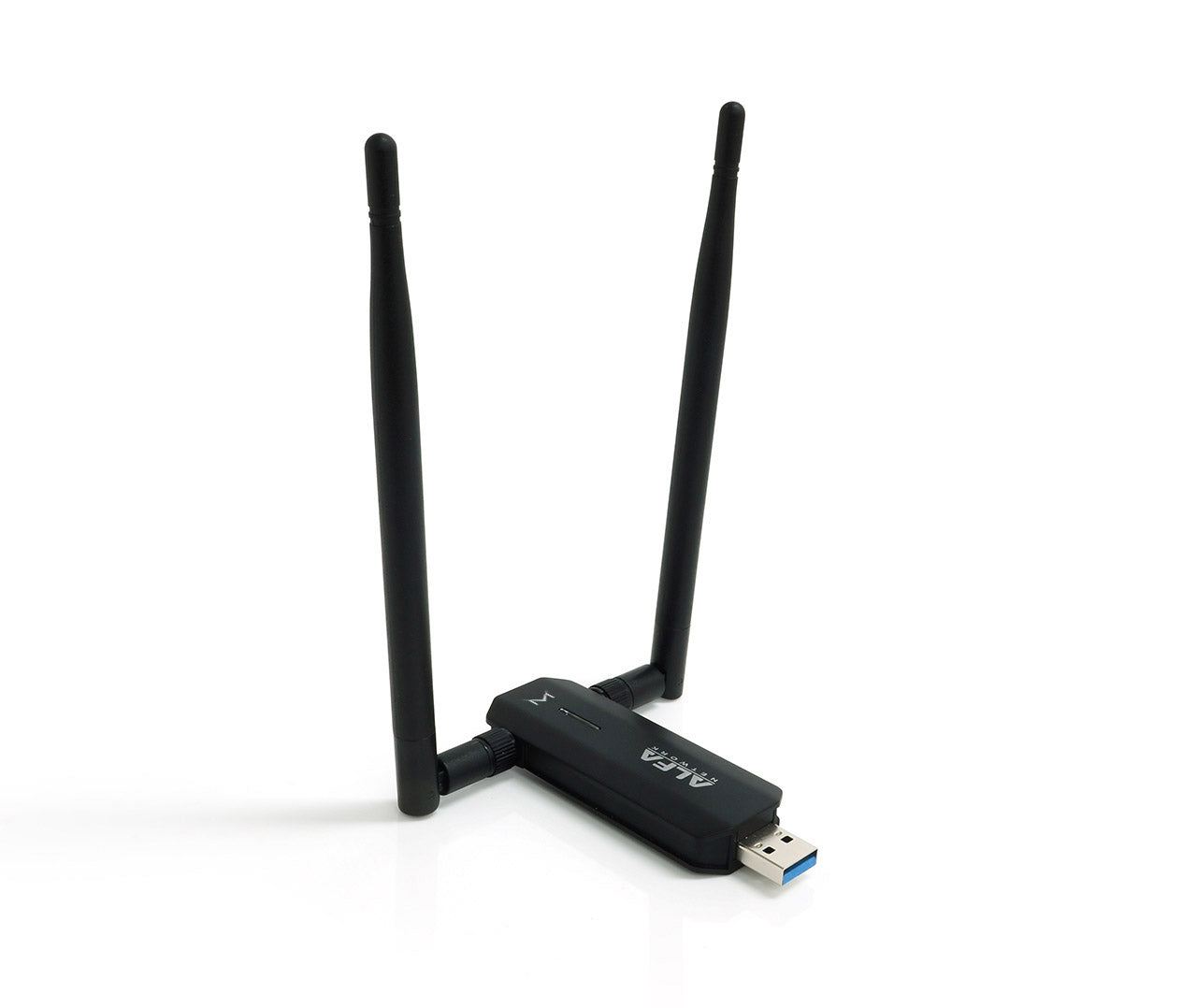

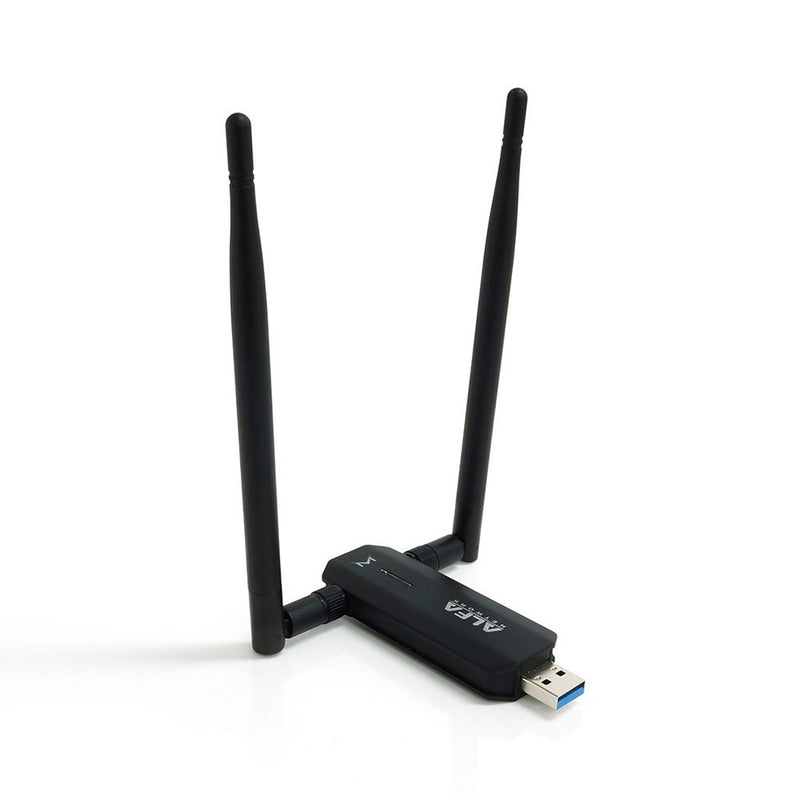

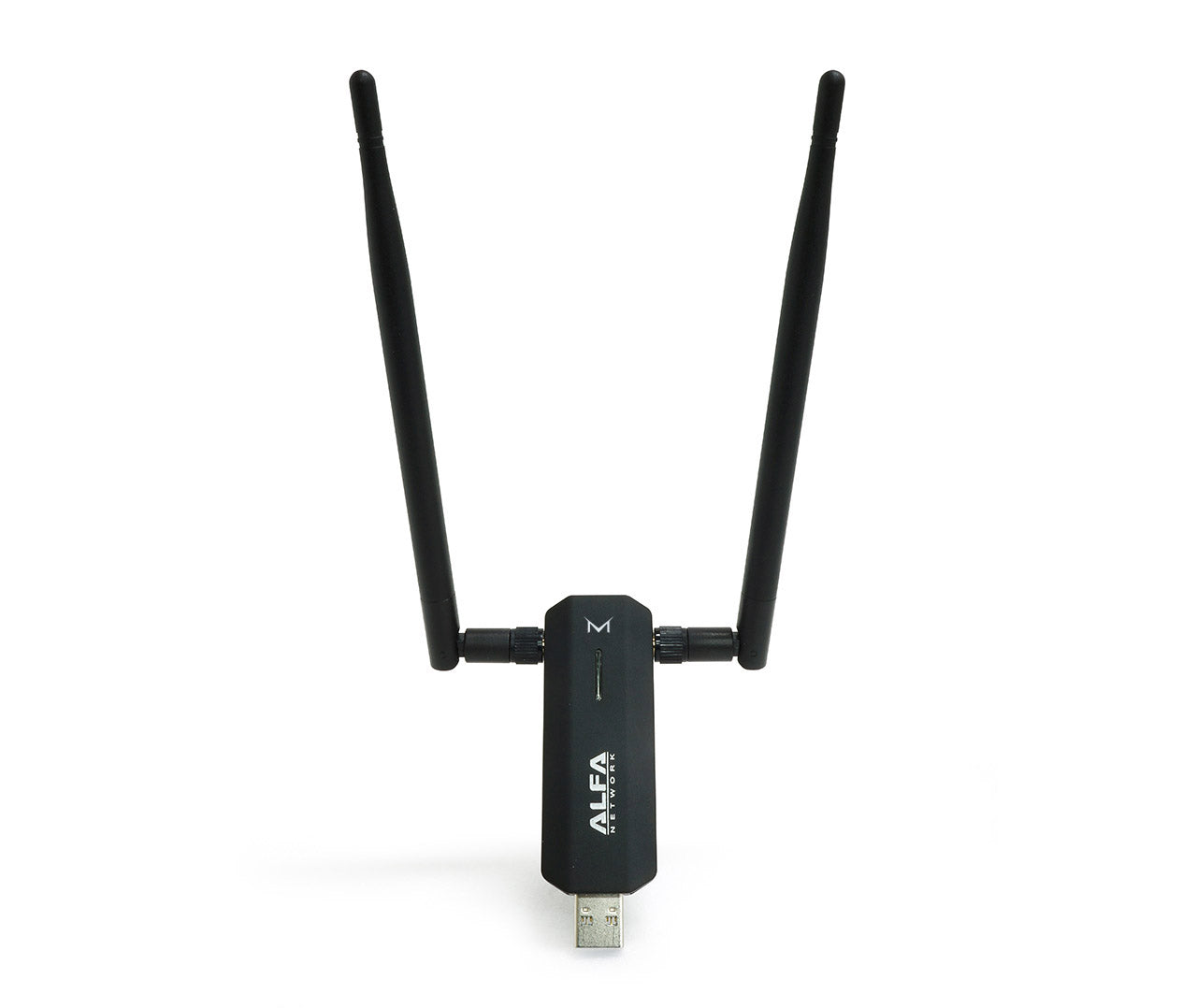

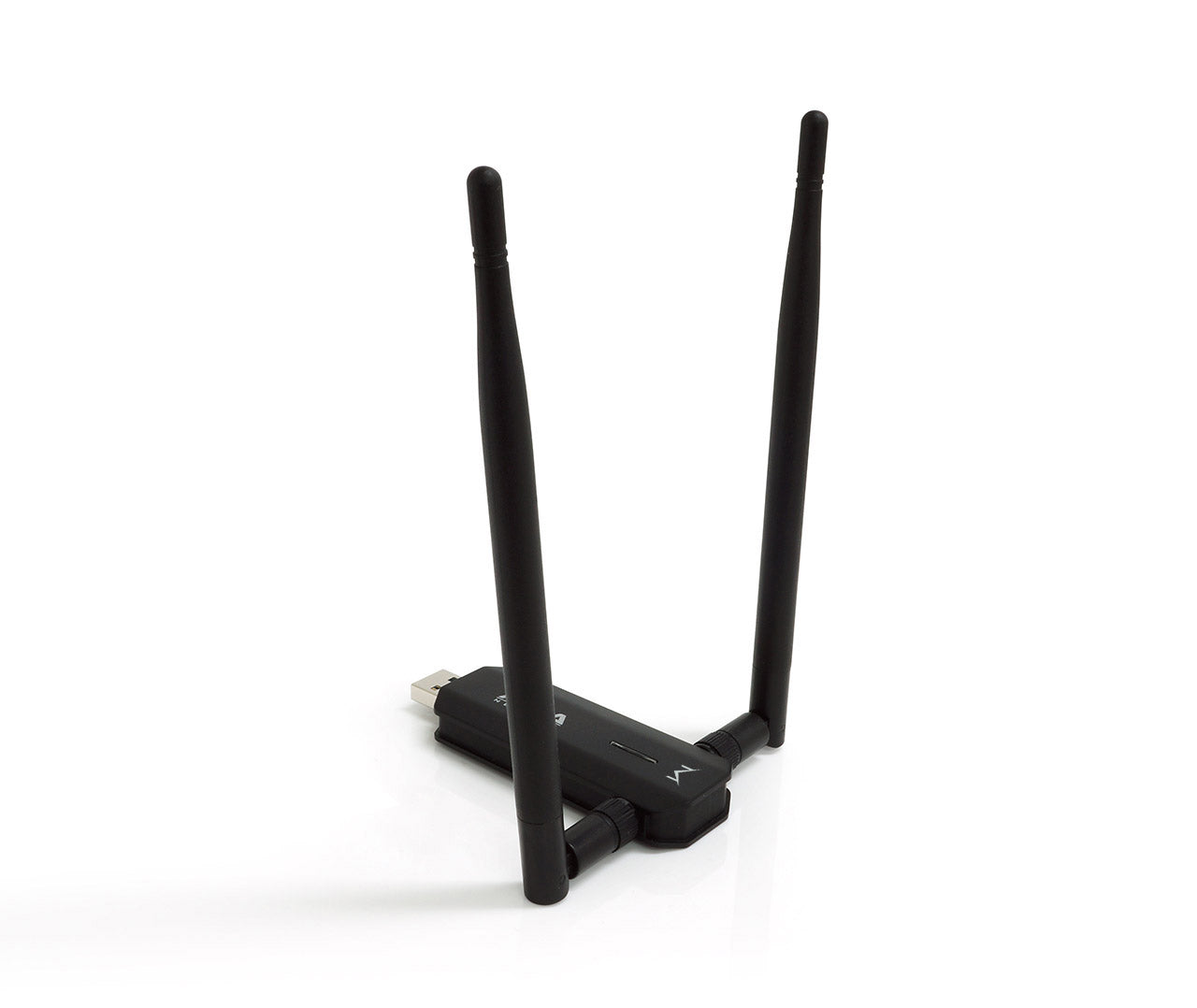

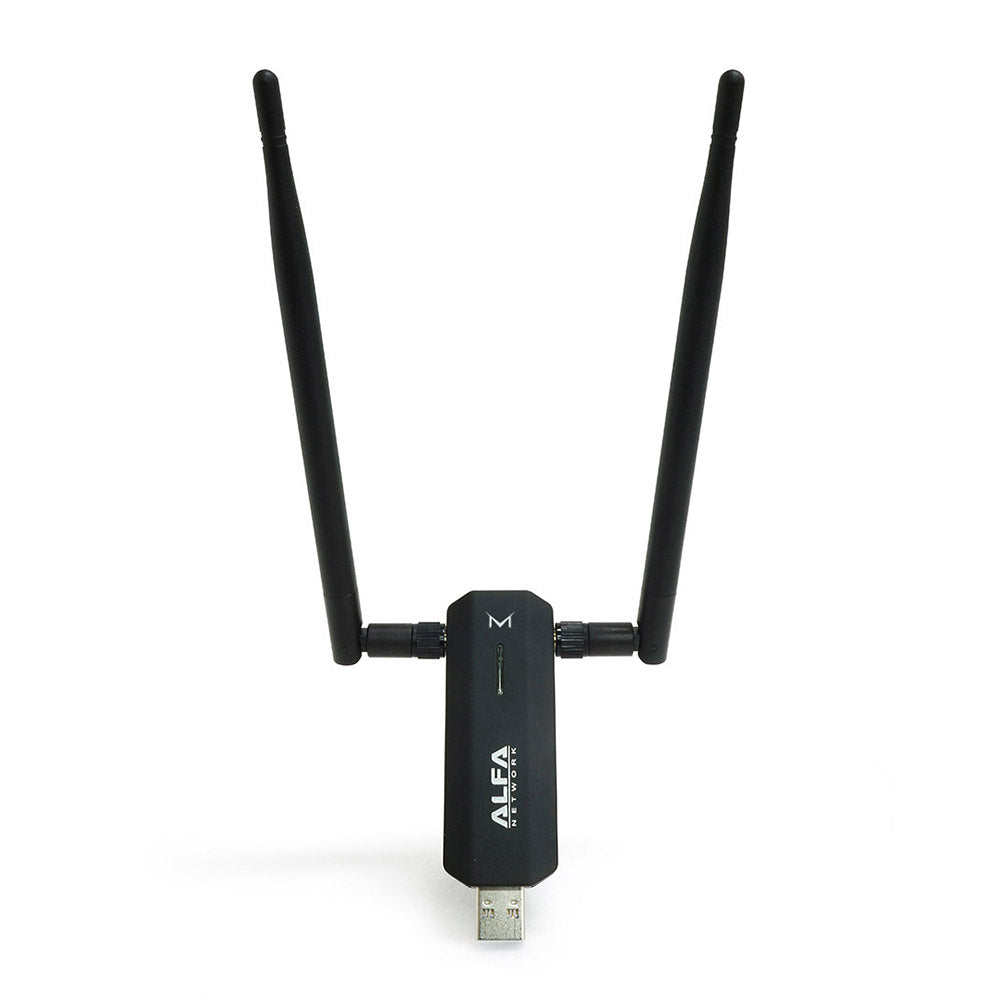

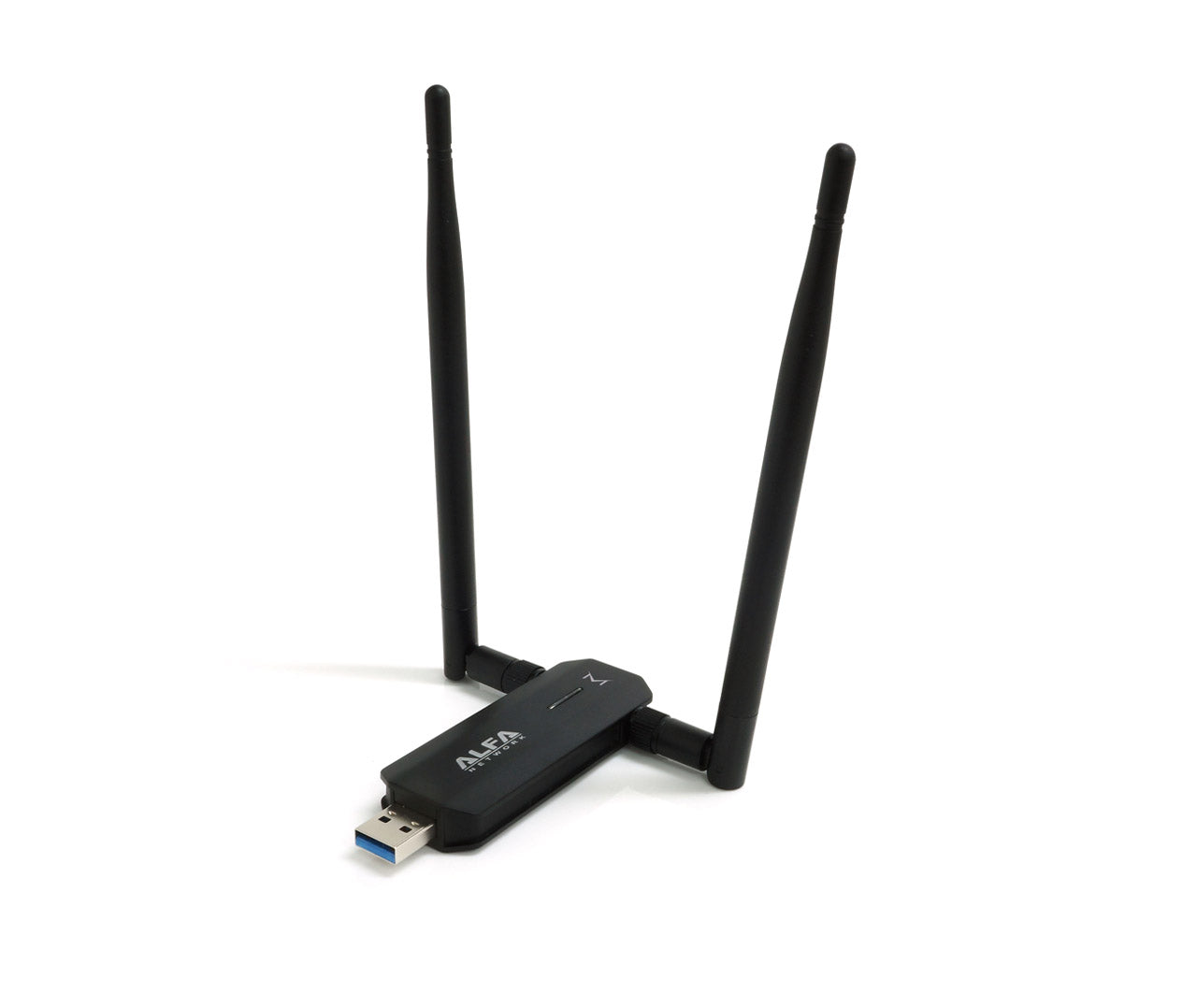

AWUS036AXM is the WiFi 6/6E (802.11ax) 2x2 Tri-band 2.4 GHz / 5 GHz / 6 GHz and Bluetooth v5.2 high-performance USB adapter.

AWUS036AXM supports super speeds up to 3000 Mbps (2.4 GHz 600 Mbps, 5 GHz 1200 Mbps, and 6 GHz 1200 Mbps) when used with a compatible WiFi 6E router (there are various stream models of WiFi 6E routers, 800-1200 Mbps will be a more common speed with most routers) and with 2x RP-SMA antenna connector allows changing the higher gain antenna to increase the connection distance. AWUS036AXM also supports the latest Bluetooth v5.2, which provides higher-quality audio over Bluetooth for headphones or speakers.



Key features

  1. MT7921AUN WiFi 6/6E + BT 5.2 combo chip
  2. USB-A connector support USB 3.2 GEN 1
  3. 2x RP-SMA external antenna connector
  4. 2x High-gain detachable dipole antenna
  5. Integrated BT antenna
  6. LED indicator



 Specifications

Chipset

MediaTek MT7921AUN

IEEE 802.11 standards

a/b/g/n/ac/ax

Bluetooth

5.2

Frequency





2.4 GHz

5 GHz

6 GHz

Data rate





2.4 GHz up to 600 Mbps

5 GHz up to 1200 Mbps

6 GHz up to 1200 Mbps

USB connector

USB 3.2 Gen 1 Type-A

WiFi Antenna



2x RP-SMA antenna connector with

2x dual-band high-gain dipole antenna

BT Antenna

Integrated antenna

Power consumption

2.7 Watts (max.)

Dimensions

87.4 x 28.5 x 12 mm (3.44 x 1.13 x 0.47 inches)

Operating temperature

-20° C - 70° C (-4° F - 158° F)

Operation voltage

5 V

OS support

Windows 10/11 & Linux
