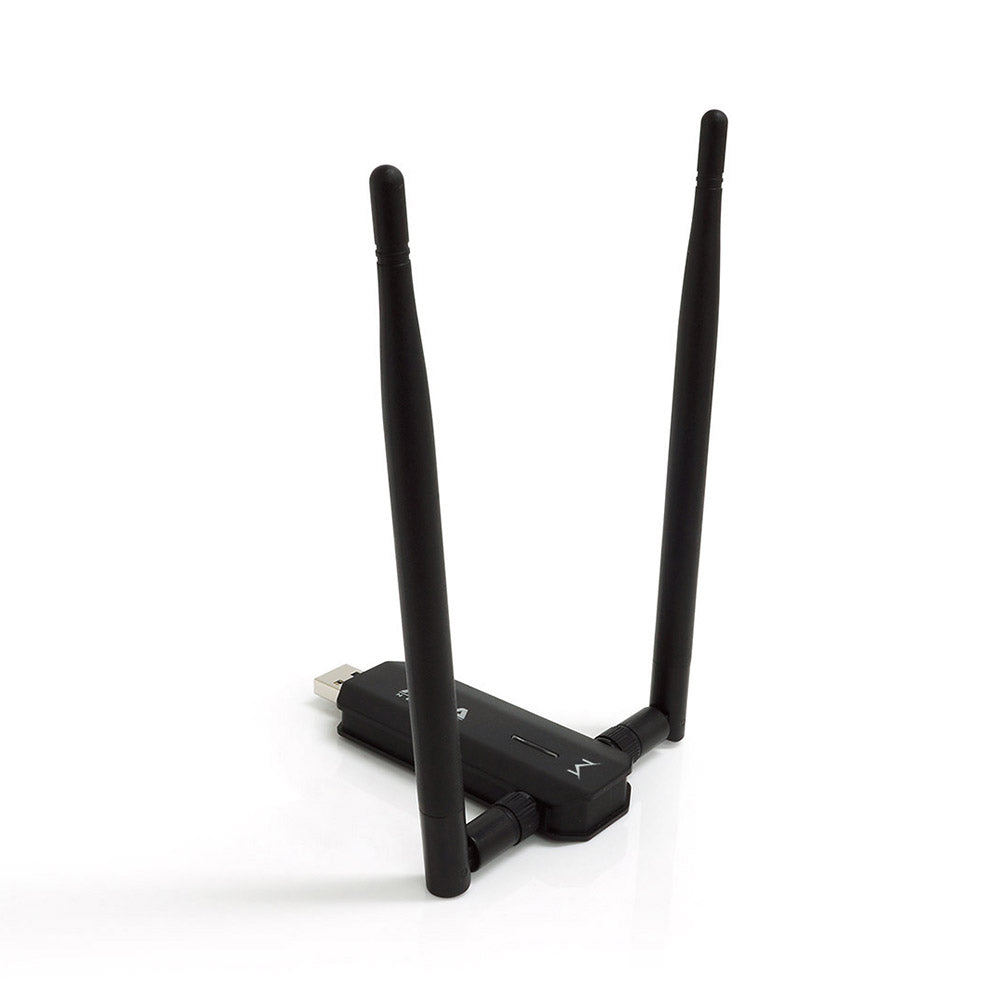

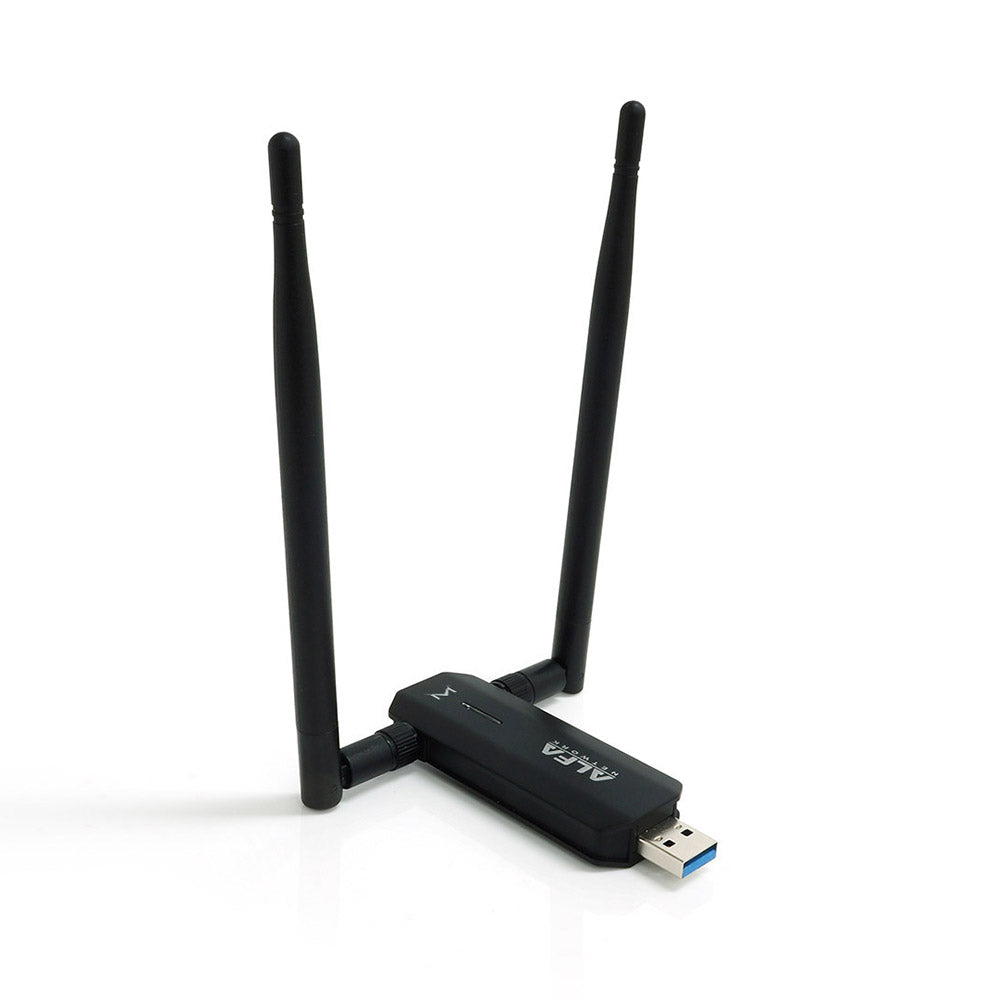

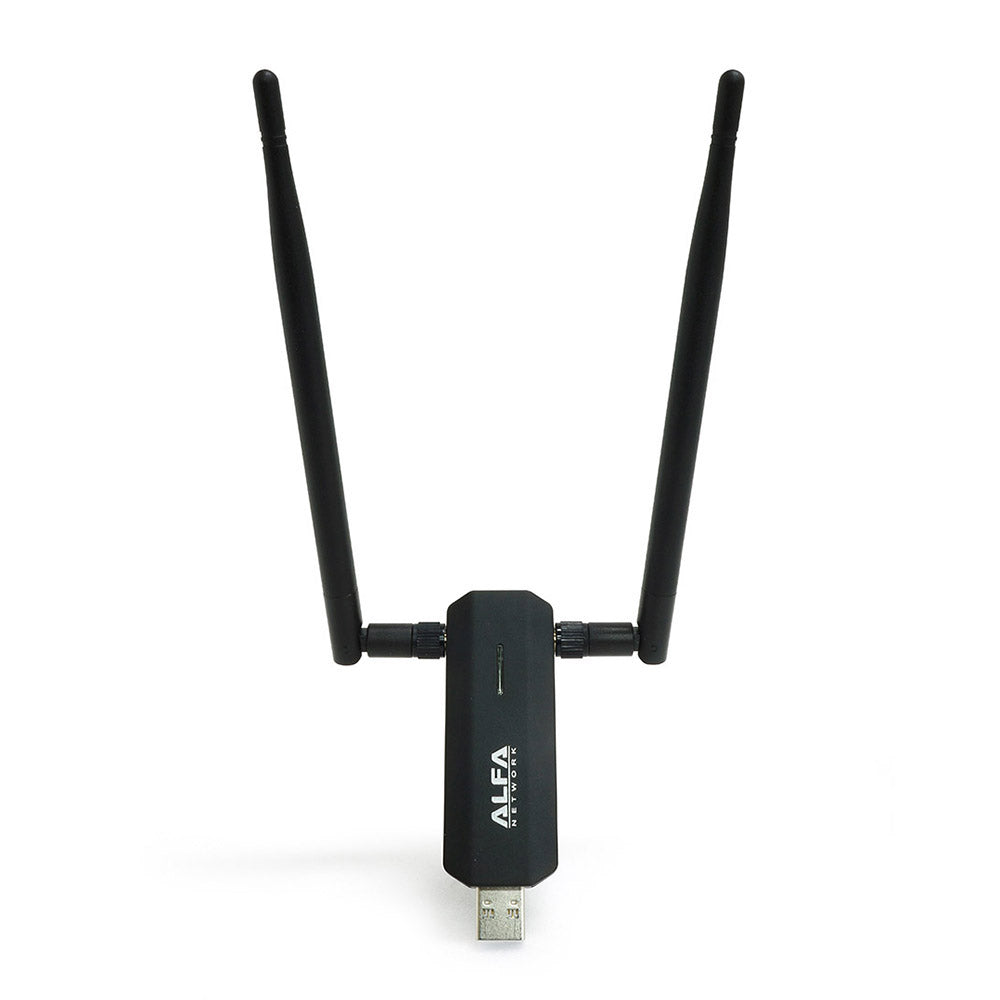

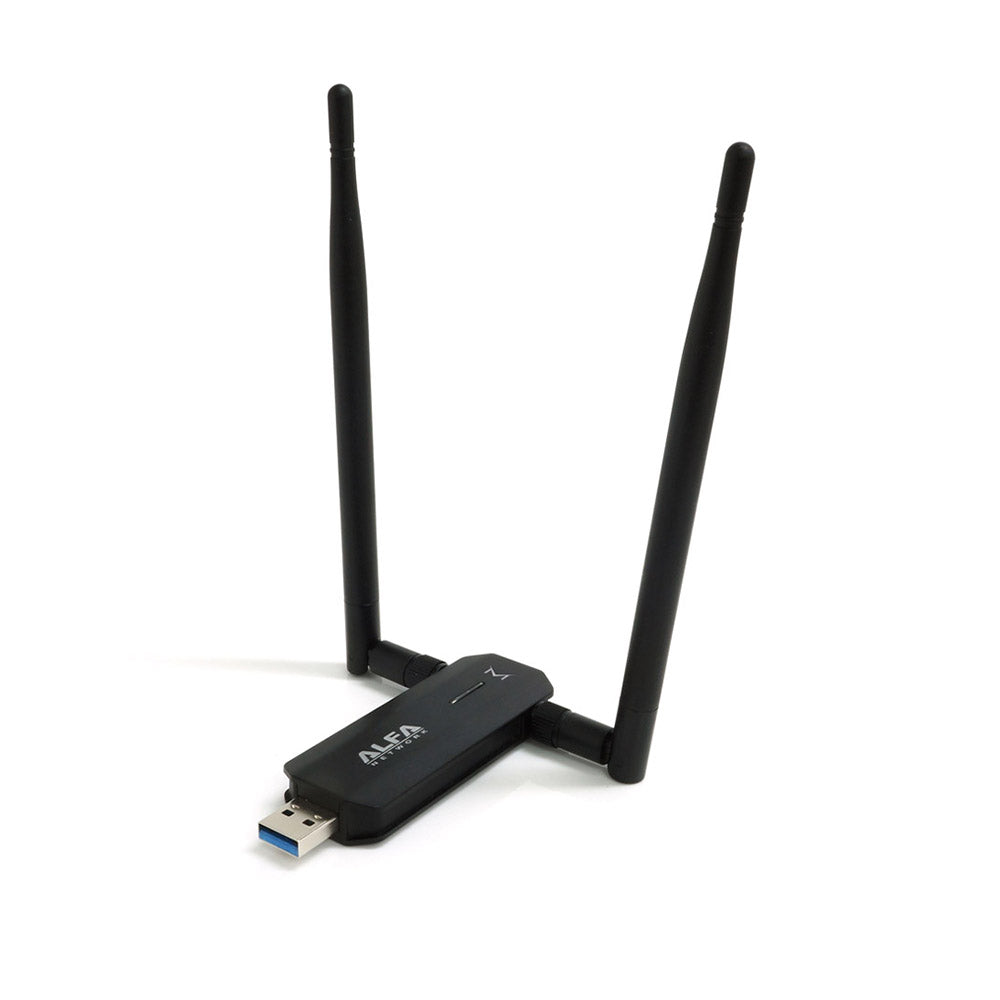

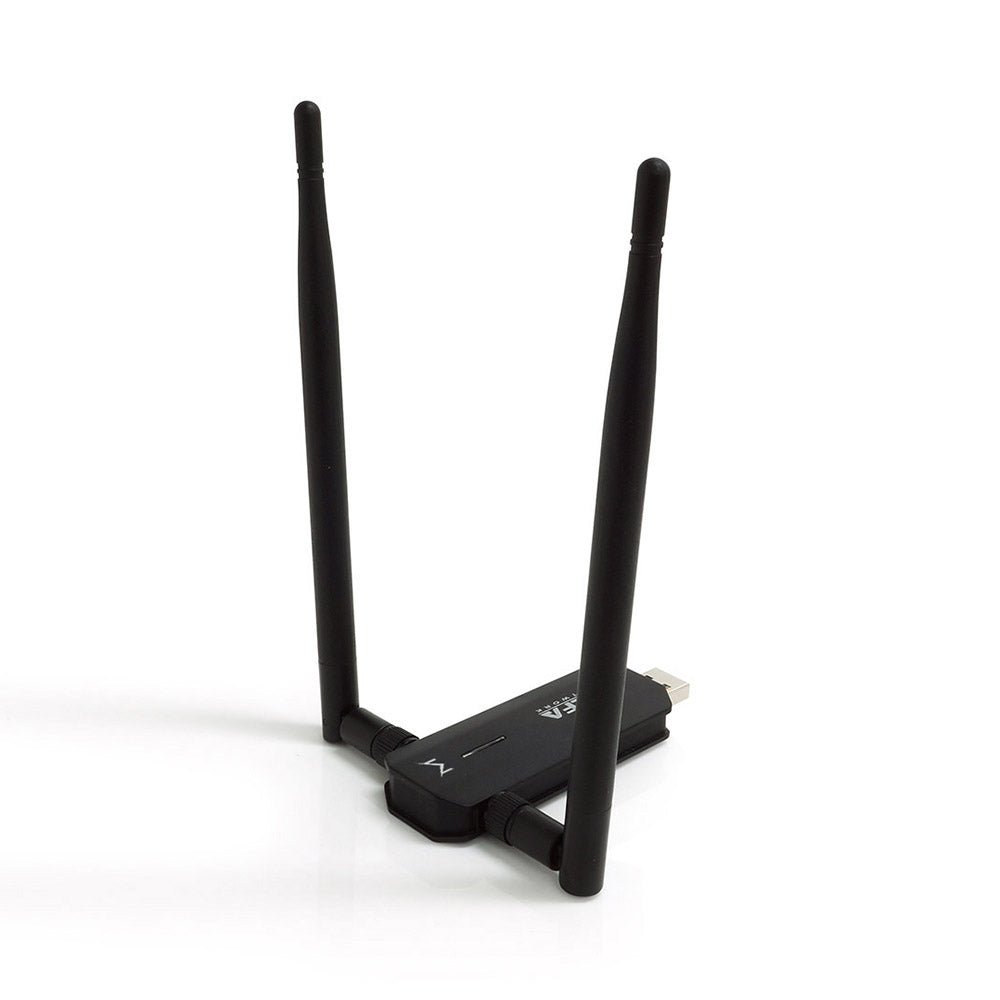

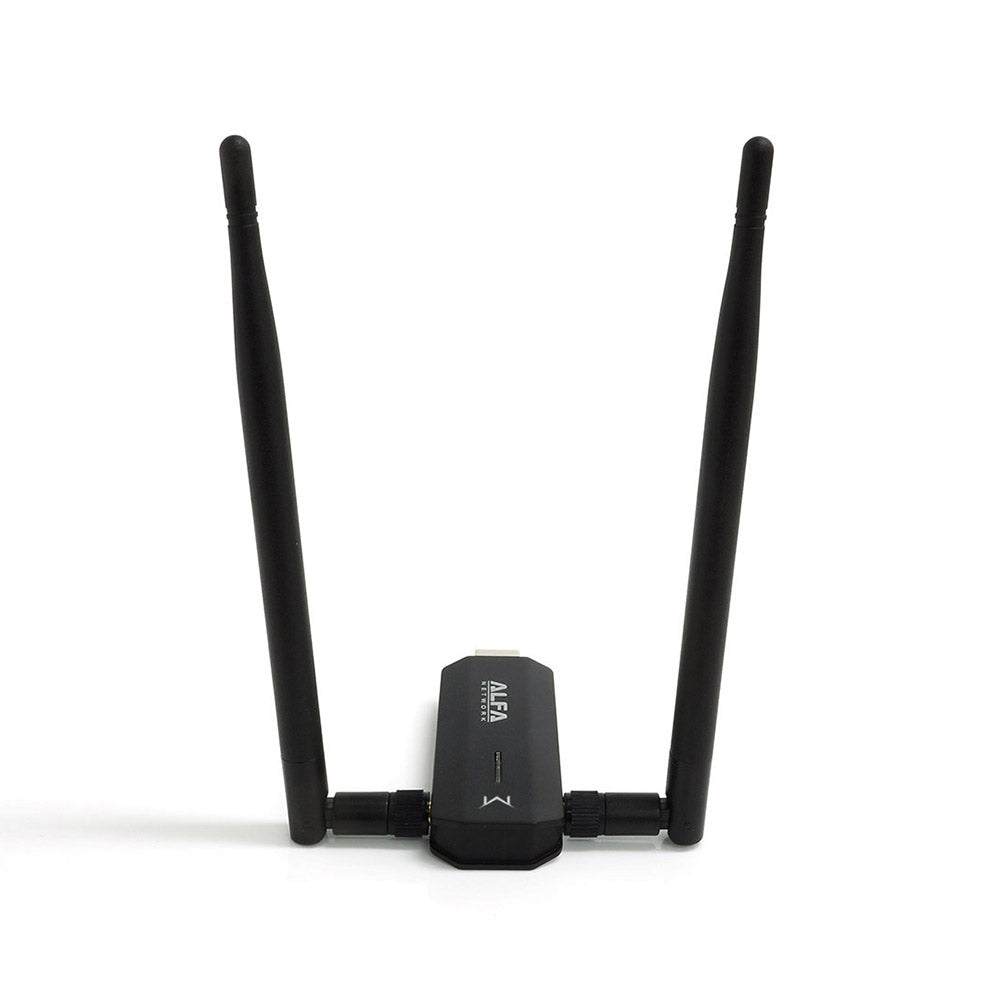

AWUS036AX is the WiFi 6 (802.11ax) 2x2 dual-band 2.4 GHz and 5 GHz USB adapter.
The AWUS036AX USB adapter incorporates highly integrated Realtek™ RTL8832BU WLAN chipset, with support for 802.11ax standard.
The device supports dual-band operation (2.4 GHz or 5 GHz band), is backward compatible (802.11a/b/g/n/ac) and includes two RP-SMA female connectors equipped with dual-band 5 dBi dipole omni antennas.
Key features
- RTL8832BU WiFi 6 chipset
- USB-A connector support USB 3.2 GEN 1
- RP-SMA external antenna connector
- High-gain dual-band 2.4 GHz +5 GHz detachable dipole antenna
- LED indicator
Specifications
|
Chipset |
Realtek™ RTL8832BU |
|
IEEE 802.11 standards |
a/b/g/n/ac/ax |
|
Frequency |
2.4 GHz 5 GHz |
|
Data rate |
11b: 1, 2, 5.5, 11 Mbps 11a/g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 11n: up to 300 Mbps 11ac: up to 866.7 Mbps 11ax 2.4 GHz: up to 573.5 Mbps 11ax 5 GHz: up to 1201 Mbps |
|
USB connector |
USB 3.2 Gen 1 Type-A |
|
Wi-Fi Antenna |
2x RP-SMA antenna connector with 2x dual-band high-gain dipole antenna |
|
Power consumption |
3.6 W (max.) |
|
Dimensions |
87.4 x 28.5 x 12 mm (3.44 x 1.13 x 0.47 inches) |
|
Operating temperature |
-20°C - 70°C |
|
Operation voltage |
5V |
|
OS support |
Windows 10/11 & Linux |
