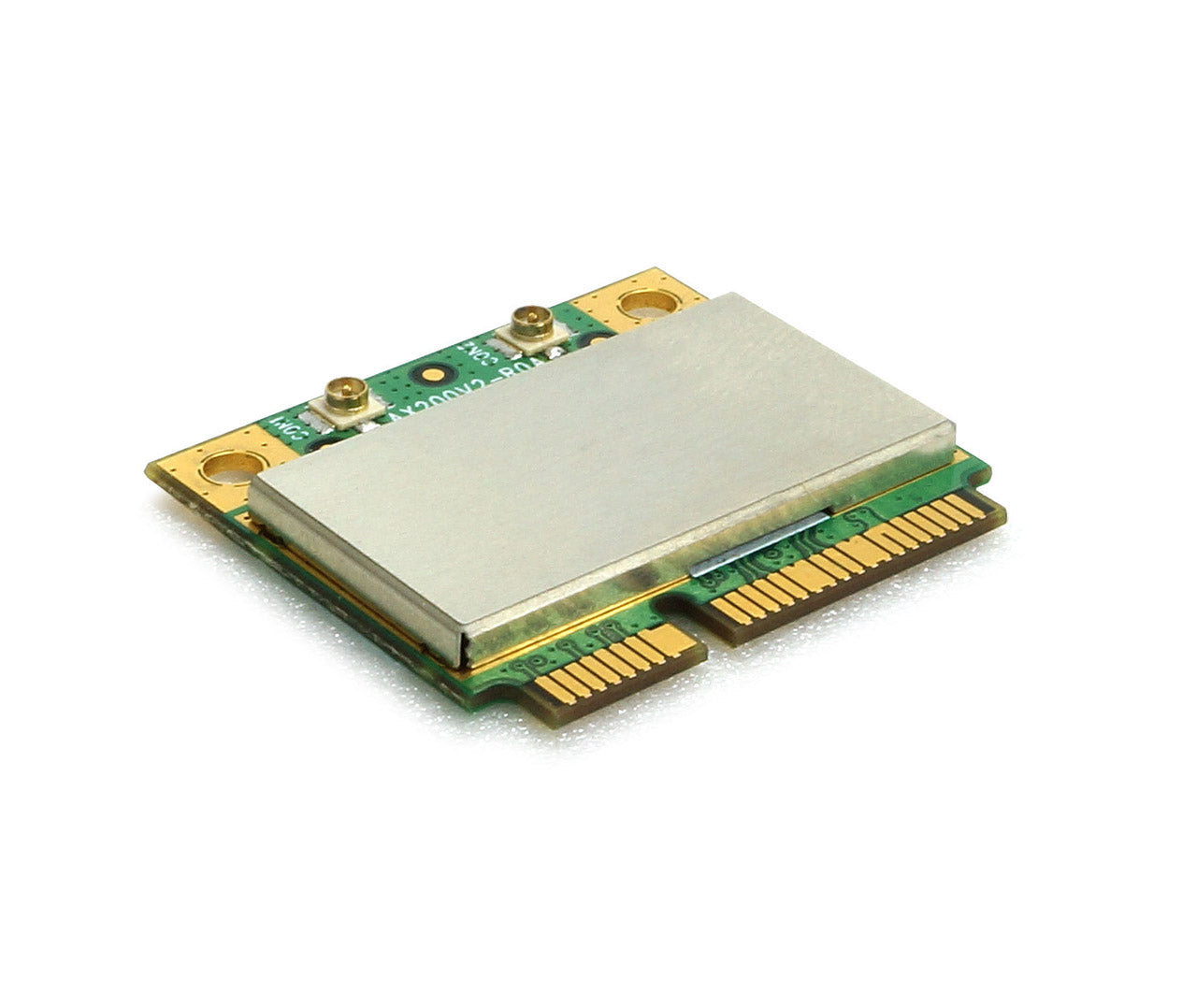

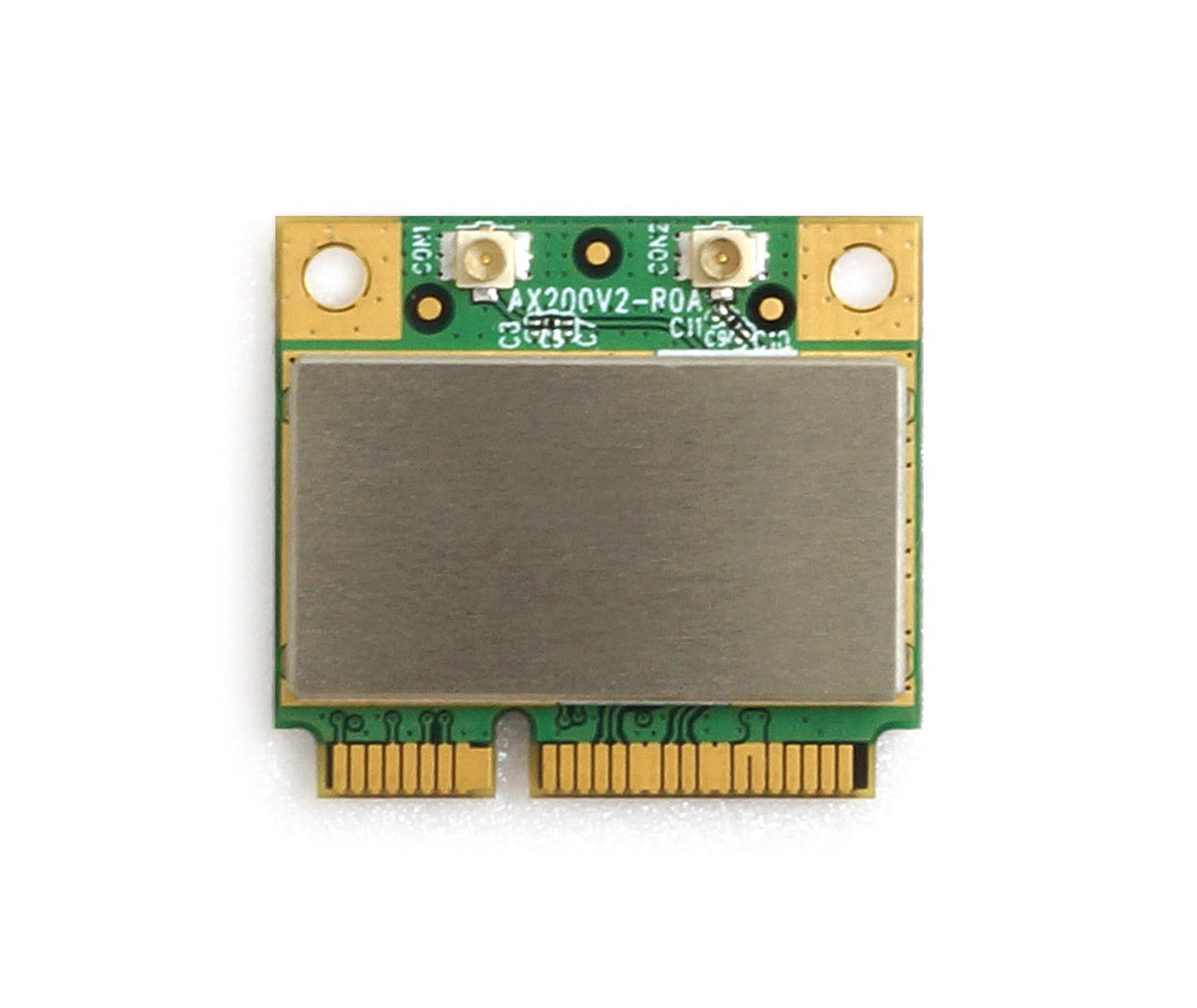

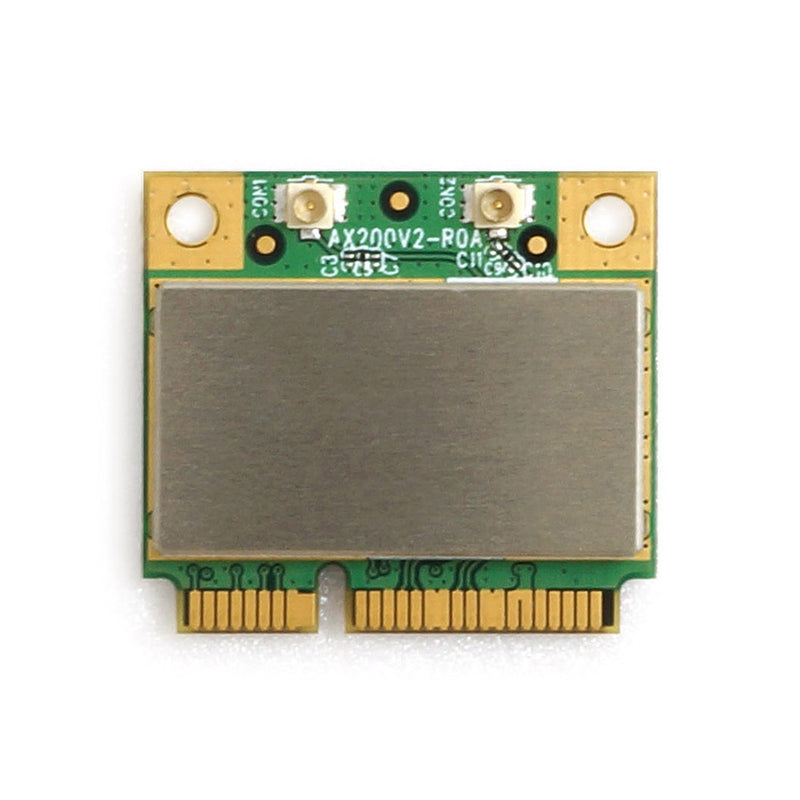

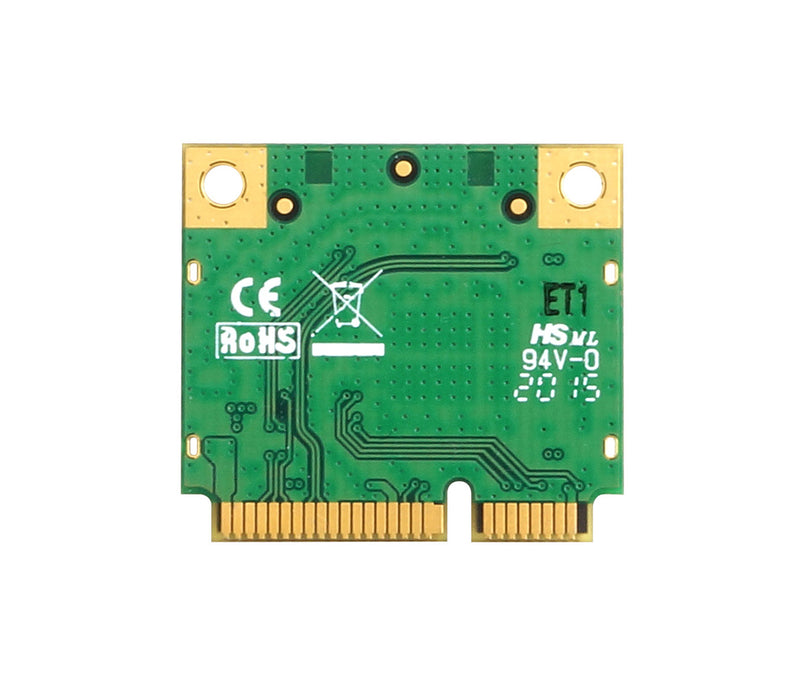

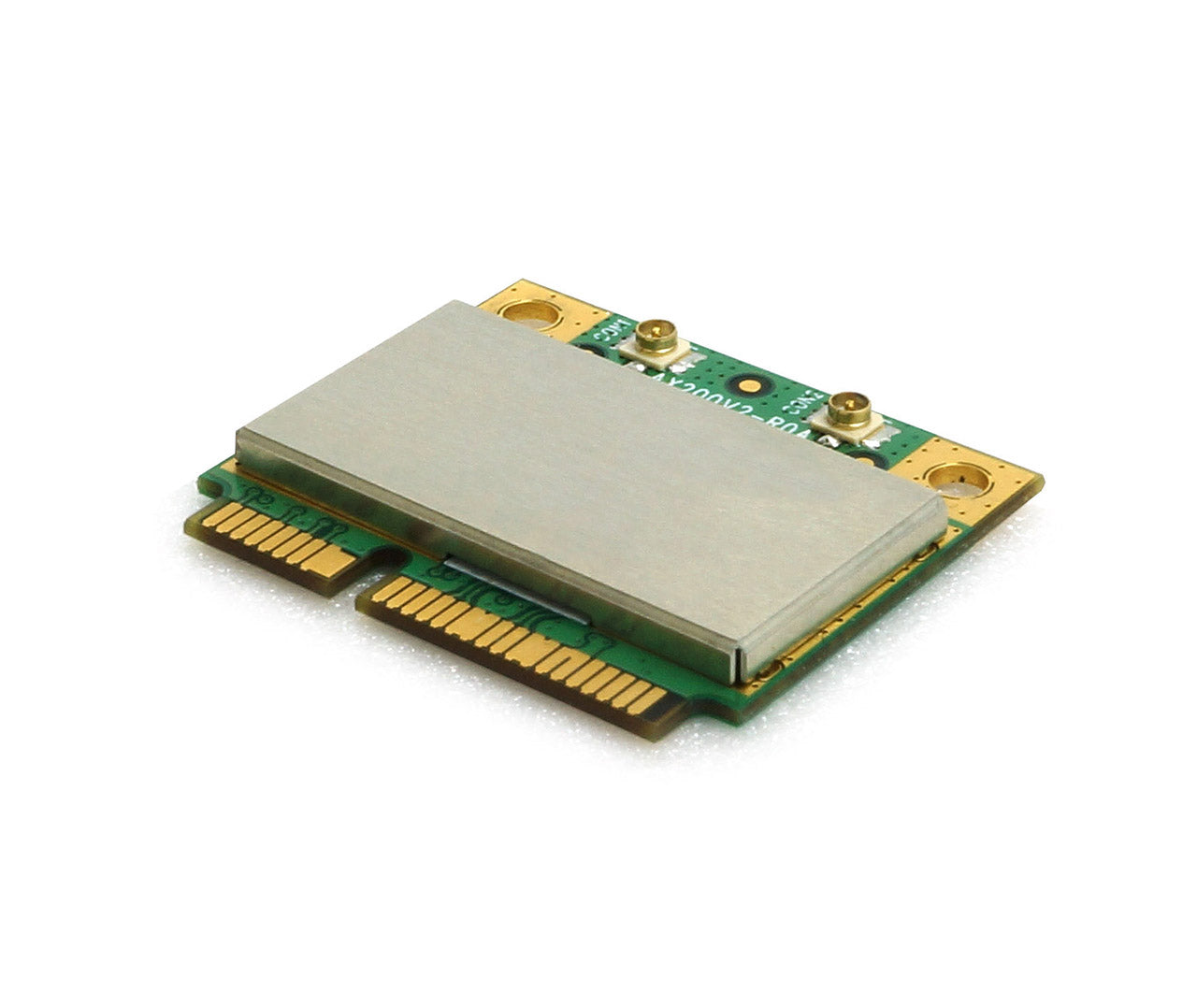

AWPCIE-AX200U is a half-size mini PCIe WiFi6 card, based on highefficiency Intel AX200
AWPCIE-AX200U supports the latest WiFi6 (IEEE 802.11ax) with special features like OFDMA, 1024QAM and MU-MIMO. Module includes also Bluetooth 5.0 radio, is backward compatible (IEEE 802.11a/b/g/n/ac) and operates in 2.4 and 5 GHz bands.
Thanks to its mini PCIe form factor (half-size) and IPEX/U.FL antenna connectors, owners of legacy products can use the latest wireless technologies with up to 2.4 Gbps data rate.
Wide support in modern operating systems (Microsoft Windows 10, Linux, Chrome OS) helps with seamless module integration.
|Intel product code||AX200D2WL (Intel AX200 Cyclone Peak 2 series)|
|IEEE 802.11 standards||a/b/g/n/ac/ax|
|Special features||OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT|
|Frequency||2.4 GHz |
|Data rate||2.4 Gbps|
|Antenna connectors||2× IPEX/U.FL|
|Interface||PCIe x1 (WiFi) |
USB 2.0 (Bluetooth)
|Operating systems||Microsoft Windows 10 |
|Form factor||half-size mini PCIe|
|Dimensions||30 × 26.8 × 3.1 mm|
