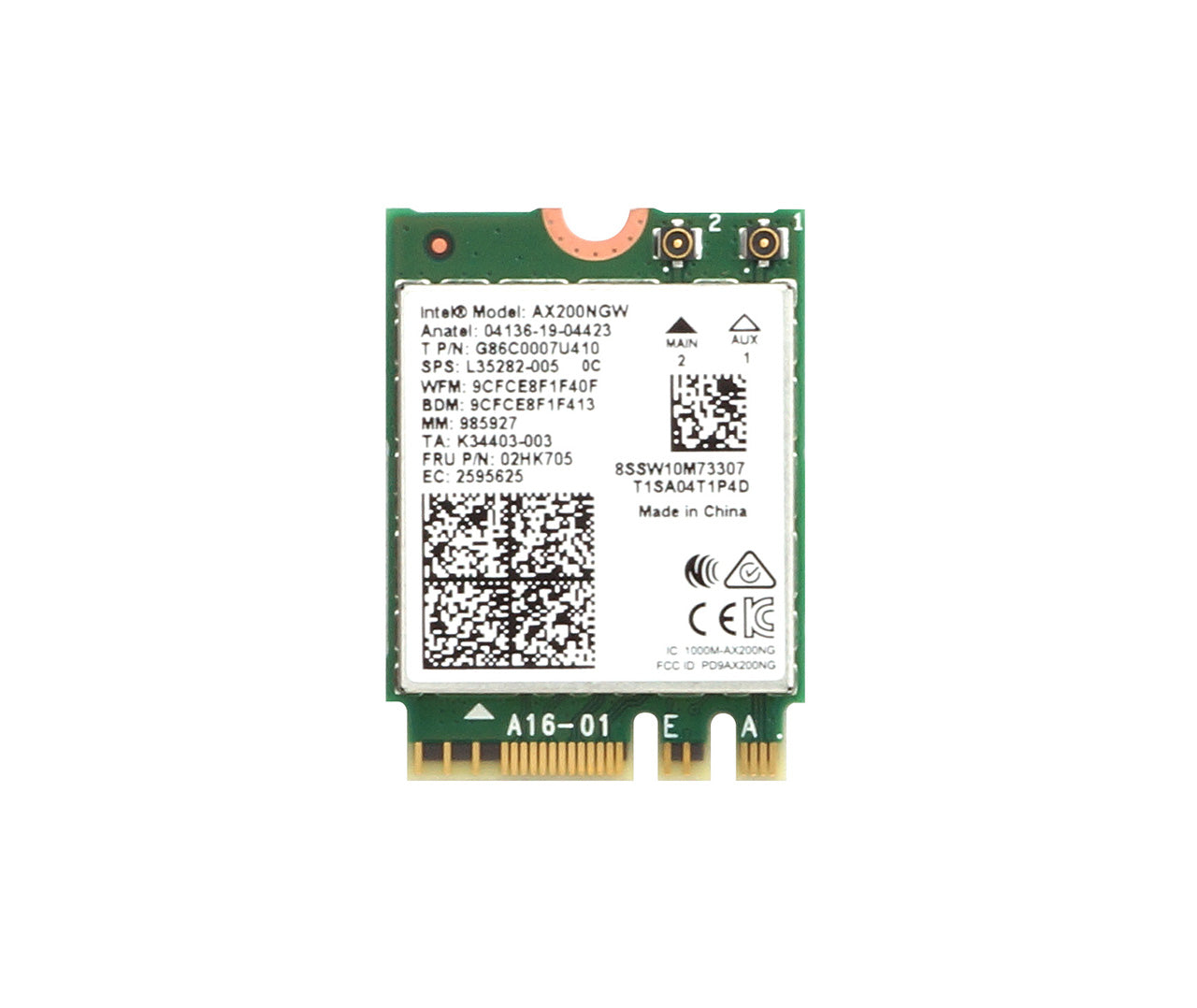

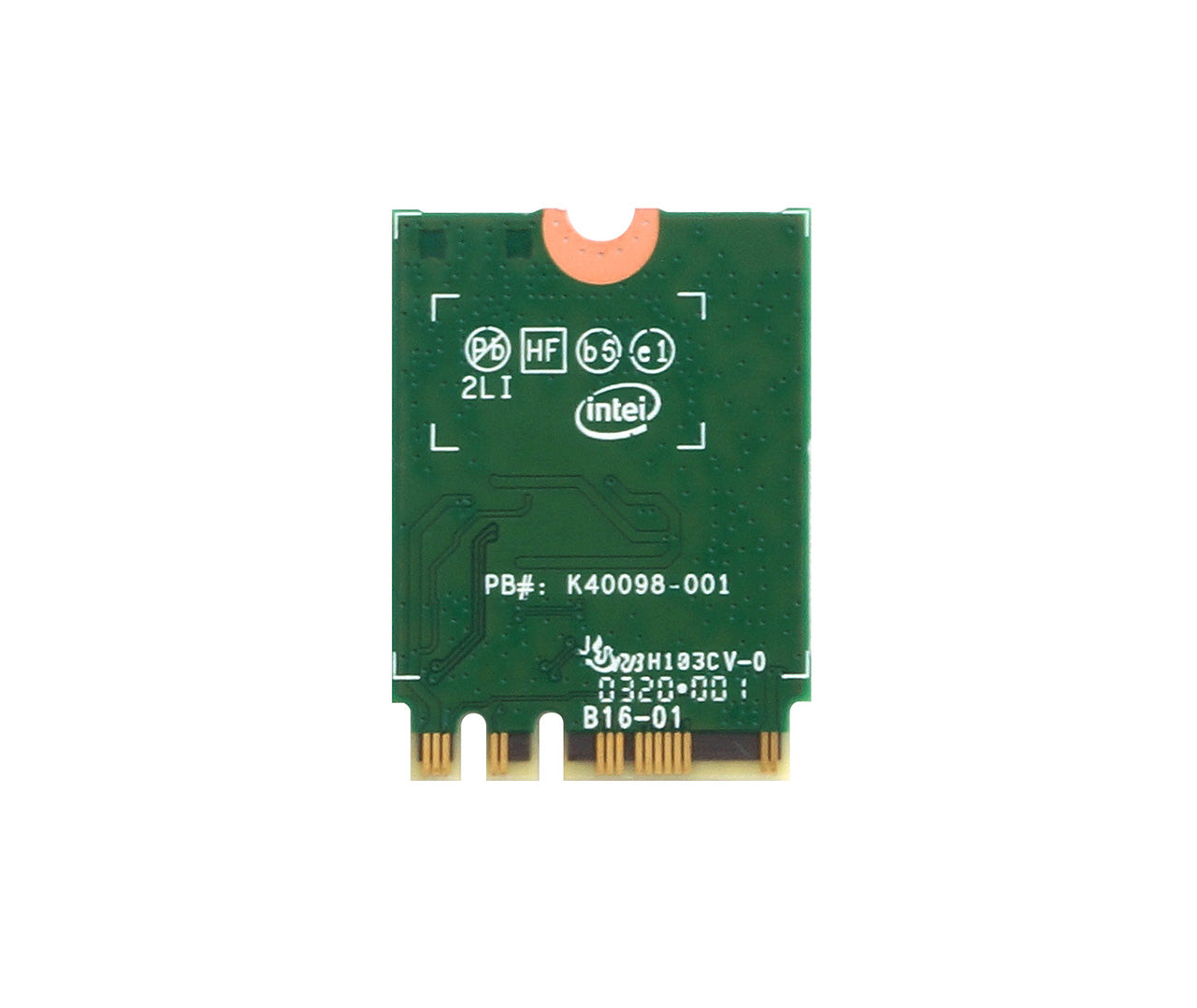

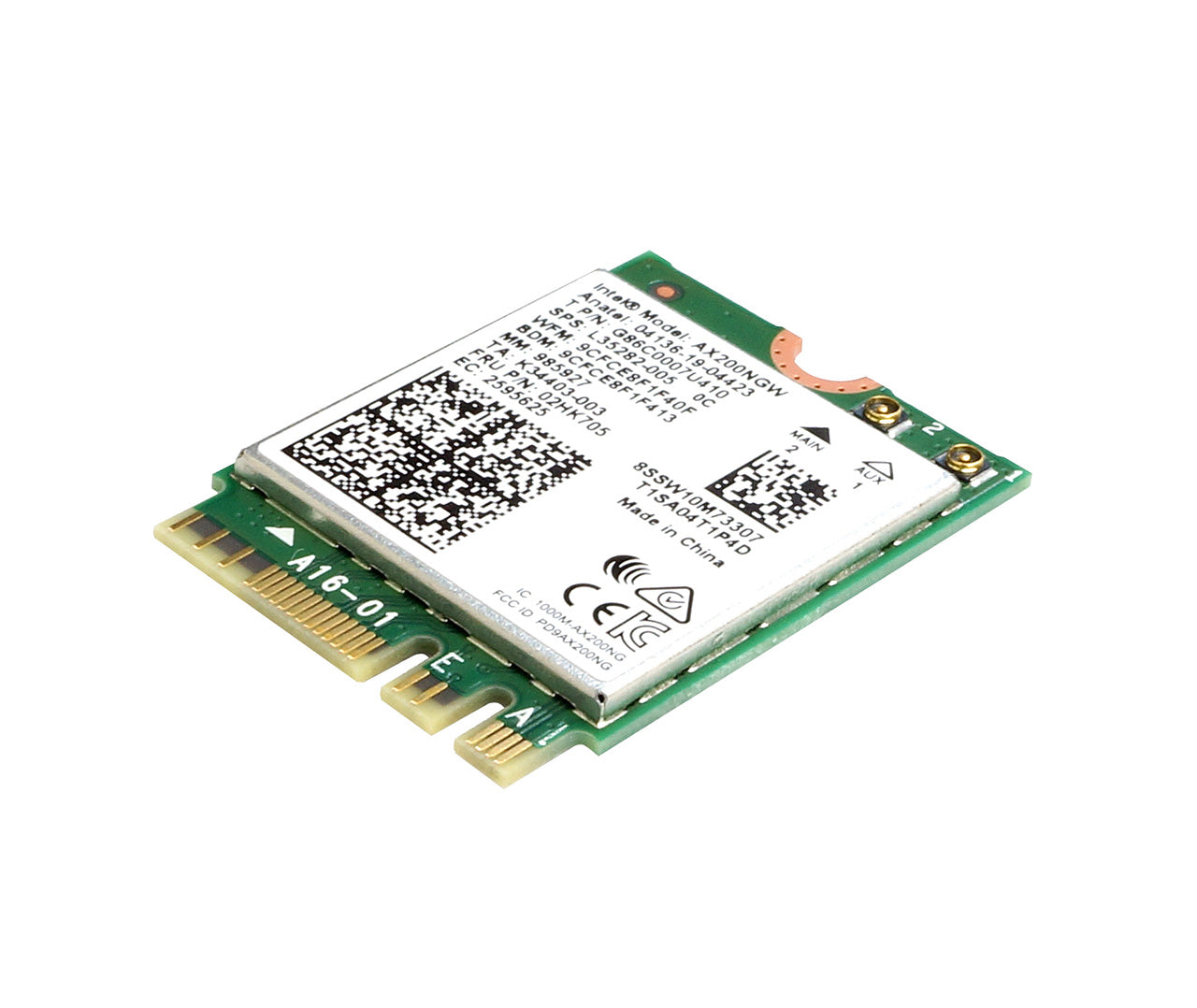

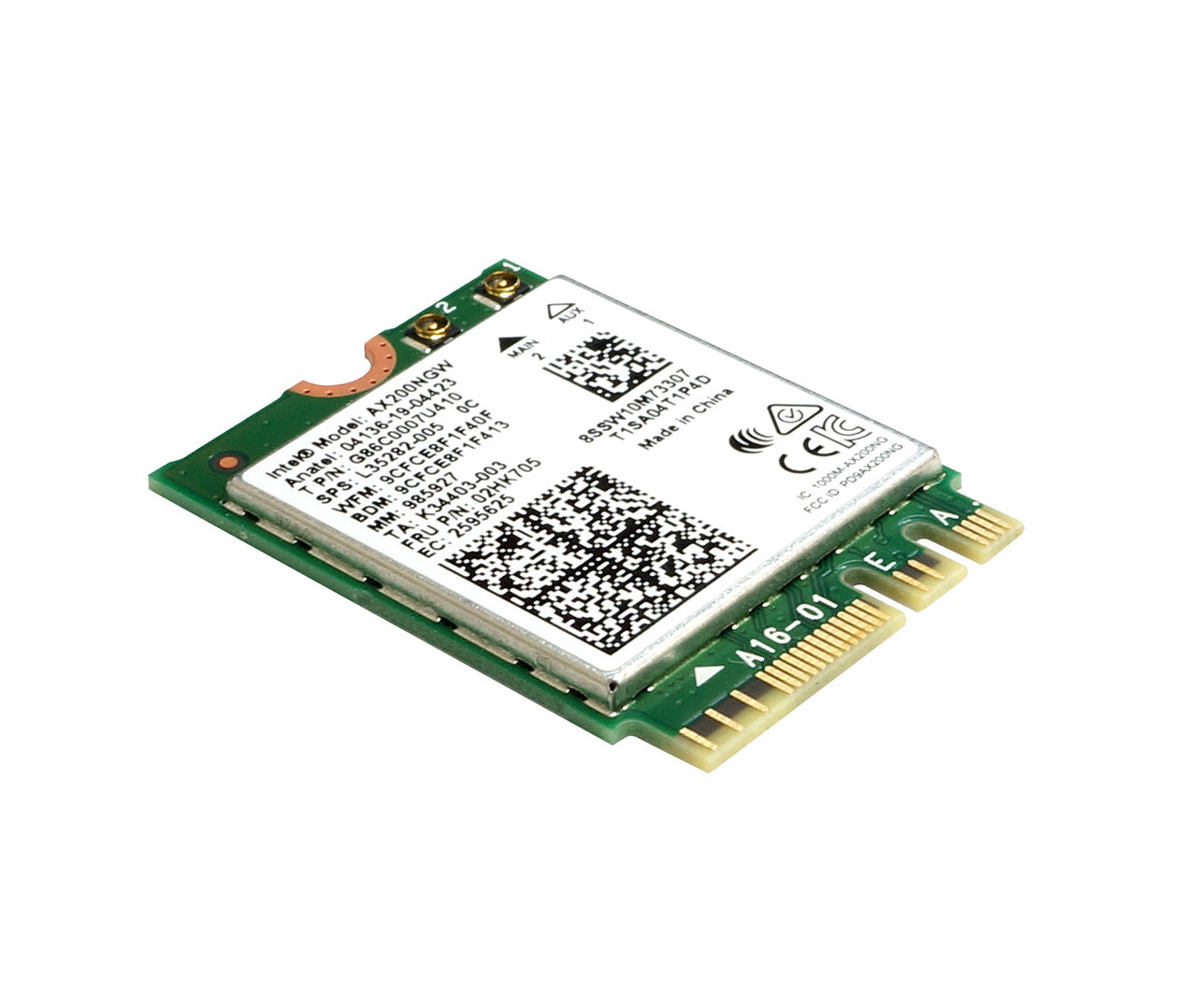

Intel Wi-Fi 6 AX200 Module
Nearly 3X higher peak data rates and up to 4X capacity
The Intel® Wi-Fi 6 AX200 (Gig+) adapter supports the new IEEE 802.11ax standard – Wi-Fi 6 technology and is Wi-Fi CERTIFIED 6™. The product supports 2x2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering data rates of up to 2.4Gbps and increased network capacity as well as Bluetooth® 5.1 support. These new features deliver a significant improvement in user experience in dense deployments, supporting fast uploads and downloads, lower latency and longer battery life compared to solutions supporting 802.11ac. Combined with Intel® Core™ processors and exceptional Intel wireless innovations, the Intel® Wi-Fi 6 AX200 module can provide Gigabit wireless speed and dramatically improve your connected experience at home, work, or on the go.
1ST GENERATION INTEL Wi-Fi 6 WIRELESS
By implementing the new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT) and spatial reuse, Intel® Wi-Fi 6 AX200 module enables smooth streaming of high-resolution videos, fewer dropped connections, and faster connections farther away from the router and in dense environments.
When using Wi-Fi 6 technology with 1024QAM and 160MHz channels, Intel® Wi-Fi 6 AX200 module can deliver nearly 3x higher peak data rates (up to 2.4Gbps) and up to 4x capacity improvement in dense or congested environments comparing to 802.11ac.
Intel® Wi-Fi 6 AX200 module supports the new WPA3 security features, enabling next- generation authentication and military-grade encryption
Bluetooth® 5.1 provides 4x range over Bluetooth® 4.2 using the same Tx power, enabling coverage throughout the home. Bluetooth® 5.1 also doubles data rates speed for faster transmissions thereby reducing the overall power consumption. Additionally, Bluetooth® 5.1 adds new enhanced data broadcasting enabling seamless services such as location-based services and simpler pairing for Bluetooth® devices.
Microsoft Windows 10
Full support for latest Microsoft Windows 10 OS.
Form Factors (M.2 2230)
M.2 2230 modules enable system configuration and platform usage flexibility with the use of a standard Key A or Key E socket for attaching the module.
Worldwide Regulatory Support Intel® Dynamic Regulatory Solution
Enables performance optimized worldwide regulatory compliance SKU. The Intel® Wi-Fi 6 AX200 module detects its location and automatically optimizes the Wi-Fi settings to local regulatory requirements, maximizing performance in each geography, simplifying travel experience and global enterprise procurement. Future regulatory changes are easily managed during the product life cycle.
Wireless Functionality in Pre-boot Environment
Support for Wi-Fi network and BLE HID connectivity in the platform’s UEFI (Unified Extensible Firmware Interface) environment during its boot stage. This capability enables use cases like OS recovery over Wi-Fi and BLE-based keyboard and mouse connectivity in this pre-boot environment.
Wirelessly Project to the Big Screen
Project your 2-in-1 or laptop content instantly, without wires, on the big HD screen with stunning image clarity and sound using Wi-Fi Miracast. Stream movies, videos, games, photos, connect with friends, and more. Experience it all, bigger and better than ever before.
Intel® vPro™ Technology
Supports Intel’s hardware-based security and management features built into Intel® Core™ vPro™ processors and chipsets that enable IT to manage PCs virtually anywhere, anytime, while reducing deployment costs, improving security and ROI.
Intel® Active Management Technology
Using integrated platform capabilities and popular third-party management and security applications, Intel® AMT allows IT or managed service providers to better discover, repair, and help protect their networked computing assets. Intel® AMT is a feature of Intel® Core™ processors with Intel® vPro™ technology.
|Dimensions (H x W x D)||22 mm x 30 mm x 2.4 mm [1.5 mm Max (Top Side)/ 0.1 mm Max (Bottom Side)]|
|Weight||2.83 +/– 0.3 g|
|Radio ON/OFF Control||Supported|
|Connector Interface||M.2: PCIe, USB|
|Operating Temperature (Adapter Shield)||0 °C to +80 °C|
|Humidity Non-Operating||Microsoft Windows 10, Linux, Chrome OS|
|Wi-Fi Alliance||Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED a/b/g/n/ac, WMM, WMM-Power Save, WPA, WPA2, WPA3, WPS, PMF, Wi-Fi Direct, Wi-Fi Agile Multiband, Wi-Fi Optimized Connectivity, Wi-Fi Location, and Wi-Fi TimeSync|
|IEEE WLAN Standard||IEEE 802.11-2016 and select amendments (selected feature coverage) |
IEEE 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax; Fine Timing Measurement based on 802.11-2016
|Security Methods||WPA and WPA2 Personal and Enterprise; WPA3|
|Authentication Protocols||802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0 -MSCHAPv2 |
(EAP-SIM, EAP-AKA, EAP-AKA’)
|Encryption||64-bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 256-bit AES-GCMP|
|Regulatory||For a list of country approvals, please contact your local Intel representatives.|
|US Government||FIPS 140-2|
|Product Safety||UL, C-UL, CB (IEC 60950-1)|
