802.11ax router board with 1x 2.5 GbE, 4x 1 GbE, 4G/LTE and 5G support, Bluetooth 5.1 and USB 2.0

  1. (1) Qualcomm IPQ6010 with 1 GB of DDR3L RAM
  2. (2) 32 MB of SPI NOR, 256 MB of NAND flash and microSD (SDXC) flash card reader
  3. (3) Dual-band, dual-concurrent (DBDC) WiFi AX1800
  4. (4) Texas Instruments CC2652R Bluetooth 5.1 LE
  5. (5) 1x 2.5 Gbps and 4x 1 Gbps Ethernet
  6. (6) M.2/NGFF B-key with dual-SIM (mini + micro) (SuperSpeed USB 5 Gbps and USB 2.0 buses)
  7. (7) mini PCIe (PCIe x1, USB 2.0, micro SIM)
  8. (8) USB 2.0 Type-A (host) and micro Type-B (console)
  9. (10) 802.3at/af PoE support (optional module)

AX1800RQ is a richly equipped WiFi 6 router board with 2.5 Gbps Ethernet

AX1800RQ offers an integrated 802.11ax WiFi radios (2.4 and 5 GHz, AX1800) with IPEX/U.FL antenna connectors (dual-band or single-band, depending on version), single 2.5 Gbps Ethernet (WAN) with optional support for 802.3at PoE input and 4× 1 Gbps Ethernet (LAN) ports.

Additional M.2/NGFF B-key (dual-SIM) and mini PCIe slots allow installation of an extra 5G and 4G/LTE or WiFi modules. USB 2.0 connector, microSD flash card slot, mikroBUS™ socket and RTC with battery backup make this board even more attractive.

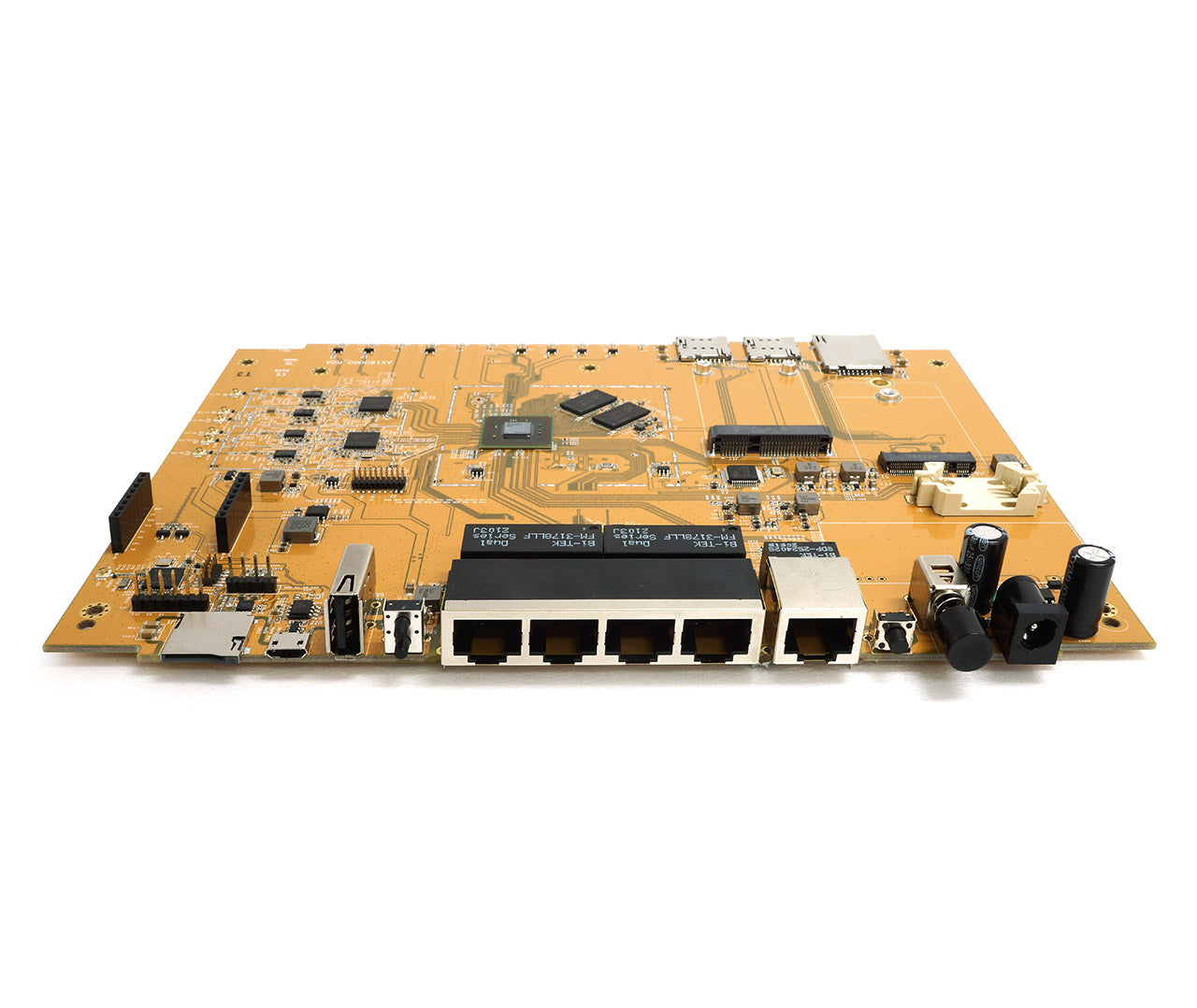

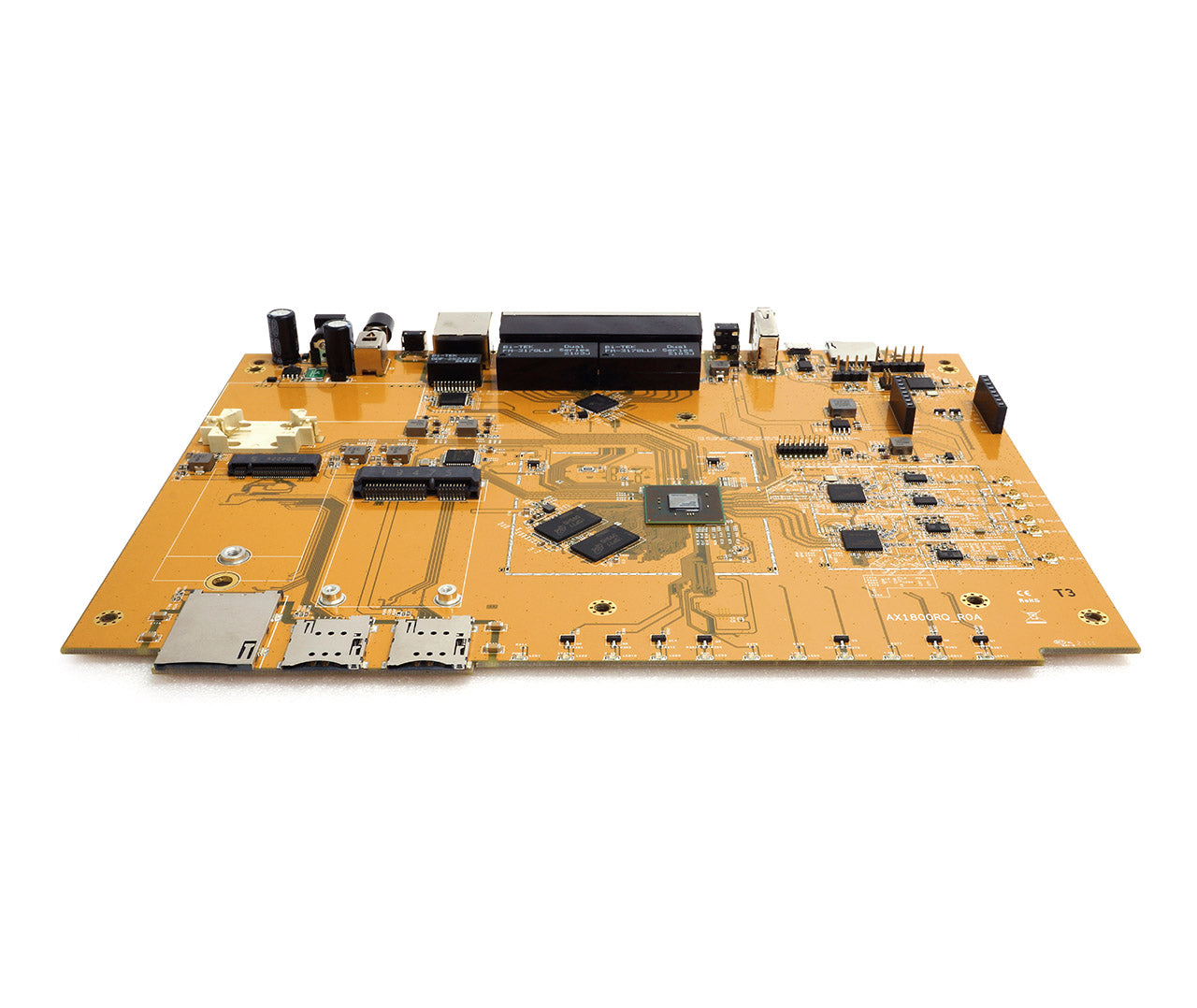

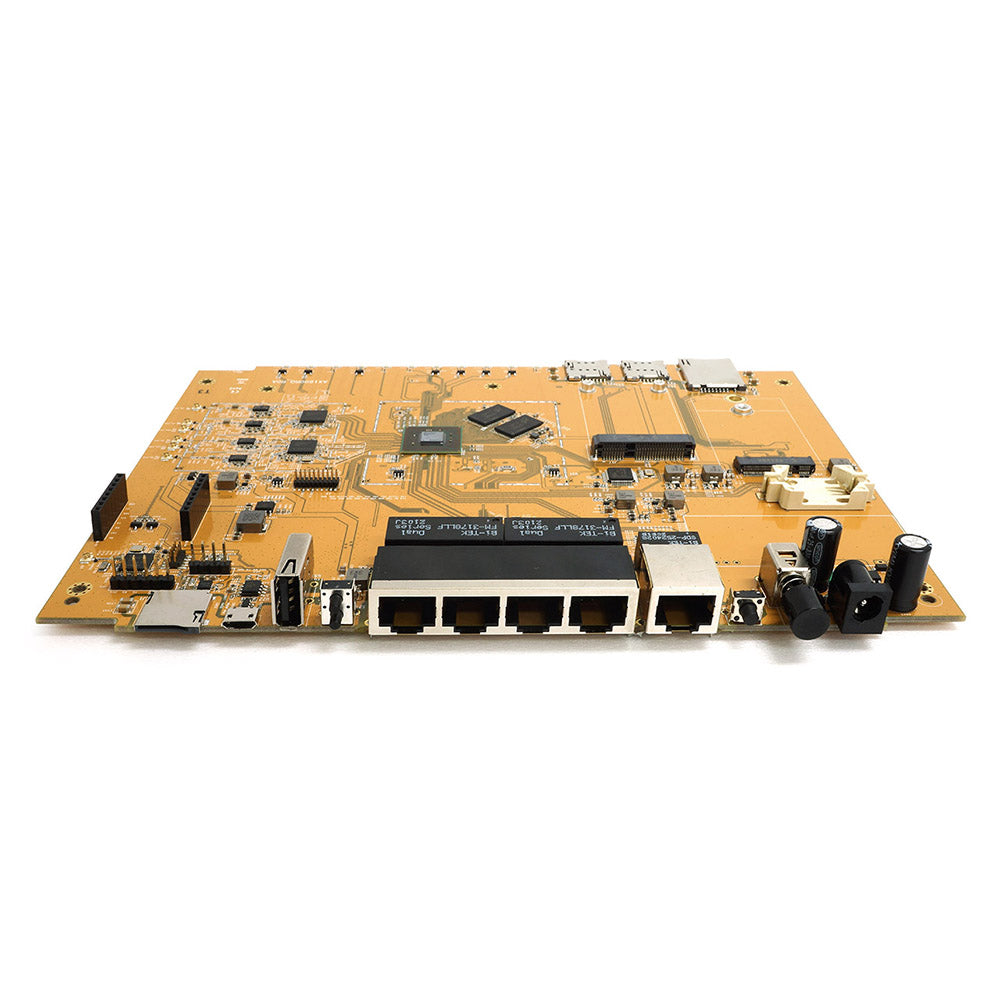

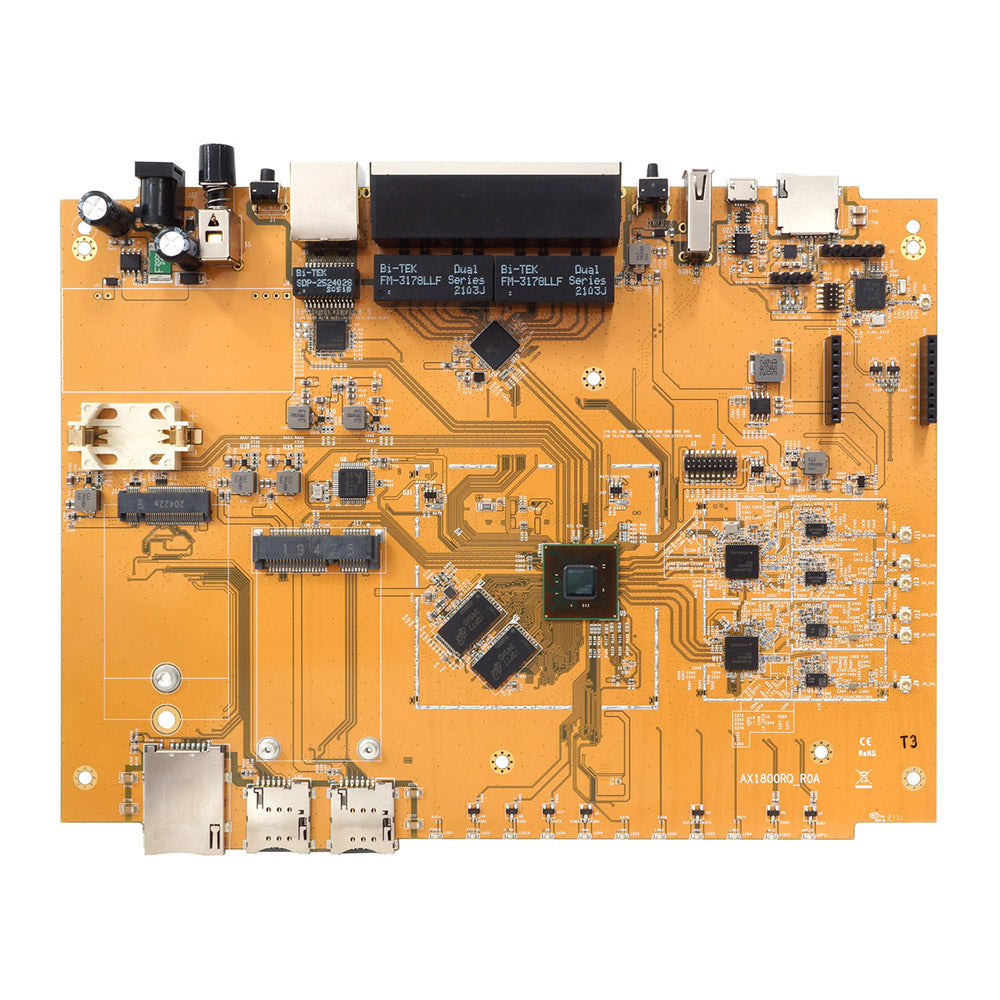

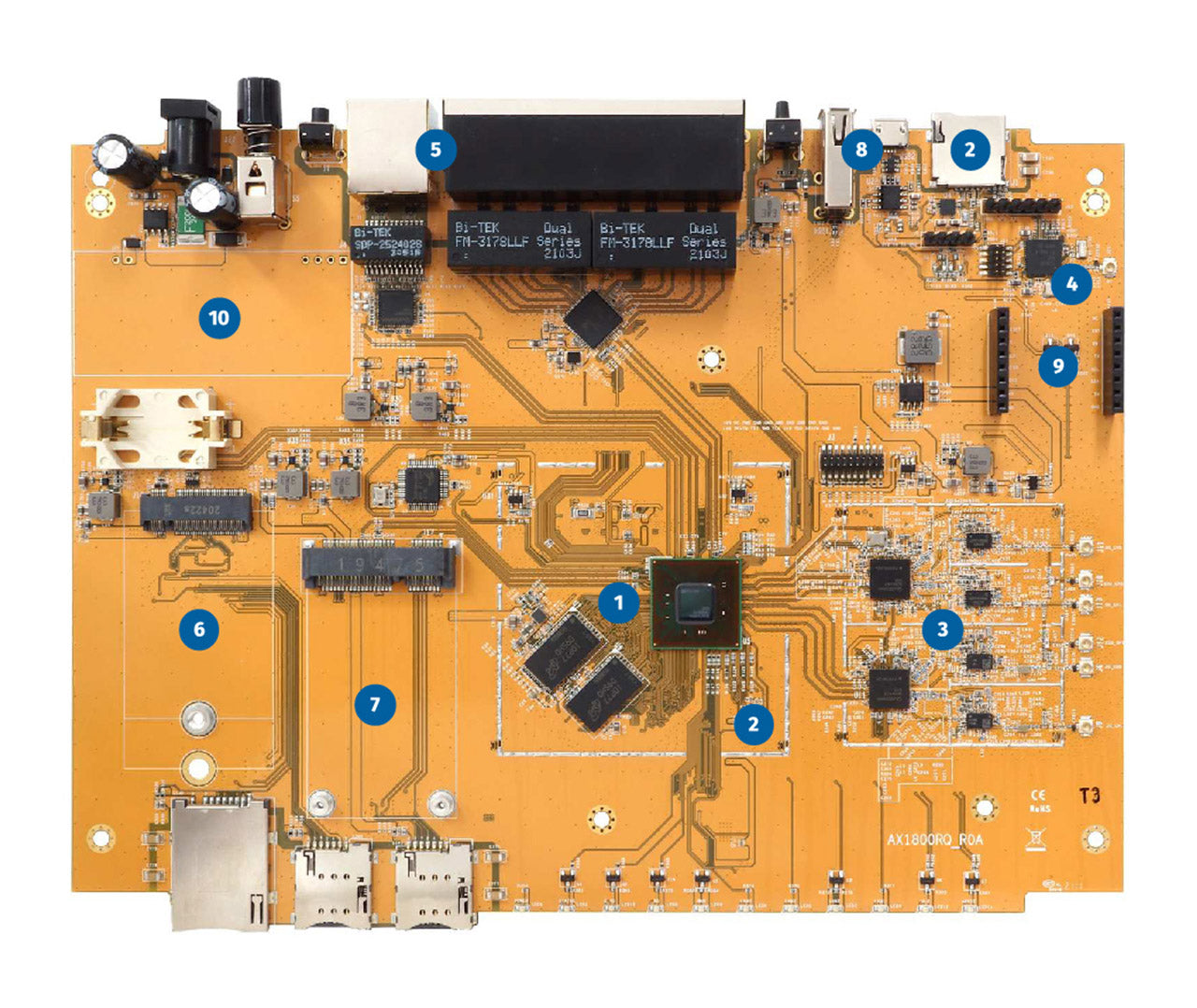

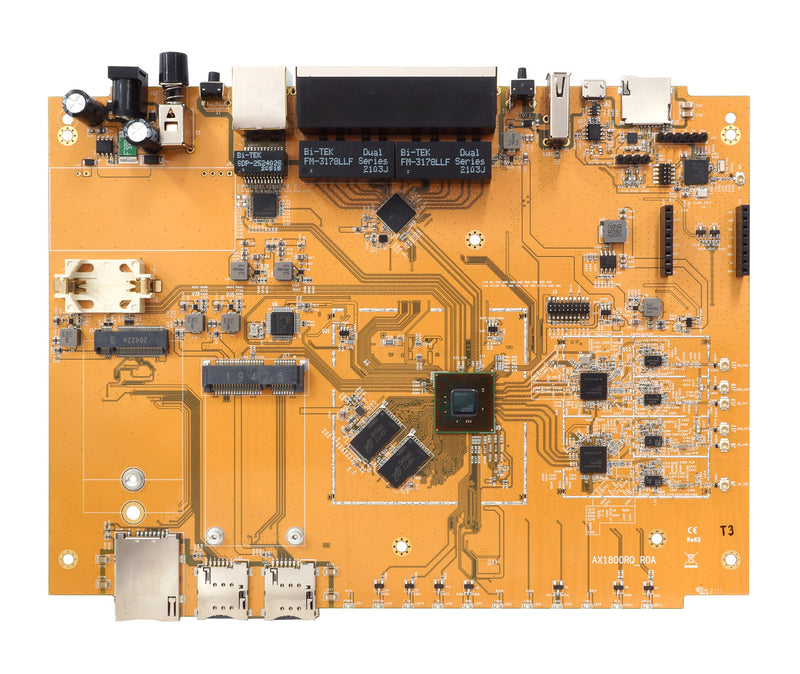

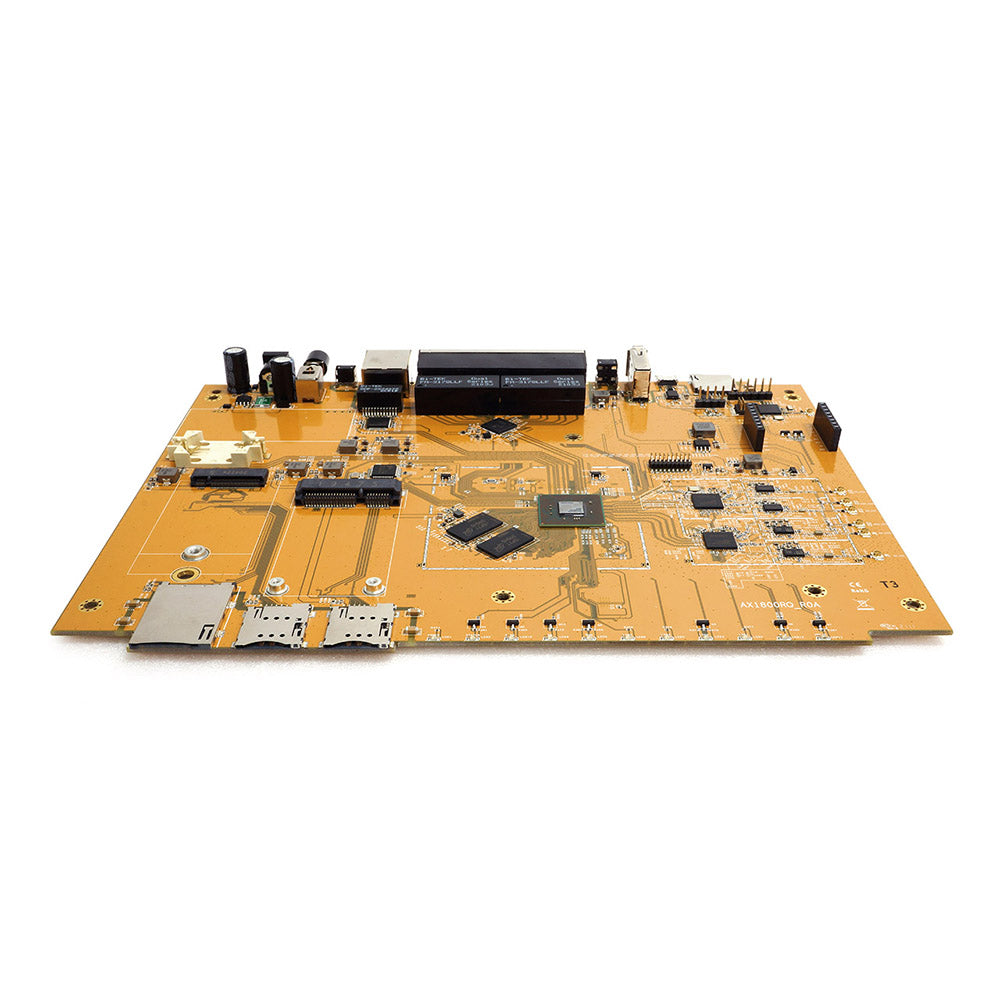

Board in details(top)


  1. Qualcomm™ IPQ6010 (1.8 GHz quad-core ARM™ Cortex-A53)
  2. 1 GB of DDR3L RAM
  3. Qualcomm™ QCN5x52 (802.11a/n/ac/ax 2T2R 5 GHz)
  4. Qualcomm™ QCN5x22 (802.11b/g/n/ax 2T2R 2.4 GHz)
  5. Texas Instruments CC2652R (Bluetooth 5.1 LE)
  6. 1x 2.5 Gbps Ethernet WAN (optional 803.2af/at PoE input)
  7. 4x 1 Gbps Ethernet LAN
  8. Optional 803.2af/at PoE module
  9. M.2/NGFF B-key 3042/3052 with dual-SIM (mini + micro) (SuperSpeed USB 5 Gbps and USB 2.0 buses)
  10. mini PCIe (PCIe x1, USB 2.0, micro SIM, 3.3 + 5.0 V)
  11. mikroBUS™ socket (SPI, I2C and UART buses)
  12. USB 2.0 Type-A
  13. USB 2.0 micro Type-B system serial console (Holtek HT42B534)
  14. microSD (SDXC) flash card reader
  15. DC jack with lock for main power input (12 V)
  16. Main power switch
  17. Reset button
  18. WiFi and user defined button
  19. 20-pin JTAG header (1.27 mm pitch)
  20. 4-pin serial console (UART, 2.54 mm pitch)
  21. 6-pin Bluetooth serial console (UART, 2.54 mm pitch)
  22. 20-pin Bluetooth JTAG header (1.27 mm pitch)
  23. CR2032 backup battery holder for RTC
  24. 11x LED

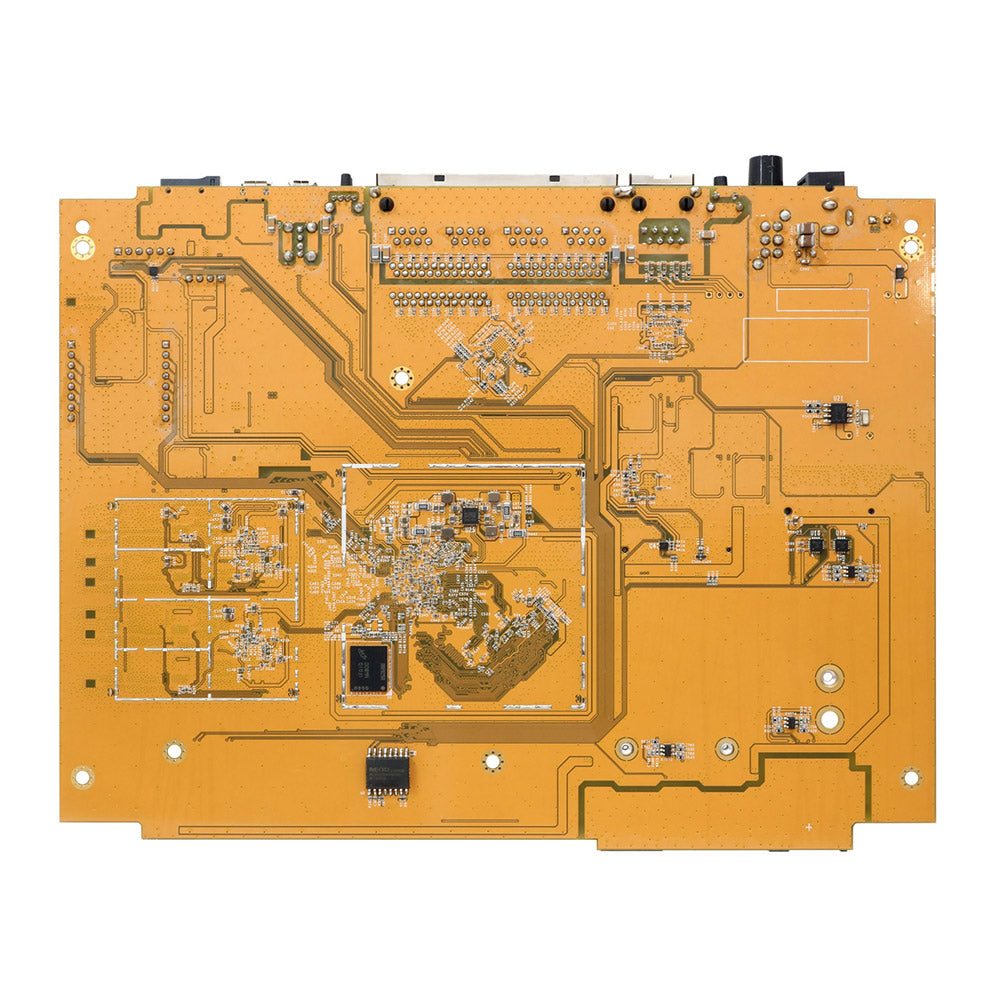

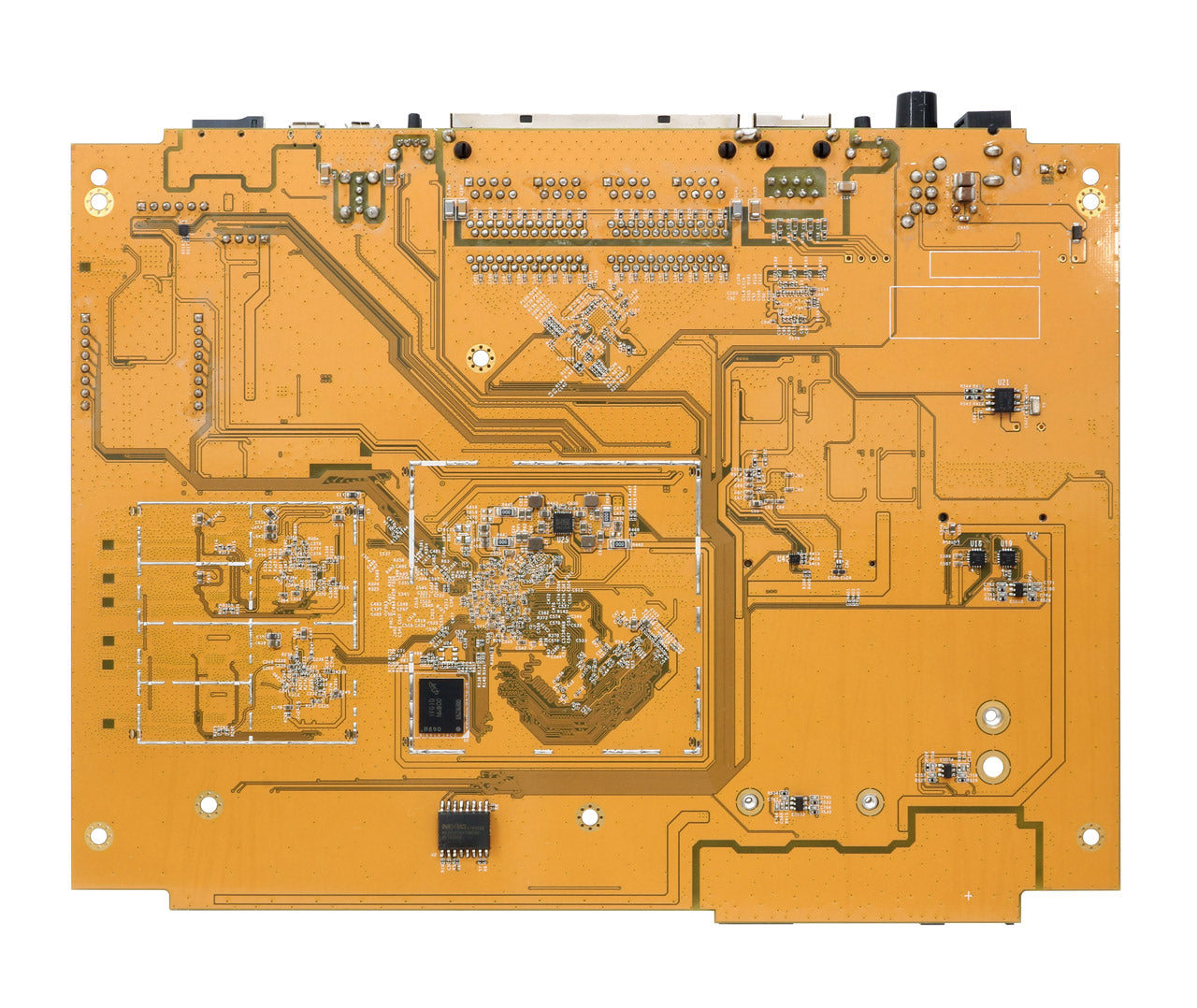

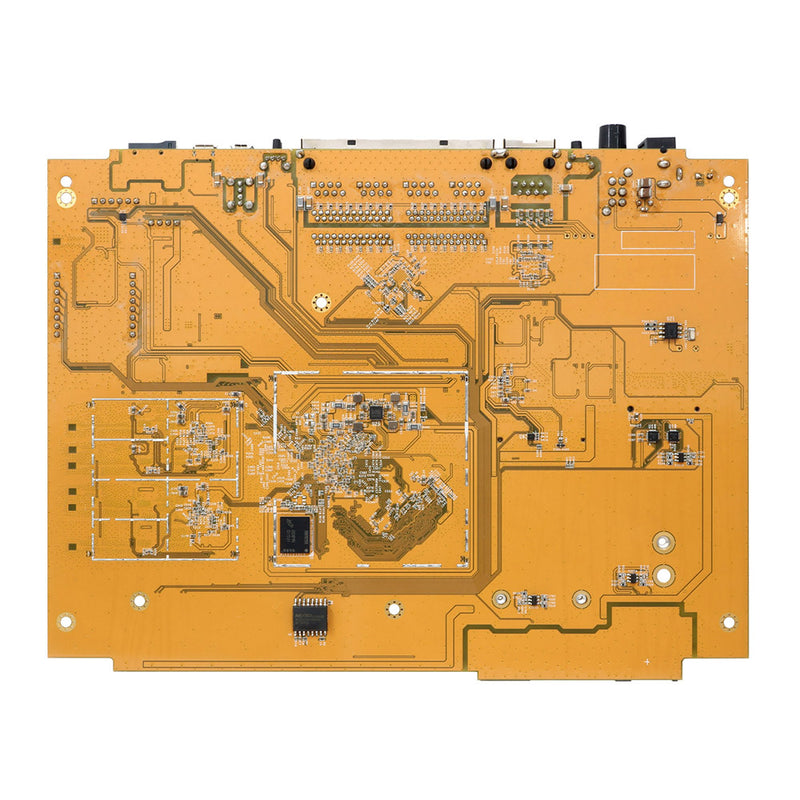

Board in details(bottom)


  1. 32 MB of SPI NOR flash
  2. 256 MB of NAND flash
  3. EM Microelectronic EM6324 (optional external hardware watchdog)
  4. Texas Instruments BQ32002 (RTC with battery backup)

General specifications

Parameter Value
SOC Qualcomm™ IPQ6010 with 1.8 GHz quad-core ARM™ Cortex-A53
Flash 32 MB of SPI NOR flash
256 MB of NAND flash
WiFi 802.11b/g/n/ax 2T2R 2.4 GHz (up to 574 Mbps)
802.11a/n/ac/ax 2T2R 5 GHz (up to 1200 Mbps)
2x or 4x IPEX/U.FL connectors (for dual-band or single-band antennas)
USB 1x USB 2.0 Type-A
1x USB 2.0 micro Type-B
Storage 1x microSD (SDXC) flash card reader
Ethernet 1x 2.5 GbE (Qualcomm™ QCA8081)
4x 1 GbE (Qualcomm™ QCA8075)
Expansion 1x M.2/NGFF B-key 3042/3052 for 3/4/5G module (SuperSpeed USB 5 Gbps, USB 2.0, mini + micro SIM)
1x mini PCIe for 3/4G or WiFi module (PCIe x1, USB 2.0, micro SIM, 3.3 + 5.0 V)
1x mikroBUS™ socket (SPI, I2C and UART buses)
Bluetooth 5.1 LE (Texas Instruments CC2652R)
1x IPEX/U.FL antenna connector
Button 3x push-button (reset, user, WiFi)
1x power switch
LED 1x power
1x status
2x WiFi
1x M.2/NGFF
1x mini PCIe
Other RTC with CR2032 backup battery
External hardware watchdog
Power supply DC jack (5.5/2.1 mm) with lock for 12 V DC input
Optional 803.2af/at PoE module for WAN
Dimensions TBA
