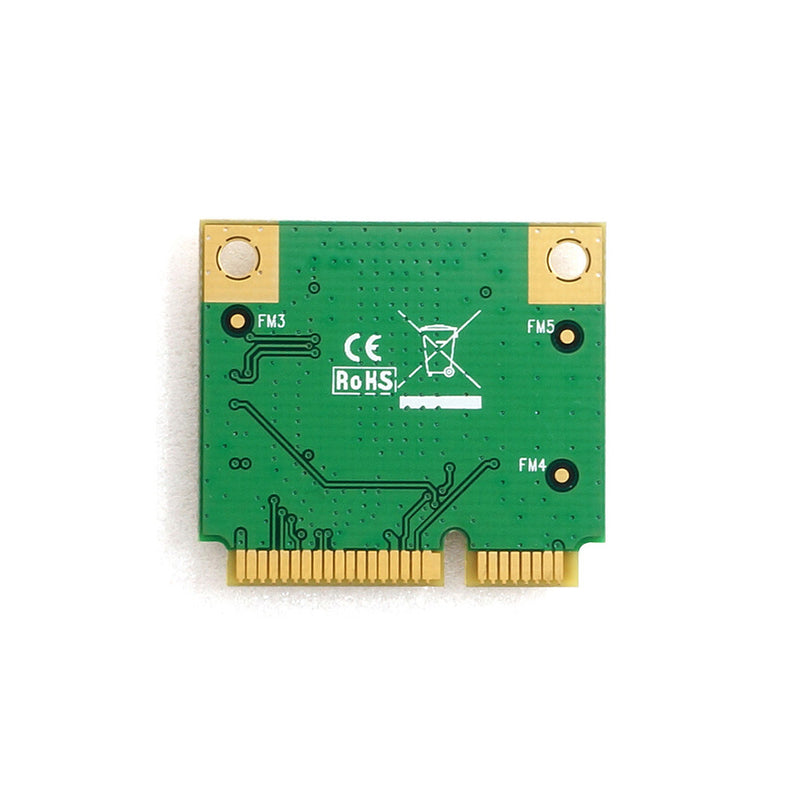

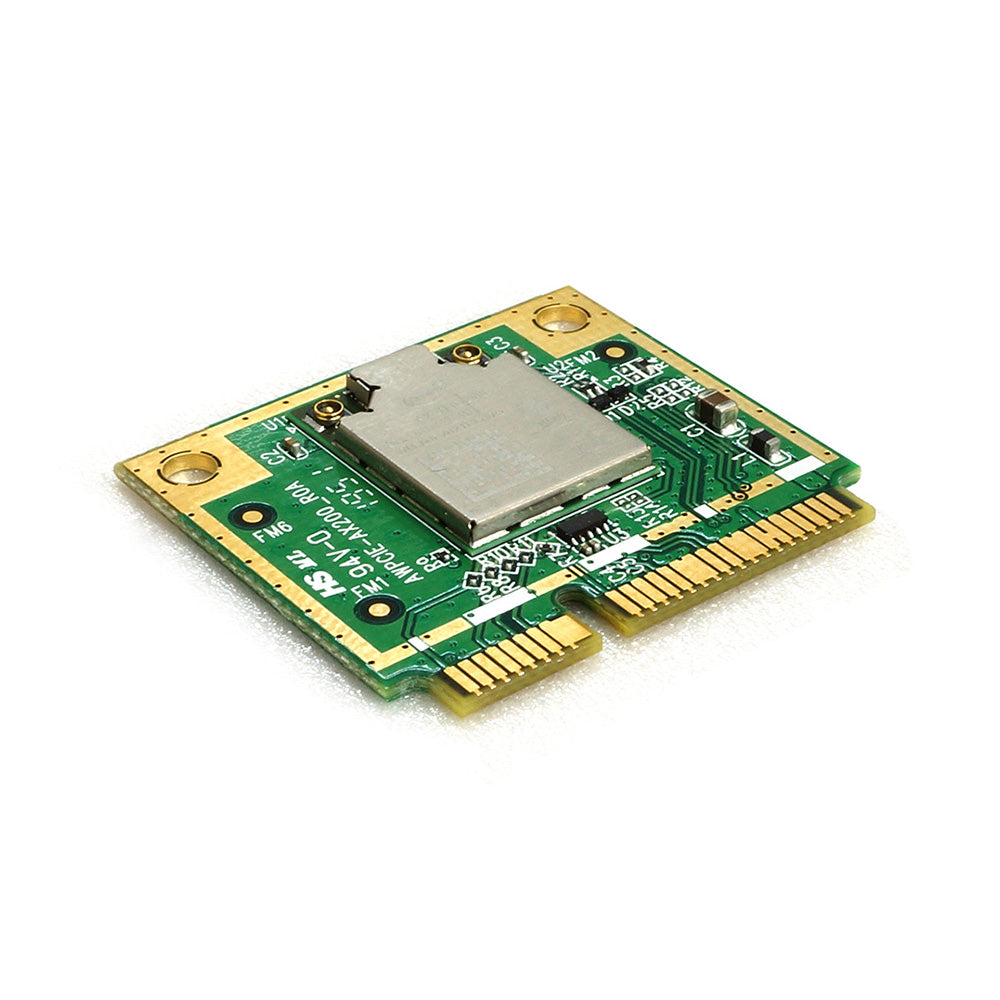

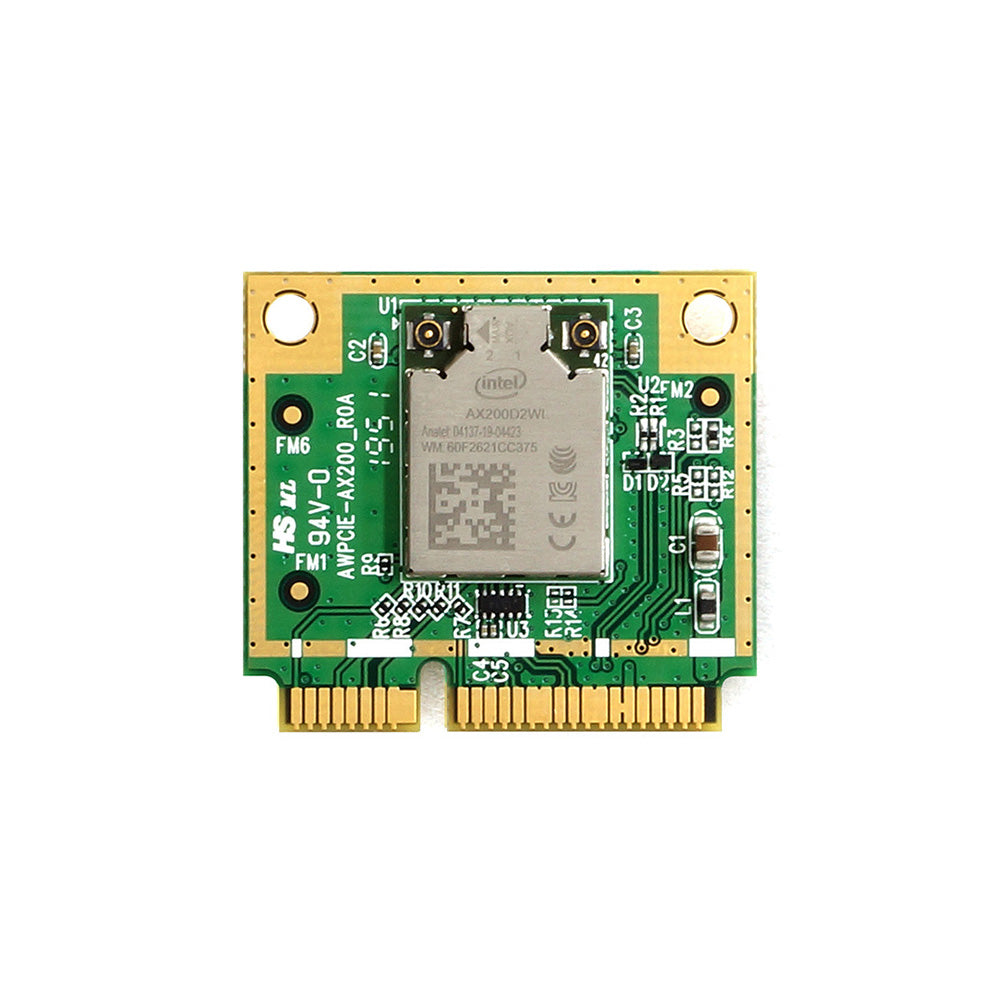

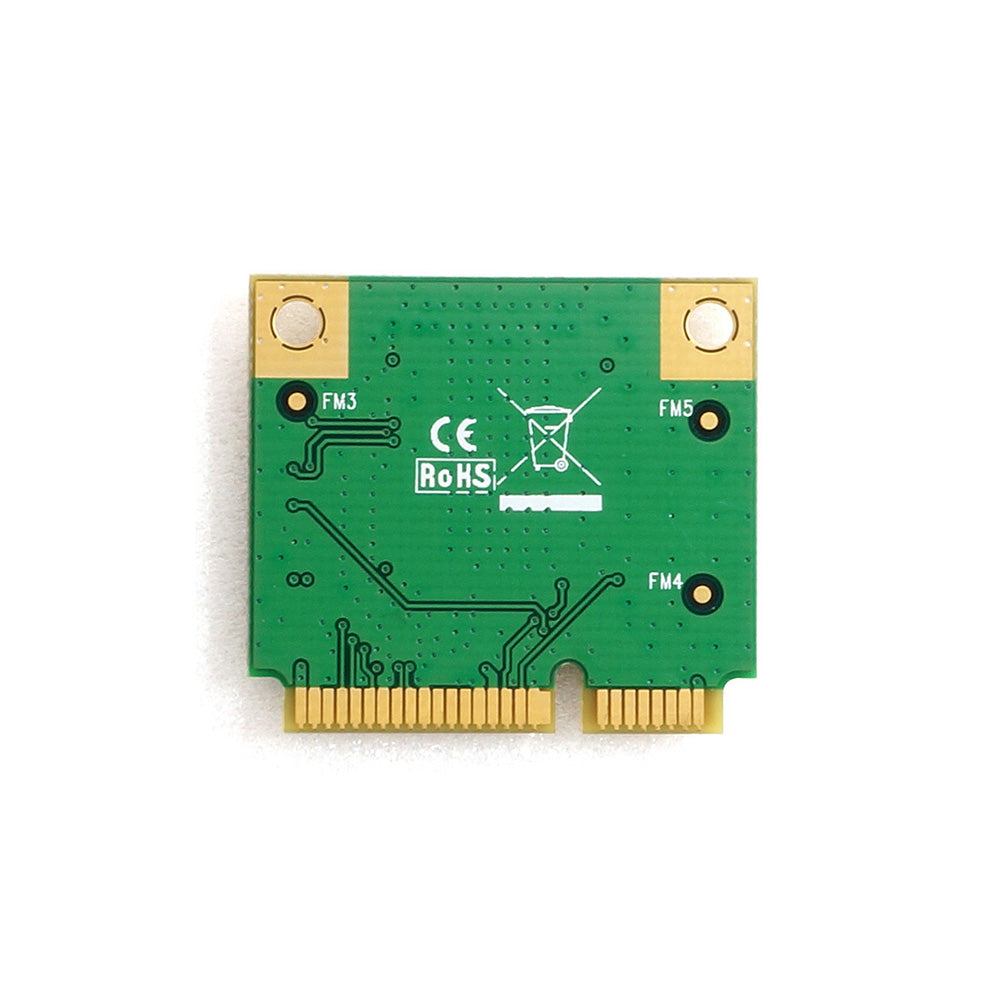

AWPCIE-AX200 is a half-size mini PCIe WiFi6 (802.11ax) card, based on high-efficiency Intel AX200
AWPCIE-AX200 supports the latest WiFi6 (IEEE 802.11ax) with special features like OFDMA, 1024QAM and MU-MIMO. Module includes also Bluetooth 5.0 radio, is backward compatible (IEEE 802.11a/b/g/n/ac) and operates in 2.4 and 5 GHz bands.

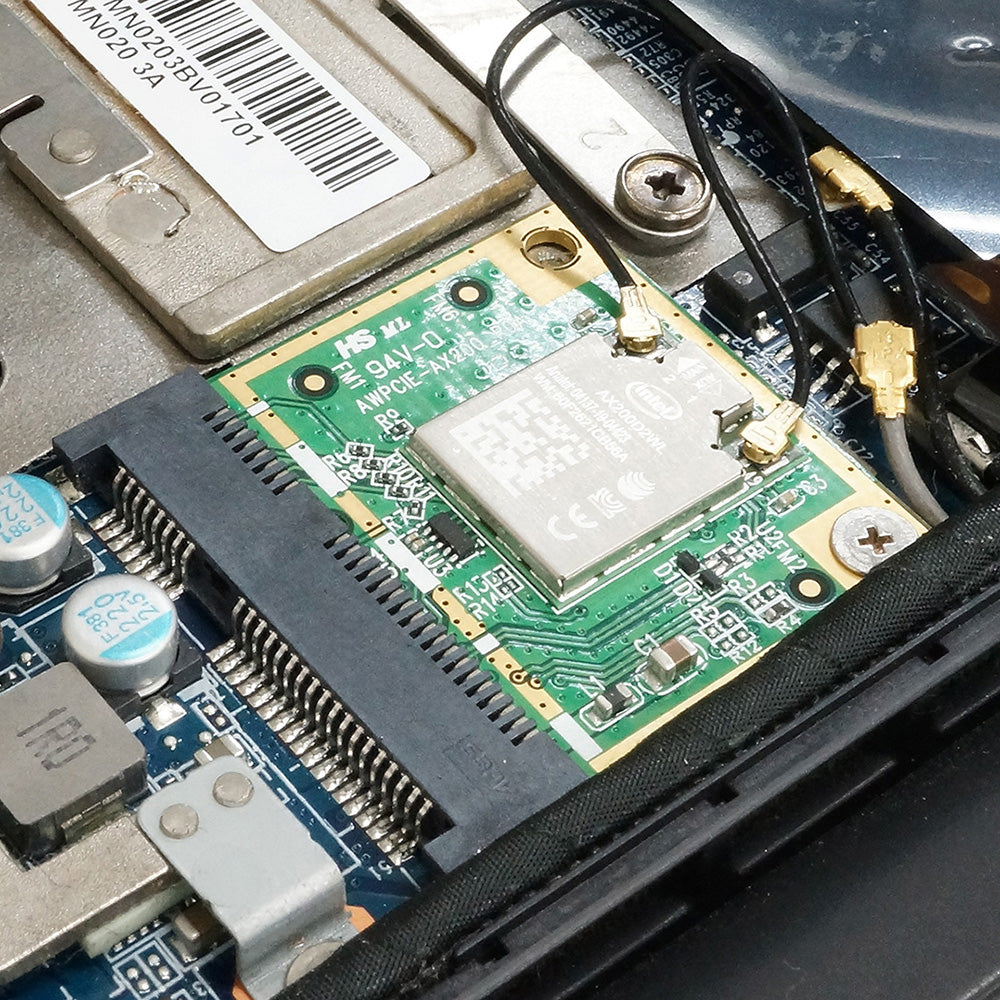

Thanks to its mini PCIe form factor (half-size) and optional IPEX4 to IPEX pigtails, owners of legacy products can use the latest wireless technologies with a maximum 2.4 Gbps data rate.
Wide support in modern operating systems (Microsoft Windows 10, Linux, Chrome OS) helps with seamless module integration.
| Parameter | Value |
|---|---|
| Intel product code | AX200D2WL (Intel AX200 Cyclone Peak 2 series) |
| IEEE 802.11 standards | a/b/g/n/ac/ax |
| Special features | OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT |
| Frequency | 2.4 GHz 5 GHz |
| Data rate | 2.4 Gbps |
| Bluetooth | 5.0 |
| Antenna connectors | 2× IPEX4 (MHF4) |
| Interface | PCIe x1 (WiFi) USB 2.0 (Bluetooth) |
| Operating systems | Microsoft Windows 10 Linux Chrome OS |
| Form factor | half-size mini PCIe |
| Dimensions | 30 × 26.8 × 2.75 mm |
