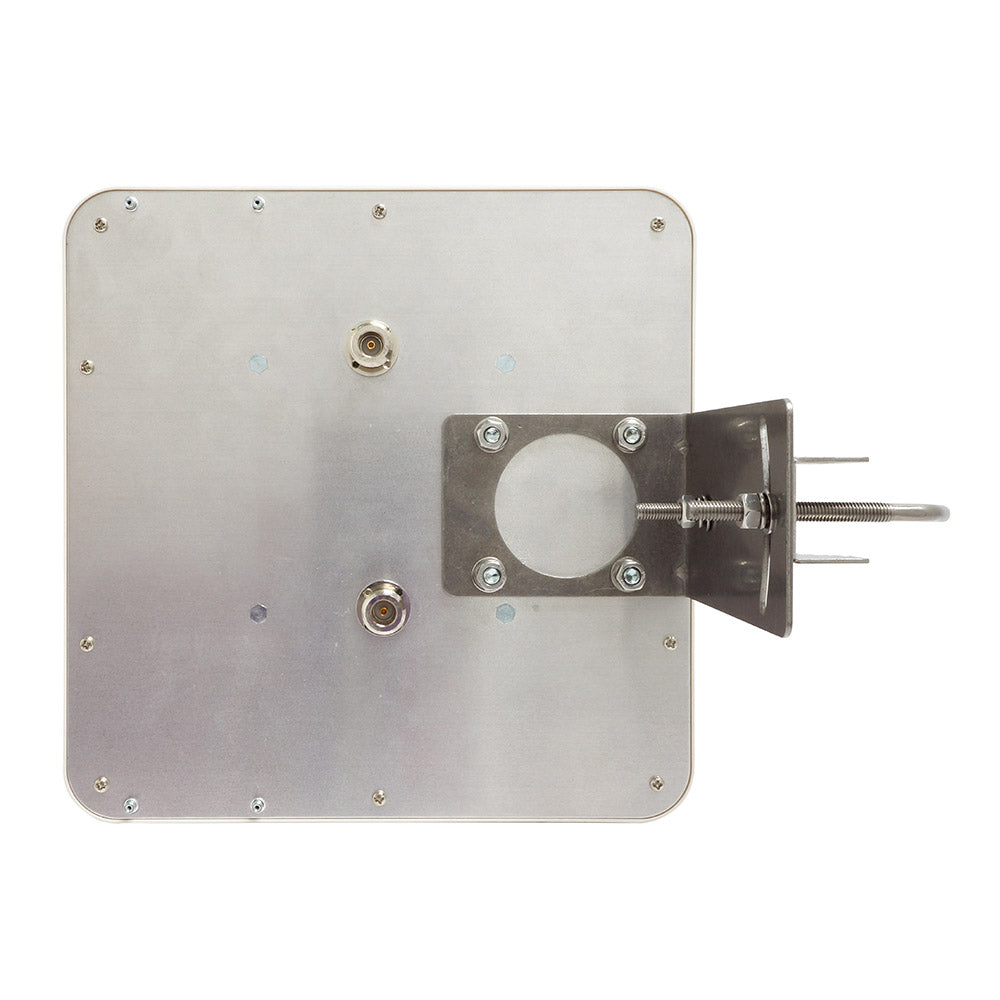

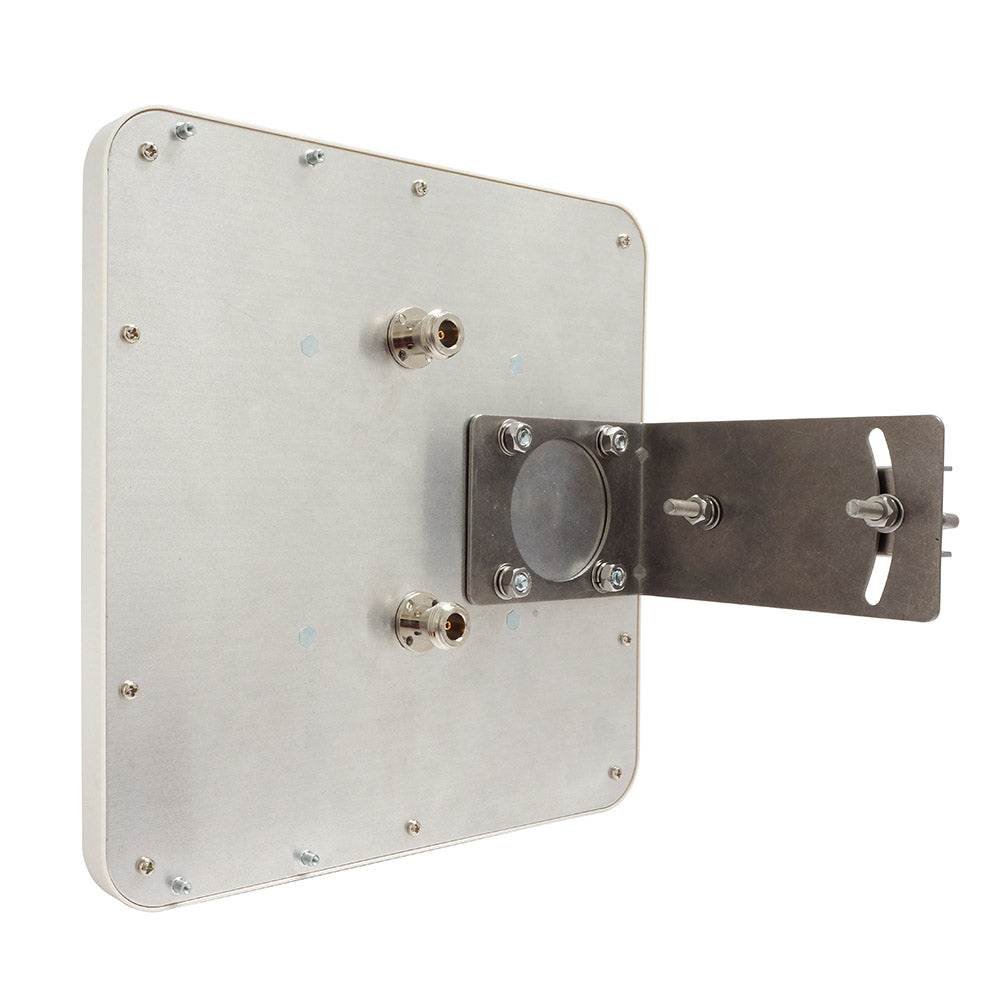

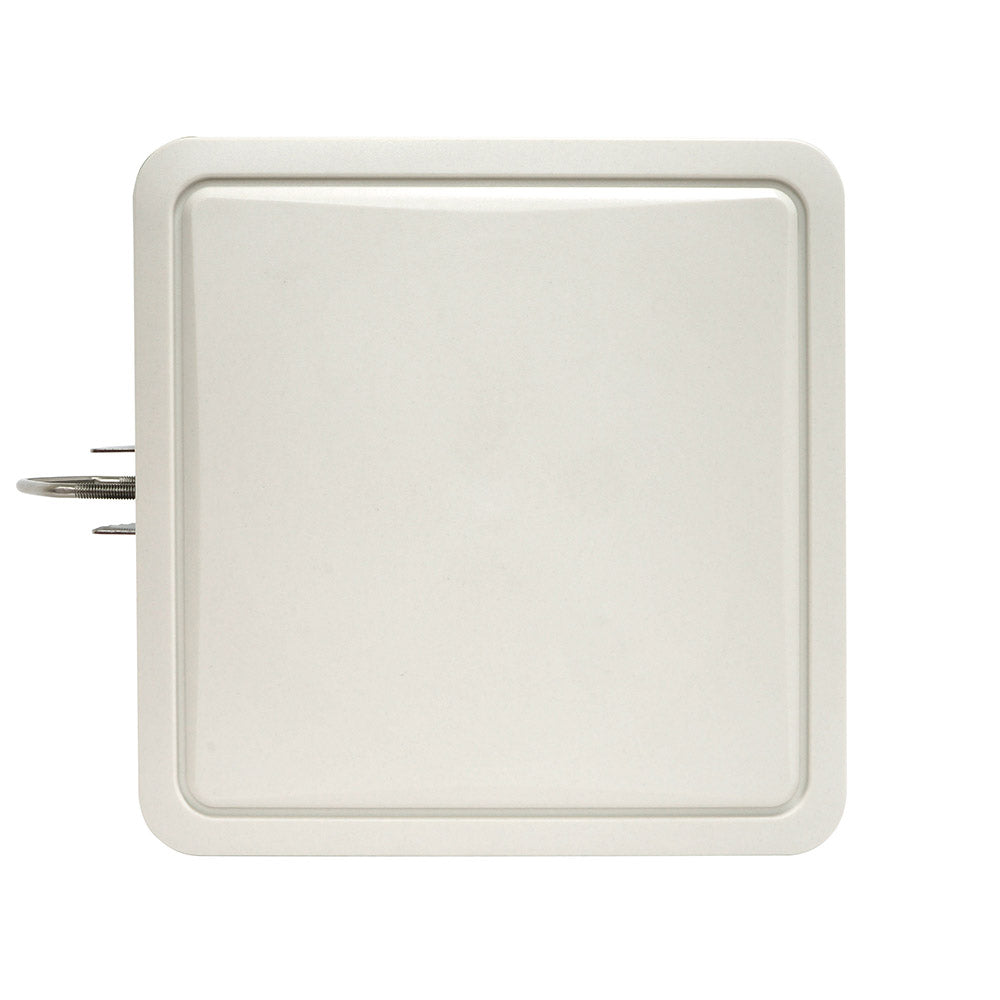

APA-L5171-14M is the WiFi 6E 2x2 MIMO directional panel antenna that supports frequency from 5.15 GHz to 7.125 GHz and antenna gain between 12 ~ 14 dBi. With 2x N-female connectors flexible for any cable length to meet different environment use.
Radiation & VSWR Report
| Frequency | 5.15 GHz 7.125 GHz |
| V.S.W.R | ≤2.0 |
| Antenna Type | Patch Directional |
| Gain | 12 dBi @ 5.15 ~ 5.85 GHz 14 dBi @ 5.925 ~ 6.5 GHz 12 dBi @ 6.8 7.125 GHz |
| Polarization | Vertical Horizontal |
| Vertical Beamwidth | 30 degree |
| Horizontal Beamwidth | 30 degree |
| Connector | 2x N Female |
| Dimensions | 230*230 mm |
| Mount Style | Pole mount |
| Mounting | Stainless Steel |
| Wind Survival | Greater then 150 MPH |
