AHPI6108D

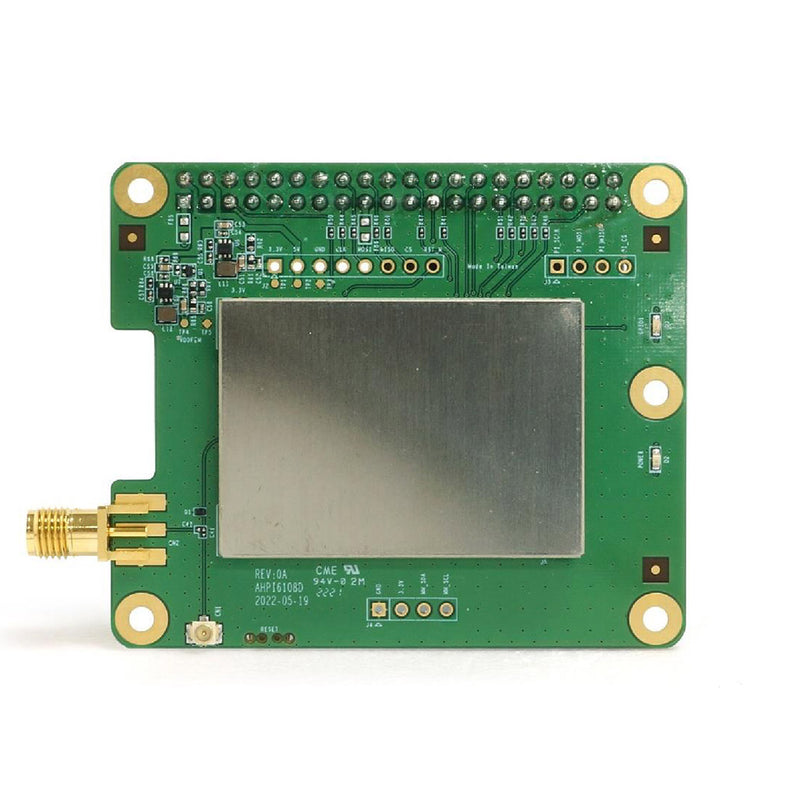

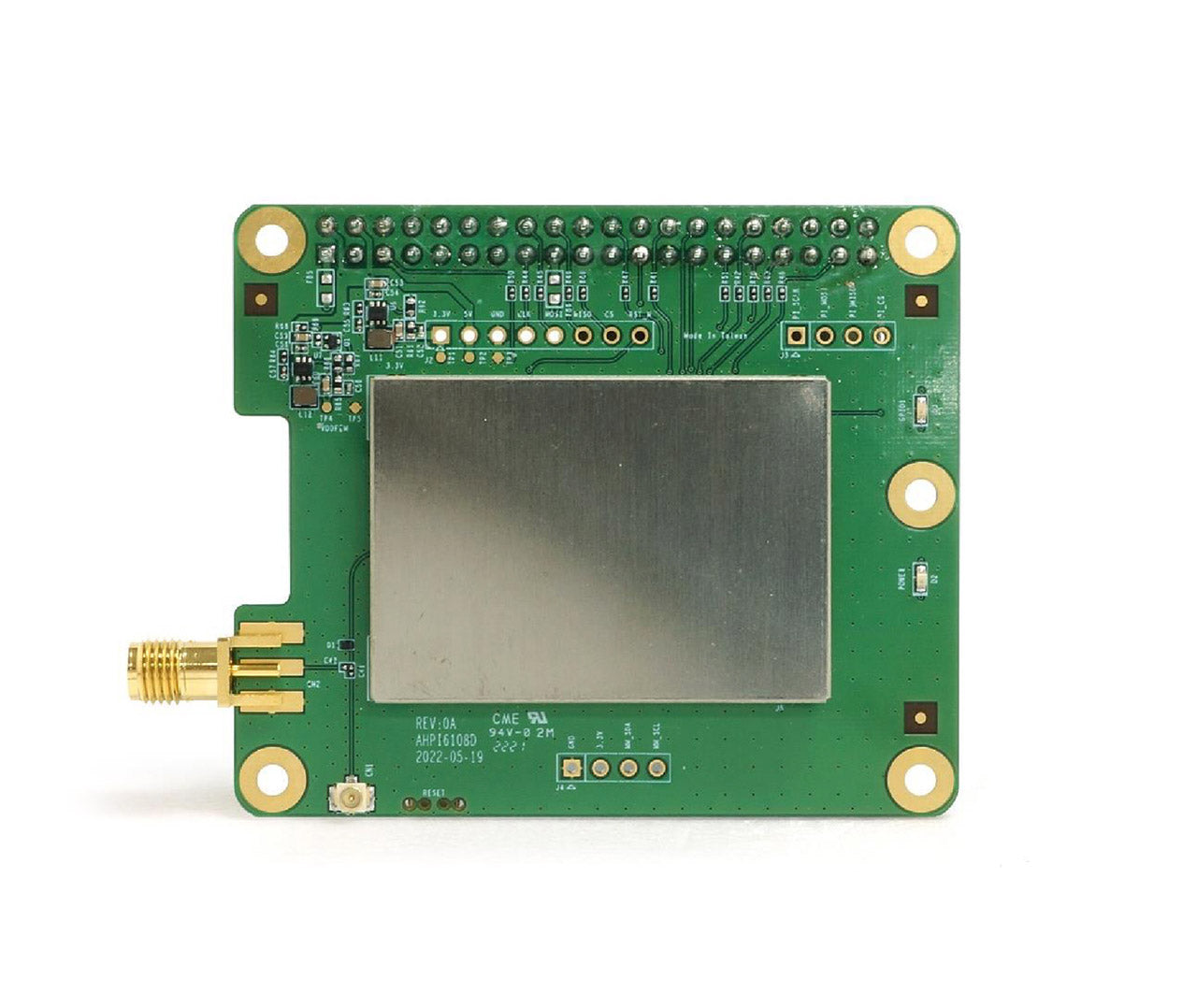

AHPI6108D is the WiFi HaLow™ Raspberry Pi™ HAT module

The AHPI6108D module series allows building long-range, ultra-low power WiFi networks in sub 1 GHz license-exempt bands, utilizing the popular and open platform – Raspberry Pi™ enables connectivity for many applications, including sensors, weather stations, industrial monitoring systems, patient monitoring, agriculture monitoring system, security cameras.
The AHPI6108D data throughput up to 32.5 Mbps with bandwidth of 1/2/4/8 MHz

Key features

Morse Micro™ MM6108 HaLow™ chipset
RP-SMA female connector (IPEX/U.FL in AHPI6108DU model)
Reset button
GPIO1 LED (high active)
Power LED
4-pin I²C header (2.54 mm pitch)
Raspberry Pi™ HAT form factor with 40-pin GPIO connector

Specifications

Chipset	Morse Micro™ MM6108
Frequency	915 MHz (US) 866 MHz (EU) 924 MHz (JP) 922 MHz (KR) 920 MHz (TW)
Modulation	OFDM with BPSK, QPSK, 16QAM, 64QAM
Date rate	Up to 32.5 Mbps
Channel bandwidth	1/2/4/8 MHz
Antenna connector	RP-SMA (AHPI6018D) IPEXUFL (AHPI6108DU)
Host interface	SDIO
LED	Power, GPIO defined
Form factor	Raspberry Pi™ HAT
Dimensions	65 x 56 x 10.3 mm (2.56 x 2.2 x 0.41 inches)
Operating temperature	-20° C to 60° C (-4° F to 140° F)
