AWUS036ACH

Description

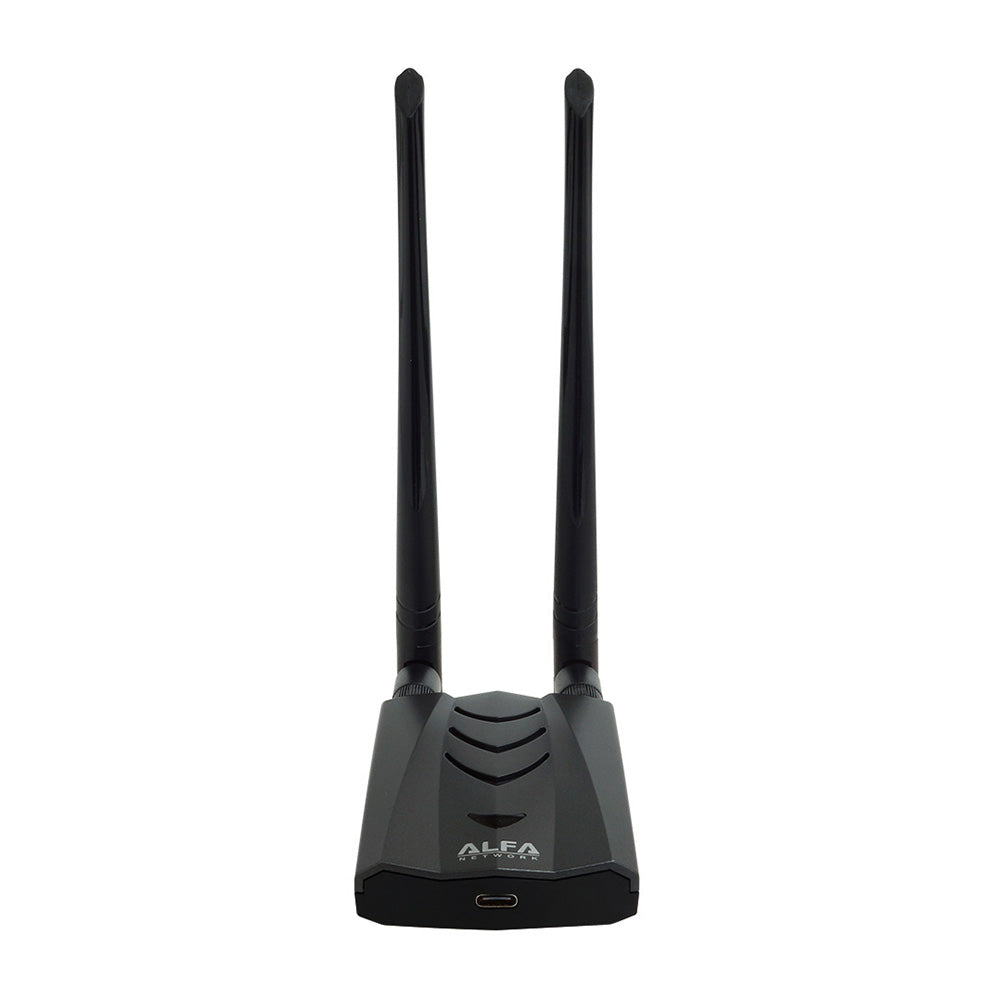

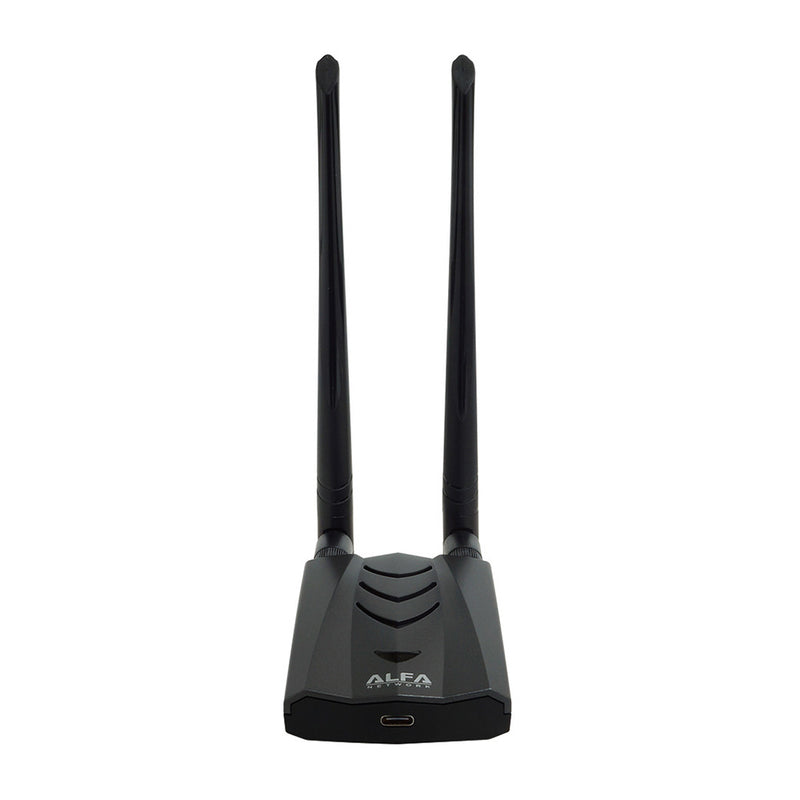

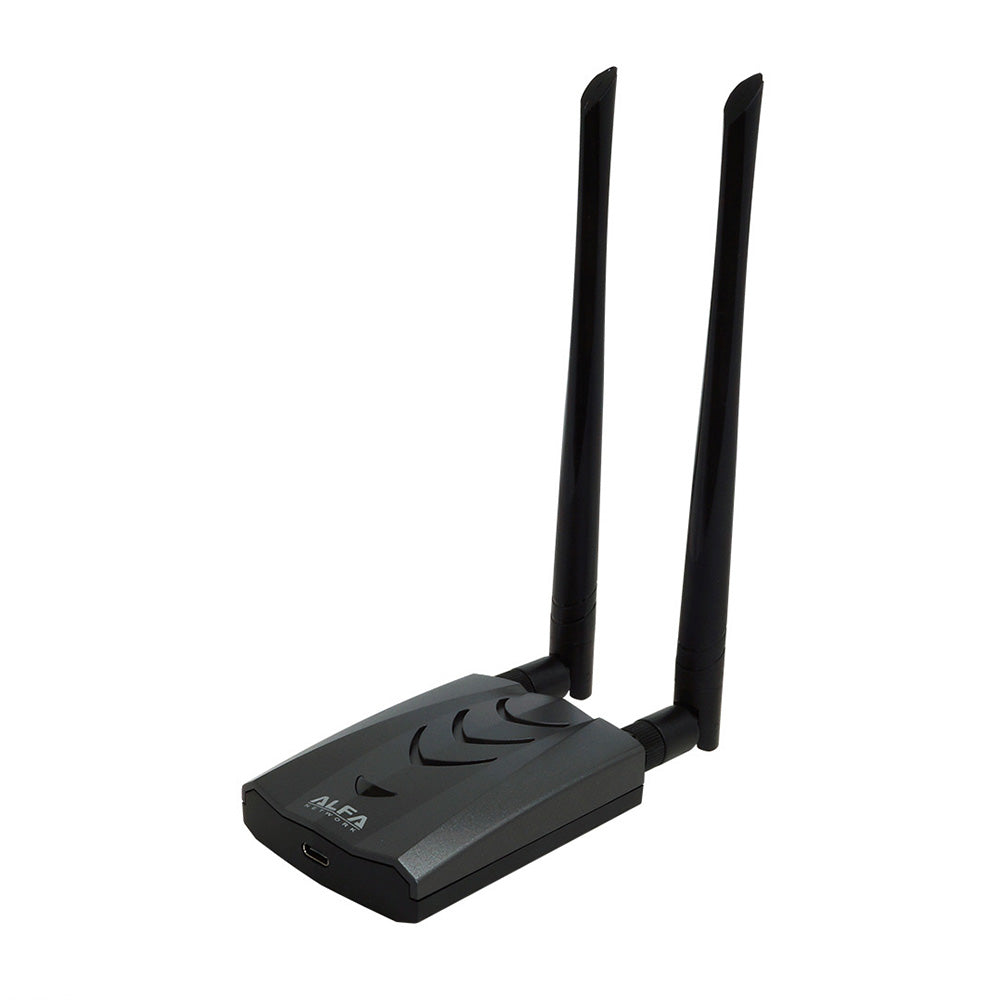

World's first WiFi 5 adapter with USB Type-C, screen clip mount and detachable antennas

Key features

Realtek™ RTL8812AU WiFi 5 (802.11ac) chipset

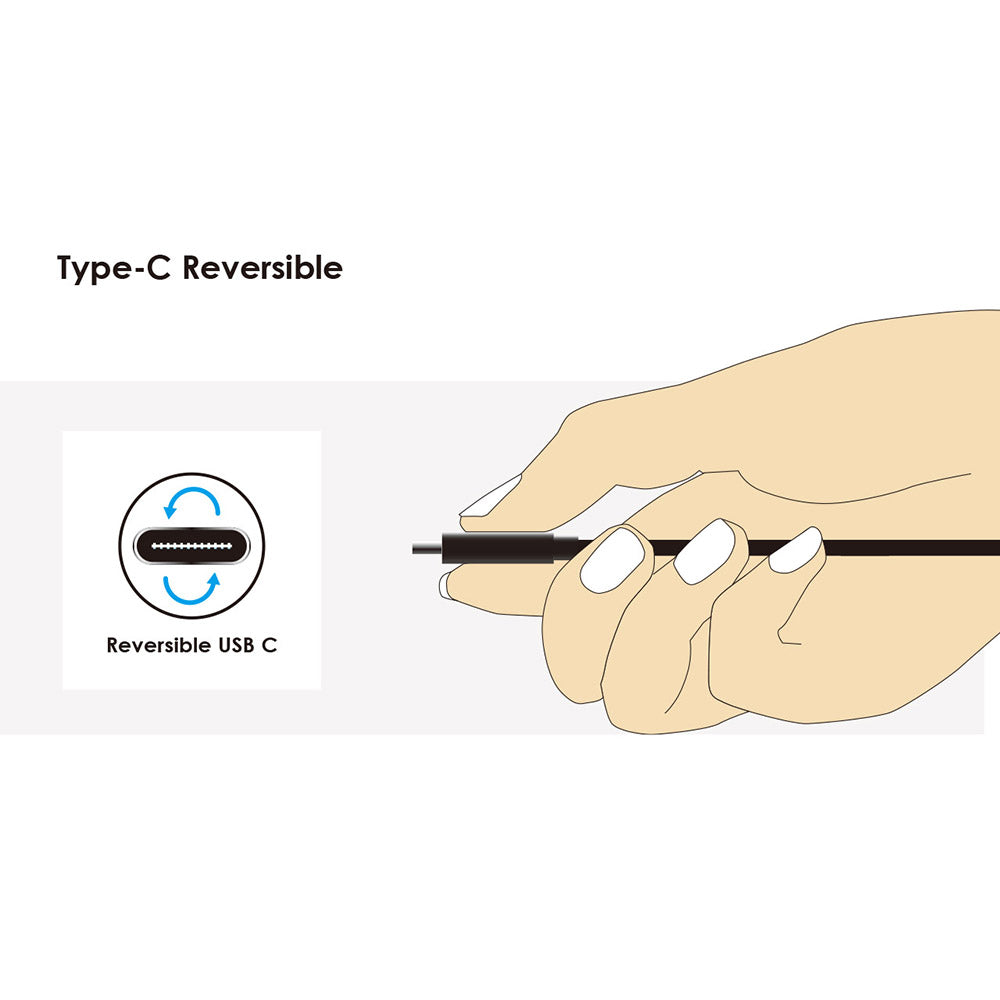

Type-C SuperSpeed USB 5 Gbps (with USB 2.0 backward compatibility)

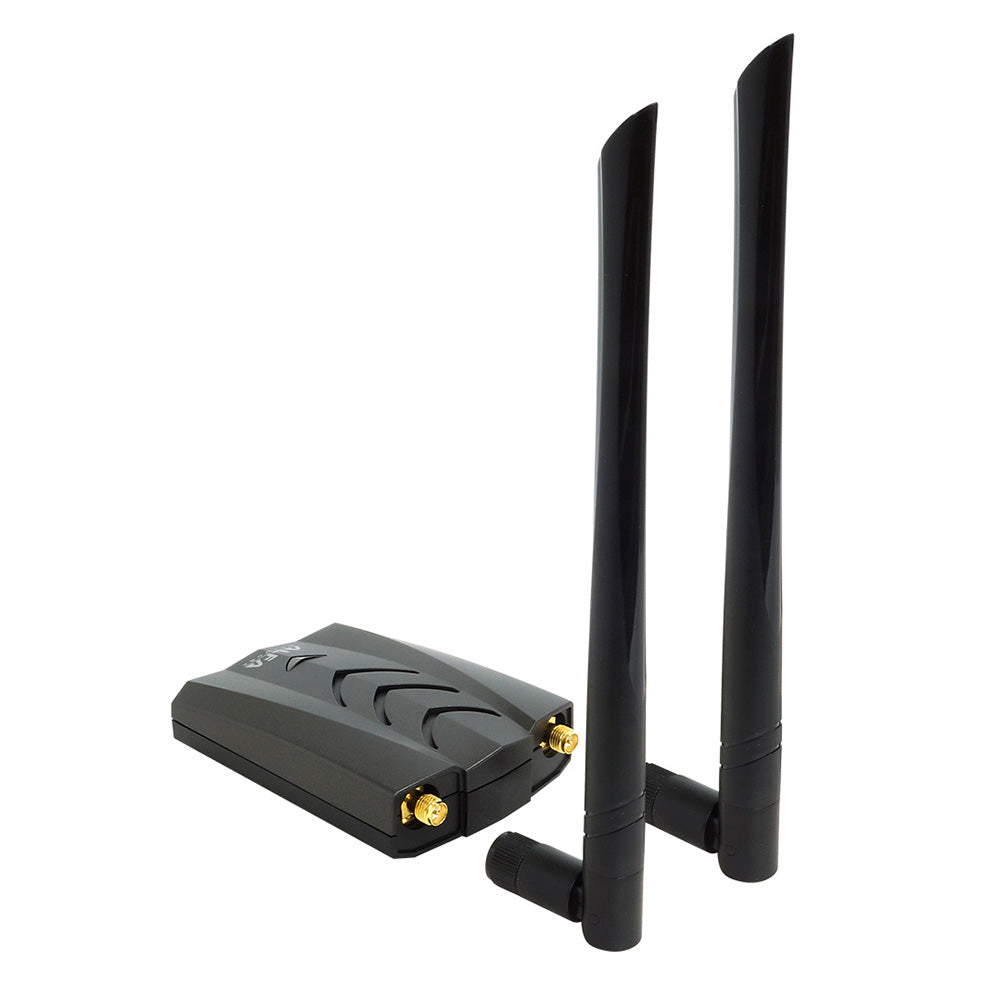

Two detachable, high-gain antennas (dipole omni, 5 dBi gain)

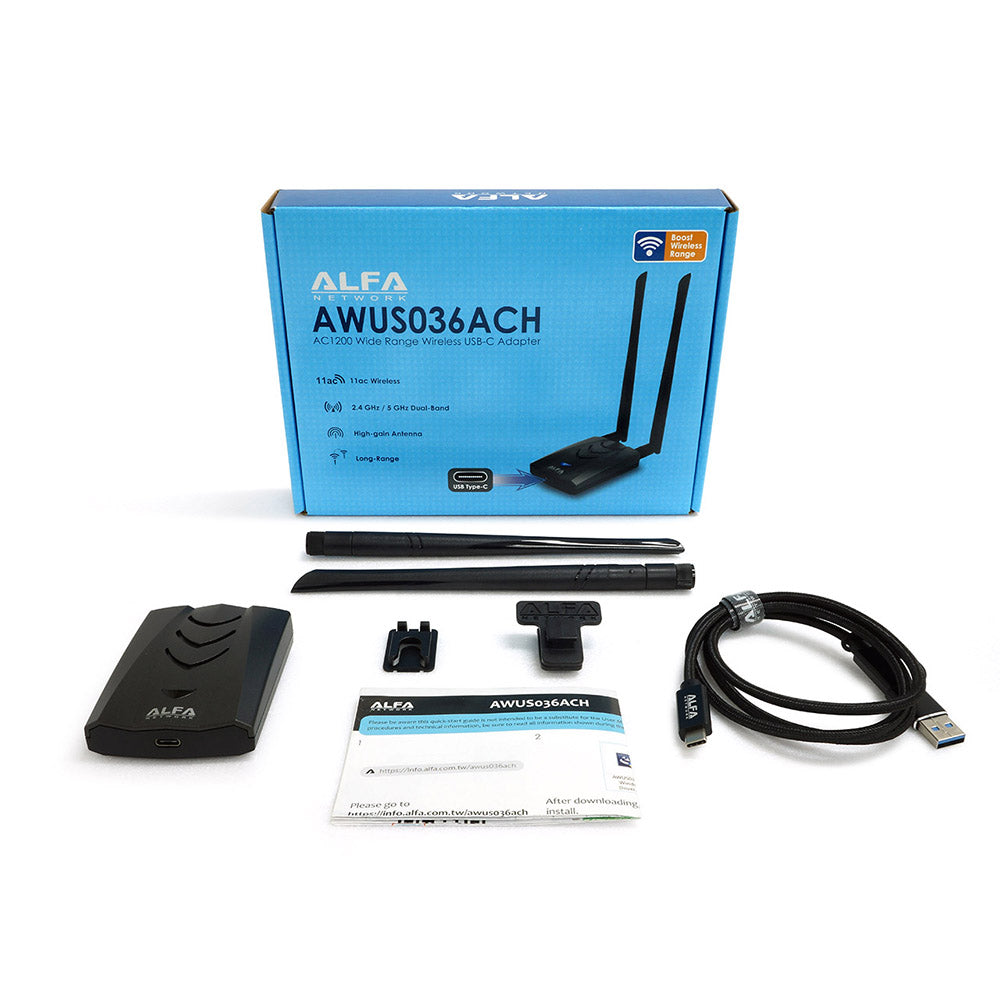

Screen clip mount included in bundle

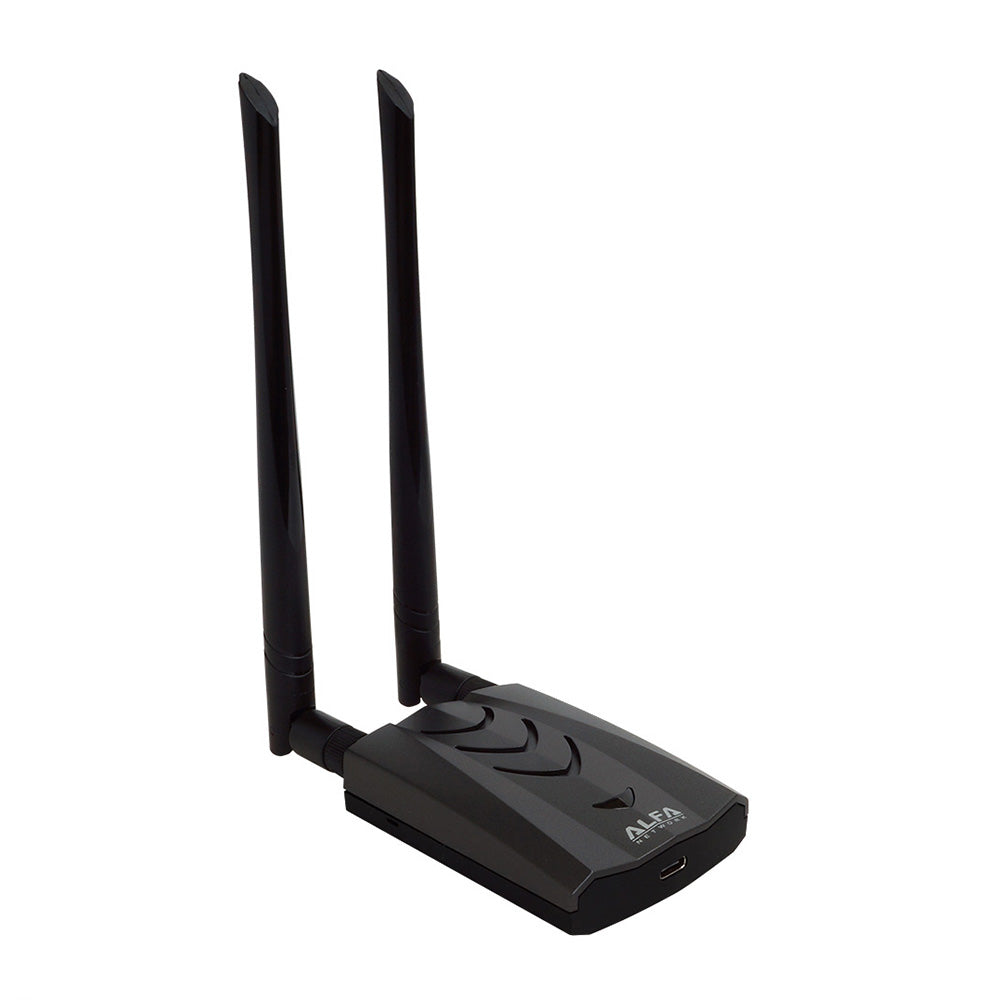

AWUS036ACH is a USB Type-C dual-band AC1200 WiFi adapter

The AWUS036ACH USB adapter incorporates highly integrated Realtek™ RTL8812AU WLAN chipset, with support for 802.11ac standard.

This device supports dual-band operation (2.4 or 5 GHz band), is backward compatible (802.11a/b/g/n) and includes two RP-SMA (female) connectors equipped with dipole omni antennas (5 dBi gain).

Specifications

Parameter	Value
Chipset	Realtek™ RTL8812AU
IEEE 802.11 standards	a/b/g/n/ac
Frequency	2.4 GHz 5 GHz
Data rate	802.11b: 11 Mbps 802.11a/g: 54 Mbps 802.11n: 300 Mbps 802.11ac: 867 Mbps
Antenna connectors	2× RP-SMA (female)
Antenna	2× dipole omni (5 dBi gain)
Interface	Type-C SuperSpeed USB 5 Gbps (with USB 2.0 backward compatibility)
Operating systems	Microsoft Windows XP, Vista, 7, 8, 10, 11 Linux
Power consumption (max.)	0.7 A on 5 V
Dimensions	85 × 63 × 20 mm
