802.11ac WiFi Range boost USB Adapter

  1. MT7610U chipset
  2. mini USB
  3. One detachable, High-gain antennas (dipole omni, 5 dBi gain)

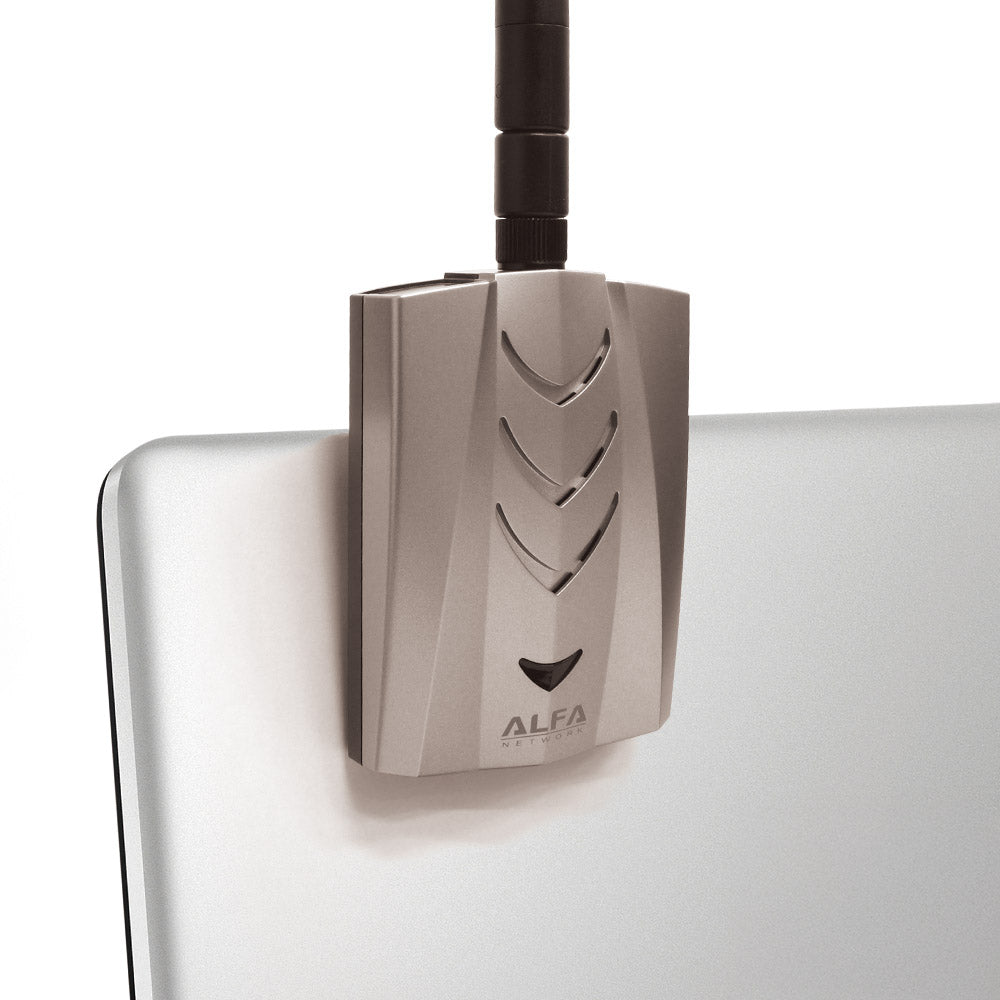

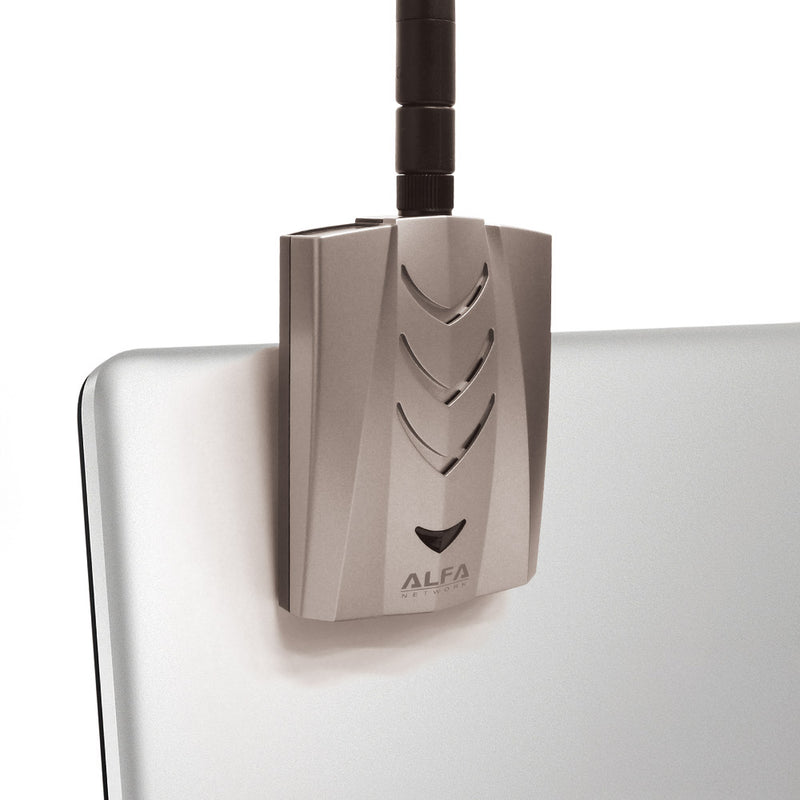

  4. Screen clip mount included in bundle

AWUS036ACHM is a mini USB dual-band AC600 WiFi adapter

The AWUS036ACHM USB adapter incorporates highly integrated MT7610U WLAN chipset, with support for 802.11ac standard.

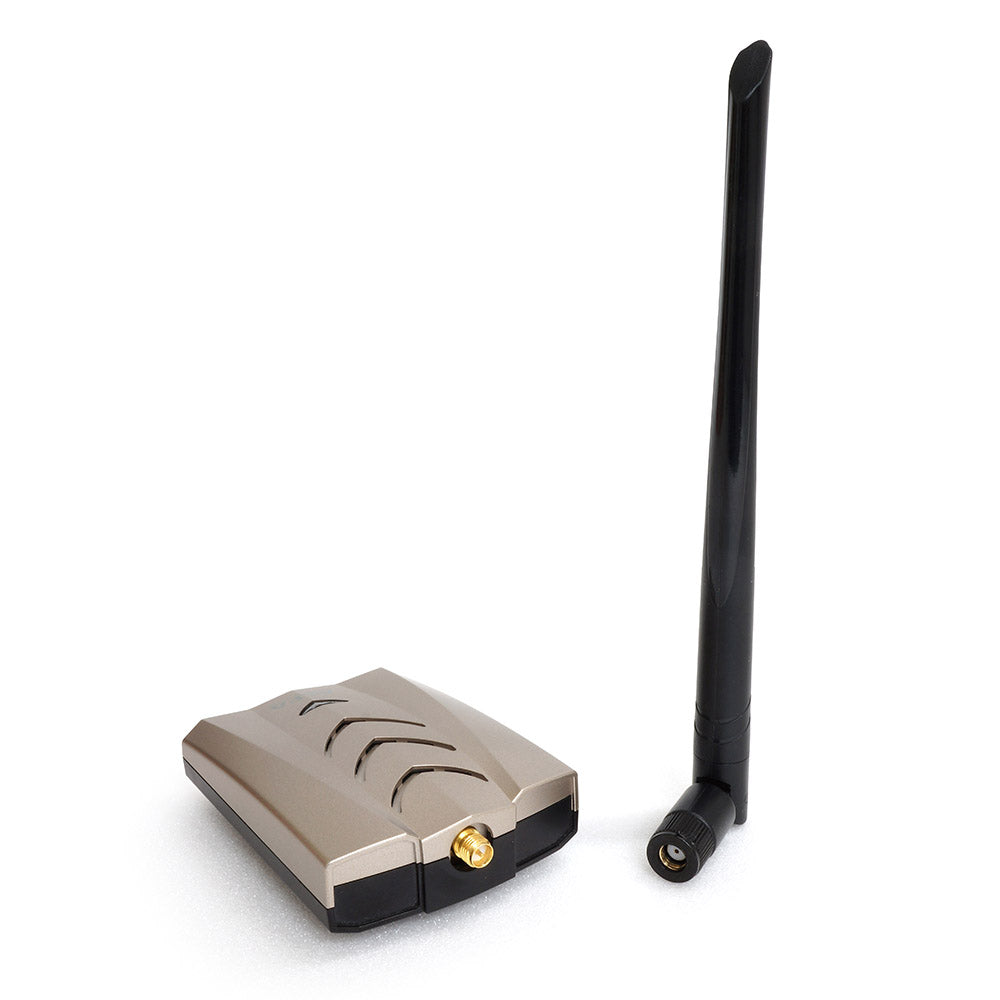

This device supports dual-band operation (2.4 or 5 GHz band), is backward compatible (802.11a/b/g/n) and includes one RP-SMA (female) connectors equipped with dipole omni antennas (5 dBi gain).

image1 image2 image3 image4

Parameter Value
Chipset MT7610U
Standard Wireless IEEE 802.11ac/a/b/g/n
Frequency 2.4GHz / 5GHz
RF connector RP-SMA female
Antenna 2.4GHz + 5GHz Dual-Band 5dBi dipole antenna
Wireless Speed 802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 150Mbps
802.11ac: up to 433Mbps
Wireless Security WEP, WPA, WPA2, WPA Mixed, WPS
Interface mini USB
OS Supported Windows XP, Vista, 7, 8/8.1 and 10
