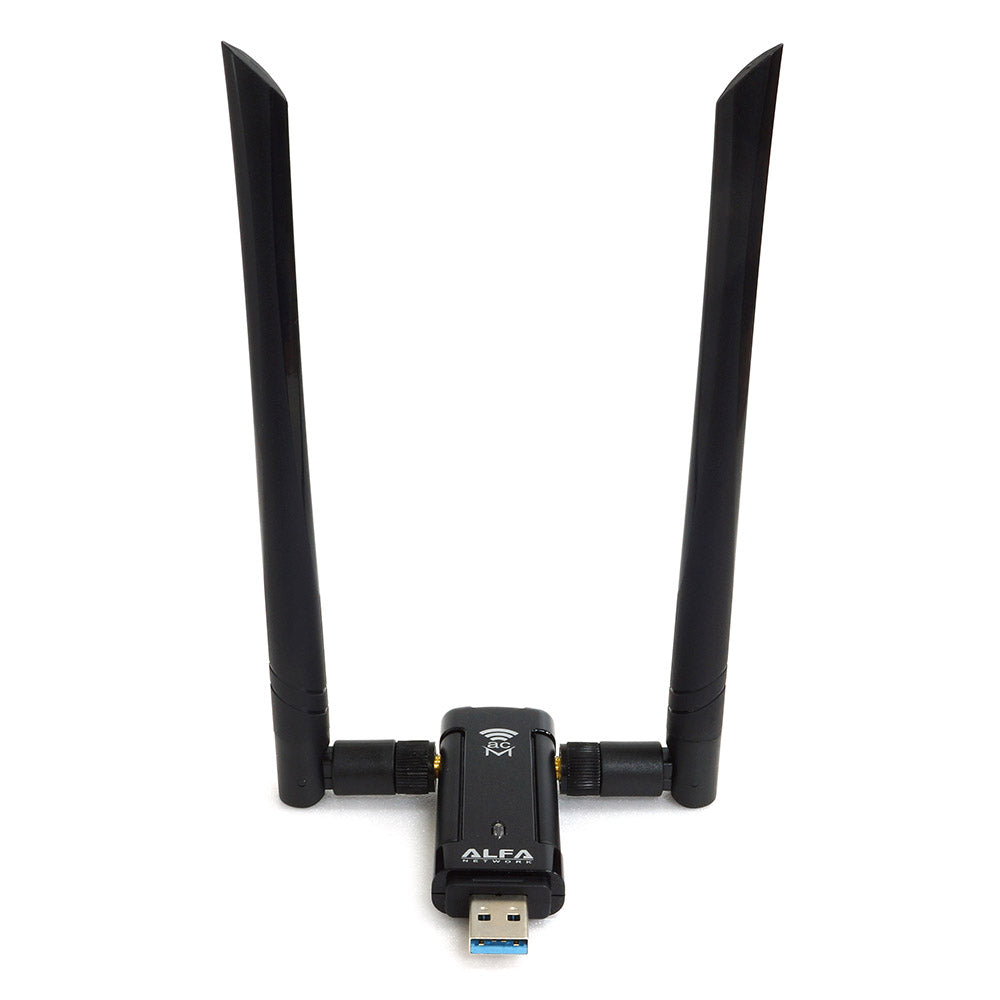

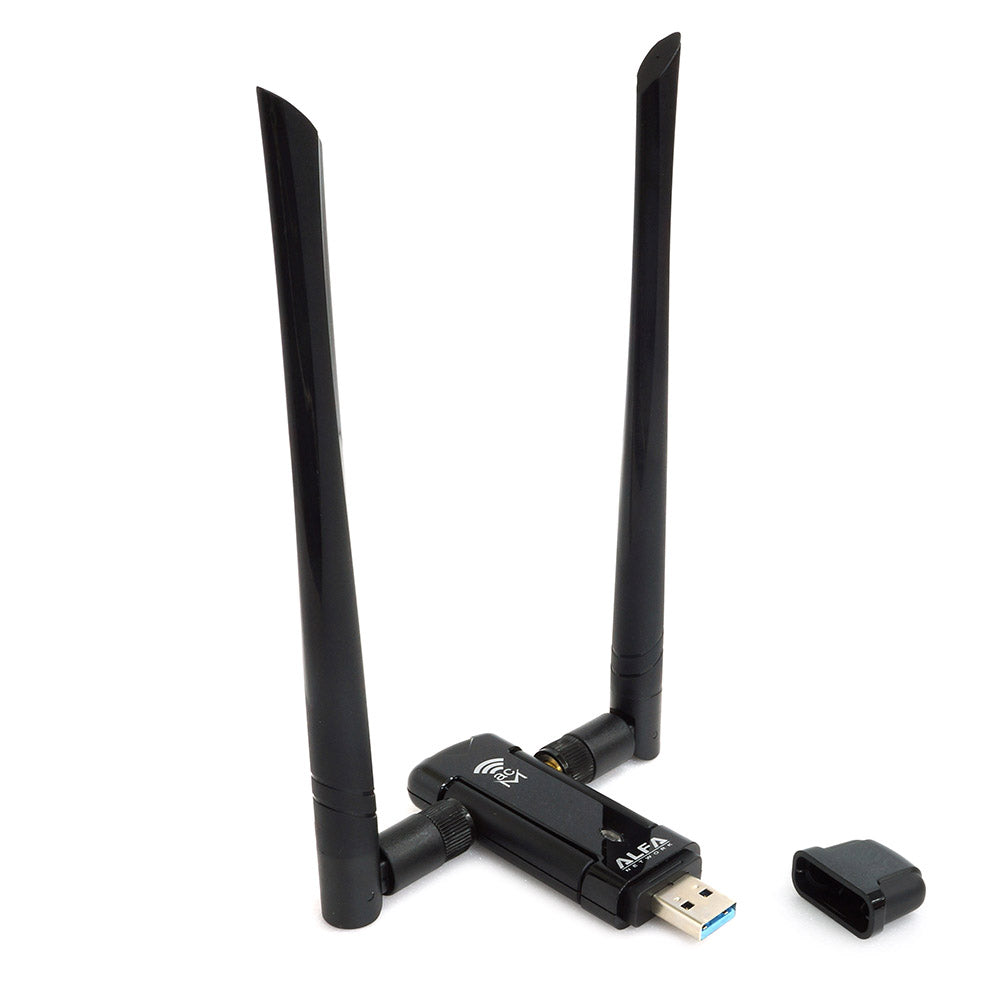

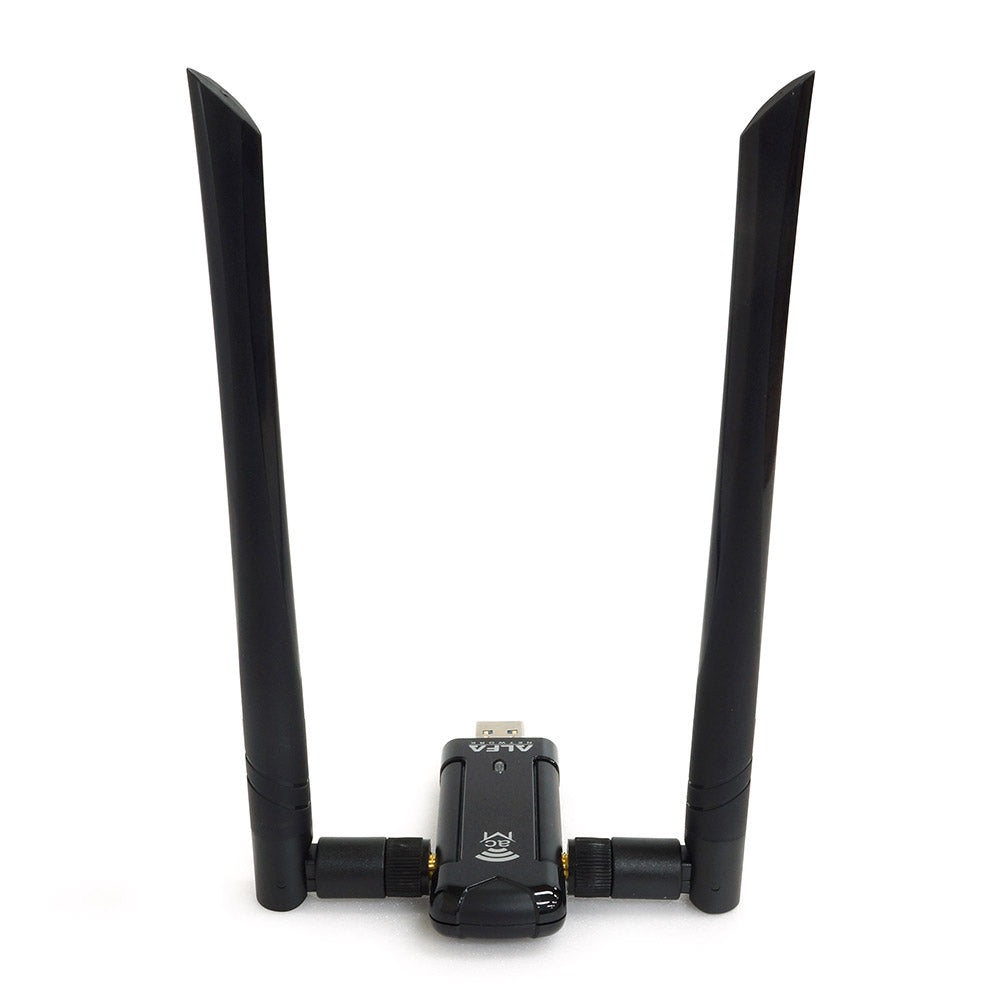

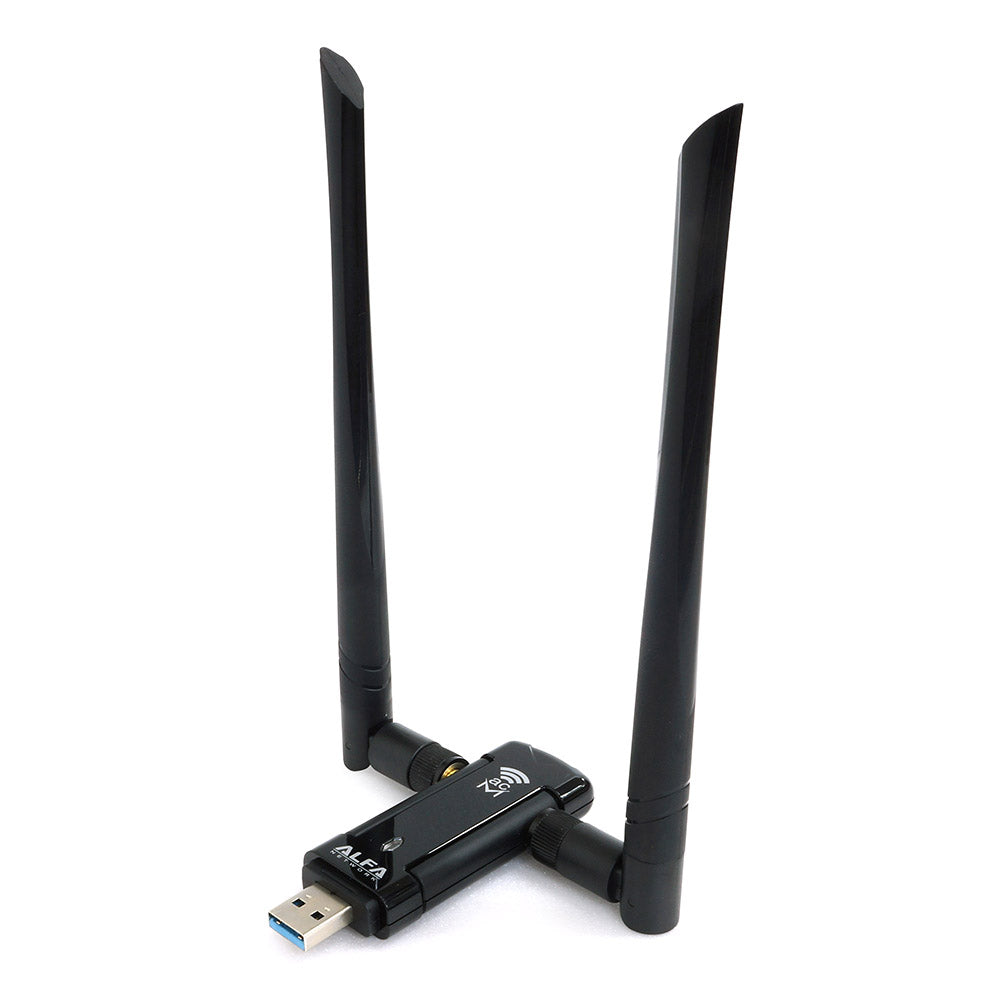

AWUS036ACM

AWUS036ACM

802.11ac AC1200 High-Speed USB Adapter



Key features

  • High-Speed 802.11.ac
  • Detachable RF-connector
  • Included USB 3.0 extension cable
  • Dual Band External Antenna
  • High-Speed USB 3.0



Superior Wi-Fi Performance
Equipped with lastest 802.11ac wireless standards, and years of field-proven experiences, ALFA AWUS036ACM provides 2.4GHz 300Mbps or 5GHz 867Mbps Wi-Fi data transfer speeds for outstanding peformance.





Giga-Fast 802.11ac Wireless, Better Range & Coverage
AWUS036ACM comes with lastest 802.11ac standards with hardware-based WiFi optimization, plus two external high gain antennas, resulting in extra-ordinary signal range.





Increased Bandwidth, More Applications
AWUS036ACM supports Max. 300Mbps 2.4GHz or 867Mbps 5GHz wireless access. Making it ideal for large traffic and lag-free HD video streaming for more devices in your living space.





Increased Wireless Signal Penetration
With unmatched Wi-Fi signal strength and coverage. AWUS036ACM not only has maximum WiFi range, it helps to penetrate walls, and eliminate Wi-Fi dead spots in your living space easily.



Specifications

Parameter

Value

Chipset

MT7612U

Standard

IEEE 802.11a/b/g/n/ac

Frequency

2.412GHz – 2.472GHz
5.15GHz – 5.825GHz

Data-Rate

802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 300Mbps
802.11ac: up to 867Mbps

Antenna

2x External detachable dual-band
2.4GHz+5GHz 5dBi antenna

Antenna Connector

RP-SMA female

Channel Width

20 / 40 / 80MHz

LED Indicators

Power, WLAN

OS Support

Windows 2000, XP, Vista, 7, 8, 10
Linux

Output Power ( +/- 2dBm )

802.11a: 20dBm
802.11b: 23dBm
802.11g: 23dBm
802.11n: 21dBm
802.11an: 19dBm
802.11ac: 20dBm

Sensitivity

802.11a: -92dBm
802.11b: -97dBm
802.11g: -90dBm
802.11n: -90dBm
802.11an: -89dBm
802.11ac: -86dBm

Security

64/128bit WE
WPA (TKIP with IEEE 802.1x)
WPA2 (AES with IEEE 802.1x)
WPA Mixed

Operating Humidity

5% ~ 98% (Non-condensing)

Dimension

62 x 85.3 x 24 mm

Weight

60g
