Bridge5Q

Bridge5Q

802.11an 2x2 300 Mbps Outdoor AP/CPE


  1. High Speed Data Rate
    802.11an 300 Mbps
  2. High-Gain Directional Antenna
    Built-in high-gain 20 dBi MIMO directional antenna
  3. Power Over Ethernet
    Support standard 802.3at/af PoE
  4. Hardware Watchdog
    Ensure operating properly
  5. Weatherproof Design
    IP rating IP67
  6. ESD Protection
    Enhanced ESD protection on both LAN and RF
  7. Open Source Compatible

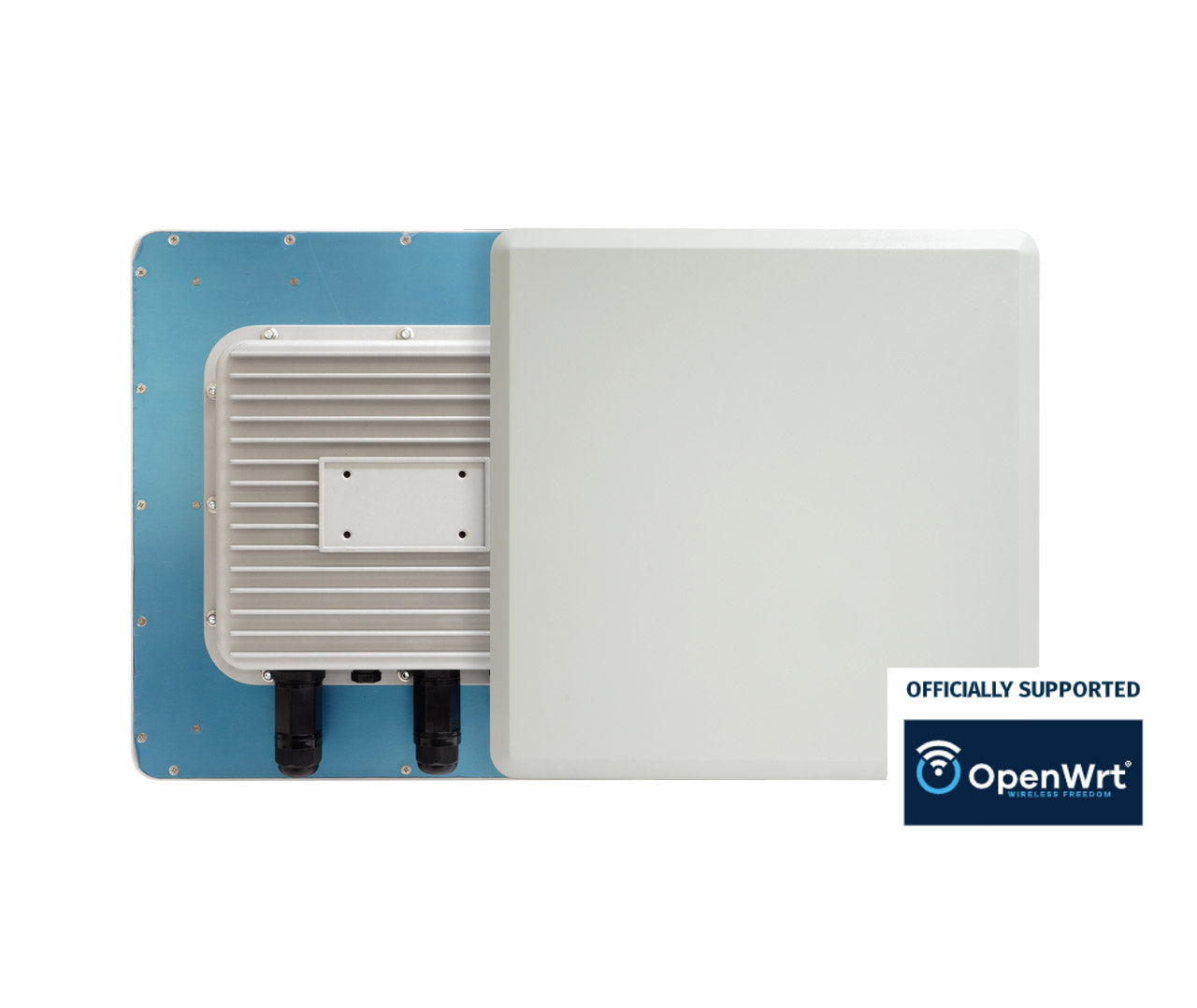

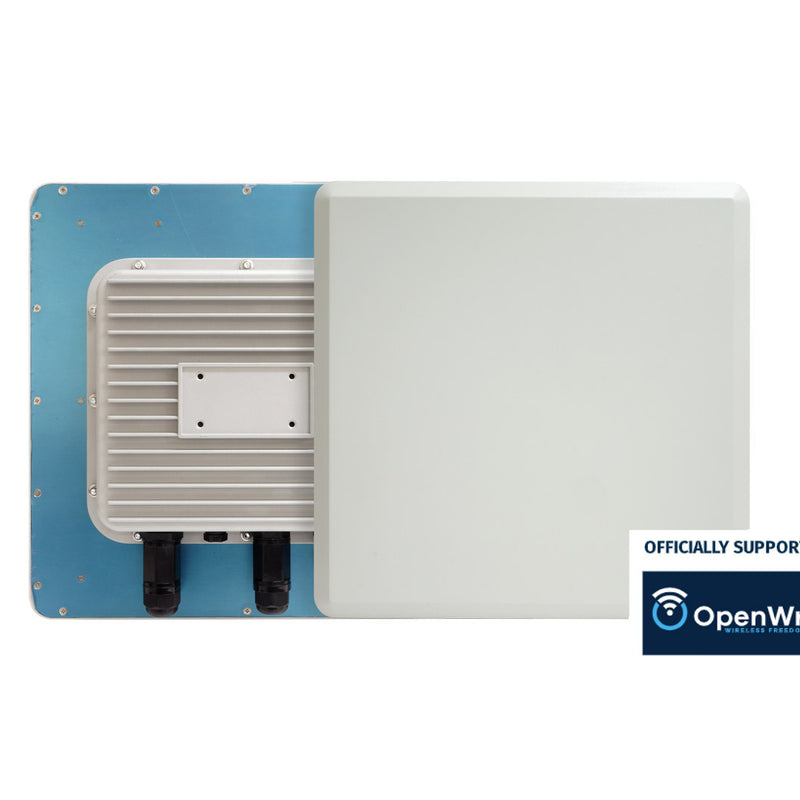

    Preload OpenWrt

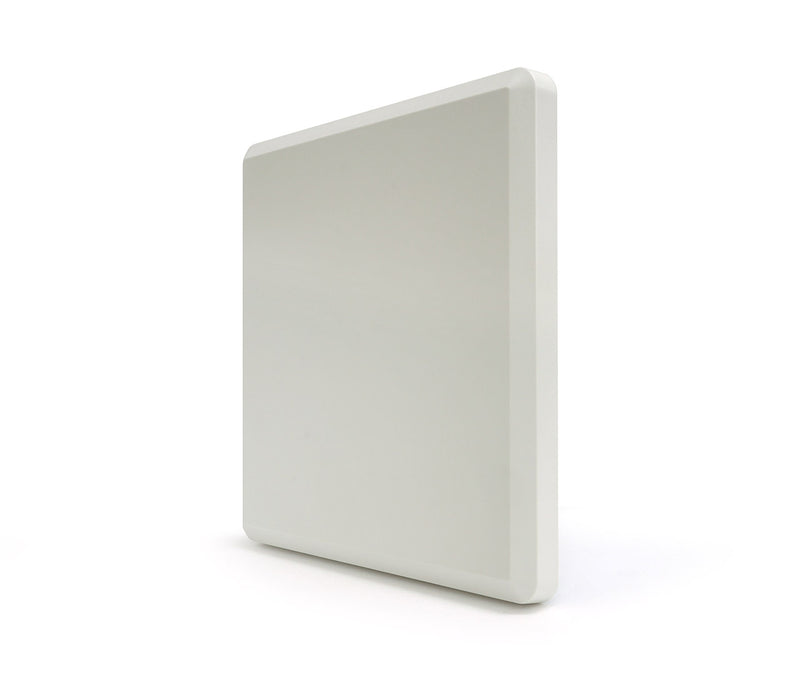

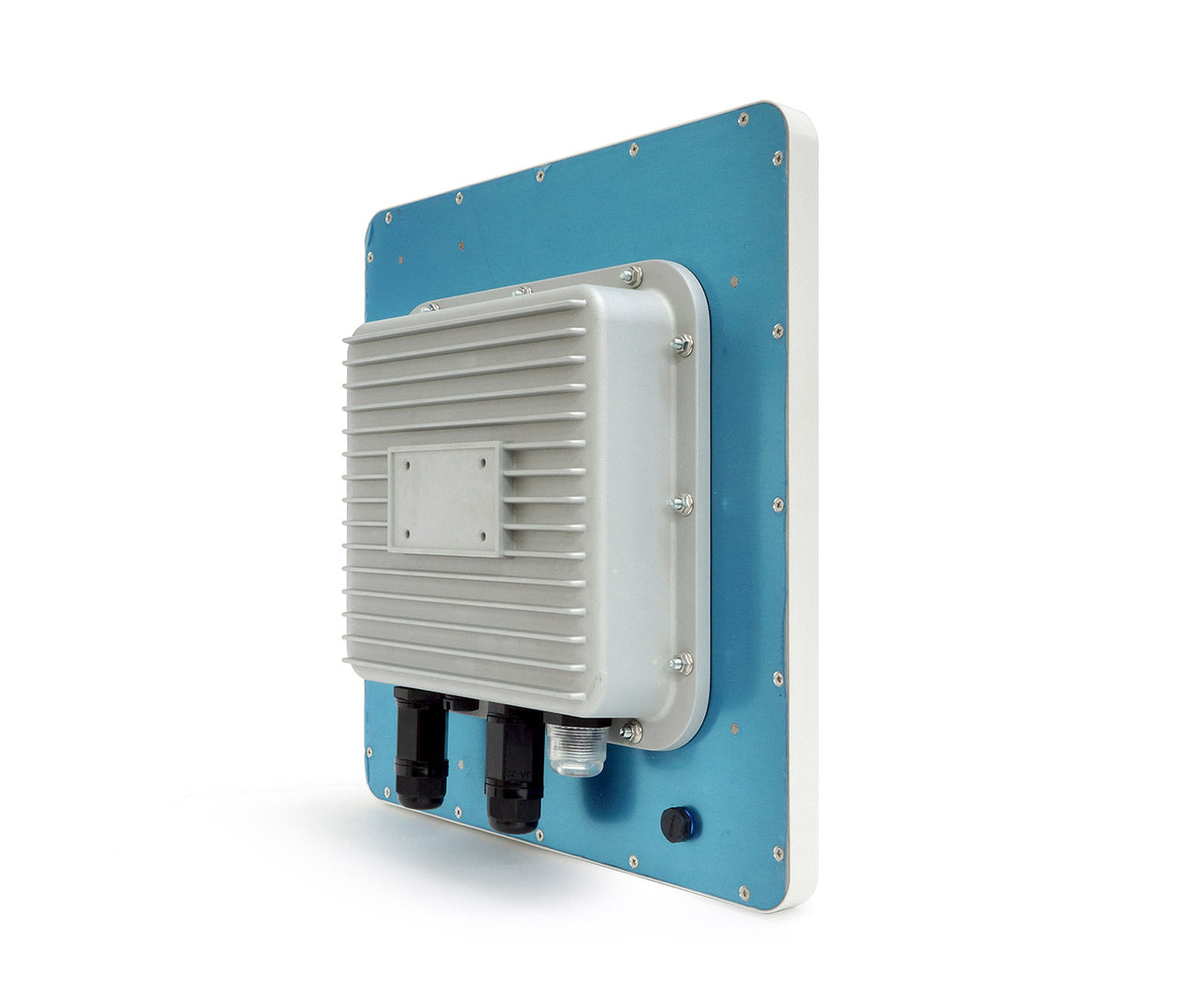

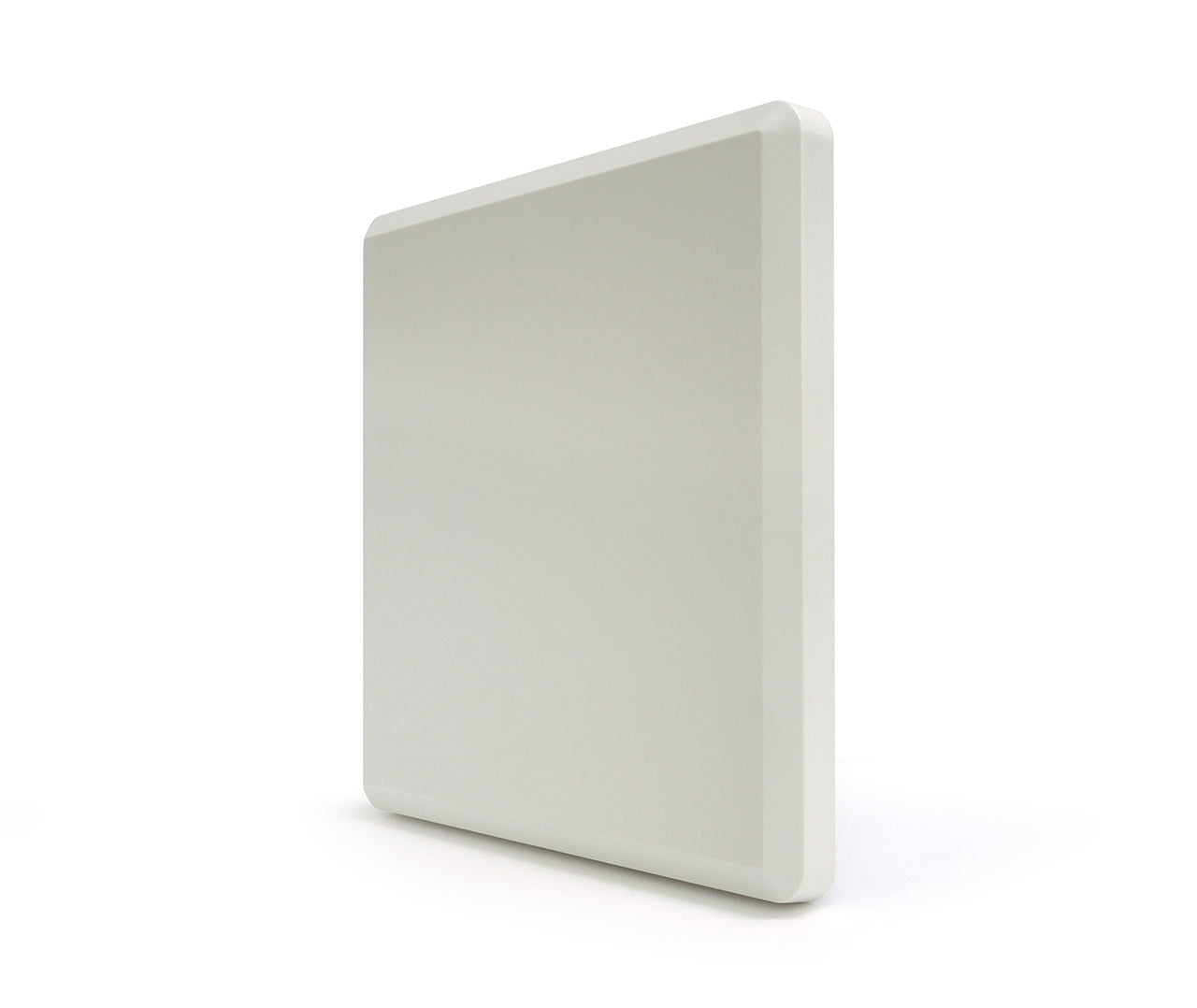

Bridge5Q is the high-performance 802.11n 5 GHz 2x2 Outdoor AP/Bridge/CPE with wireless speed up to 300 Mbps. It built-in high-gain 20 dBi MIMO directional antenna best for the longdistance point-to-point application. With the IP67 rated waterproof design suit for harsh environment. Bridge5Q supports standard 802.3at/af PoE allowing easy installation without any environmental limitation. With preload OpenWrt to give the user freedom to control and use.

RF Specifications [ Tolerance ± 2dB ]


Antenna 1 report

image2  image3

Antenna 2 report

image4  image5

Chipset AR9344
Standard 802.11an
Flash/RAM 16 MB/ 64 MB
Data rate Up to 300 Mbps
Channel width 20/40 MHz (5/10 MHz will support in the future)

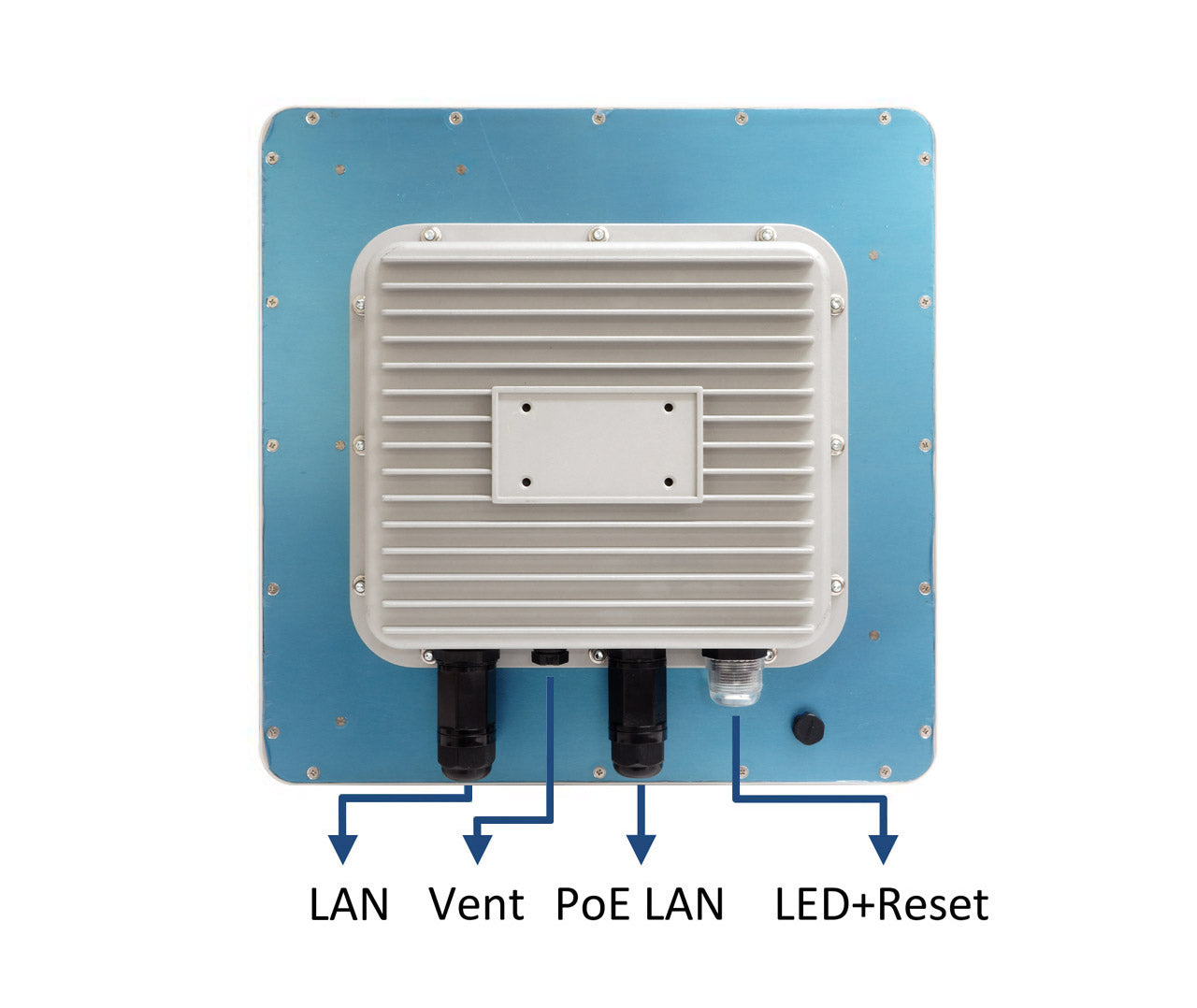

Interface 1x 10/100 Mbps RJ45: PoE In
1x 10/100 Mbps RJ45
1x LED + Reset
Antenna Built-in 20 dBi MIMO panel antenna
LED indicators Power, PoE LAN, WLAN
Waterproof IP rating IP67
PoE Standard 802.3at/af
Operating temperature -40 ° ~ 65 °C
Operating humidity 5 % ~ 95 % (Non-condensing)
Dimensions 370 x 370 x 975 mm
Weight 1500 g
