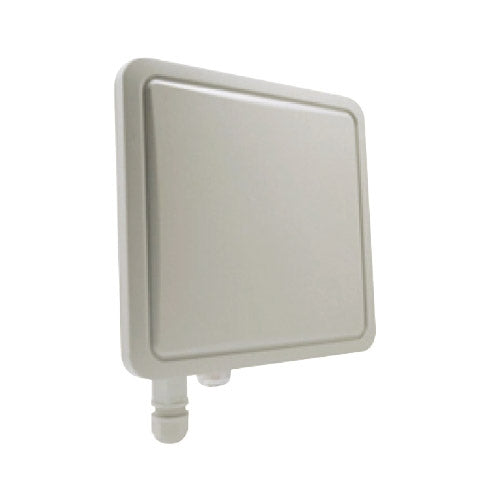

G2N

G2N


  • 2.4GHz IEEE 802.11n MIMO
  • Data-rate up to 150Mbps
  • High power and High sensitivity
  • Wide coverage
  • RF output power adjustable
  • Support Gateway, Bridge and WISP mode
  • Multiple ESSID
  • Passive 12V PoE

Standard Mounting diagram Standard Mounting diagram Option Mounting diagram
Vertical Mast Mount Horizontal Mast Mount Adjust Antenna Angle Mount

Application:

Model G2N
Standard IEEE 802.11b/g/n
Interface RJ45 PoE LAN Port
Flash/SDRAM 2M/16M
Antenna 14 DBi High-Gain Antenna
Frequency 2.400 - 2.483GHz
Output Power Up to 30dBm@P1 db
Sensitivity -96dBm @ 802.11b
-91dBm @ 802.11g
-91dBm @ 802.11n
Security 64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
WPA Mixed
802.1x authentication
Dimension(mm) 230 x 230 x 75mm
Material Plastic UV protect
Operation Mode Gateway
Bridge
Wireless ISP
Wireless Mode AP
Client
WDS
AP+WDS
Data Rate 802.11b: 11, 5.5, 2,1Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9 &
6Mbps
802.11n(20MHz): up to
144Mbps
802.11n(40MHz): up to
300Mbps
Power requirement 12V Passive PoE
Mounting Wall & Fixed Pole Mount
Option Accessory Adjust angle Pole Mount kits
