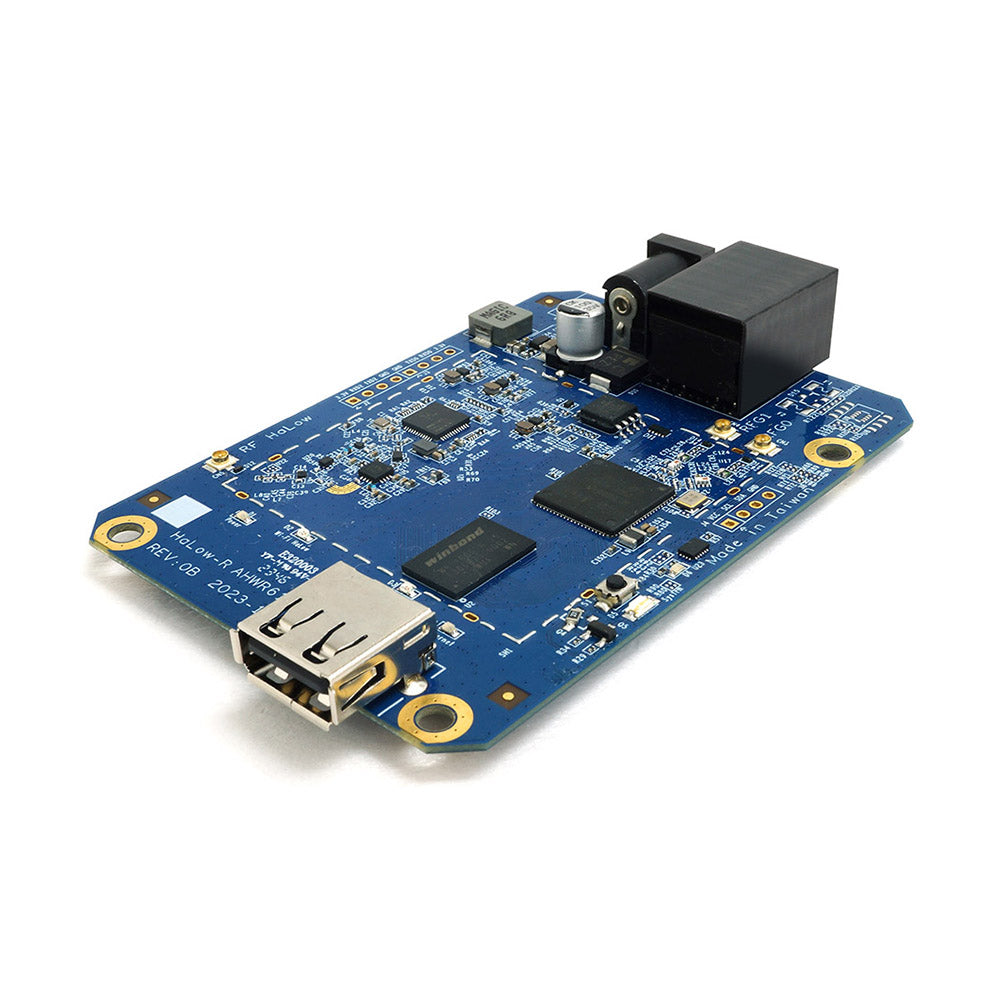

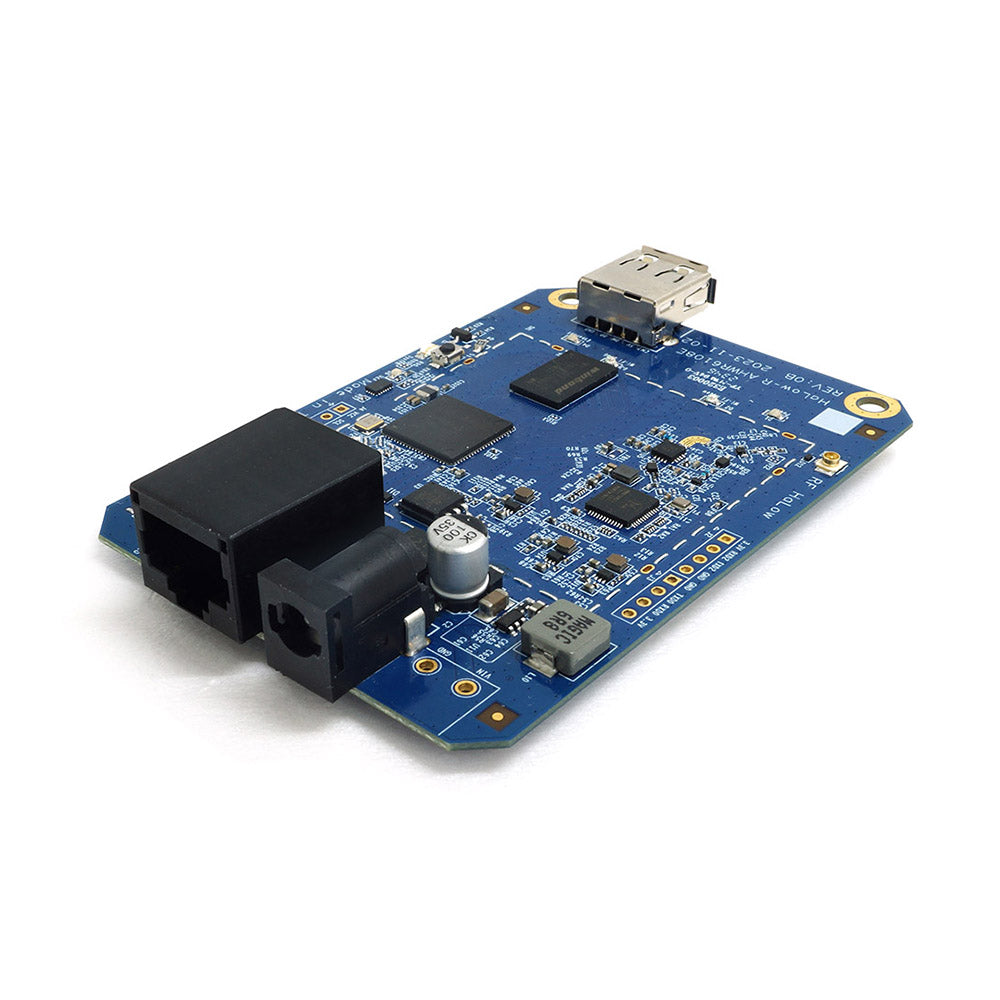

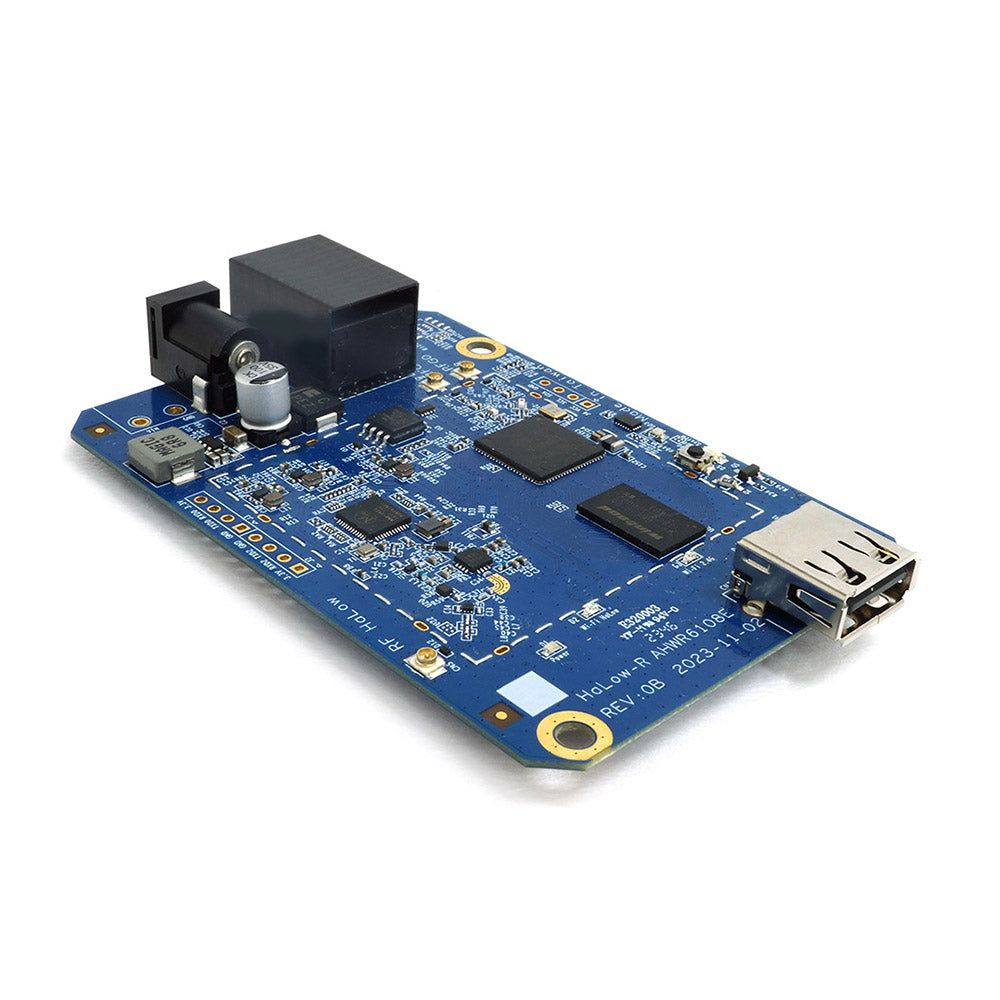

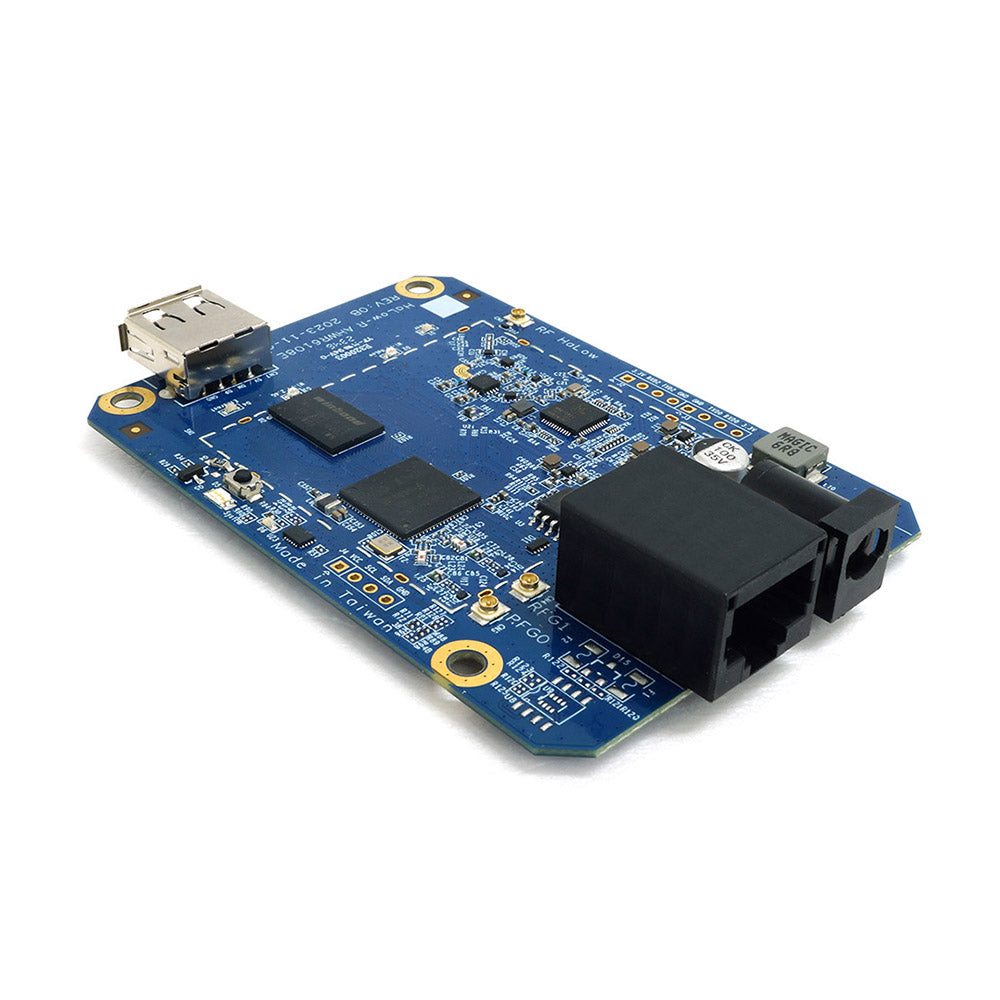

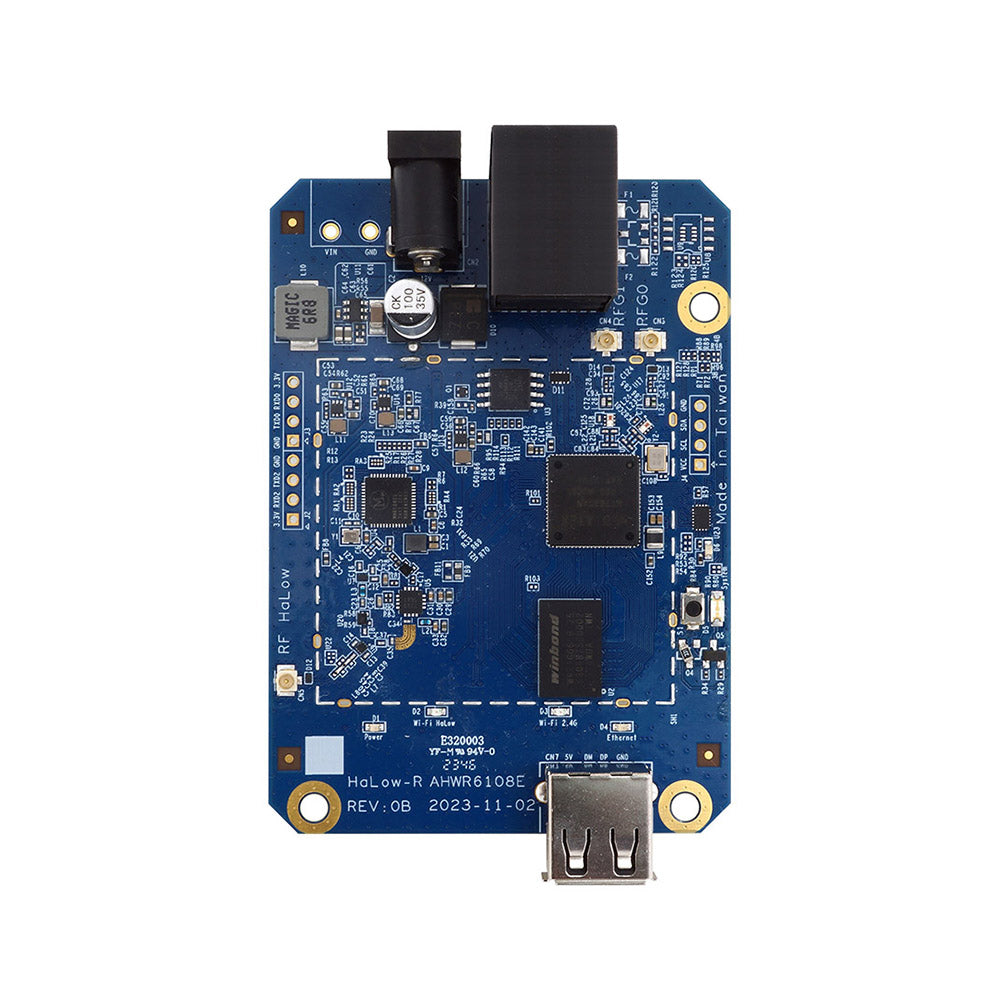

HaLow-R_PCBA

Description

02.11ah WiFi HaLow + WiFi 4 IoT Extender / Router Board

Key features

MediaTek MT7628
Morse Micro MM6108
1x HaLow IPEX/U.FL antenna connector
2 x WiFi 4 IPEX/U.FL antenna connectors
1x RJ45 Fast Ethernet connector
1x USB2.0 Type-A connector
5x LED indicators
2x UART interface reserve
1x I²C interface reserve

HaLow-R_PCBA is the world’s leading WiFi HaLow IoT Extender / Router board
The HaLow-R_PCBA is a long-range 、sub-GHz unlicensed band WiFi HaLow IoT Extender / Router board. Since it supports both WiFi HaLow and WiFi 4 dual-band concurrent, the application scenarios are beyond imagination, such as home router 、IoT gateway、wireless remote control for sensors, etc.

Specifications

WiFi 4 (IEEE 802.11n)

Chipset	MediaTek MT7628
Flash	SPI Flash 32 MB
RAM	DDR2 SDRAM 128 MB
WiFi standard	IEEE 802.11n (2.4 GHz)
Channel bandwidth	20/40 MHz
Max. date rate (Phy rate)	300 Mbps
Antenna connector	2x IPEX/U.FL connectors

WiFi HaLow (IEEE 802.11ah)

Chipset	Morse Micro MM6108
WiFi standard	IEEE 802.11ah (868/915 MHz)
Channel bandwidth	1/2/4/8 MHz
Max. date rate (Phy rate)	Up to 32.5 Mbps @ Bandwidth 8 MHz
Antenna connector	1x IPEX/U.FL connector

General

Ethernet	1x Fast Ethernet with ESD protection
USB	1x USB 2.0 Type-A
UART	2x UART interface reserve
I²C	I1x I²C interface reserve
Button	1x push-button (reset)
LED	1x Power 1x WiFi HaLow 1x WiFi 2.4G 1x Ethernet 1x Reset / System
DC power jack	Power rated: DC 12V / 1A
Dimensions	93 x 60 mm
Software	OpenWrt firmware with source available

Order Model Information

HaLow-R_PCBA /US	902 MHz – 928 MHz	26 MHz
HaLow-R_PCBA /EU	863 MHz – 868 MHz	5 MHz
HaLow-R_PCBA /KR	917.5 MHz – 923.5 MHz	6 MHz
HaLow-R_PCBA /JP	920.5 MHz – 927.5 MHz	7 MHz
