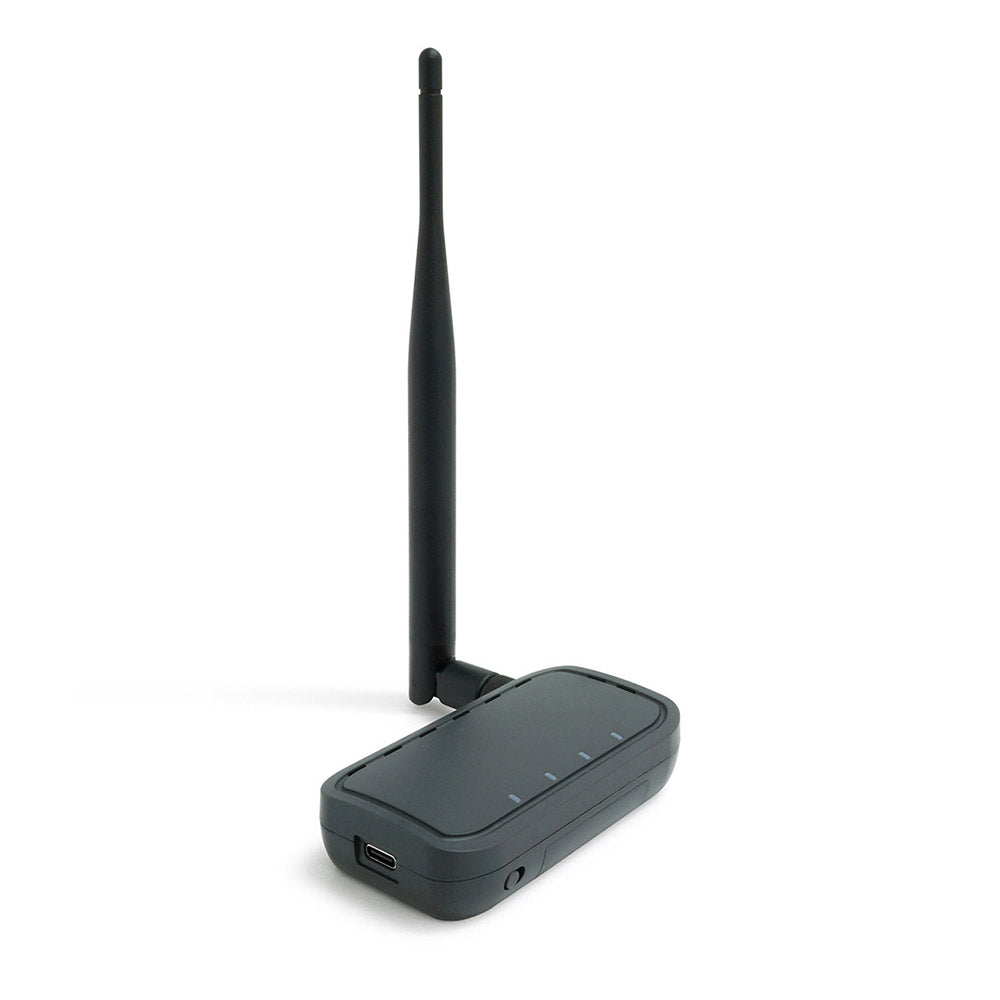

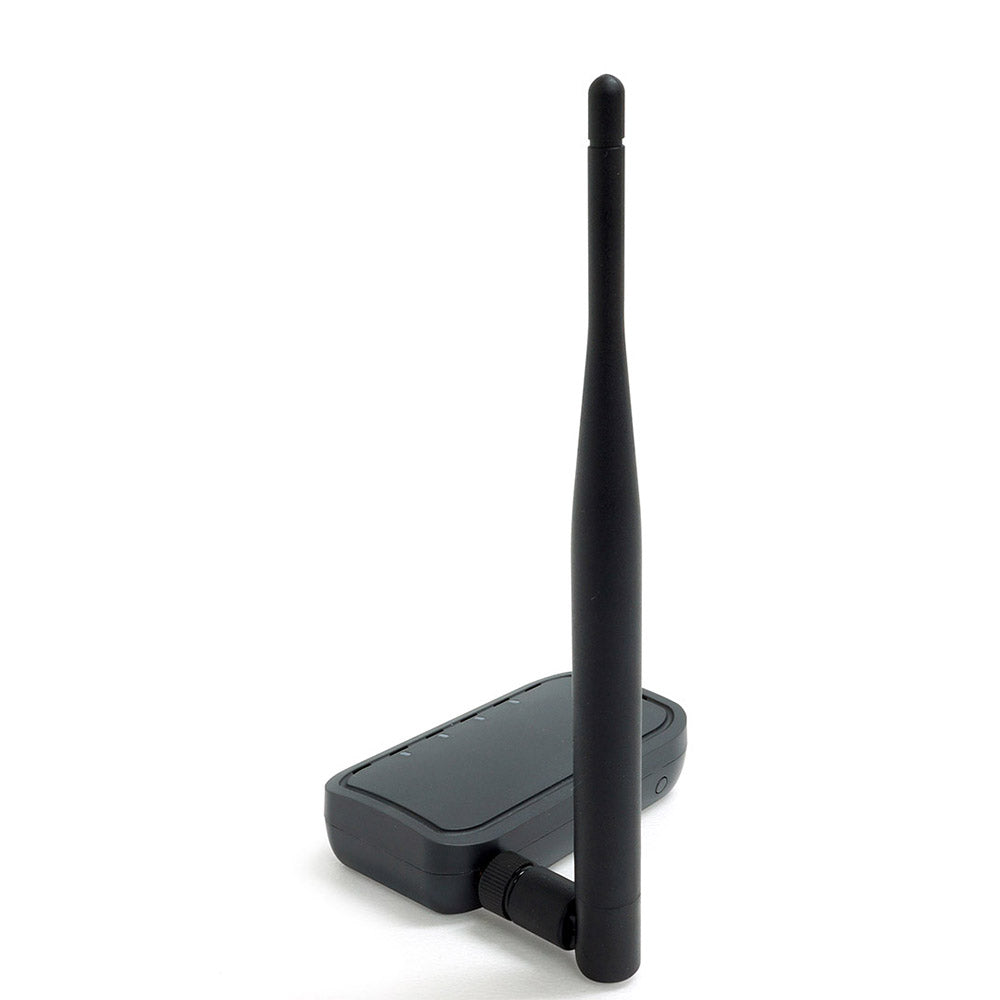

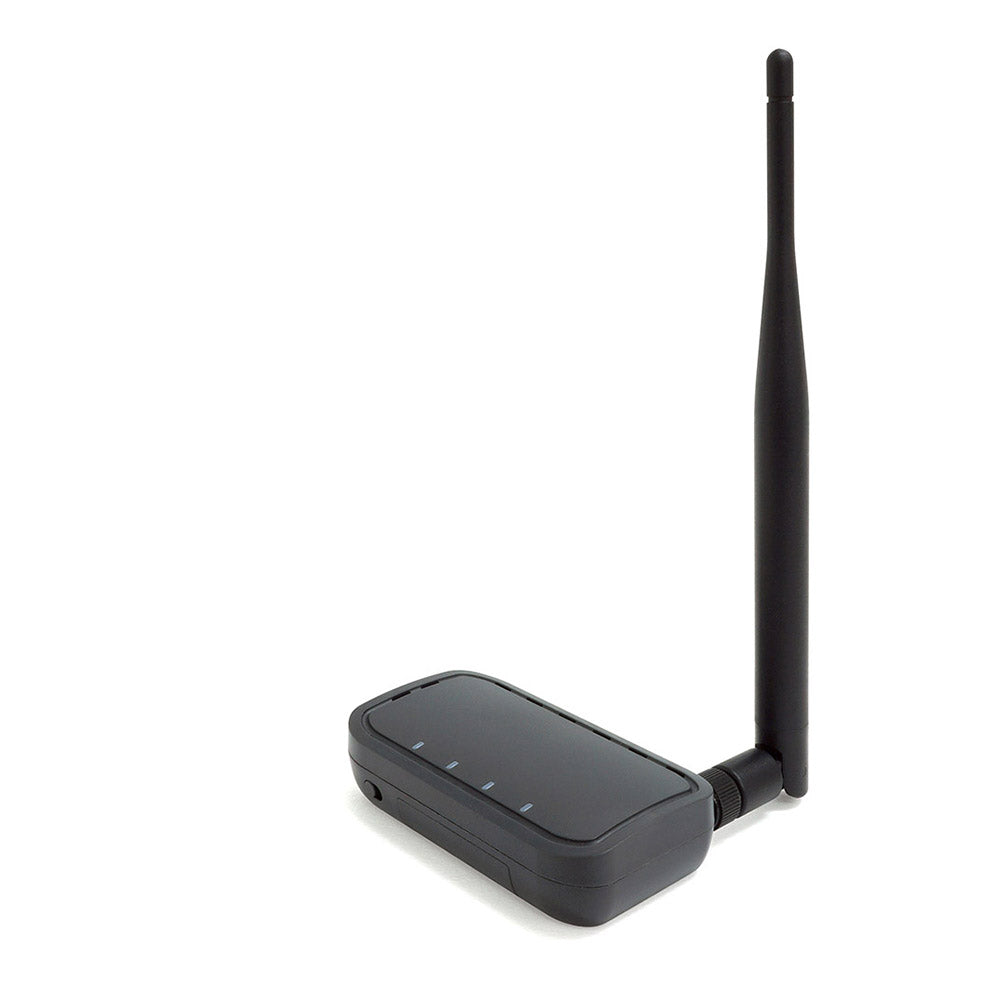

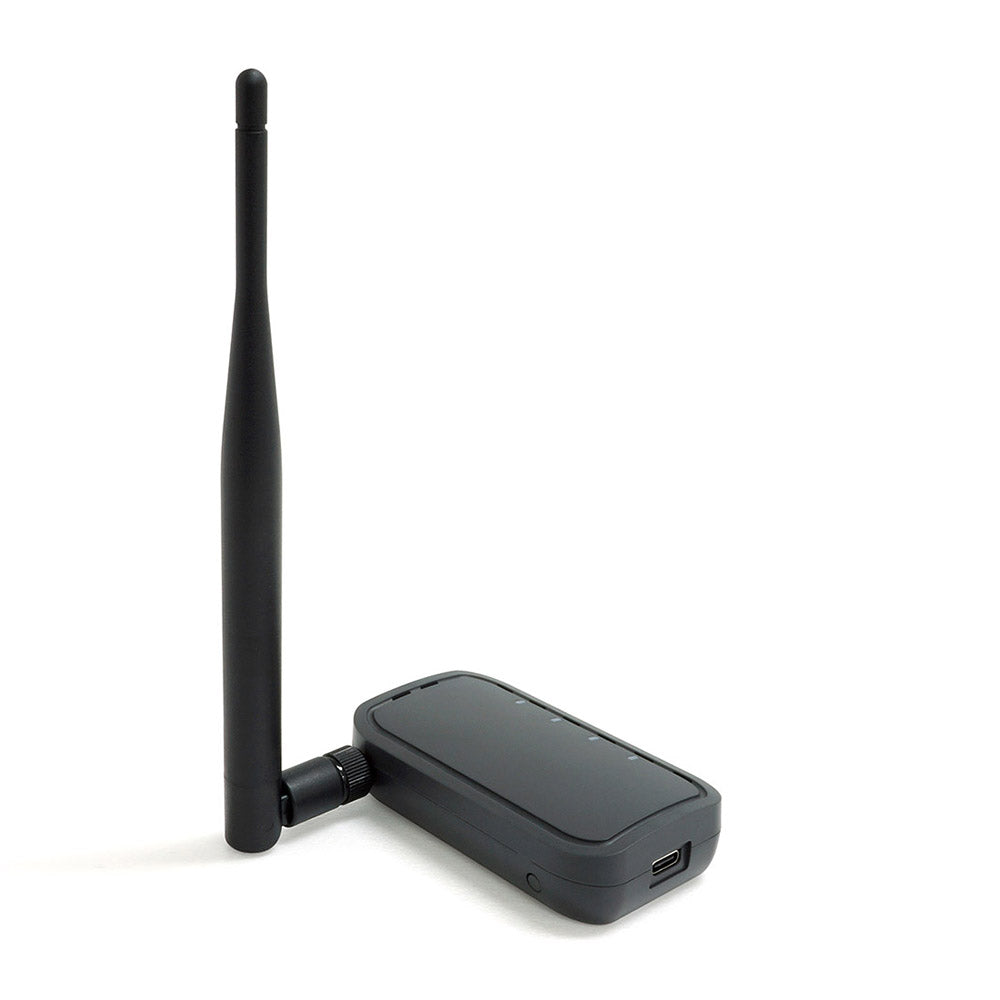

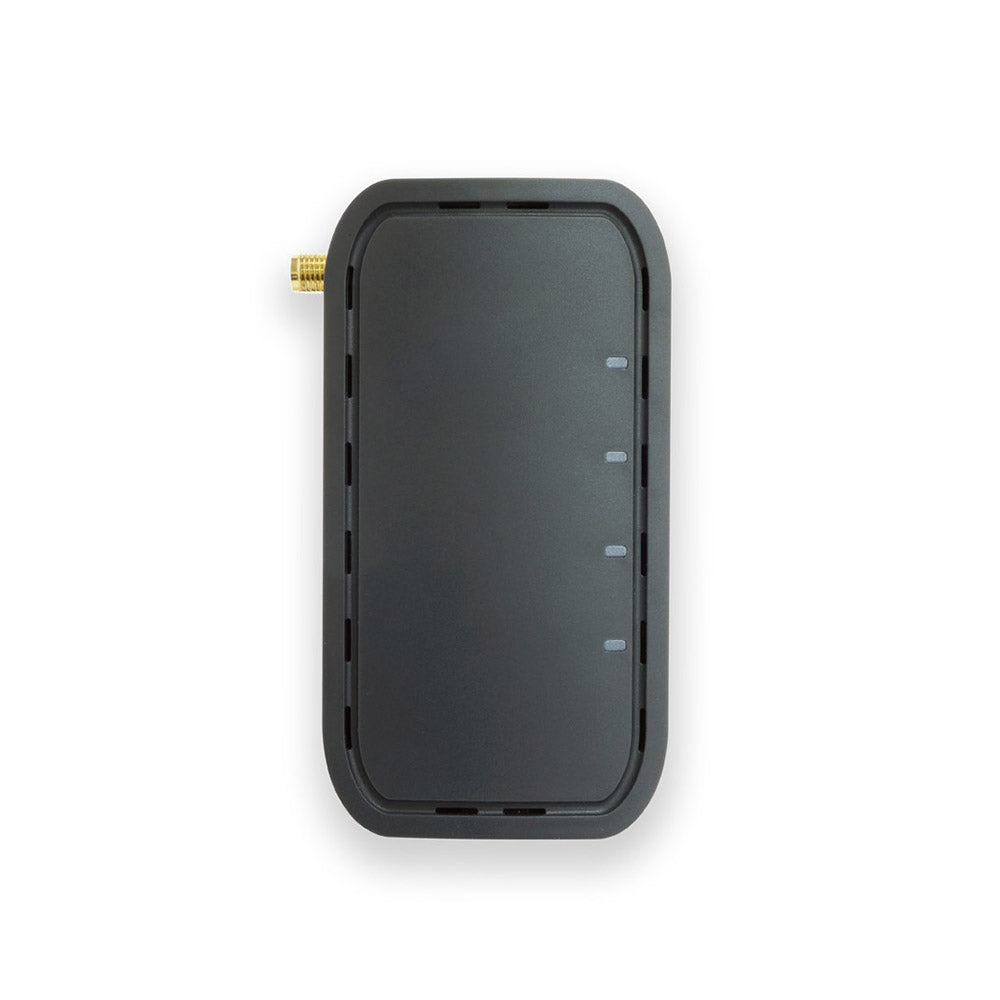

HaLow-UM is the world’s leading USB Type-C HaLow AP / CPE device
The HaLow-UM is a long-range WiFi HaLow USB Type-C adapter that supports sub-GHz unlicensed band. WiFi HaLow enables connectivity for many applications such as IPc ameras、sensors、IoT, etc.
With a USB Type-C connector it is easy to configure by plugging into a laptop / PC and easy to carry and travel with powered by a power bank.
Key Features
- MediaTek MT7628 SoC + Morse Micro MM6108
- USB Type-C connector for power and data
- AP / Client mode hardware switch
- SMA external detachable antenna
- 4 LED indicators
Specifications
|
Main Chipset & WiFi HaLow (IEEE 802.11ah) |
|
|
Main Chipset |
MediaTek MT7628 |
|
WiFi HaLow Chipset |
Morse Micro MM6108 |
|
Flash |
SPI Flash 32 MB |
|
RAM |
DDR2 SDRAM 128 MB |
|
WiFi Standard |
IEEE 802.11ah |
|
Channel Bandwidth |
1/2/4/8 MHz |
|
Max Date Rate (Phy Rate) |
Up to 32.5 Mbps @ Bandwidth 8 MHz |
|
Antenna Connector |
1 x SMA female connector |
|
Antenna |
1 x 2 dBi Detachable Dipole Antenna |
|
General |
|
|
Interface |
1 x USB Type-C |
|
Switch |
Mode Switch (When the AH mode setting is "hardware switch") (Red–AP mode; Blue–Client mode) |
|
Button |
1 x Push Button (Reset Default - Press for 10 seconds) |
|
LED |
1 x Power 1 x WiFi HaLow 1 x System 1 x Mode |
|
Power Supply |
USB Type-C |
|
Dimensions |
90 x 48 x 19 mm |
|
Order Model Information |
||
|
HaLow-UM /US HaLow-UM /EU HaLow-UM /KR HaLow-UM /JP |
902 MHz – 928 MHz 863 MHz – 868 MHz 917.5 MHz – 923.5 MHz 920.5 MHz – 927.5 MHz |
26 MHz 5 MHz 6 MHz 7 MHz |
