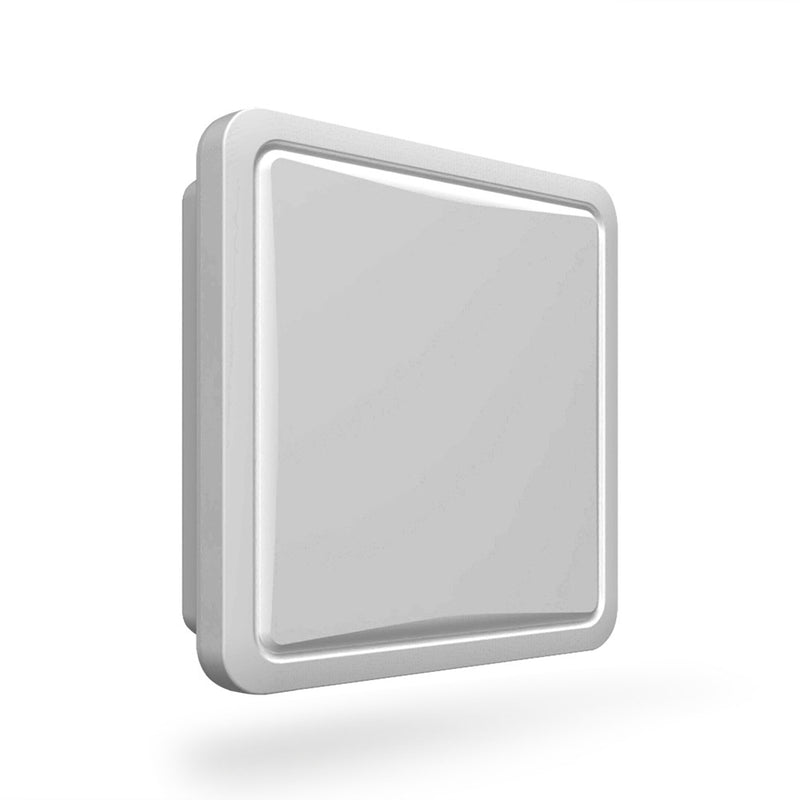

Matrix2AX is the 802.11ax wireless AP/Bridge/CPE; it delivers extended range and ultimate versatility. Featuring integrated 2.4 GHz and 5 GHz high-gain directional antennas, it ensures stable, long-range transmission. Its IP66-rated waterproof design guarantees reliability in harsh weather, while standard PoE input simplifies installation. A unique waterproof USB port offers exceptional expandability, supporting devices like GPS, outdoor 4G modems, or USB web cameras to create a multi-functional solution.
Specifications
|
Chipset |
Qualcomm IPQ6000 |
|
Flash |
16 MB |
|
RAM |
128 MB |
|
Frequency
|
2.412 ~ 2.472GHz 5.150 ~ 5.825 GHz Simultaneous |
|
Data Rate
|
2.4 GHz: up to 573 Mbps 5 GHz: up to 1201 Mbps |
|
Antenna
|
10 dBi Panel @ 2.4 GHz 14 dBi Panel @ 5 GHz |
|
Interface
|
1x PoE Gigabit LAN 1x Gigabit LAN 1x USB Port 1x Reset + LED |
|
Power Source |
802.3at/af compliant PoE |
|
Power Consumption |
9 Watt (maximum) |
|
Temperature |
-20°C ~ 60°C |
|
Humidity |
5% ~ 95% |
|
Dimensions |
230 x 230 x 77.5 mm |
|
Waterproof Rate |
IP66 |
RF Specifications
RF Performance – 2.4GHz
|
Operating Mode |
TX |
RX |
|
|
Data Rate |
2 Chains (dBm±2dB) |
Tolerance (dBm±2dB) |
|
|
802.11b |
1 Mbps |
23 |
-97 |
|
2 Mbps |
23 |
-95 |
|
|
5.5 Mbps |
23 |
-93 |
|
|
11 Mbps |
23 |
-91 |
|
|
802.11g |
6 Mbps |
23 |
-95 |
|
9 Mbps |
23 |
-93 |
|
|
12 Mbps |
23 |
-91 |
|
|
18 Mbps |
23 |
-89 |
|
|
24 Mbps |
23 |
-86 |
|
|
36 Mbps |
23 |
-83 |
|
|
48 Mbps |
23 |
-80 |
|
|
54 Mbps |
21 |
-78 |
|
|
802.11n HT20 |
MCS 0 |
22 |
-95 |
|
MCS 1 |
22 |
-93 |
|
|
MCS 2 |
22 |
-91 |
|
|
MCS 3 |
22 |
-88 |
|
|
MCS 4 |
22 |
-85 |
|
|
MCS 5 |
22 |
-83 |
|
|
MCS 6 |
21 |
-81 |
|
|
MCS 7 |
20 |
-78 |
|
|
802.11n |
MCS 0 |
21 |
-92 |
|
MCS 1 |
21 |
-90 |
|
|
MCS 2 |
21 |
-88 |
|
|
MCS 3 |
21 |
-85 |
|
|
MCS 4 |
21 |
-83 |
|
|
MCS 5 |
21 |
-81 |
|
|
MCS 6 |
20 |
-78 |
|
|
MCS 7 |
19 |
-75 |
|
|
802.11ax |
MCS 0 |
22 |
-95 |
|
MCS 1 |
22 |
-93 |
|
|
MCS 2 |
22 |
-90 |
|
|
MCS 3 |
22 |
-87 |
|
|
MCS 4 |
22 |
-84 |
|
|
MCS 5 |
22 |
-81 |
|
|
MCS 6 |
21 |
-79 |
|
|
MCS 7 |
20 |
-76 |
|
|
MCS 8 |
18 |
-73 |
|
|
MCS 9 |
18 |
-70 |
|
|
MCS 10 |
17 |
-68 |
|
|
MCS 11 |
17 |
-65 |
|
|
802.11ax |
MCS 0 |
21 |
-92 |
|
MCS 1 |
21 |
-90 |
|
|
MCS 2 |
21 |
-87 |
|
|
MCS 3 |
21 |
-85 |
|
|
MCS 4 |
21 |
-83 |
|
|
MCS 5 |
21 |
-79 |
|
|
MCS 6 |
20 |
-77 |
|
|
MCS 7 |
19 |
-74 |
|
|
MCS 8 |
18 |
-71 |
|
|
MCS 9 |
18 |
-68 |
|
|
MCS 10 |
17 |
-65 |
|
|
MCS 11 |
17 |
-63 |
|
RF Performance – 5GHz
|
Operating Mode |
TX |
RX |
|
|
Data Rate |
2 Chains (dBm±2dB) |
Tolerance (dBm±2dB) |
|
|
802.11a |
6 Mbps |
23 |
-95 |
|
9 Mbps |
23 |
-93 |
|
|
12 Mbps |
23 |
-90 |
|
|
18 Mbps |
23 |
-88 |
|
|
24 Mbps |
23 |
-86 |
|
|
36 Mbps |
23 |
-84 |
|
|
48 Mbps |
23 |
-81 |
|
|
54 Mbps |
21 |
-79 |
|
|
802.11n/ac |
MCS 0 |
23 |
-96 |
|
MCS 1 |
23 |
-94 |
|
|
MCS 2 |
23 |
-91 |
|
|
MCS 3 |
23 |
-89 |
|
|
MCS 4 |
23 |
-87 |
|
|
MCS 5 |
23 |
-85 |
|
|
MCS 6 |
21 |
-82 |
|
|
MCS 7 |
20 |
-79 |
|
|
MCS 8 |
20 |
-76 |
|
|
802.11n/ac VHT40 |
MCS 0 |
23 |
-93 |
|
MCS 1 |
23 |
-91 |
|
|
MCS 2 |
23 |
-88 |
|
|
MCS 3 |
23 |
-86 |
|
|
MCS 4 |
23 |
-84 |
|
|
MCS 5 |
23 |
-81 |
|
|
MCS 6 |
21 |
-78 |
|
|
MCS 7 |
20 |
-74 |
|
|
MCS 8 |
20 |
-72 |
|
|
MCS 9 |
19 |
-69 |
|
|
802.11ac VHT80 |
MCS 0 |
23 |
-90 |
|
MCS 1 |
23 |
-88 |
|
|
MCS 2 |
23 |
-85 |
|
|
MCS 3 |
23 |
-83 |
|
|
MCS 4 |
23 |
-80 |
|
|
MCS 5 |
23 |
-78 |
|
|
MCS 6 |
21 |
-75 |
|
|
MCS 7 |
20 |
-72 |
|
|
MCS 8 |
19 |
-69 |
|
|
MCS 9 |
19 |
-66 |
|
|
802.11ax HE20 |
MCS 0 |
23 |
-96 |
|
MCS 1 |
23 |
-94 |
|
|
MCS 2 |
23 |
-91 |
|
|
MCS 3 |
23 |
-89 |
|
|
MCS 4 |
23 |
-86 |
|
|
MCS 5 |
23 |
-83 |
|
|
MCS 6 |
21 |
-80 |
|
|
MCS 7 |
20 |
-77 |
|
|
MCS 8 |
20 |
-74 |
|
|
MCS 9 |
19 |
-71 |
|
|
MCS 10 |
18 |
-68 |
|
|
MCS 11 |
18 |
-66 |
|
|
802.11ax HE40 |
MCS 0 |
23 |
-93 |
|
MCS 1 |
23 |
-91 |
|
|
MCS 2 |
23 |
-88 |
|
|
MCS 3 |
23 |
-85 |
|
|
MCS 4 |
23 |
-82 |
|
|
MCS 5 |
23 |
-79 |
|
|
MCS 6 |
21 |
-77 |
|
|
MCS 7 |
20 |
-74 |
|
|
MCS 8 |
20 |
-71 |
|
|
MCS 9 |
19 |
-68 |
|
|
MCS 10 |
18 |
-65 |
|
|
MCS 11 |
18 |
-63 |
|
|
802.11ax HE80 |
MCS 0 |
23 |
-90 |
|
MCS 1 |
23 |
-87 |
|
|
MCS 2 |
23 |
-84 |
|
|
MCS 3 |
23 |
-81 |
|
|
MCS 4 |
23 |
-78 |
|
|
MCS 5 |
23 |
-75 |
|
|
MCS 6 |
21 |
-72 |
|
|
MCS 7 |
20 |
-70 |
|
|
MCS 8 |
20 |
-67 |
|
|
MCS 9 |
19 |
-65 |
|
|
MCS 10 |
18 |
-62 |
|
|
MCS 11 |
18 |
-59 |
|
