Outdoor Dual Band 2x2 ac/n AP/CPE

  1. Dual-band / Dual-concurrent 2.4 GHz + 5 GHz
  2. High speed 1200 Mbps
  3. Software controlled PoE out
  4. Variation antenna option
  5. Extra USB port
  6. OpenWrt firmware

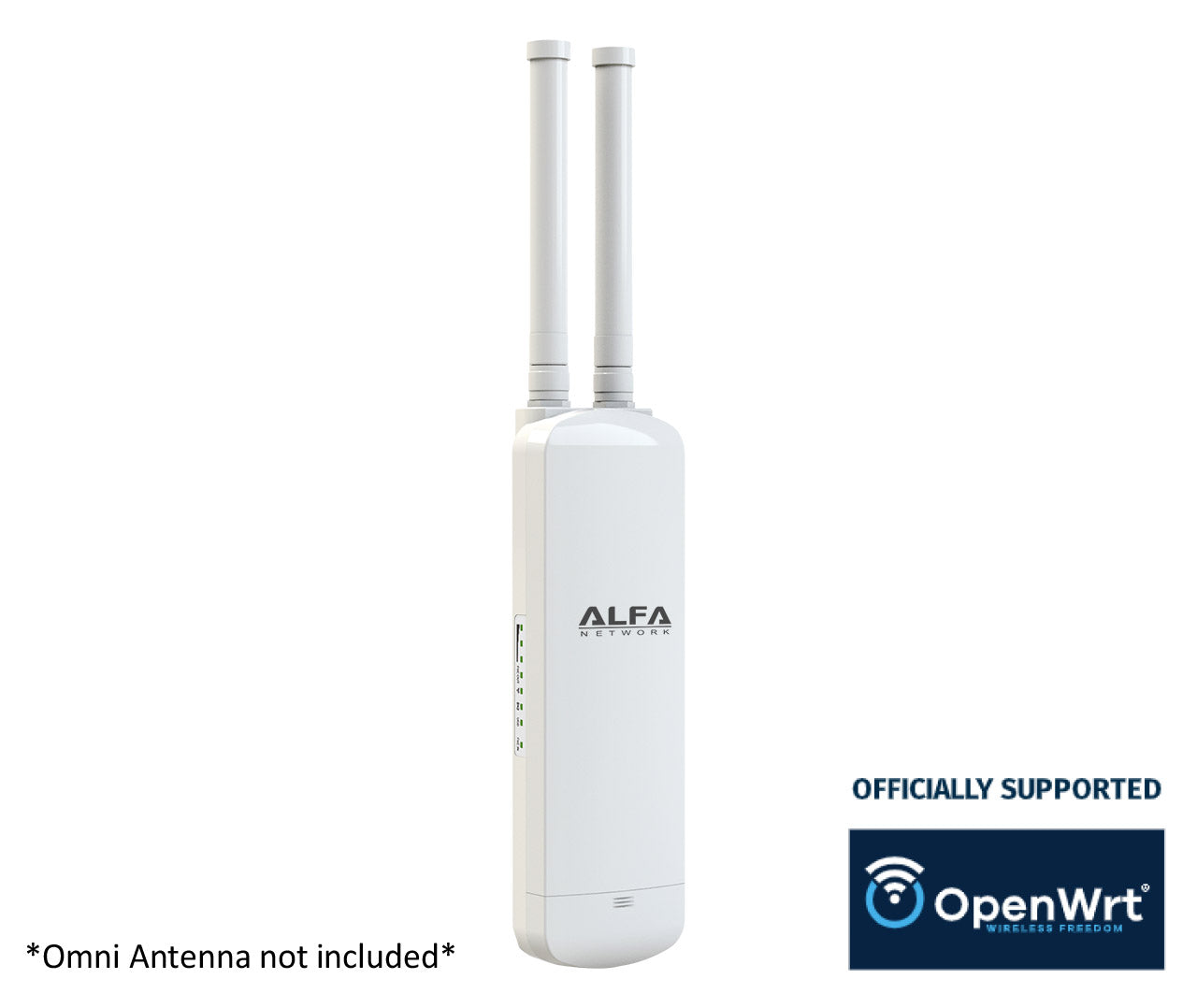

N52Q is 2.4GHz + 5GHz dual-band dual-concurrent outdoor AP/CPE

N52Q is the outdoor dual-band / dual concurrent AP/CPE with built-in or external N type female connector which give you more flexible to use in different application. The N52Q unique software controlled PoE out could help to reduce the installation and maintain cost. N52Q pre-installed the popular open source "OpenWrt" to give you freedom to modify for your needs.


image1 image2

Variety antenna option


External Antenna connector give more choose to meet different application | | | | |------------:|---------:|----------| | Model | 2.4 GHz | 5 GHz | | N52Q | Built-in | Externa l | N52Q-2F5A | External | Built-in l | N52Q-2S5F | External | External l

Software control PoE Out


With software controlled PoE out, no need extra ethernet cable to power another N52Q, use PoE out lan port to give 24VDC to power on Make Sure connect device does support input passive PoE 24VDC before enable the pass through from the firmware

Suggest related Product: DDC-2412


DDC-2412 works with N52Q to give 12VDC to power on outdoor IP camera

Chipset QCA9531+QCA9886
RAM 128 MB
Flash 16 MB
Frequency 2.4 GHz +5 GHz
Data rate 300 Mbps @ 2.4 GHz
867 Mbps @ 5 GHz
Channel width 11n: 5/10/20/40 MHz
11ac: 20/40/80 MHz
TX power 2.4 GHz: 28 dBm
5 GHz: 23 dBm
Ethernet 2x Fast Ethernet with ESD protection
USB 1x USB 2.0 mini-Type-B (host)
Antenna Built-in or external (see order model list)
LED 1x Power / PoE input
1x PoE out
1x 2.4 GHz Radio
1x 5 GHz Radio
1x USB
PoE N52Q: passive 24V POE
N52Q PoE: standard 802.3at 48V PoE
Operating temperature -40° C - 65° C
Operating humidity 5 % - 95 % non-condensing
Dimension 300 x 80 x 30 mm
Weight 500 g
