Surfi Q

Surfi Q

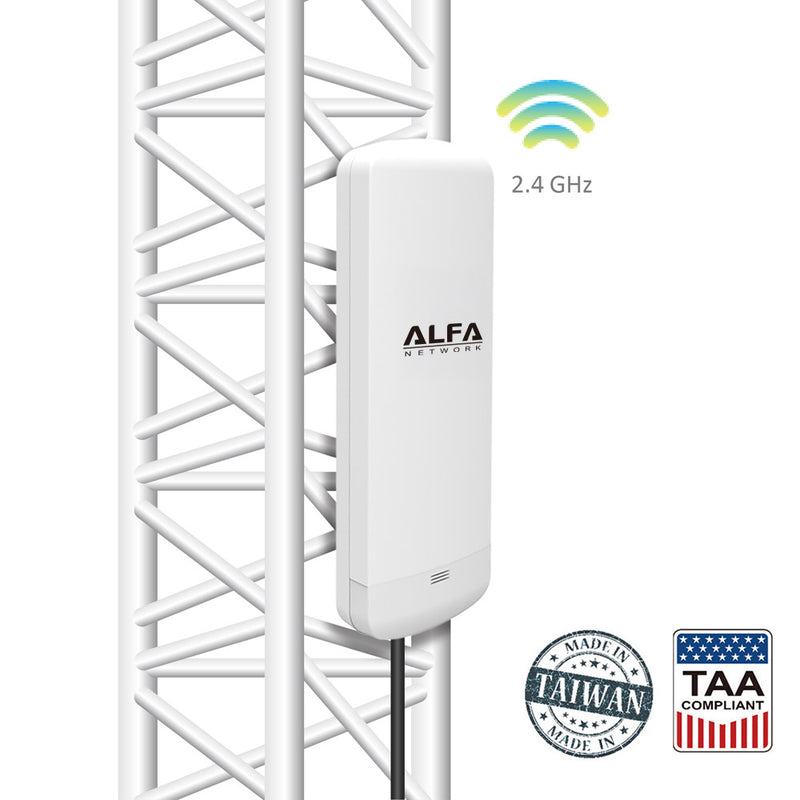

Surfi Q is the stronger, safer and smarter WiFi outdoor AP/Bridge. It supports standard 2.4 GHz WiFi mode and ALFA proprietary ultra-secure mode. When ultra-Secure mode is enabled, it protects your WiFi connection from unauthorized access, improves anti-interference performance, and extends the transmission range compared to other outdoor devices. Surfi Q is powered via 802.3at/af PoE and also supports passive 48V PoE output. This feature helps installers avoid pulling extra cable or adding a PoE switch when connecting IP cameras or other PoE devices. This saves installation time and cost.Surfi Q comes with a built-in 2.4 GHz Omni antenna for easy deployment no extra antenna required. If you prefer to use an external high-gain antenna, you can choose Surfi QE model, which features an N female connector but does not include built-in antenna.


Key features

  1. USB port
  2. Ethernet PoE Input
  3. Ethernet Poe Output (Software controlled)
  4. Reset Button



Specifications

Wi-Fi Standards

IEEE 802.11b/g/n

Frequency

2.4 GHz

Data Rate



Wi-Fi standard mode: up to 300 Mbps

ALFA ultra-secure mode: up to 10 Mbps

Antenna



Built-in 5 dBi Omni Antenna

* Option: Surfi QE (2x external N female connector)

Interface







1x RJ45 Ethernet PoE Input

1x RJ45 Ethernet PoE Output

1x USB Connector

1x Reset button

LED

Power / LAN / WiFi Signal Strength

Power Requirement

802.3at/af PoE

Operation Temperature

-20°C ~ 60°C

Operation Humidity

10% ~ 90%

Dimensions

300 x 80 x 30 mm
