Tube-ELoRaGW

Tube-ELoRaGW

Tube-ELoRaGW

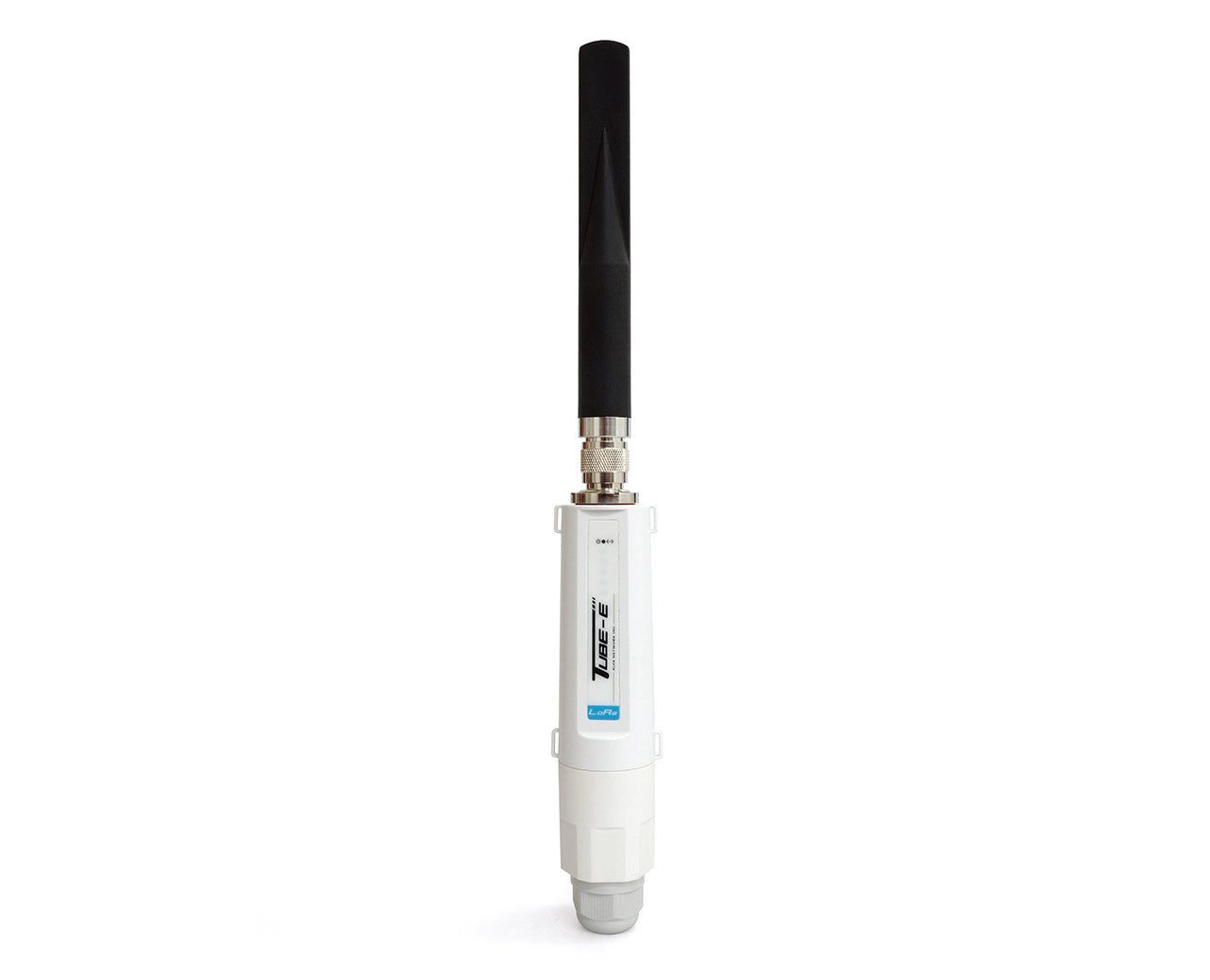

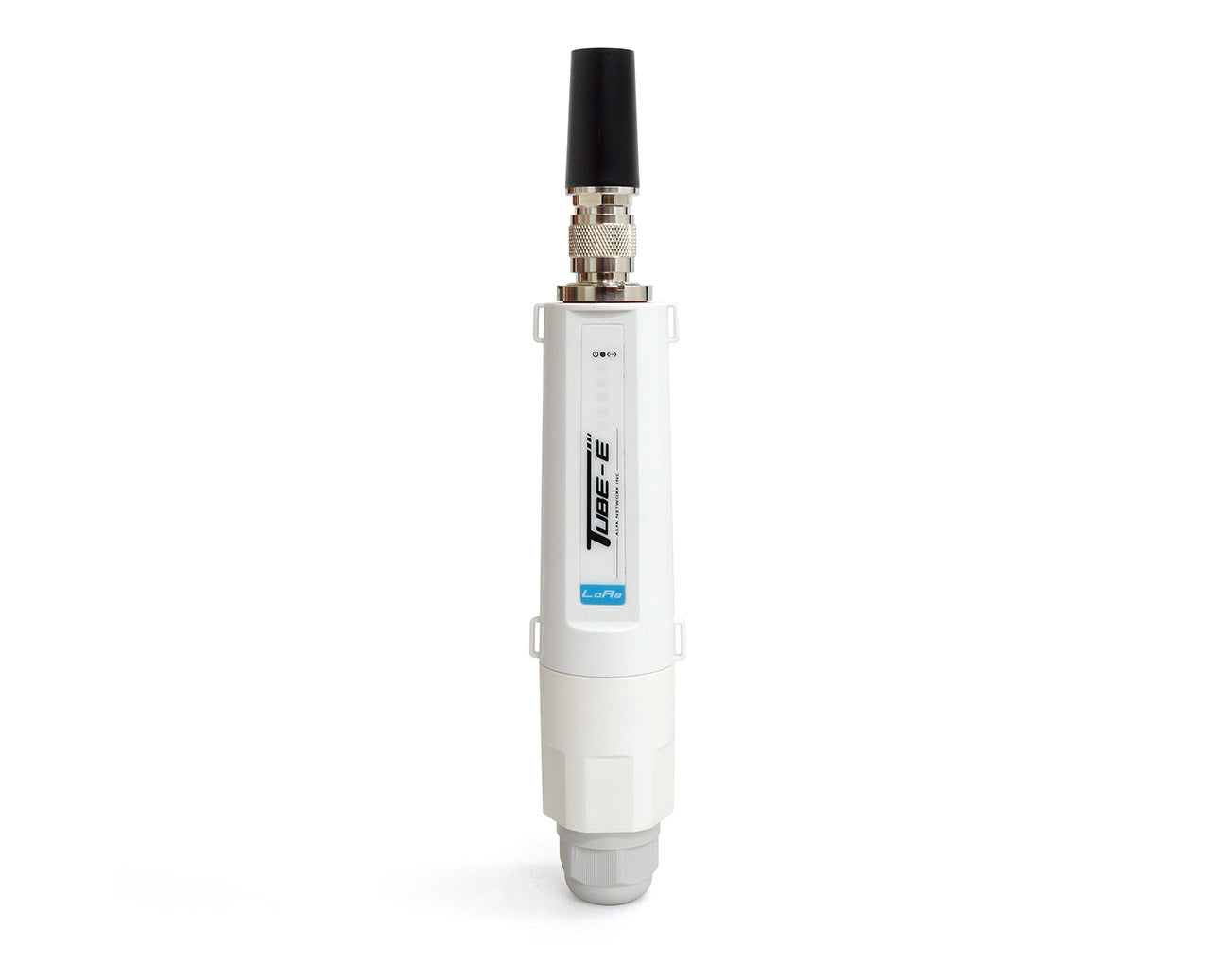

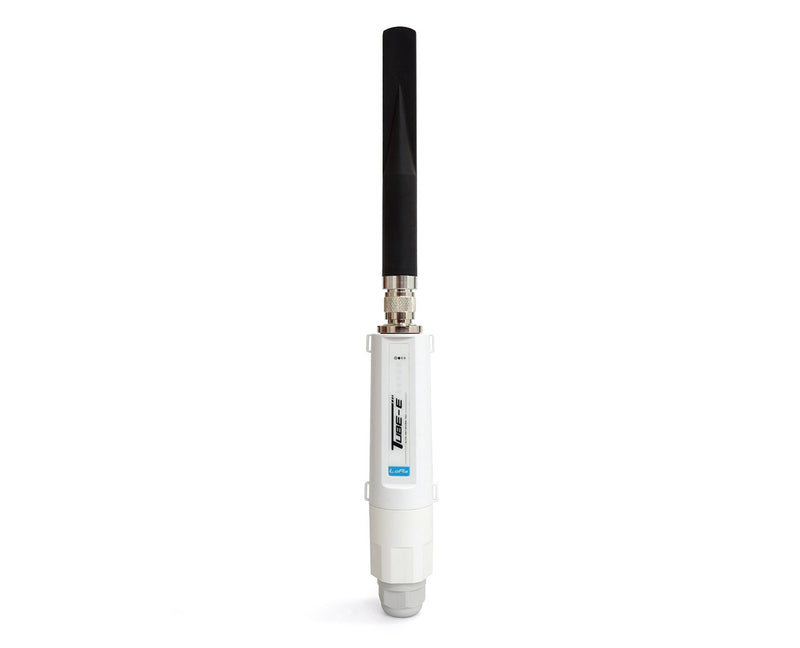

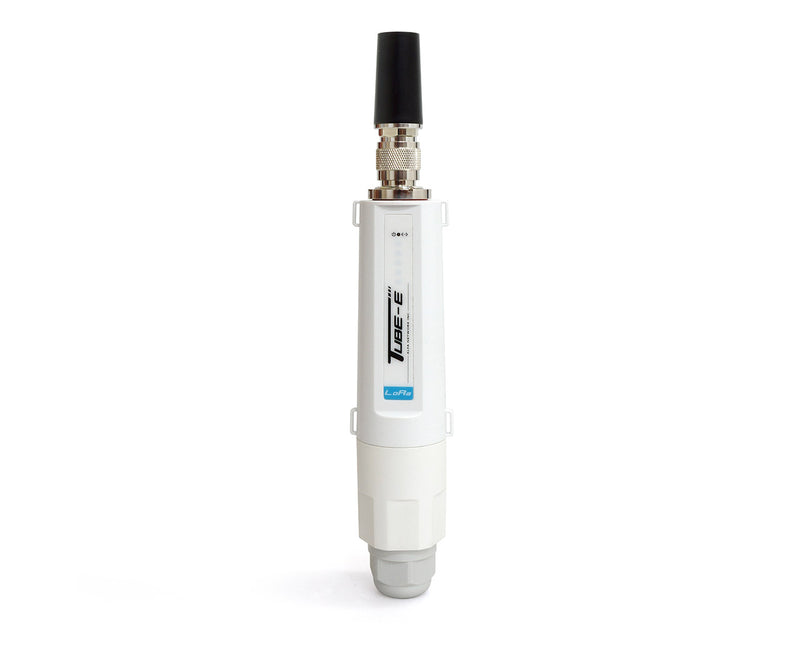

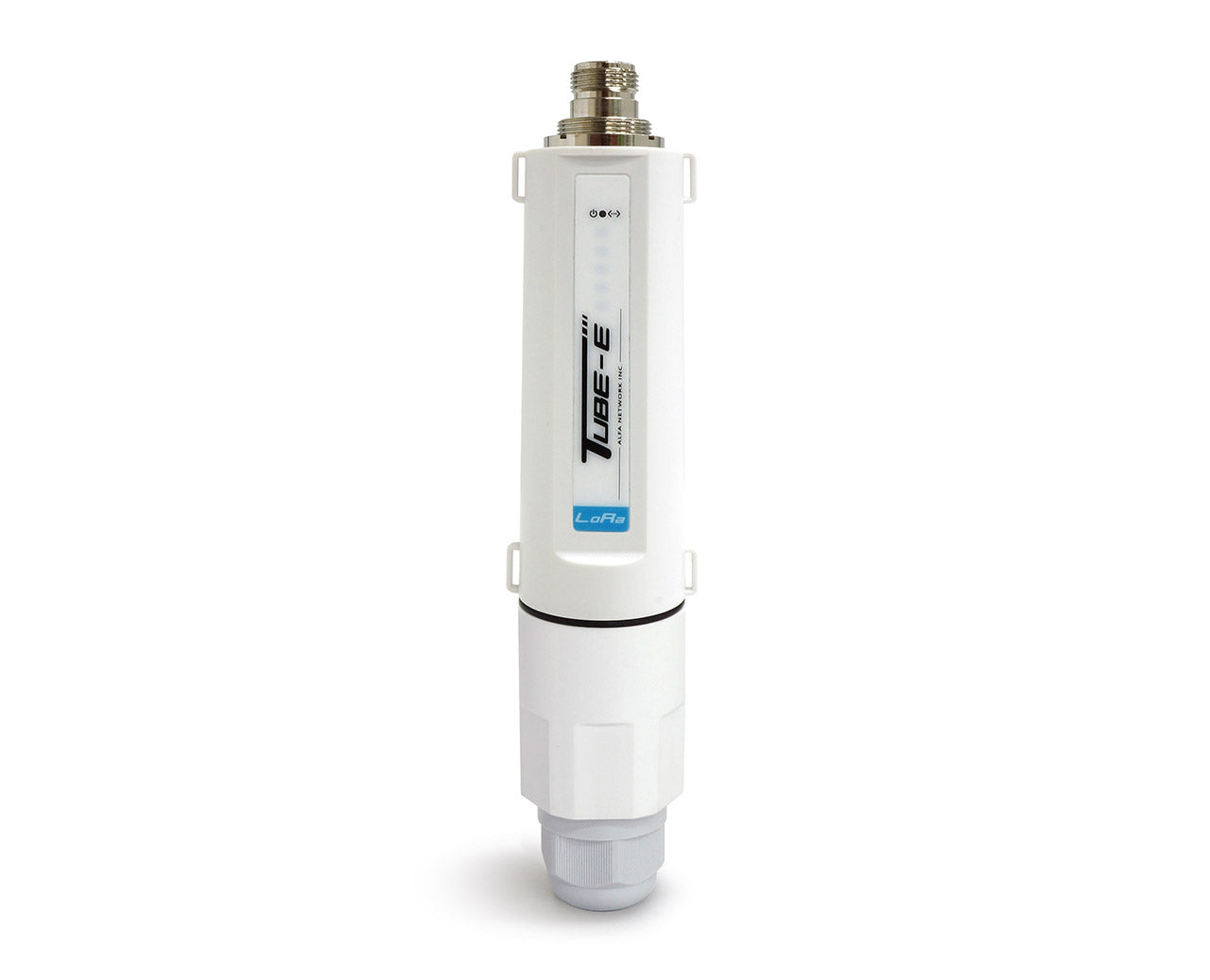

LoRa Outdoor Gateway

Suggested Antennas


Model	AOA-868-5ACM	AOA-915-5ACM	AOA-868-2ACM	AOA-915-2ACM
Frequency	863-870 MHz	902-928 MHz	863-870 MHz	902-928 MHz
Gain	5 dBi	5 dBi	2 dBi	2 dBi
Connector	N male	N male	N male	N male
Dimension	⌀22 x 180 mm	⌀22 x 180 mm	⌀22 x 64 mm	⌀22 x 64 mm

Order Model List

Model	Tube-ELoRaGW8	Tube-ELoRaGW9
Frequency	868 MHz	915 MHz

Learn How To Use

Check below link to learn how to use Tube-ELoRaGW

**https://docs.alfa.com.tw/Support/LoRa/howto_tube-eloragw/

Parameter	Value
Platform	MediaTek MT7620A
LoRa Chipset	Semtech SX1308
Frequency	Tube-ELoRaGW8: 868 MHz Tube-ELoRaGW9: 915 MHz
Ethernet Speed	10/100 Mbps
Flash	16 MB SPI NOR
DRAM	128 MB DDR2
Antenna Connector	N female
LED	Power, Activity

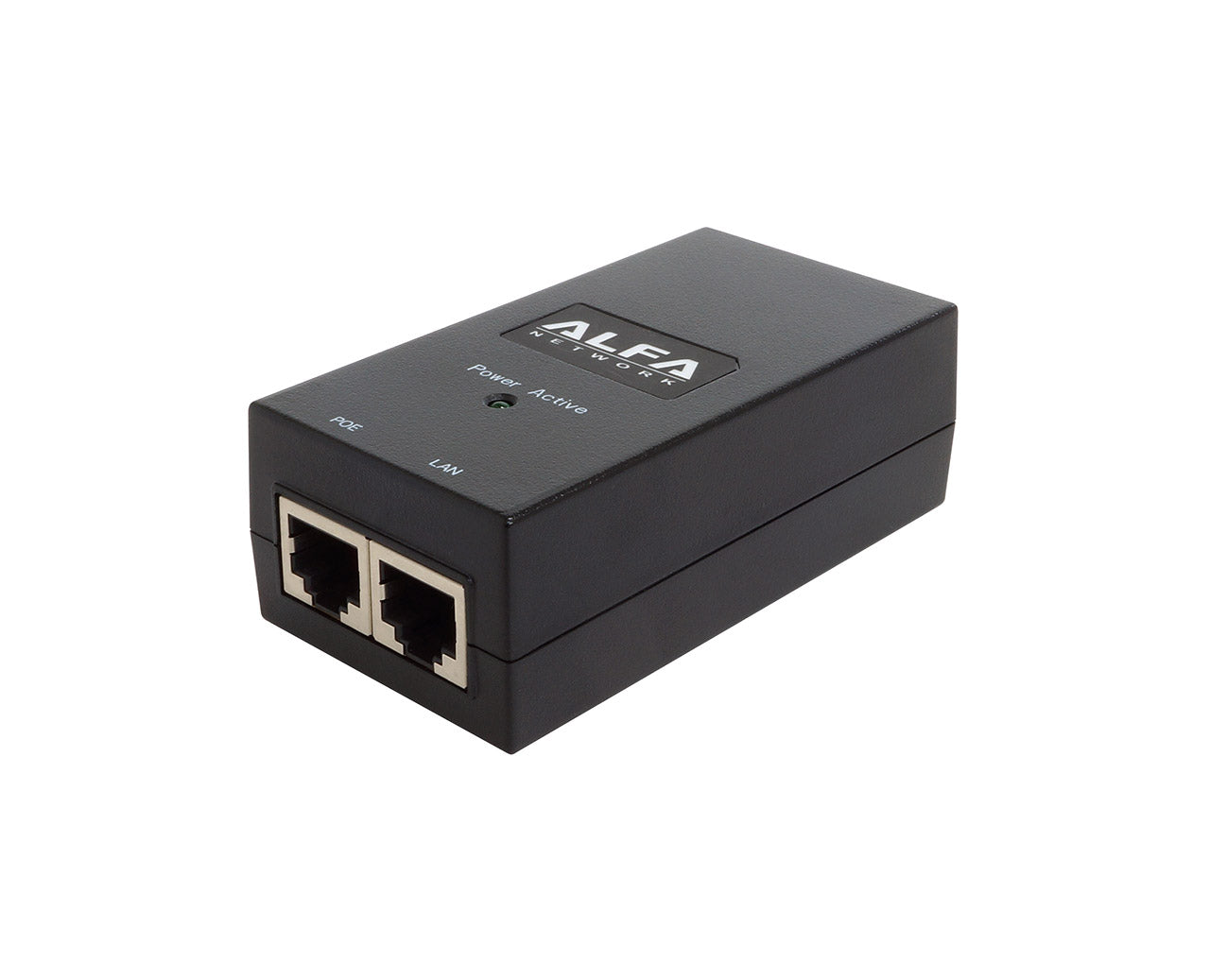

Power Requirement	Passive PoE 12-24 VDC

Goto download page
