ALMC1301U

ALMC1301U

8-channels LoRaWAN™ concentratormini PCIe module with USB interface


  1. Semtech™ SX1301 digital baseband chipset
  2. Dual Semtech™ SX1257 transceivers
  3. Skyworks™ SE2435L-R front-end
  4. Standard mini PCIe form factor
  5. USB 2.0 interface (with optional SPI)

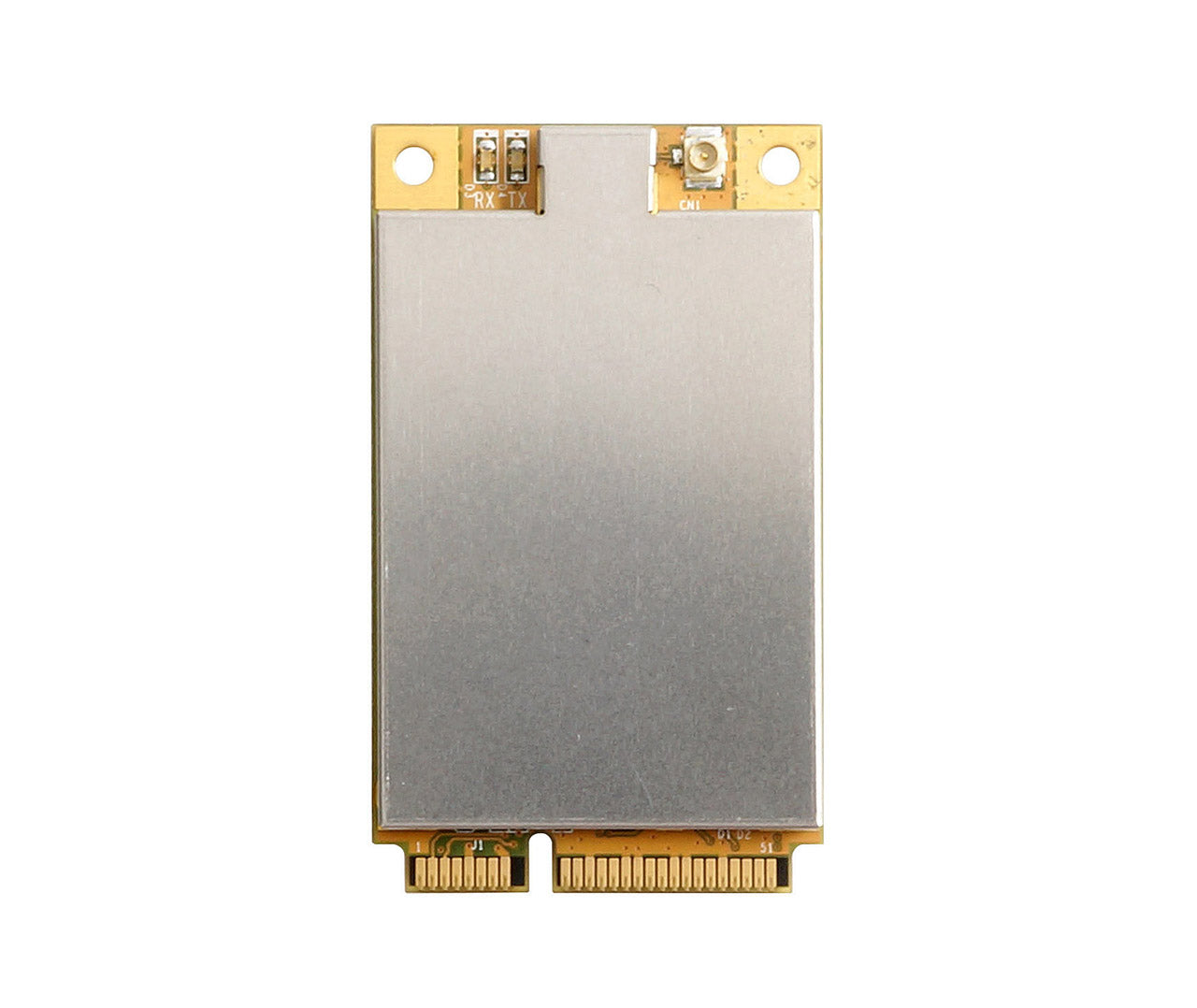

  6. Full body metal shielding design
  7. RX/TX LEDs

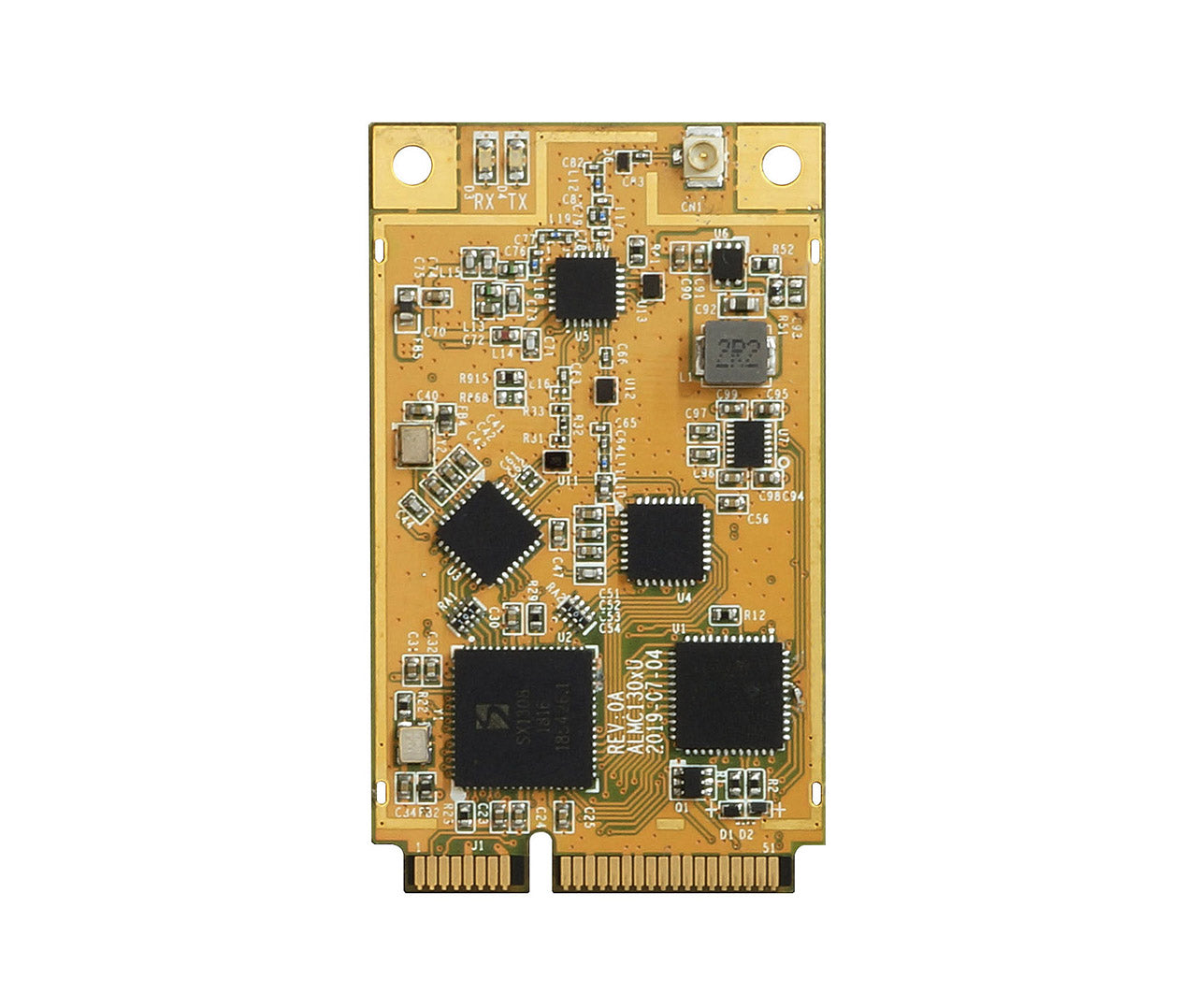

ALMC1301U is a full-size mini PCIe LoRaWAN™ concentrator module based on Semtech™ SX1301

The ALMC1301U concentrator module series allows building certified LoRaWAN™ gateways on any system equipped with standard mini PCIe slot and USB 2.0 interface.

Open source software and firmware availability, easy USB DFU based card's firmware upgrade and large community gathered around LPWAN technologies will help to kick start your LoRa™ network project.

Parameter Value
Chipset Semtech™ SX1301 + 2× SX1257
Frequency 863 ~ 870 MHz (EU)902 ~ 928 MHz (US)
Modulation LoRa™
TX power 21 dBm
RX sensitivity(EU, 125 kHz bandwidth) -124 dBm (SF7)-138 dBm (SF12)
RX sensitivity(US, 125 kHz bandwidth) -125 dBm (SF7)-139 dBm (SF12)
Antenna connector 1× IPEX/U.FL
Interface USB 2.0 SPI (option)
LED 1× TX1× RX
Form factor full-size mini PCIe
Operating humidity 10 % ~ 90 % RH, non-condensing
Operating temperature -40 ~ 85 °C
Software https://github.com/Lora-net/
