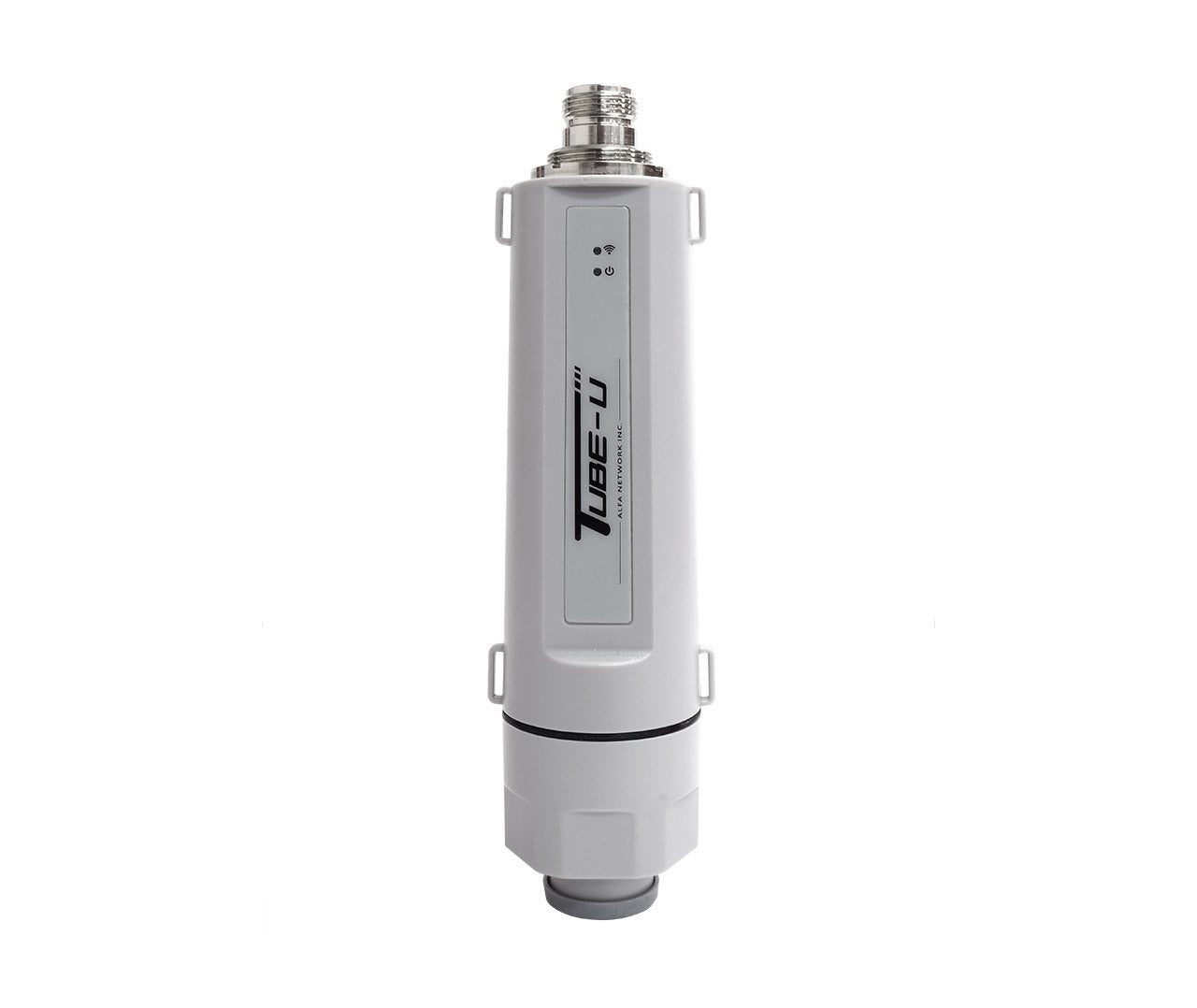

Tube-UAC2

Tube-UAC2

Wi-Fi 802.11ac Outdoor USB Adapter



Tube-UAC2 is a dual-band 2.4 GHz and 5 GHz IEEE 802.11n/ac standard, high-speed outdoor USB CPE. Tube-UAC2 is based on MediaTek MT7610U chipset which is supported in Windows and Linux OS environments.

Application

R36A (Wi-Fi Extender)**
Tube-UAC2 plug into USB port as to extend Wi-Fi Hotspot
AOA-2458-79AM
Dual-band Omni Antenna
2.4 GHz: 7 dBi
5 GHz: 9 dBi

Hardware Specification

Parameter Value
Chipset MT7610U
Interface USB type A Jack
Antenna Connector N female
LED Indicators Power / WLAN
Power Consumption Max. 600 mA @ 5 V
Temperature -40 °C – 70 °C
Storage Humidity 5 % - 98 % (Non-condensing)
Dimension 165 mm x ⌀46 mm
Weight 126.5 g

Wireless Specification

Parameter Value
Standard IEEE 802.11 a/b/g/n/ac
Frequency 2.4 GHz & 5 GHz
Data Rate 802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: up to 150 Mbps
802.11ac: up to 433 Mbps
Amplifier Built-in Amplifier
Sensitivity -96 dBm @ 11b
-90 dBm @ 11g
-95 dBm @ 11n
-89 dBm @ 11a
-74 dBm @ 11ac
Wireless Security WEP, WPA, WPA2, WPA Mixed, WPS
OS Supported Windows XP, Vista, 7, 8 and 8.1, 10
Mac OS X 10.7–10.14
Linux
