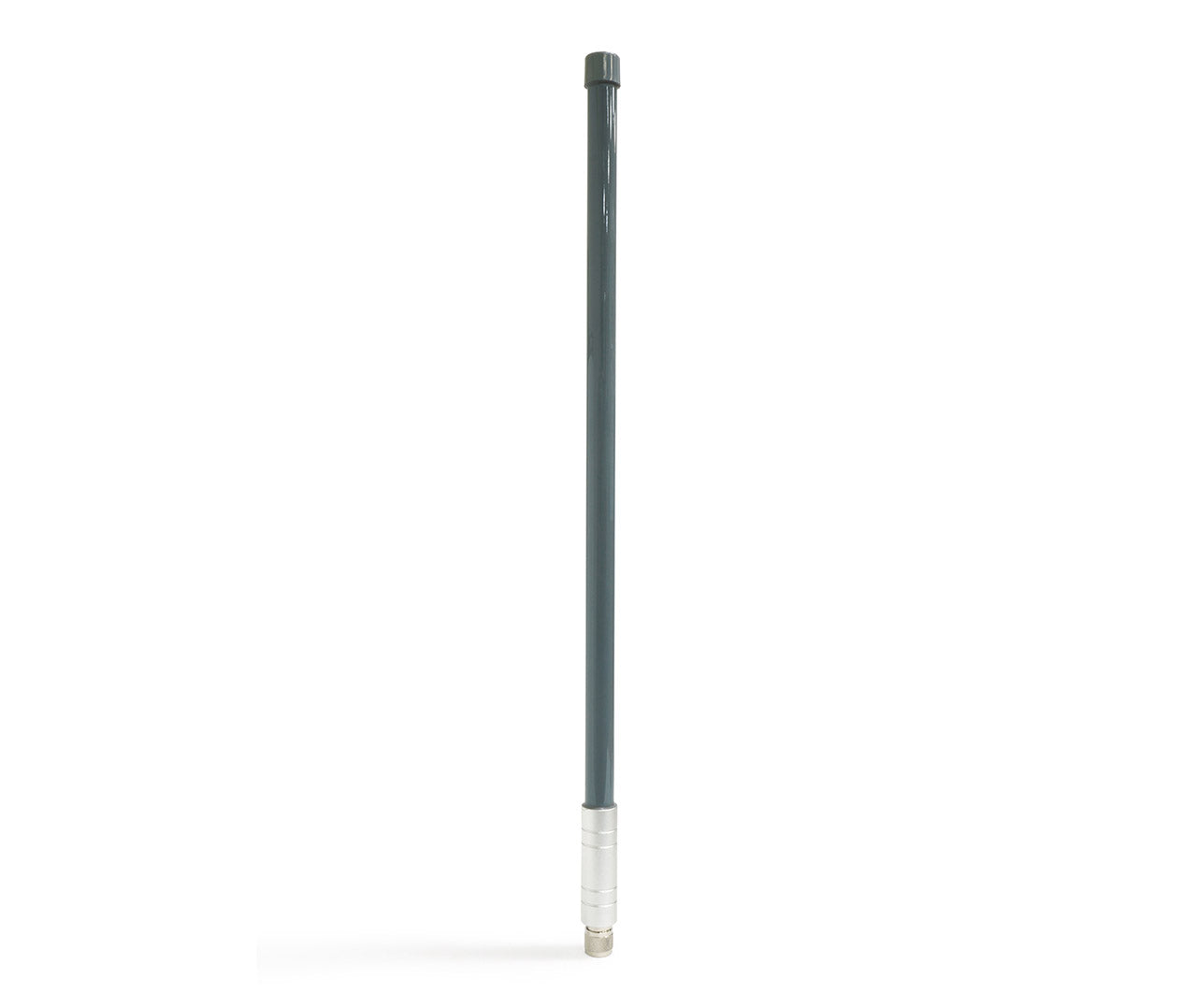

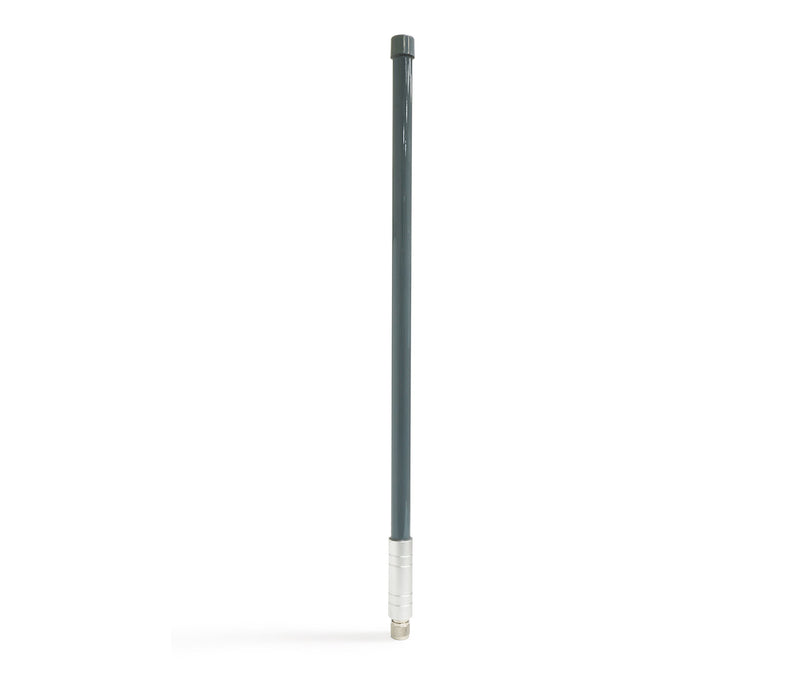

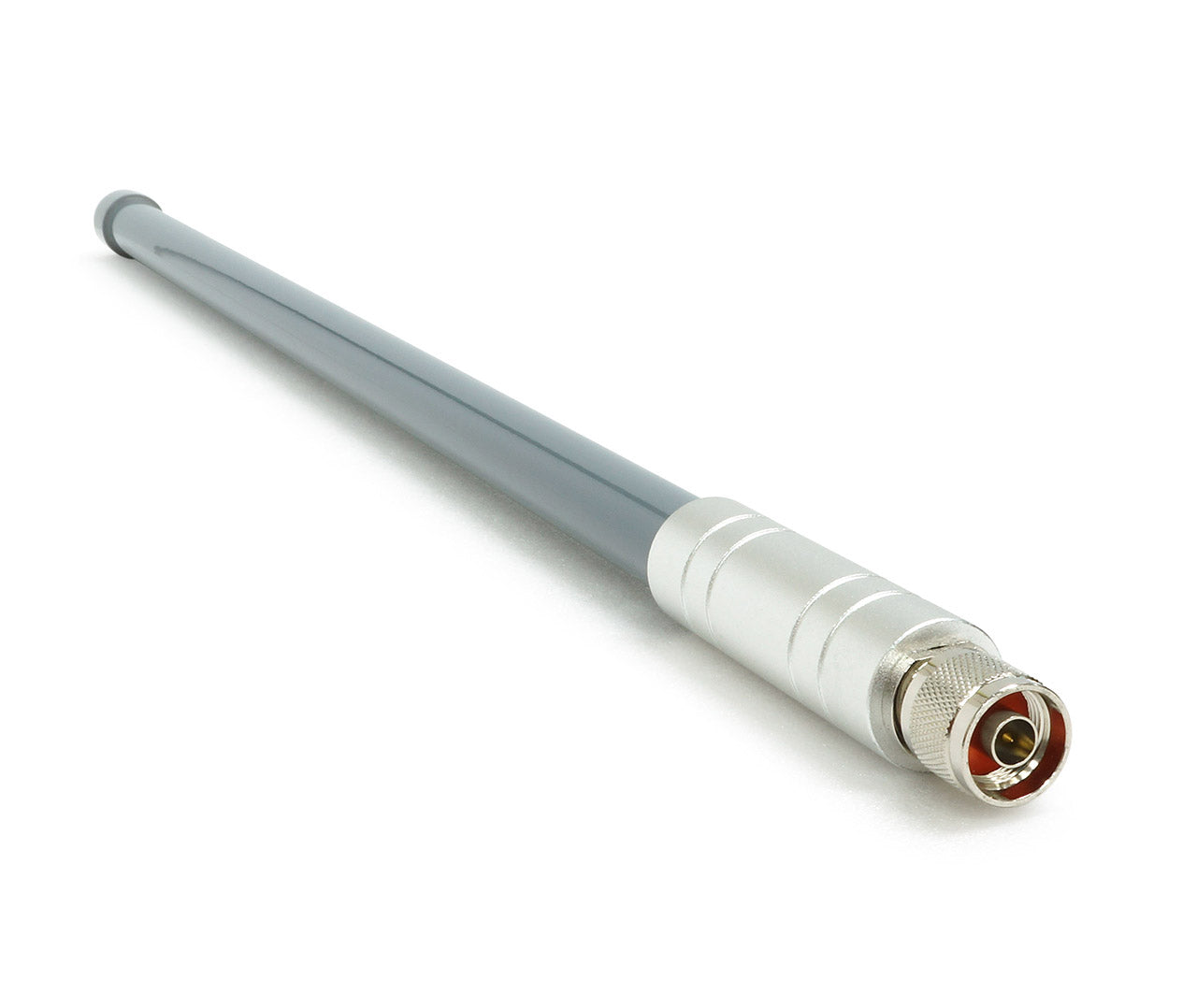

AOA-8696-3ACM is the 868 MHz to 960 MHz omnidirectional antenna which design for multipoint, Non-Line-of-Sight (NLOS) and mobile applications.
Application
•800 MHz / 900 MHz ISM Band
•WiFi HaLow
•IoTLoRA
•Cellular and GSM
•RFID

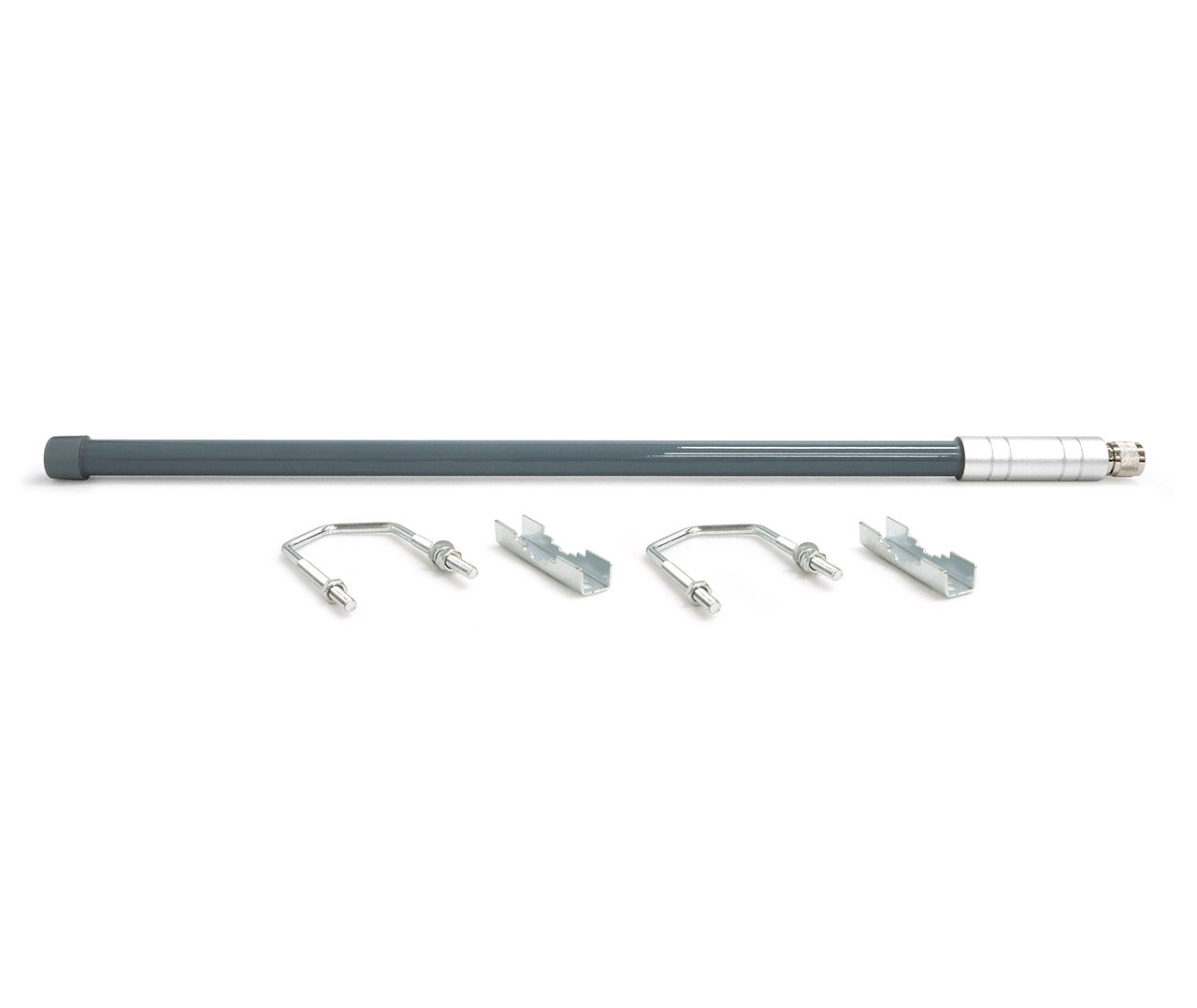

Package content
VSWR
Pattern
2D Diagram
Pole Mount Installation Guide
| Frequency | 868 MHz ~ 960 MHz |
| Gain | 3 dBi |
| V.S.W.R | ≤ 2.0 |
| Impedance | 50 Ω |
| Radiation | Omni Direction |
| Polarization | Vertical |
| Connector | N male |
| Maximum Input Power | 50 W |
| Lightning Protection | DC Grounded |
| Antenna Material | Fiberglass |
| Mount Style | Pole |
| Diameter of Installation Pole | Ø30 ~ Ø50 mm |
| Antenna Dimension | 600 mm x Ø 20 mm |
| Weight | 200 g |
| Operating Temperature | -40 ℃ to +80 ℃ |
| Rated Wind Velocity | 60 m/s |
