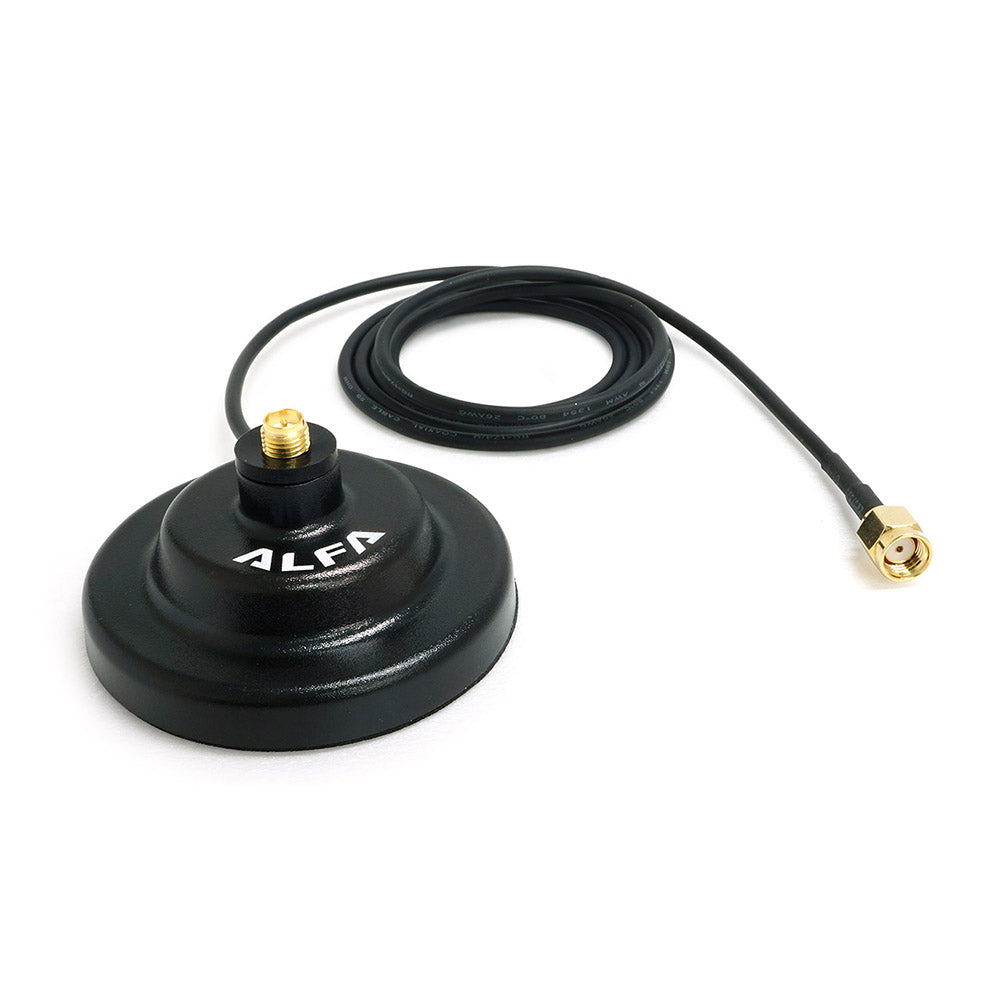

ARS-AS01

Single antenna magnetic base stand with 1-meter cable and RP-SMA connectors

(1) Base with magnet
(2) RP-SMA (female) antenna connector

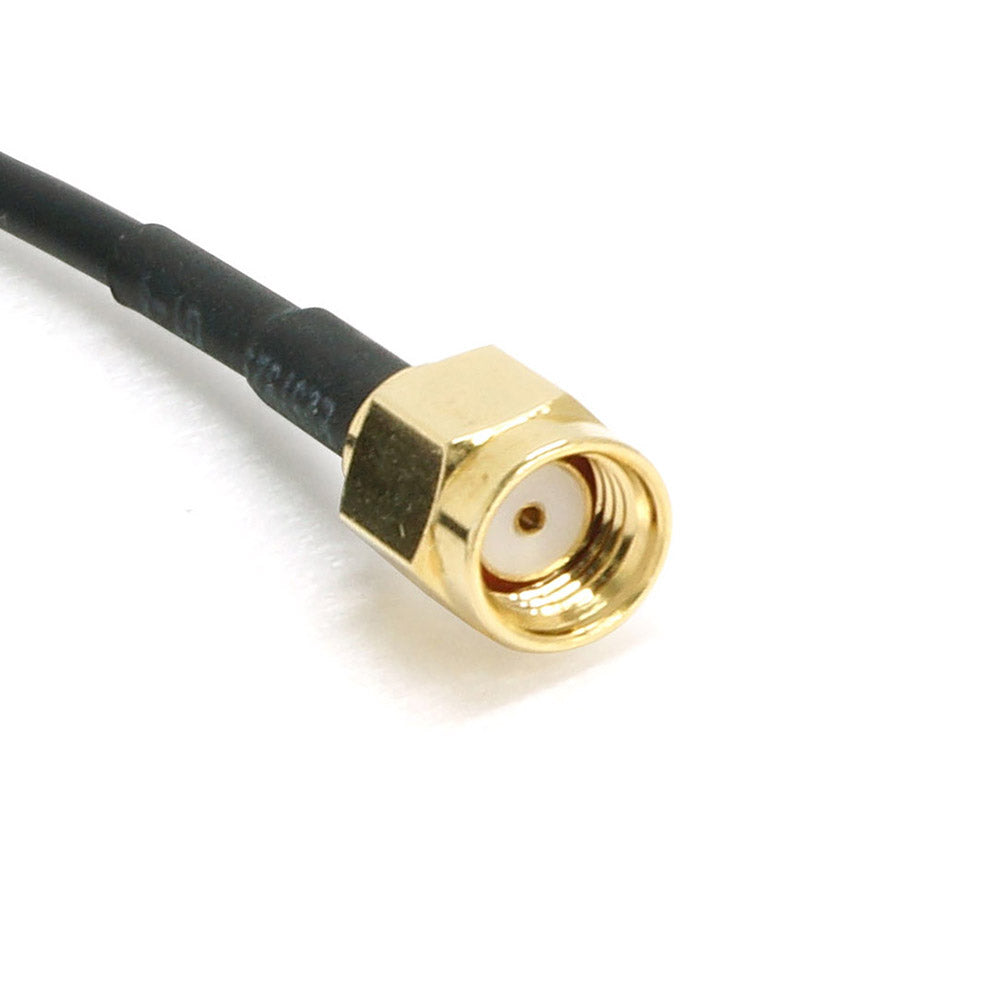

(3) RP-SMA (male) antenna connector
(4) High-quality RG-174 RF cable (1 m length)

Description

ARS-AS01 is a single RP-SMA antenna stand with magnetic base

Equipped with a magnet to ensure positive mounting, the ARS-AS01 mount is ideal for indoor applications where antenna positioning at a distance is required.

This mount includes a 1-meter, high-quality and low-loss RG-174 RF cable with RP-SMA (male) connectors at the end, suitable for any WiFi equipment with single antenna.

Specifications

Antenna connector	1× RP-SMA female (magnetic base) 1× RP-SMA male (RF cable end)
Frequency range	1 ~ 6 GHz
Impedance	50 Ω
RF cable type	RG-174
RF cable length	1 m
Operating temperature	-40 ° ~ 80 ° C
Dimensions	∅ 60 mm
