ARS-AS04T

Quad magnetic antenna stand with 2 m length RG-174 RF cable

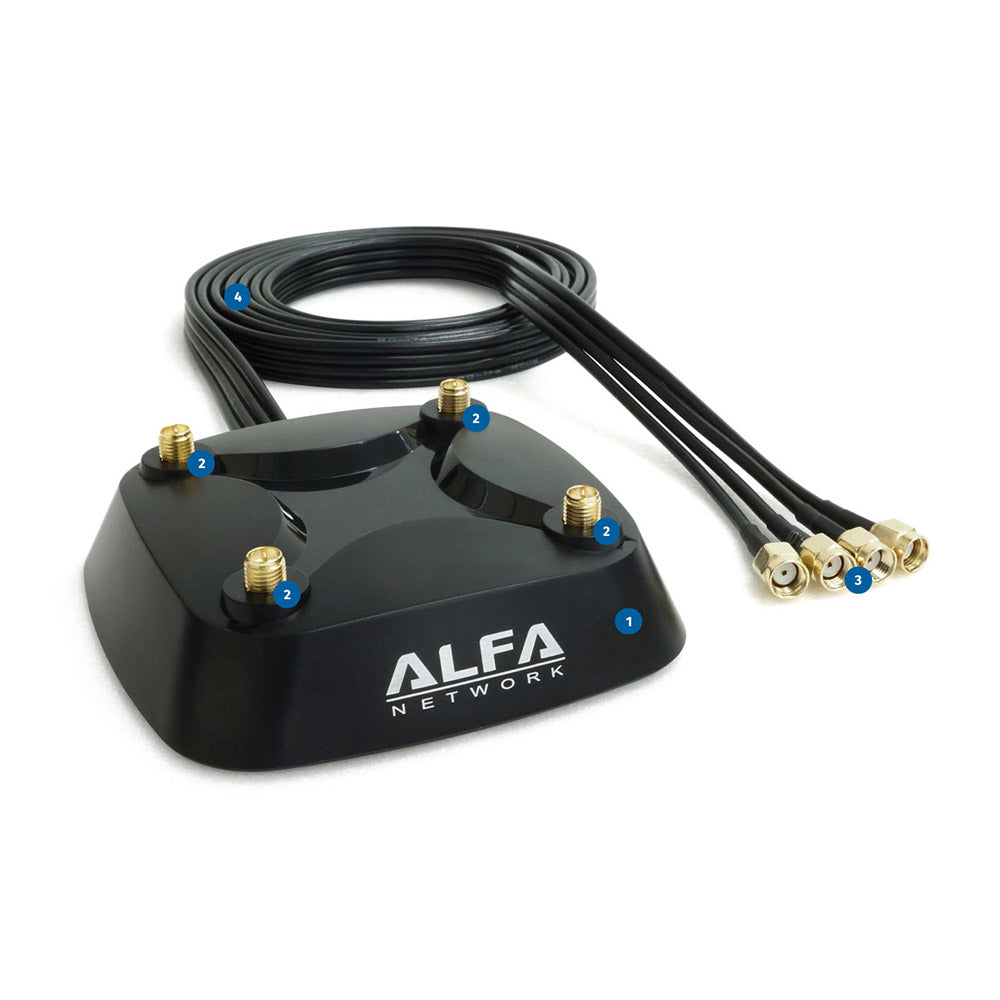

(1) Base with magnet
(2) 4× RP-SMA (female) antenna connector

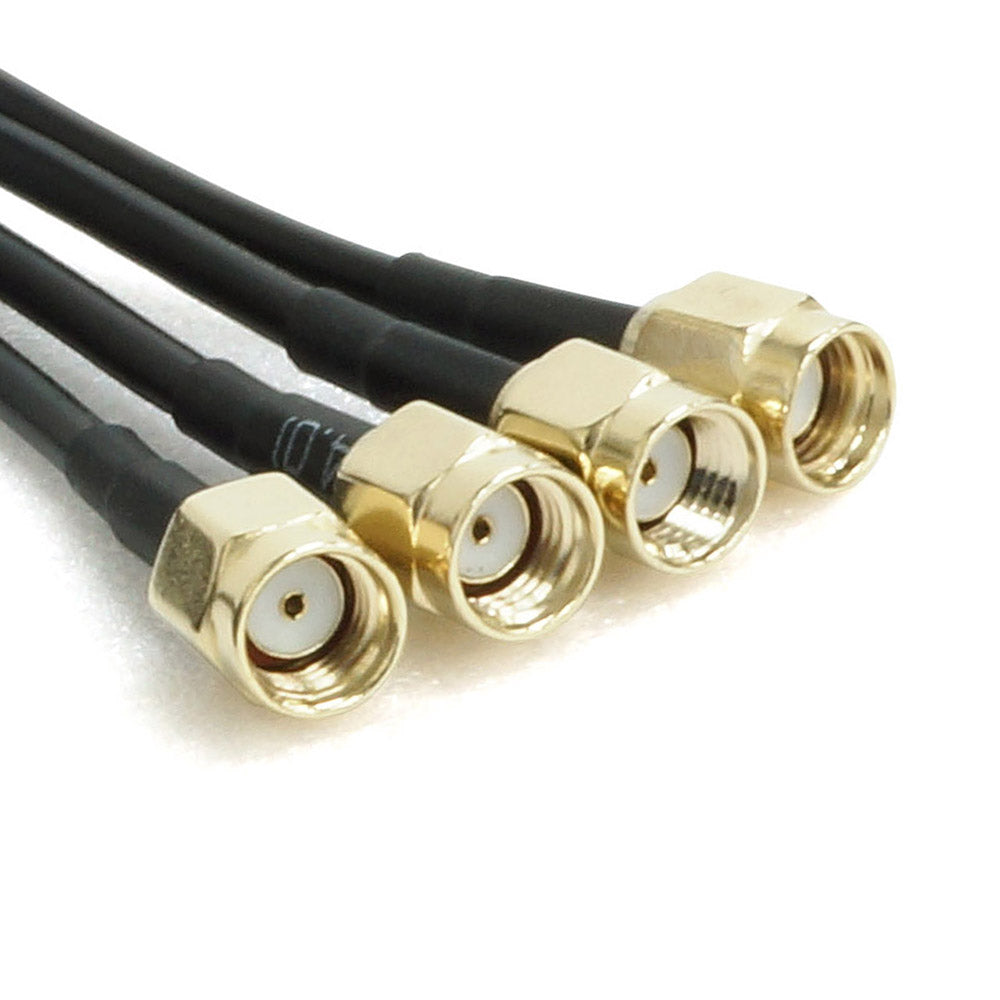

(3) 4× RP-SMA (male) antenna connector
(4) High-quality RG-174 RF cable (2 m length)

Description

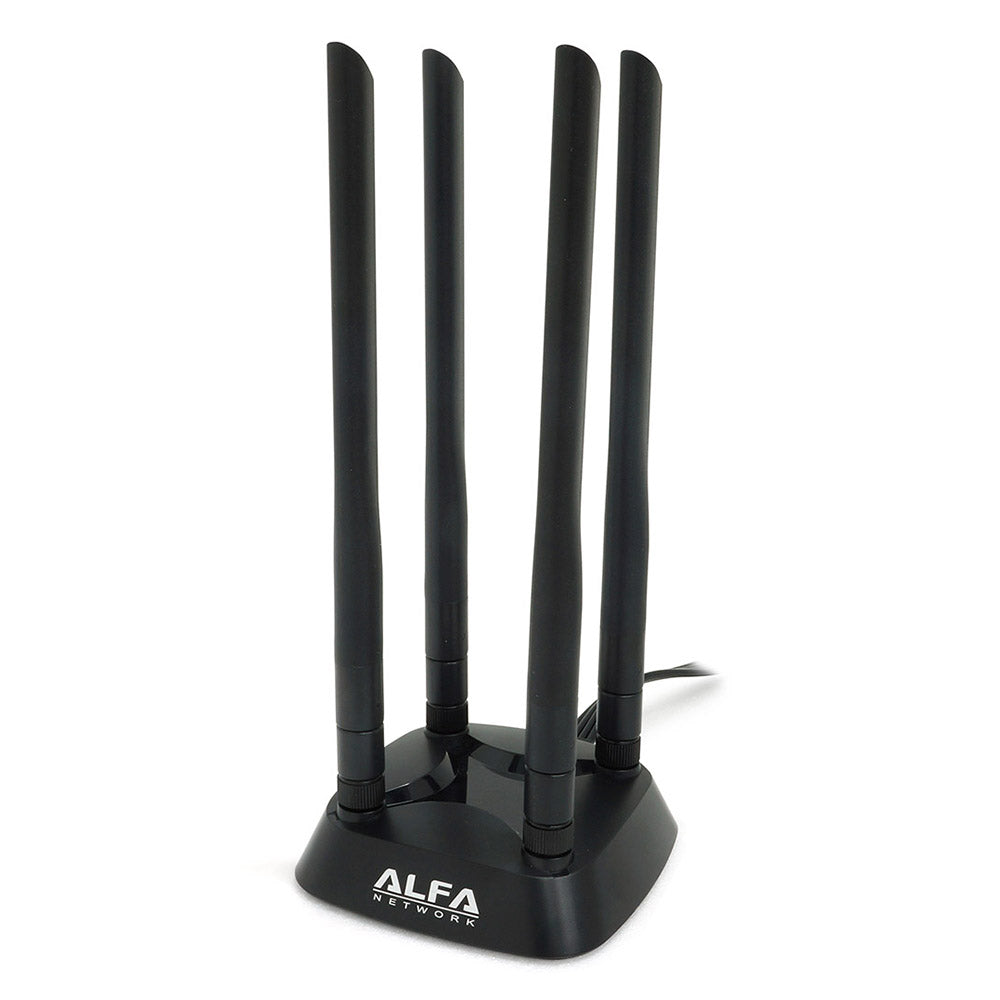

ARS-AS04T is a 4x4 antenna stand with magnetic base

Equipped with a magnet to ensure positive mounting, the ARS-AS04T mount is ideal for indoor applications where antenna positioning at a distance is required.

This mount includes a 2-meter, high-quality and low-loss RG-174 RF cable with RP-SMA (male) connectors at the end, suitable for any WiFi equipment with four antennas.

Specifications

Antenna connector	4× RP-SMA female (magnetic base) 4× RP-SMA male (RF cable end)
Frequency range	0 ~ 6 GHz
Impedance	50 Ω
RF cable type	RG-174
RF cable length	2 m
Operating temperature	-40 ° ~ 80 ° C
Dimensions	95.2 × 95.1 × 22.5 mm
