APA05

APA05

2.4GHz 800mW Indoor Amplifier / Booster


  • Increases Signal Distance
  • Increases Throughput
  • Quick & Easy Installation
  • Immediate Results
  • No Programming Required
  • Complete with Power Supply

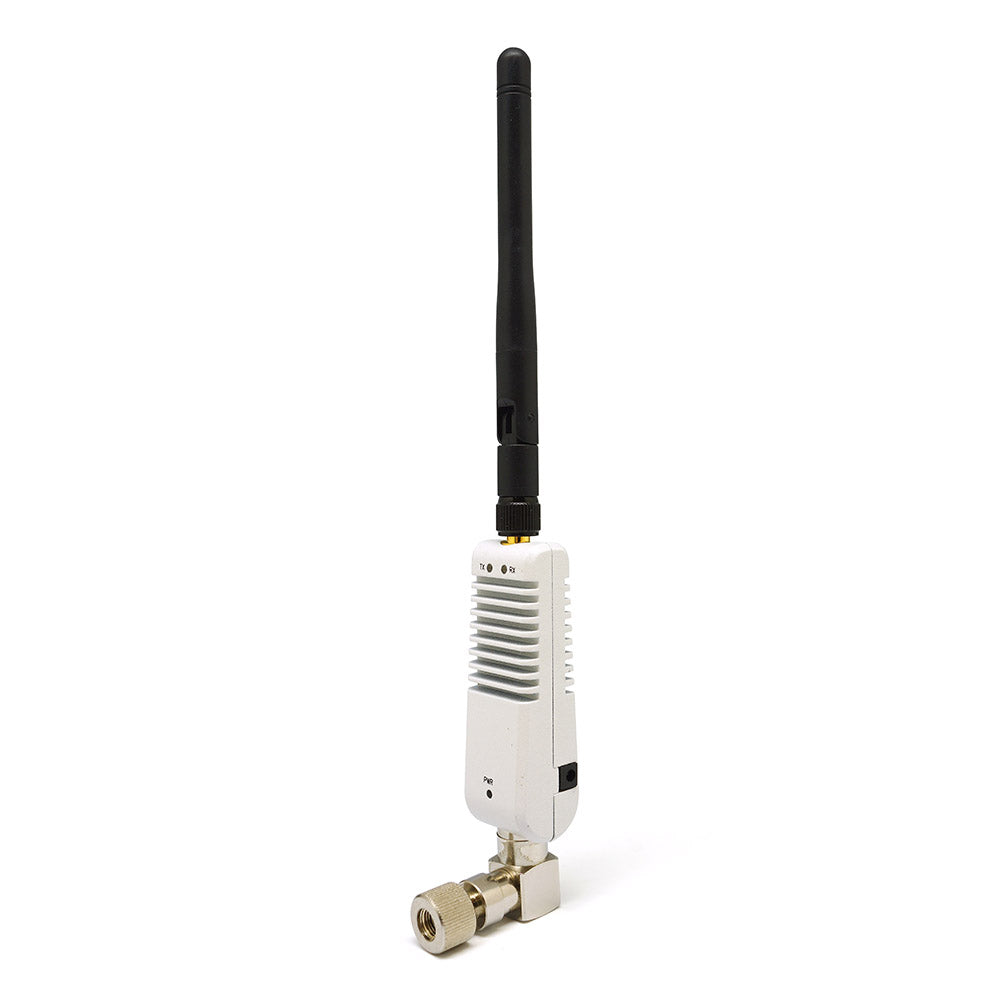

The APA05 Wi-Fi Signal Booster is a highly efficient and compact unit designed to increase the performance and range of any 2.4 GHz wireless device. This includes Bluetooth, P2P, P2MP, 802.11n, 802.11b, 802.11b+, 802.11g, and 802.11b+g+n access points and wireless routers.

The APA05 extends signal range, and in certain conditions, can double the range of these wireless devices. This eliminates the use of an additional radio with its associated data line, power outlet, signal interference, and setup headaches. The APA05 is the fast and easy way to extend your signal range in any environment.

Perfect For

  • WiFi
  • Drone
  • Video Transmission
  • BT

Frequency Band 2.4 GHz ~ 2.5 GHz
Signal Type DSSS
TR Switch Time < 1μ sec
Weight 20 g
Size – L x W x H 155mm x 21.6mm x mm
RF Input Connector Type 90° RP-SMA Male
RF Output Connector Type RP-SMA Female
Tx Linear output Power 500 mW / +27 dBm max. @ 11g
800 mW / + 29dBm max @ 11b
Diagnosis LED Pwr@Green
Tx@Red
Rx@Amber
DC Supply Voltage 6.0V, 1A
Rx Input power -10 dBm
Tx Input power +20 dBm
Operating Temperature -20 ~ +50 °C
Storage Temperature -40 ~ +90 °C
