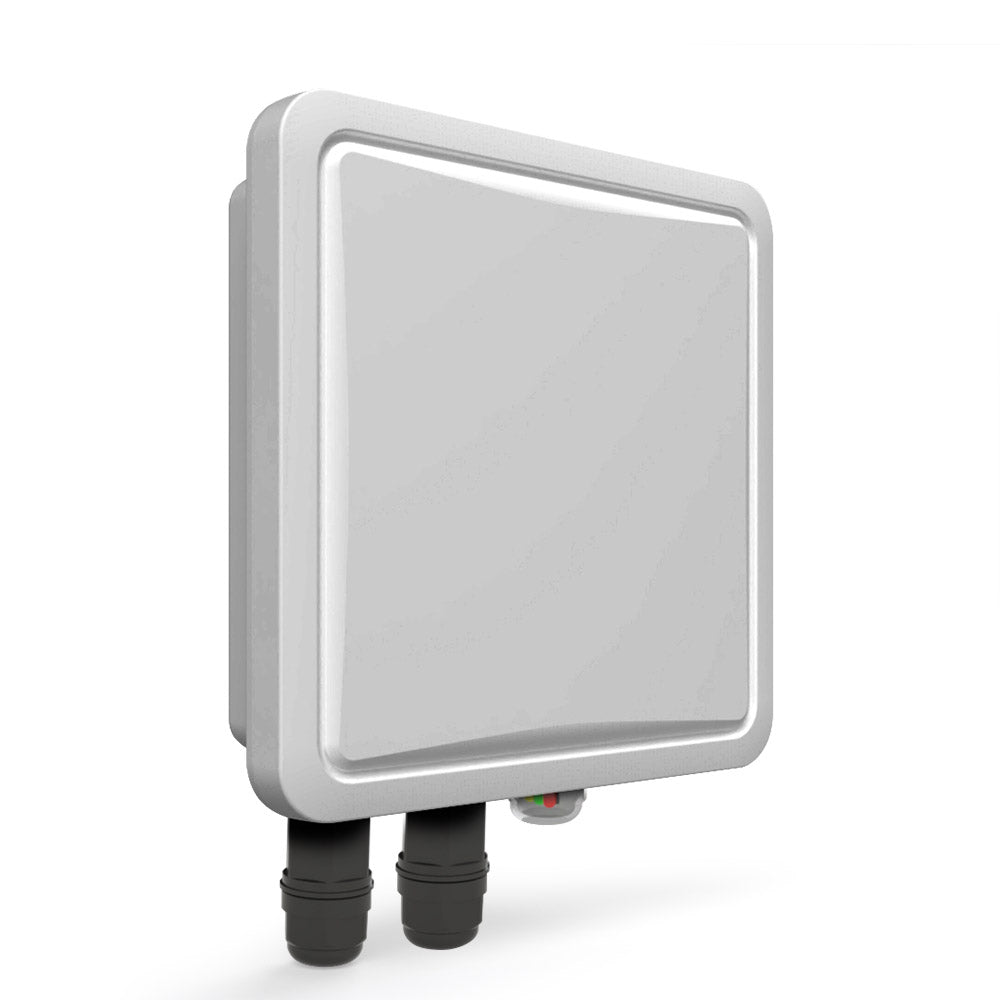

Solo-N2H

Solo-N2H

Solo-N2H


  • 2.4GHz IEEE 802.11n 2x2 MIMO
  • Data-rate up to 300Mbps
  • High power and High sensitivity
  • Long-Range Distance
  • RF output power adjustable
  • Support Gateway, Bridge and WISP mode
  • Multiple ESSID
  • Passive 24V PoE

Antenna Angle Adjustable

Application

Package contents

  • Solo-N2H Device
  • L-mount kits
  • PoE adapter 24VDC
  • Power cord for PoE adapter
  • RJ45 waterproof accessory
  • LED+Reset waterproof cover

Model Solo-N2H
Chipset Atheros AR7240
Frequency 2.4GHz
Flash/SDRAM 8M / 32M
Data Rate 802.11b: 11, 5.5, 2, 1Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9 &6Mbps
802.11n: up to 150Mbps
Interface 1x Ethernet RJ45 (PoE)
3x LED indicator
1x Reset button
Output Power Up to 27dBm
Sensitivity -96dBm @ 802.11b
-91dBm @ 802.11g
-91dBm @ 802.11n
Antenna Build-in high-gain
Mimo Antenna
Dimension(mm) 230 x 230 x 75mm
Material Plastic UV protect
Wireless Mode AP Router
AP Bridge
Client Adapter
Client Router
WDS Bridge
Software Distance control
ACK timeout
SNMP V.1, V.2
VLAN
Client Isolation
Access control list
Security 64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
WPA Mixed
802.1x authentication
Power requirement 24VDC Passive PoE
Mounting Antenna adjustable mast
mount
