AIP-W525H

AIP-W525H

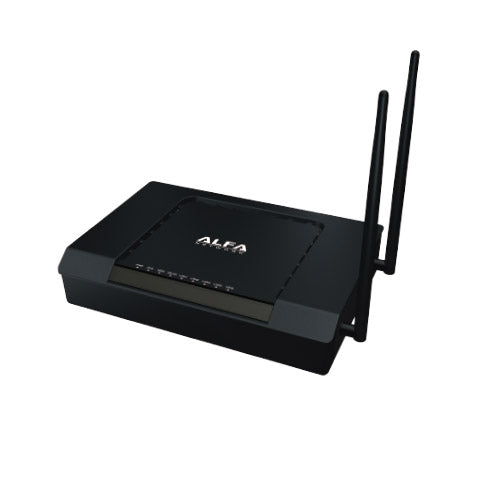

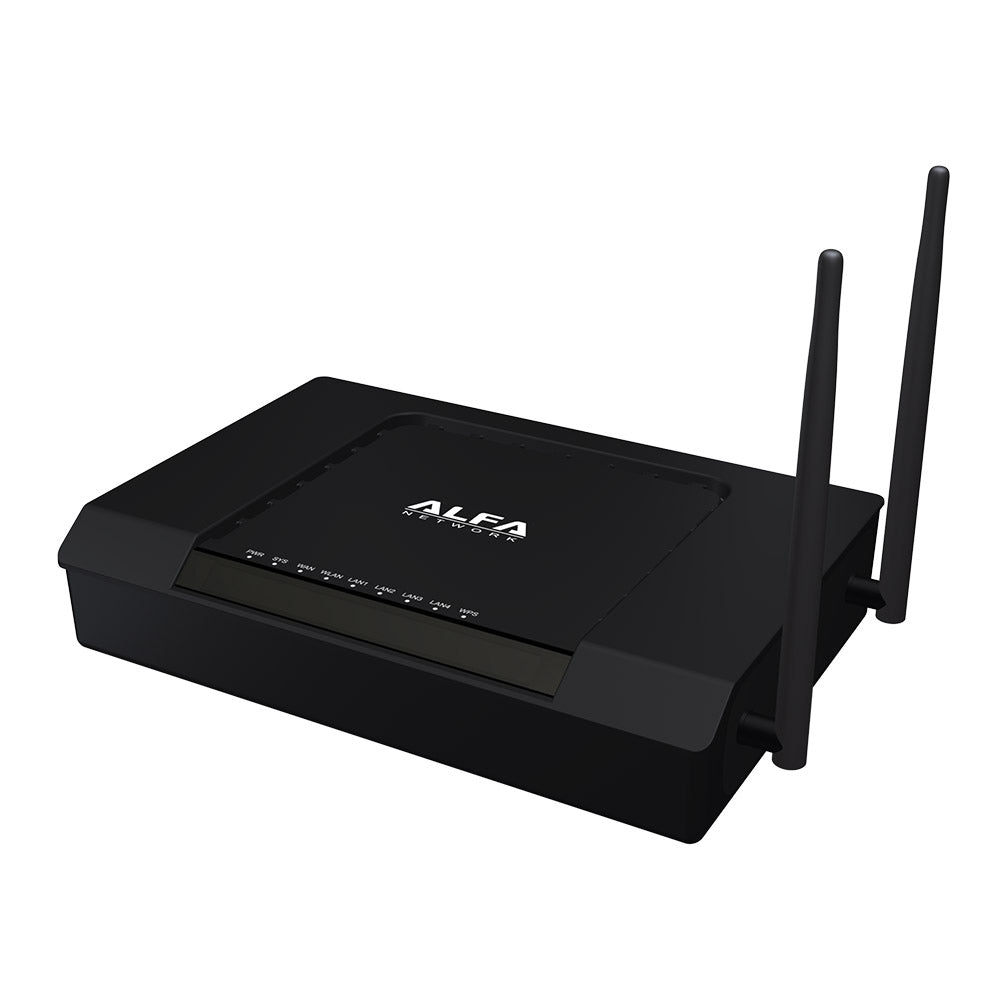

AIP-W525Hv2 is a long-range 4LAN +1WAN AP/Router supporting more than 2x the coverage range compared to other routers


  • 2.4GHz IEEE 802.11n 2x2 MIMO
  • Easy Setup Wizard
  • Data-rate up to 300Mbps
  • Wide coverage
  • Multiple SSID
  • Support Gateway, Bridge and WISP mode
  • WAN port remote access
  • Telnet Supported
  • WAN or LAN1 Passive PoE in
  • LAN4 Passive PoE out to other devices

AIP-W525Hv2 is a long-range 4LAN +1WAN AP/Router supporting more than 2x the coverage range compared to other routers. It also provides a high-speed data-rate up to 300Mbps. AIP-W525Hv2 unique passive PoE design can be easily installed and powered by 12V~18V Passive PoE and output the passive PoE to another device as well.

Application Diagram

Model AIP-W525v2
Standard IEEE 802.11b/g/n
Chipset RTL8196C
Antenna 2x 5dBi antennas detachable
Frequency 2.400~2.483GHz
Output Power 802.11b: up to 28 ± 1 dBm
802.11g: up to 26 ± 1 dBm
802.11n: up to 26 ± 1 dBm
Sensitivity -96dBm @ 802.11b
-91dBm @ 802.11g
-91dBm @ 802.11n
Security 64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
WPA Mixed
802.1x authentication
Operation
Temperature
-20°C ~ 60°C
Dimension(mm) 147 x 98 x 30 mm
Operation Mode Gateway
Bridge
Wireless ISP
Wireless Mode AP
Client
WDS
AP+WDS
Data Rate 802.11b: 11, 5.5, 2, 1Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9 &6Mbps
802.11n(20MHz): up to 144Mbps
802.11n(40MHz): up to 300Mbps
Power requirement DC Jack: 12V DC
PoE: 12~18VDC Passive PoE
Storage Humidity 10% ~ 90% (Non-condensing)
Interface RP-SMA antennas connectorx 2
RJ-45 WAN port x 1
RJ-45 LAN ports x 4
Reset Button x 1
WPS Button x 1
