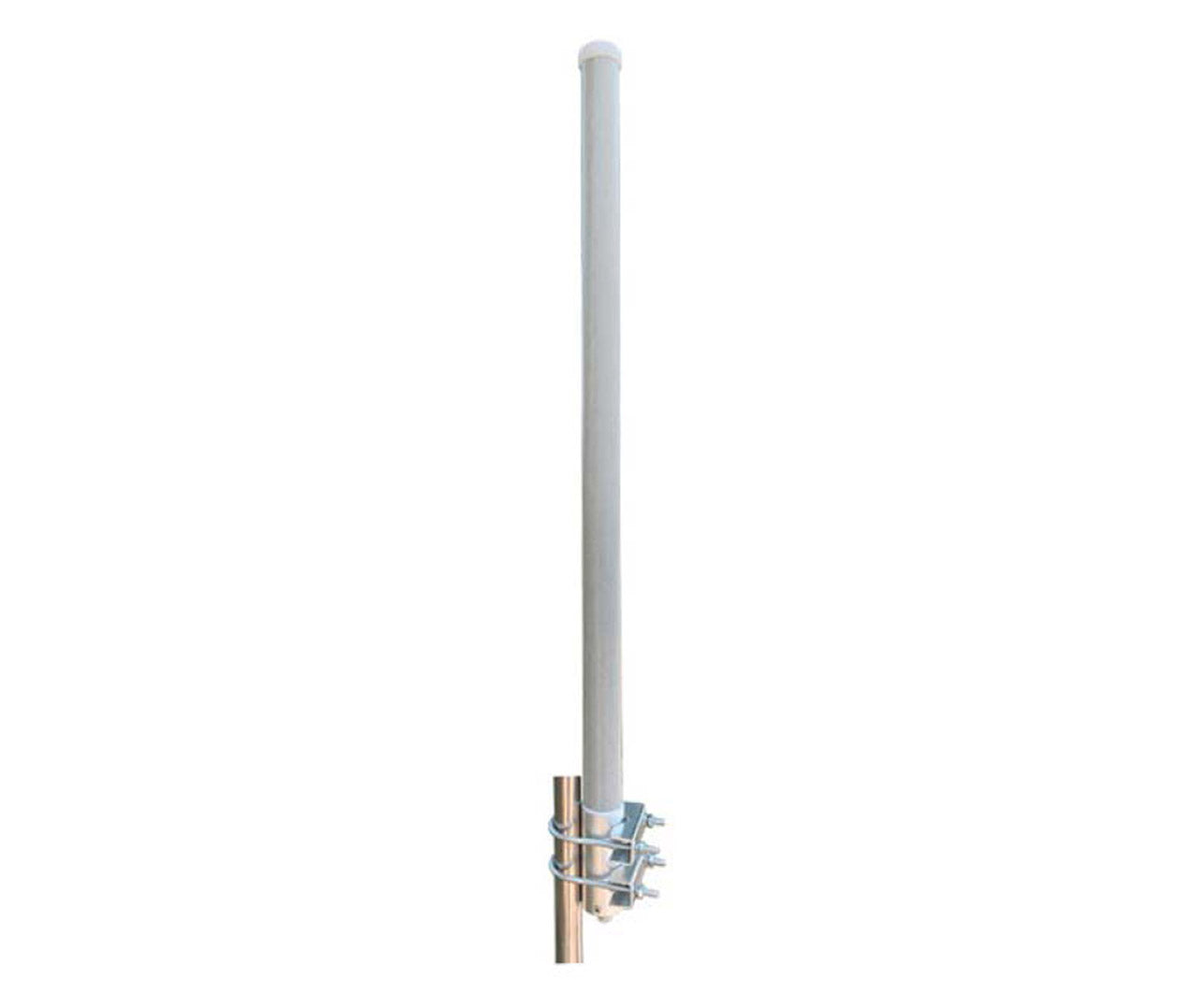

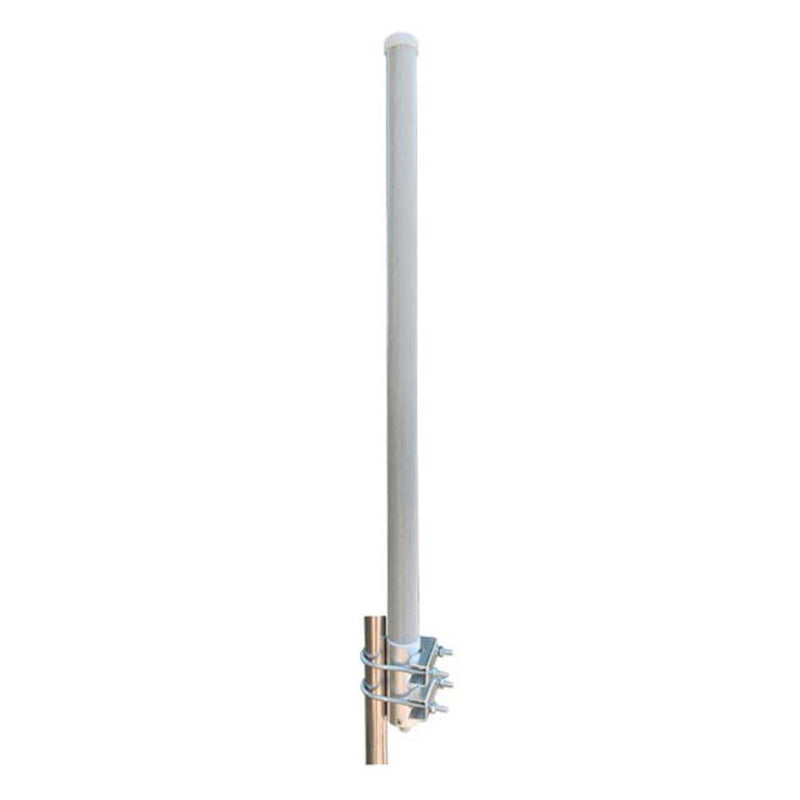

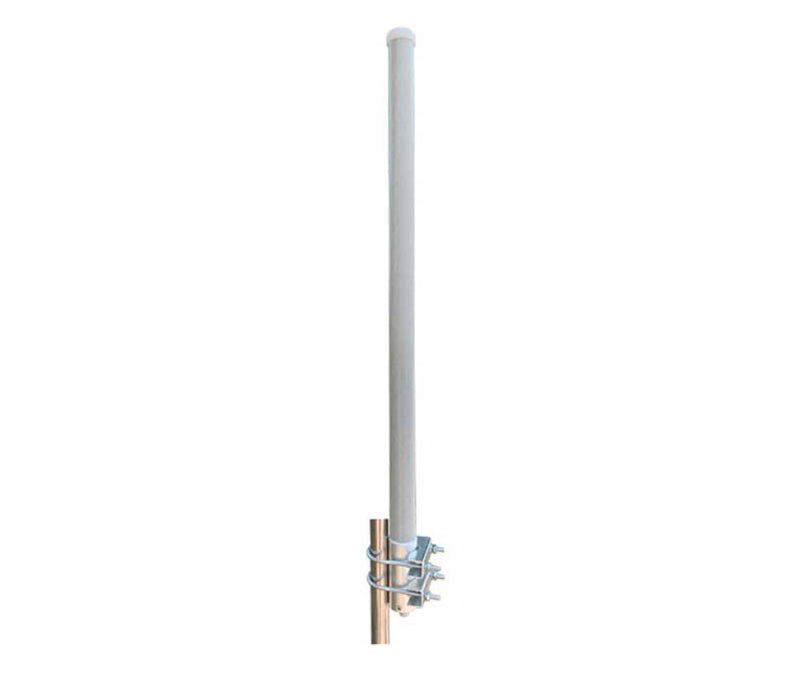

AOA-4G-10F

4G/LTE Ultra Wideband Omni Antenna 10 dBi N female

Specifications

Frequency	698 – 960 MHz 1710 – 2700 MHz
Gain	10 dBi
V.S.W.R	≦ 1.8
Radiation	Omni
Connector	N female
Horizontal Beam width	360°
Vertical Beam width	18°
Polarization	Vertical
Impedance	50 Ω
Maximum input power	100 W
Radome material	Fiberglass
Dimensions	Ø 52 x 1050 mm
Weight	2 kg
Diameter of installation pole	Ø 30 ~ Ø 50 mm
Operating temperature	-40° C ~ 70° C
Rated wind velocity	60 m/s
