AOA-4G-5W

AOA-4G-5W

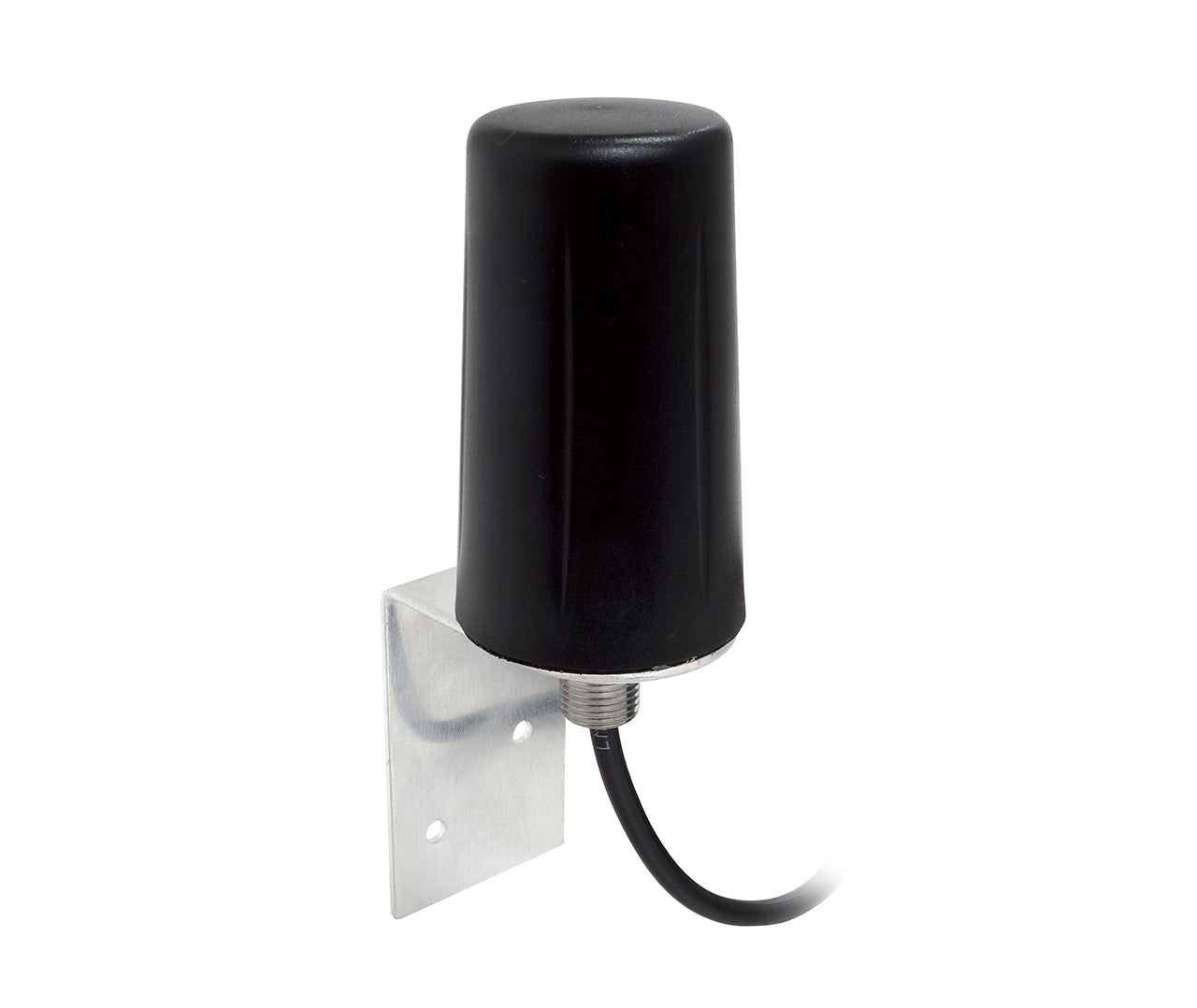

AOA-4G-5W 4G LTE Oudoor Wall Mount Omni Antenna



VSWR Radiation Pateern Dimension Installation Guide

Frequency Range 698-960 MHz
1710-2700MHz
2500-2700 MHz
Gain 4/5dBi
VSWR ≤ 2.0
Radiation Omni Direction
Horizontal Beam width 360
Vertical Beam width
Polarization Vertical
Cable Length 10 feet (3 meters)
Cable Type LMR195
Maximum Input Power 100W
Impedance 50ohm

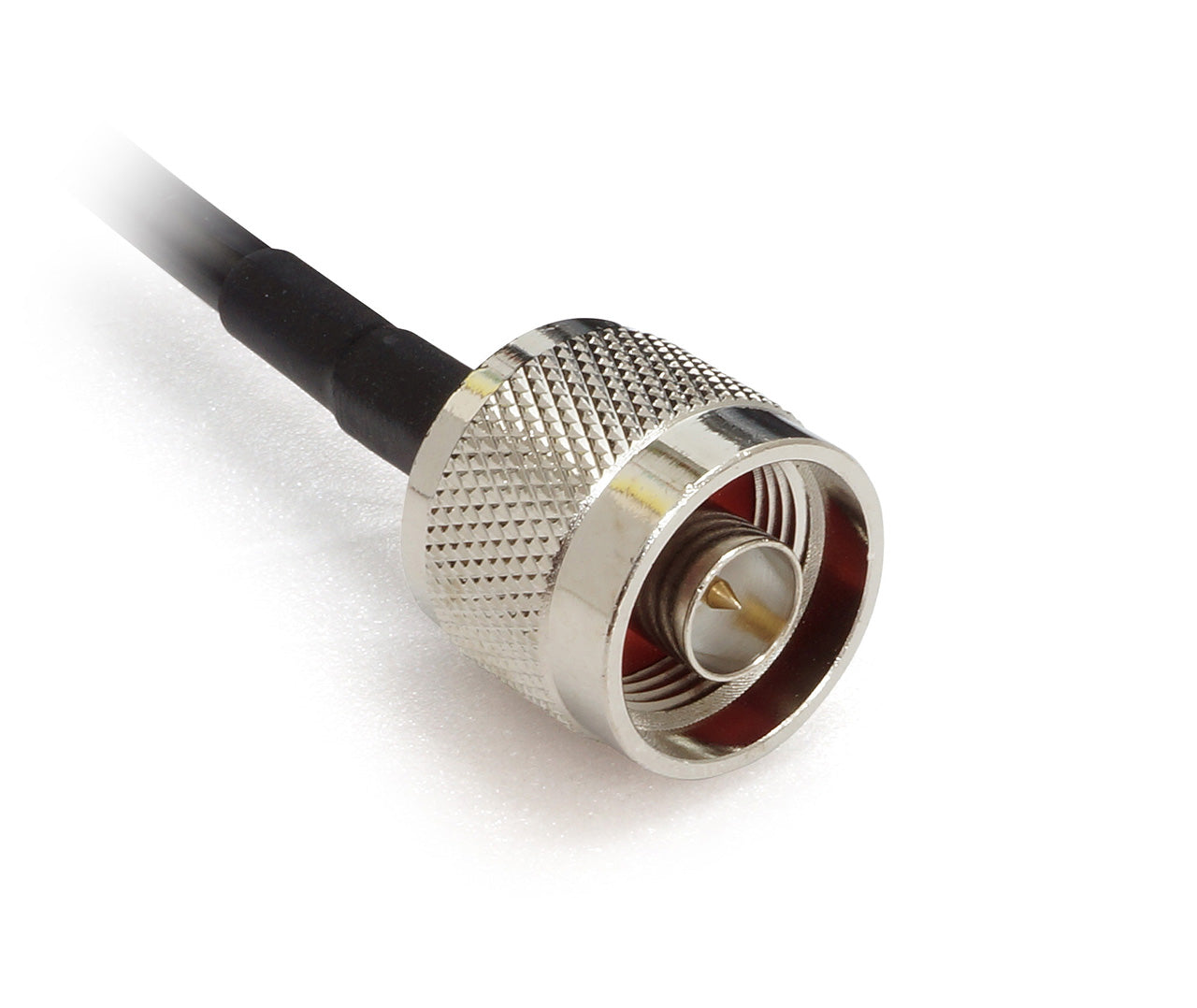

Connector N male
Antenna Material UV Plastic
Mount type Wall
Dimensions ⌀48x83mm
Weight 220g
Operating Temperatur -40 °C - 80 °C
Rated wind velocity 60m/s
