AOA-M5G

5G Mobile Omni Antenna Marine Grade

Specifications

Frequency Range	600 – 960 MHz 1710 – 4200 MHz
Gain	3 dBi @ 600-960 MHz 5 dBi @ 1710 – 4200 MHz
V.S.W.R	600 MHz ≤ 3.0 Others ≤ 2.0

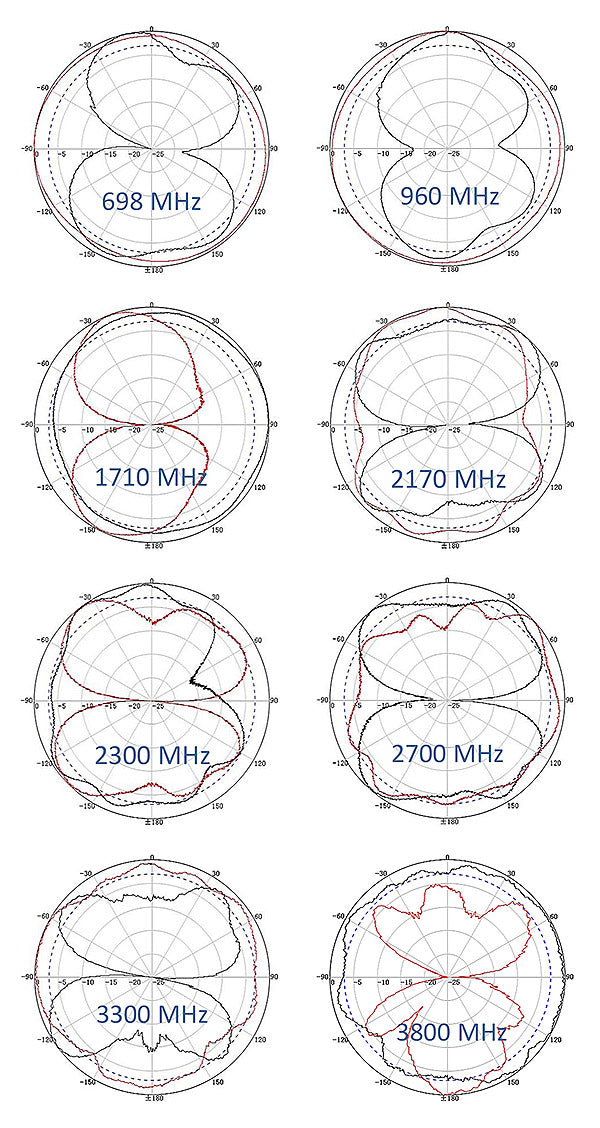

Radiation	Omni
Polarization	Vertical
Horizontal Beamwidth	360°
Vertical Beamwidth	18°
Impedance	50 Ω
Maximum Input Power	100 W
Connector	N female
Antenna Radome Material	Fiberglass
Dimensions	⌀63 x 220 mm
Diameter of Installation Pole	⌀30 ~ ⌀50 mm
Weight	580 g
Temperature	-40 °C to 70 °C
Rated wind velocity (m/s)	60 m/s
