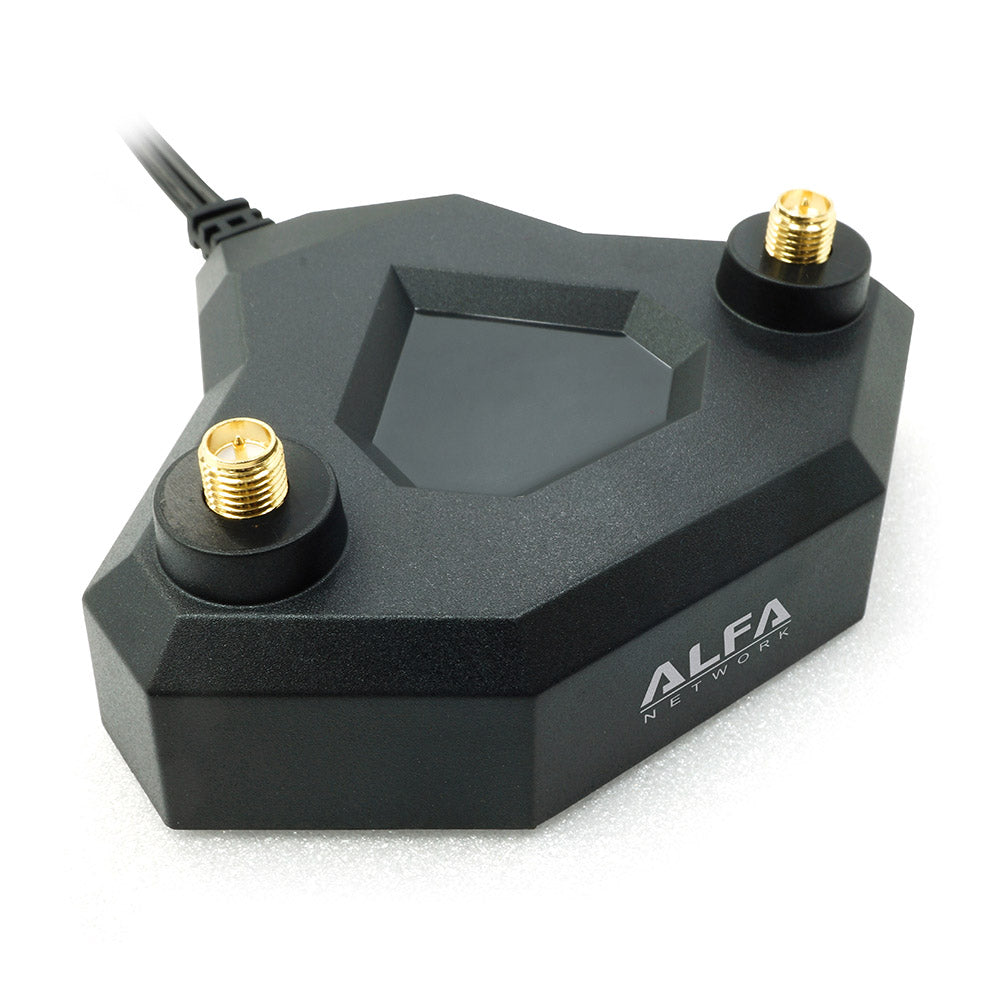

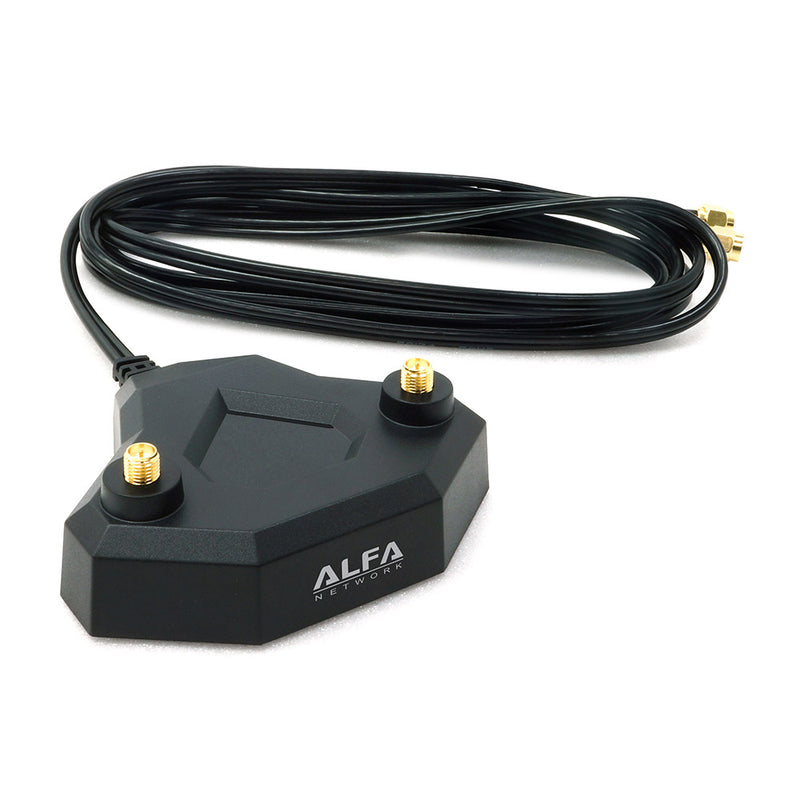

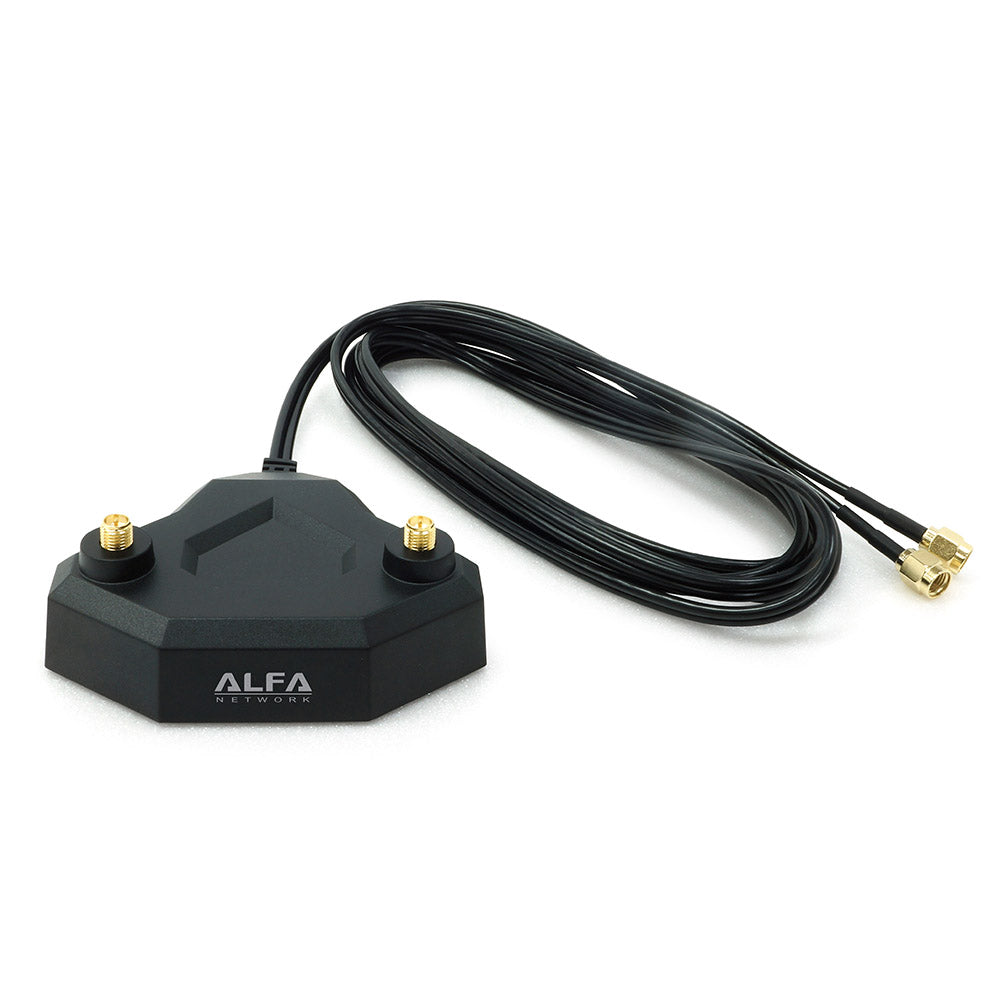

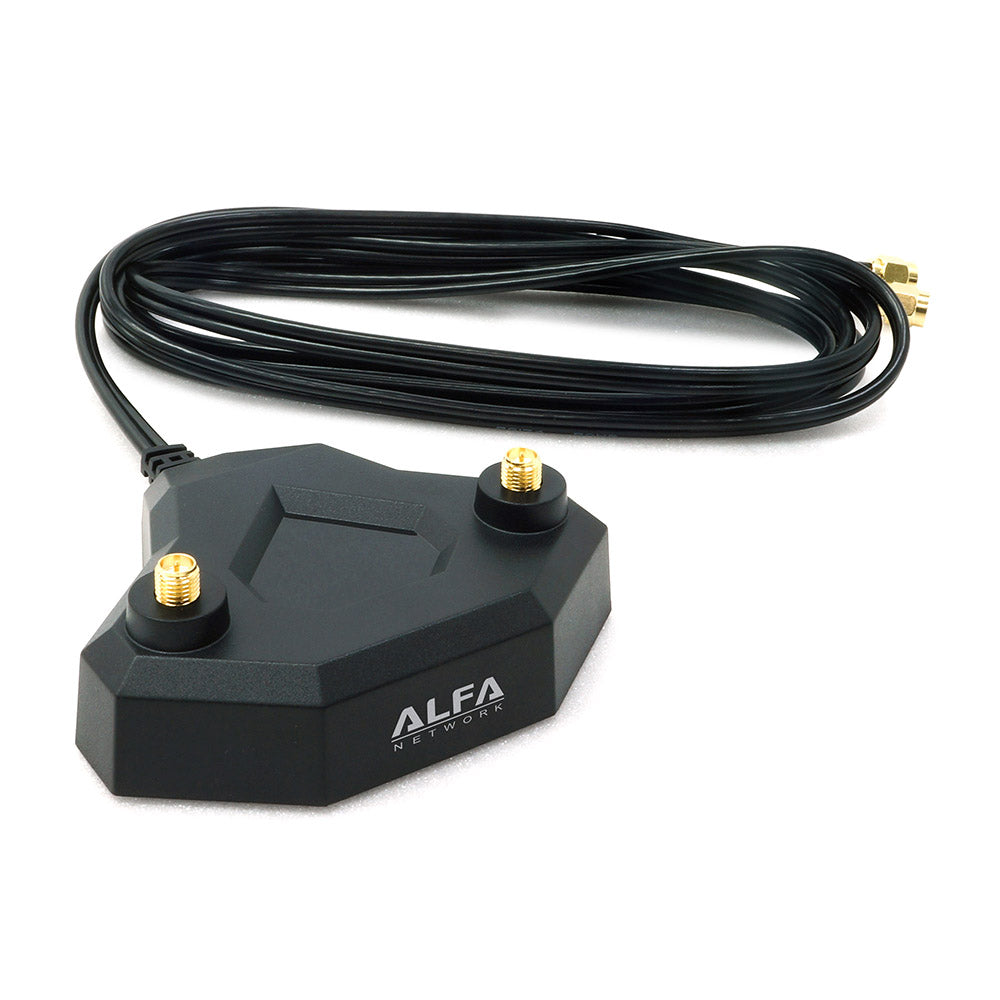

Equipped with a magnet to ensure positive mounting, the ARS-AS02T Mount is ideal for indoor applications where antenna positioning at a distance is required.

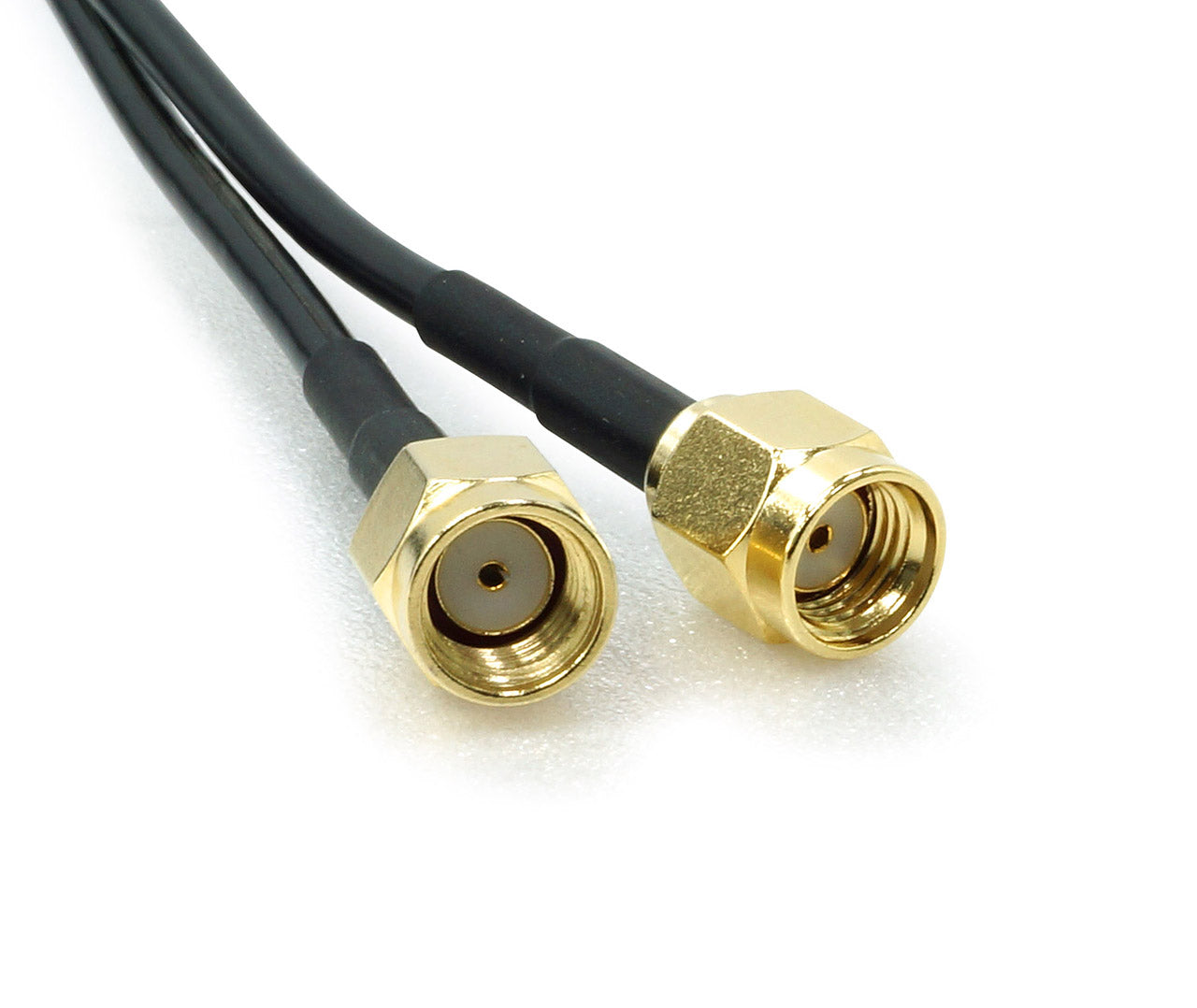

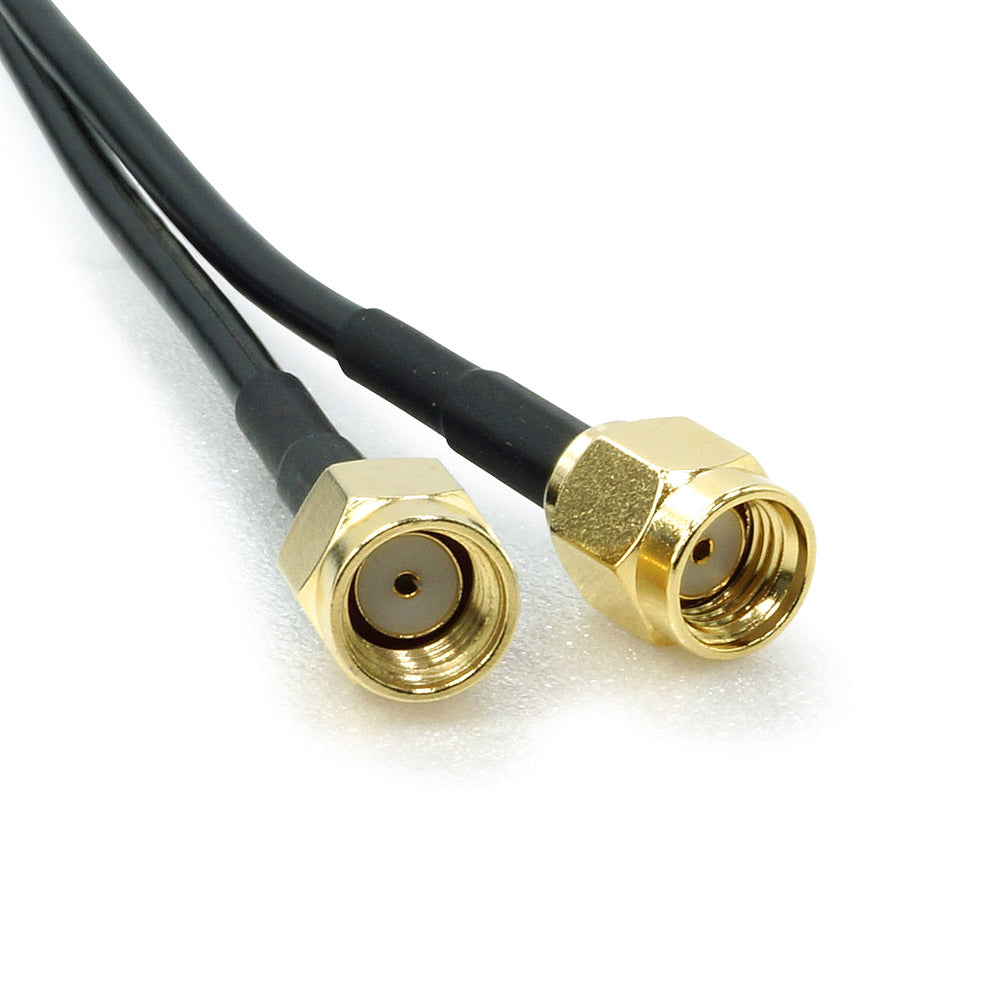

The mount includes a 2-meter, high-quality and low-cost RG-174 RF cable with RP-SMA (male) Connectors at the end, suitable for any WiFi equipment with two antennas
Key features

Specifications
|
Antenna Connector
|

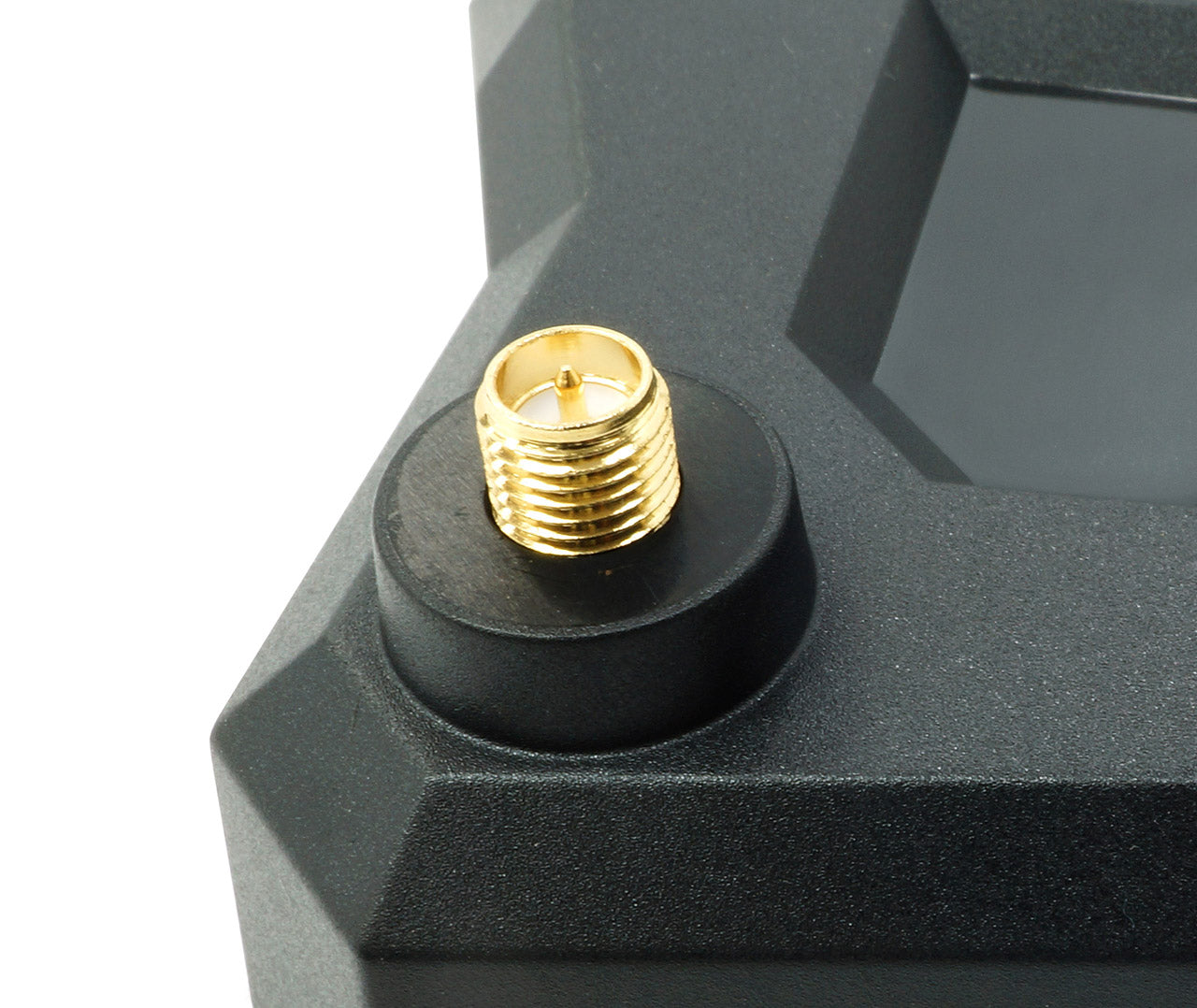

A2x RP-SMA female (magnetic base) 2x RP-SMA male (RF cable end) |
|
Frequency Range |
0 – 8 GHz |
|
Impedance |
50 Ω |
|
RF Cable Type |
RG-174 |
|
RF Cable Length |
2 M |
|
Operating Temperature |
-40° C ~ 80° C |
|
Dimensions |
89 x 81 x 31 mm |

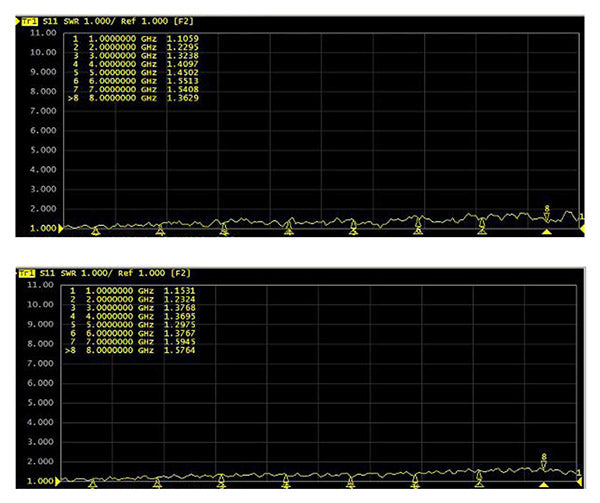

Return Loss

Dimension Drawing
