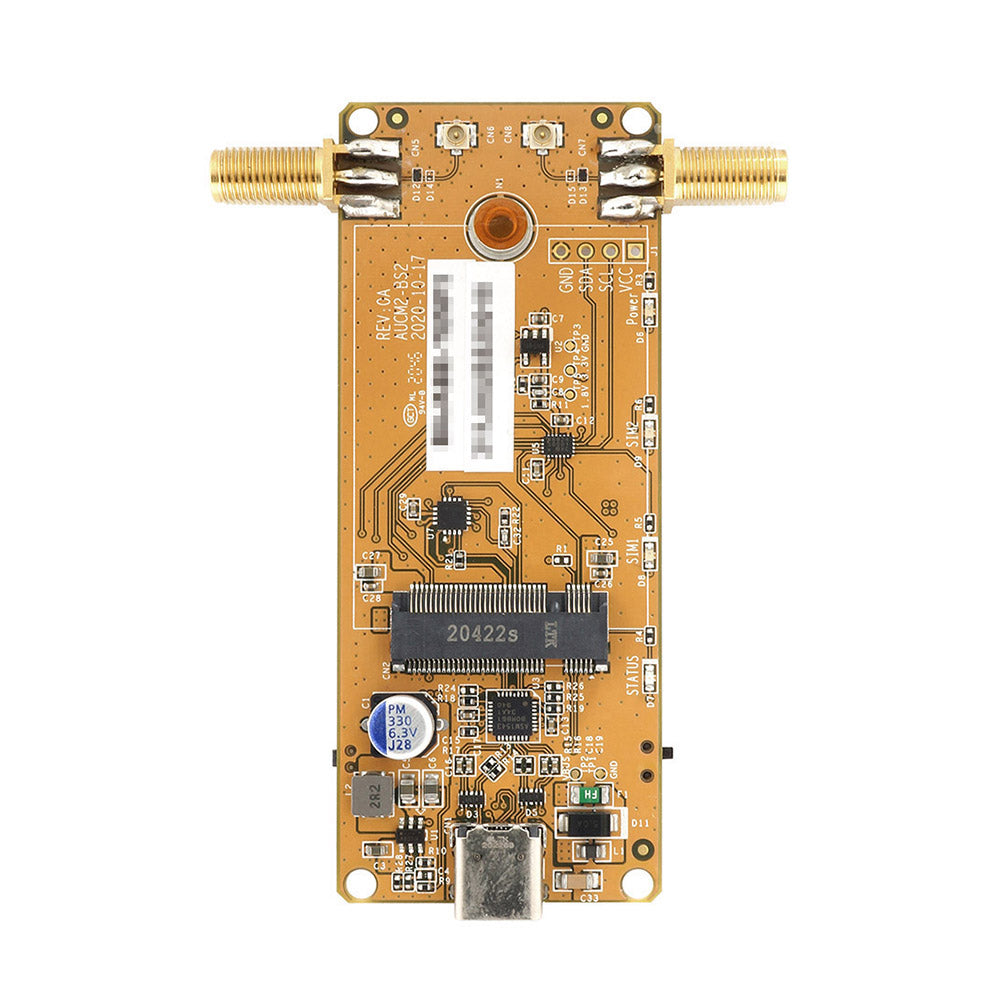

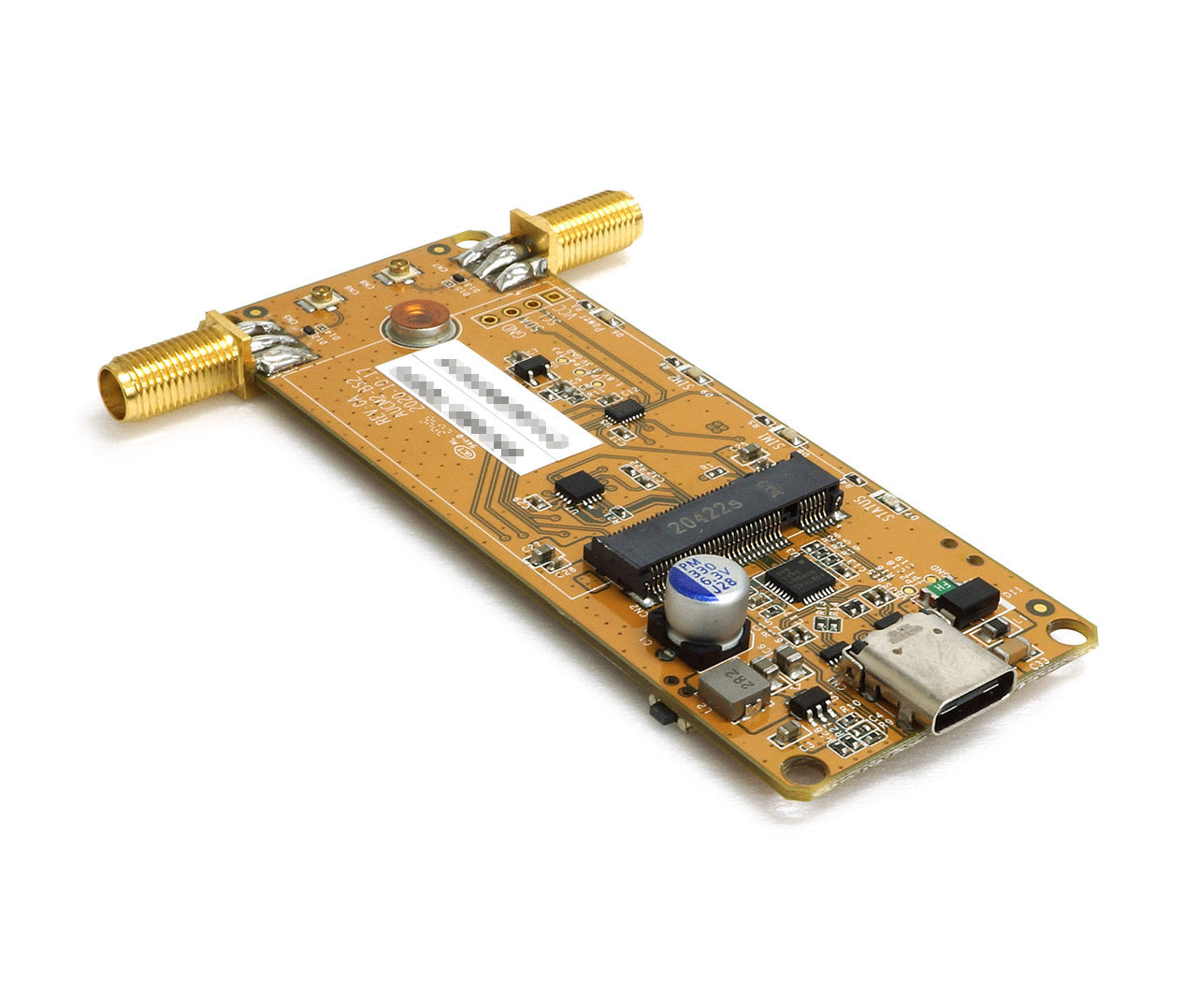

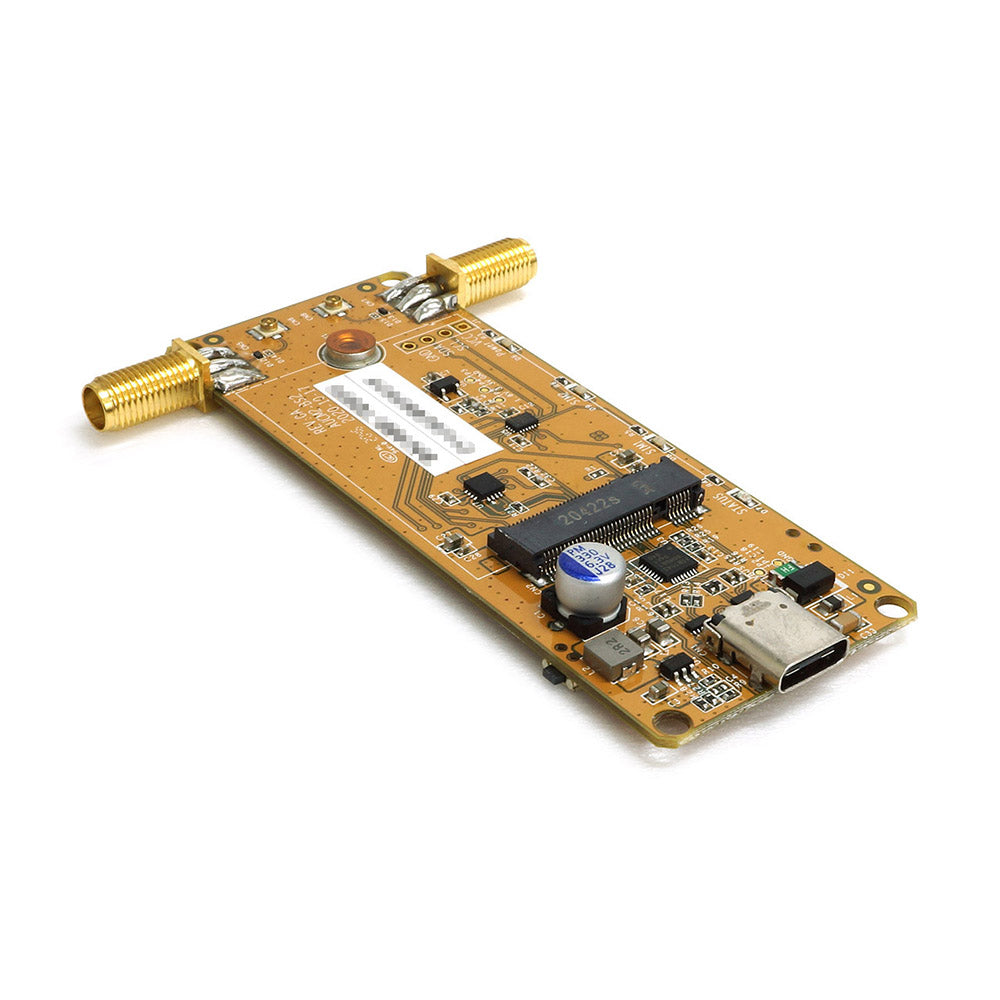

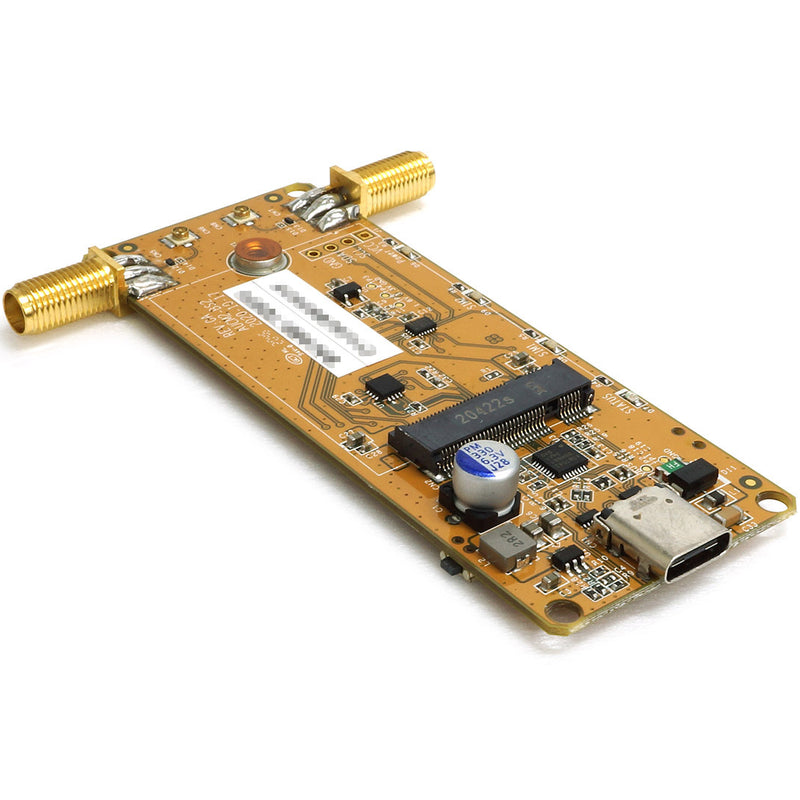

AUCM2-3042 is a Type-C to M.2 adapter dedicated for LTE modems

AUCM2-3042 offers a quick and easy way to use an M.2 LTE module on desktop or notebook PC equipped with USB connectivity.

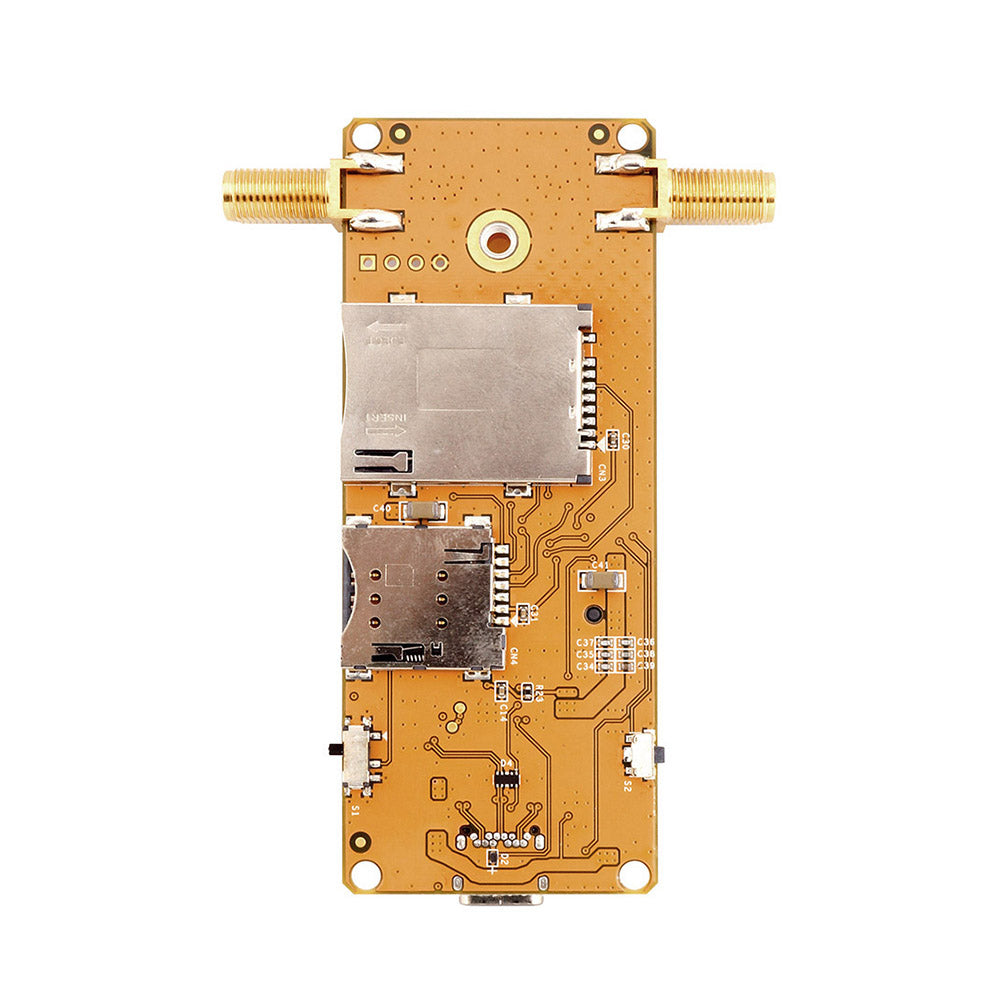

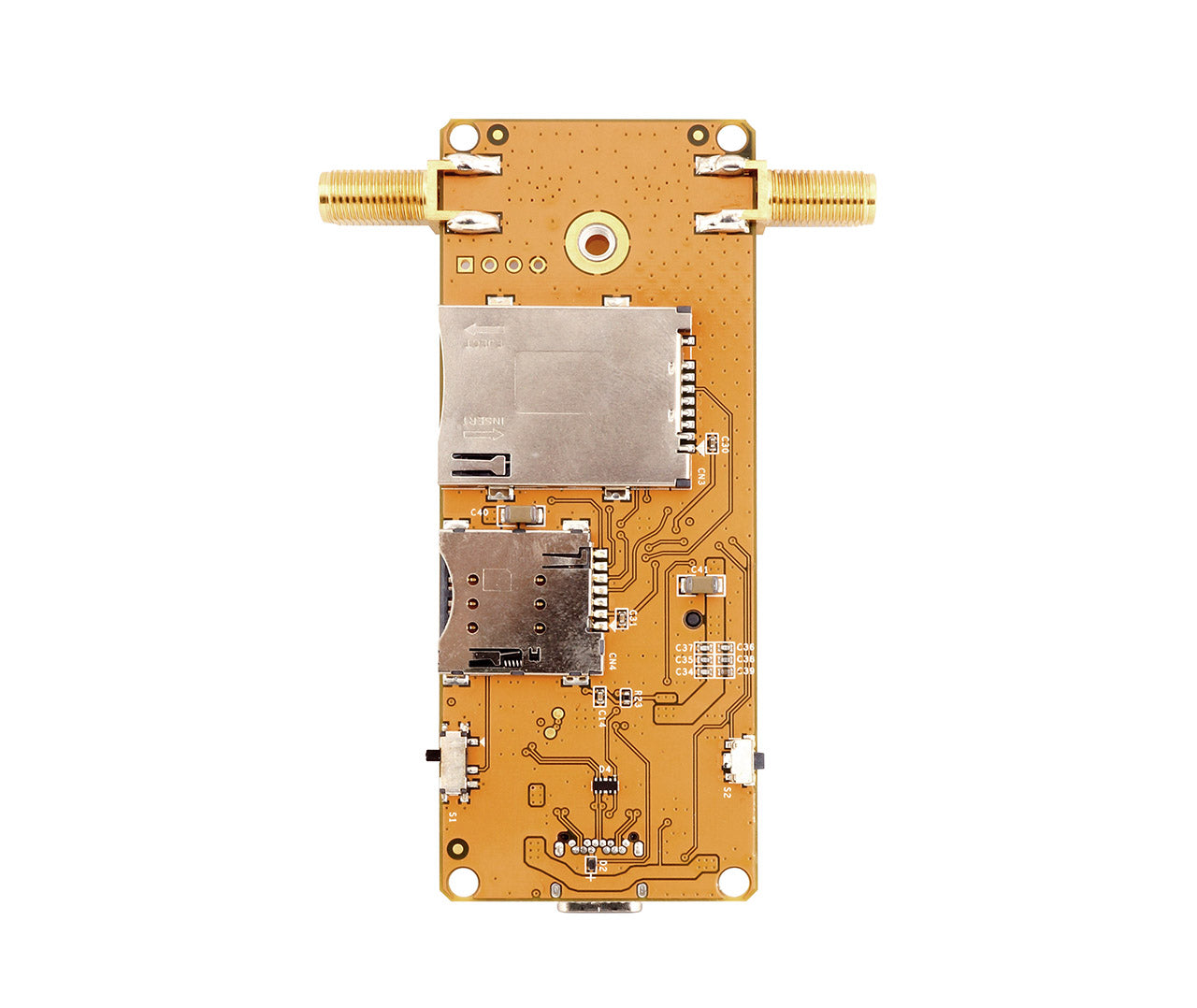

Dual (mini and micro) SIM feature with sophisticated reset logic circuit, mechanical SIM select switch and modem reset button complement rich functionality of the adapter.

Adapter includes two female SMA connectors for antennas and the bundle contains required jumper RF cables (MHF4 to IPEX/U.FL).

USB Type-C to M.2 B-key 3042 with dual SIM and reset features



Key features

  1. USB Type-C receptacle
  2. M.2 B-key 3042 with SIM and USB 2.0/3.0
  3. 4× LED
  4. 2× IPEX/U.FL to SMA antenna connector
  5. 1× mini SIM
  6. 1× micro SIM
  7. SIM slide switch
  8. Modem reset button



Specifications

Adapter interface

USB Type-C

Modem interface





USB 3.0

USB 2.0

SIM card

Form factor

M.2/NGFF B-key 3042

Antenna connecto



2× IPEX/U.FL

2× female SMA

Button

1× push-button (modem reset)

Switch

1× slide switch (SIM select)

LED







1× modem status (yellow)

micro SIM (green)

mini SIM (green)

1× power (green)

Mounting holes

3 mm, 79.6 × 28.2 mm

PCB dimensions

84.6 × 33.2 mm
