AUCM5G-T700

AUCM5G-T700

5G Global Bands USB-C modem MediaTek Solution

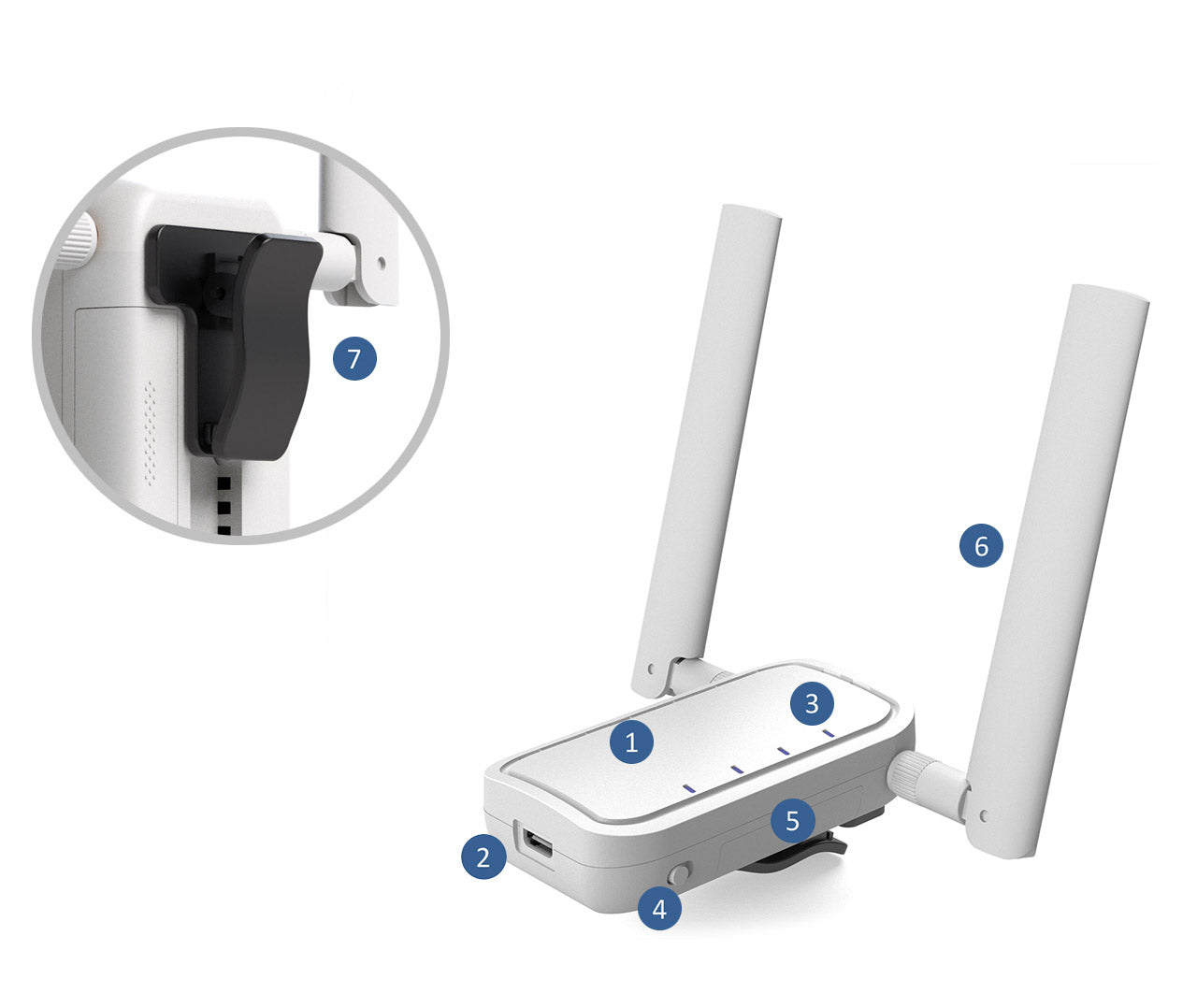

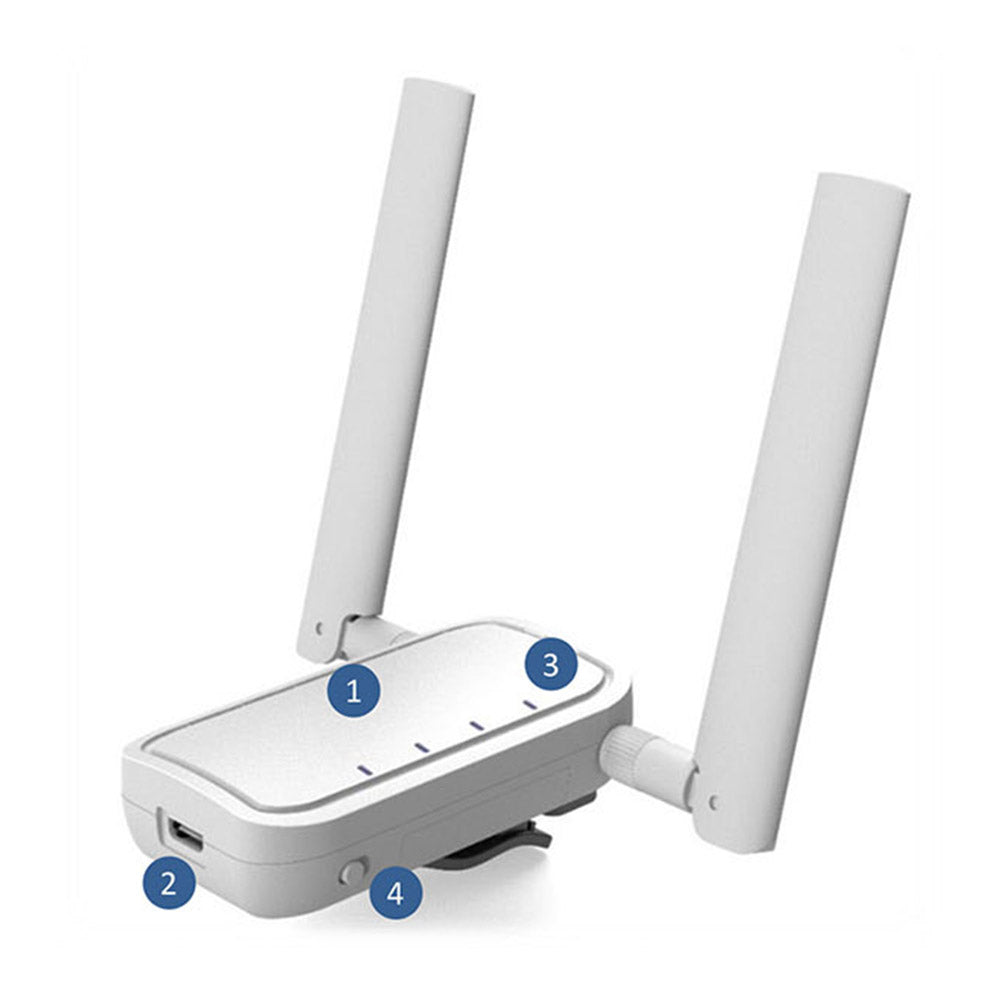

  1. (1) XSquare 5G M.2 modem
  2. (2) USB Type-C interface
  3. (3) 4x LED
  4. (4) Mechanical switch for SIM selection
  5. (5) SIM slot door
  6. (6) 2x external detachable 5G antenna
  7. (7) Screen clip included

AUCM5G-T700 is a travel-ready 5G global USB modem

Global bands is a perfect choice for travelers and users looking for the fastest mobile data communication. Universal and convenient USB Type-C interface, two external SMA antennae connect to allow extension RF cable with the high gain antenna to connect to far telecom 5G base station.



Parameter Value
Embedded module MediaTek T700-2
Cellular network 5G Sub-6 CA/4G (LTE MIMO 4x4, 3CA)/3G
Data transfer 5G NR DL/UL: 2.77 Gbps / 1.25 Gbps
4G DL/UL: 600 Mbps / 150 Mbps
3G DL/UL: 42.2 Mbps / 11.5 Mbps
Frequency bands 5G:
SA Bands:
n1/n2/n3/n5/n7/n8/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
NSA Bands: n1/n2/n3/n5/n8/n20/n28/n38/n41/n66/n71/n77/n78/n79
4G:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/ B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71
3G:
B1/B2/B4/B5/B8
GPS Standard: GPS/GLONASS/BeiDou/Galileo
Bands: L1
Interface USB Type-C with USB 2.0 backward compatibility
Antenna connector 2x external SMA connectors
Button 1x push-button (modem reset)
Switch 1x slide switch (SIM select)
LED 1x modem status
1x micro SIM
1x mini SIM
1x power
Antenna 2x detachable 5G antenna
2x internal 5G antenna (option)
Operating systems Windows
Linux
Power consumption (max.) 12.53 W
Operating temperature -30 ° C -70 ° C
Dimensions 90 x 48 x 19 mm
Weight 50 g
